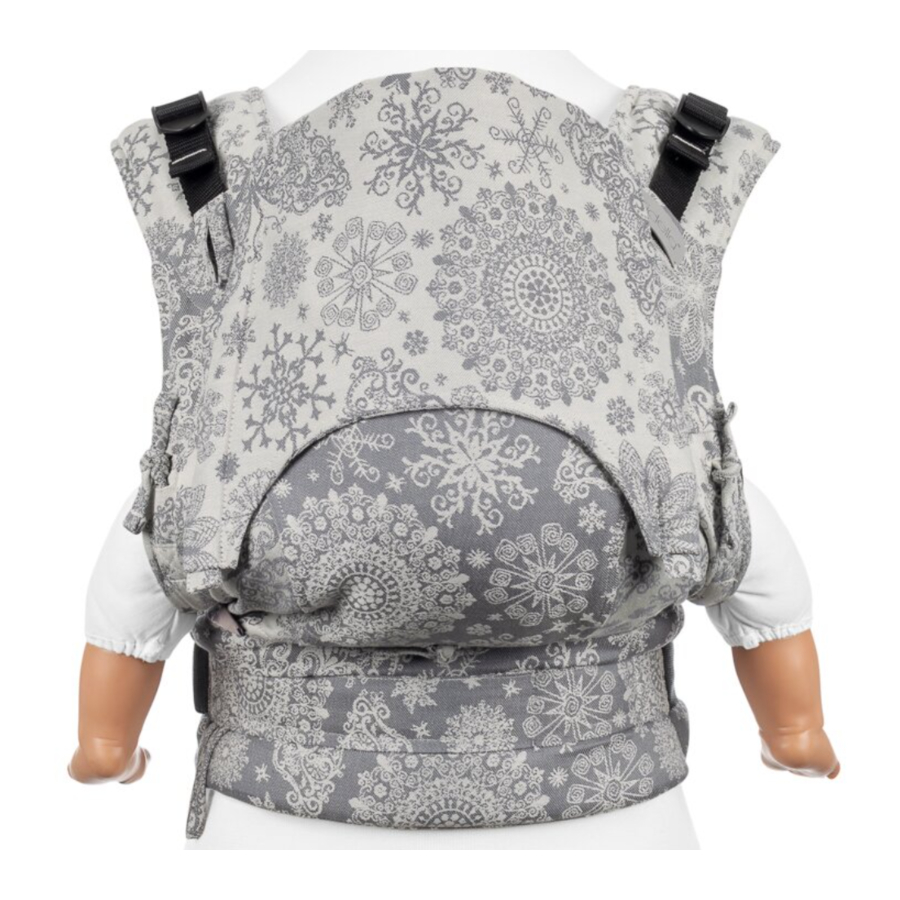

Fidella FUSION, FUSION BEBE, FUSION 2.0 TODDLER Manual

PRODUCT INFORMATION

The Fidella^® Fusion - the handy comfort carrier for an active, everyday lifestyle The Fidella^® Fusion is a light, compact fabric comfort carrier that is especially quick to put on, thanks to the simple buckling system. Ideal for all active parents who want to share every moment with their child at any time. It offers two ergonomic carrying positions: frontal and back.

1. Waist belt, padded and adjustable
2. Plug buckle
3. Straps for panel height adjustment
4. Shoulder straps, padded
5. Back panel, adjustable
6. Straps for panel width reduction
7. Straps for neck adjustment
8. Hood / headrest
9. Hood / headrest straps
10. Attachment points for hood / headrest
11. Sternum strap (breast / neck)
12. Shoulder strap fastener (for younger babys)
13. Shoulder strap fastener (for toddlers)
14. Adjustable buckle shoulder straps

HOW TO CHECK IF YOUR BABY IS IN THE RIGHT POSITION

When carrying in a baby carrier or sling, you should always take this into account!

1. Head kiss height
   Your baby should always sit high enough or low enough for you to kiss it on the head.
2. Free breathing
   The nose should always be free. The rule of thumb is two fingers wide between your baby's chin and chest.
3. Headrest
   As long as your baby cannot hold his head on its own, the head should be additionally supported. For this purpose, either the back part should reach up to the ears or alternatively the headrest should be attached.
4. Spread-Squat-Position
   Ideally, your baby should sit in the squat spread position or M-position. The bar of the baby carrier should extend from the hollow of one knee to hollow of the other knee, the hip joints should face forward, the legs are crouched, the knees at navel height and the thighs are spread. The back should be sufficiently supported and rounded.

ADJUST YOUR BABY CARRIER

Adjustment of the bridge
Place your baby on a comfortable surface. The legs should be in a squat position. Now measure the distance from the hollow of one knee to the hollow of the other knee with a tape measure. Set the bridge to the measured bridge width.

Adjusting the back section
Turn your baby on its side a little bit.
Measure the distance from the edge of the cup to the shoulder. Adjust the height of the back panel to the measured height.

Push the sternum strap as far down as possible.

1. For babies who are not able to sit unassisted fasten the shoulder straps on the waist belt with the lower buckle.

2. For children who are able to sit unassisted fasten the shoulder straps for better weight distribution on the upper buckle.


WARNINGS

KEEP FOR FUTURE REFERENCE

Read all the instructions before using the baby carrier.
The product may only be used by adults.
The Fidella^® Fusion Baby Size is made to carry a baby or small child from 3.5 kg to 15 kg (7.7 lbs - 33 lbs).
The Fidella^® Fusion 2.0 Toddler is made to carry a small child from 10 kg to 22 kg (22 lbs - 48.5 lbs).

• Before each use, check that all straps, buckles, belts and adjustments are undamaged and secure. Also regularly inspect the product for any signs of wear and damage, open seams, torn straps, material defects or damaged buckles.
• Your child should not be carried in a front facing outward position under any circumstances!
• To prevent hazards from falling ensure that your child is securely positioned in the carrier.
• Constantly monitor your child and ensure the mouth and nose are unobstructed.
• Ensure your child's chin is not resting on its chest as its breathing may be restricted which could lead to suffocation.
• Your movement and the child's movement may affect your balance.
• The carer should be aware of the increased risk of your child falling out of the wrap as it becomes more active.
• Take care when bending and leaning forwards or sideways.
• Premature babies, children with breathing problems and children under 4 months have an increased risk of suffocation. In case of doubt, please seek medical advice.
• For pre-term, low birthweight babies and children with medical conditions, seek advice from a health professional before using this product.
• Do not use the carrier if you have balance problems or if your mobility is impaired, for example due to sporting activity, fatigue or illness.
• Never wear a baby carrier while driving or being a passenger in a motor vehicle.
• The baby carrier is not suitable for use during sporting activities e.g. running, cycling, swimming and skiing.
• Be aware of hazards in the domestic environment e.g. heat sources, spilling of hot drinks.
• Since the carrier adds an extra layer of clothing, your baby should not be dressed too warmly while being carried. Check if he/she is sweating at his/ her neck. This way you avoid the risk of your baby overheating (hyperthermia).
• Keep this carrier away from children when it is not in use.
• Only use the product for the number of children for which the product is intended.
• Never use the baby carrier while driving or being a passenger in a motor vehicle.
• Never open the waist belt while the child is sitting in the carrier.

SERVICES AND CARE

Discover our world of carrying
Babywearing is easy and rewarding for you and your child! Our wrapping instructions will help you with your first carrying attempts and inspire you to try new techniques and looks, to bring even more variety to your babywearing.

Become part of the Fidella^® community
Follow us on Instagram, Facebook and Youtube. Get inspired and stay upto-date. Feel free to share your stories with us and more than 160,000 other babywearing enthusiastic parents from the community.

Care Instructions
All our products are pre-washed. So you can use your new baby carrier right out of the box.
Small stains can be easily removed with a damp cloth. If a machine wash should be necessary, please only wash together with cotton and only in the gentle or fine wash cycle up to a maximum of 30°. Fabrics containing silk or viscose should only be washed by hand and exclusively with enzyme-free detergent. This protects the fabric and preserves the shiny effect. In addition, we recommend warm, not hot, ironing so that the fibers contract and form a smooth surface again.
This way you can enjoy your Fidella® product for a long time and the unique

For fabrics made of 100% cotton.

For fabrics with silk or viscose content

FRONT CARRY

HEADREST

TAKING OFF

BACK CARRY

ROLL UP STRAPS

WAISTBELT

TAKING OFF
