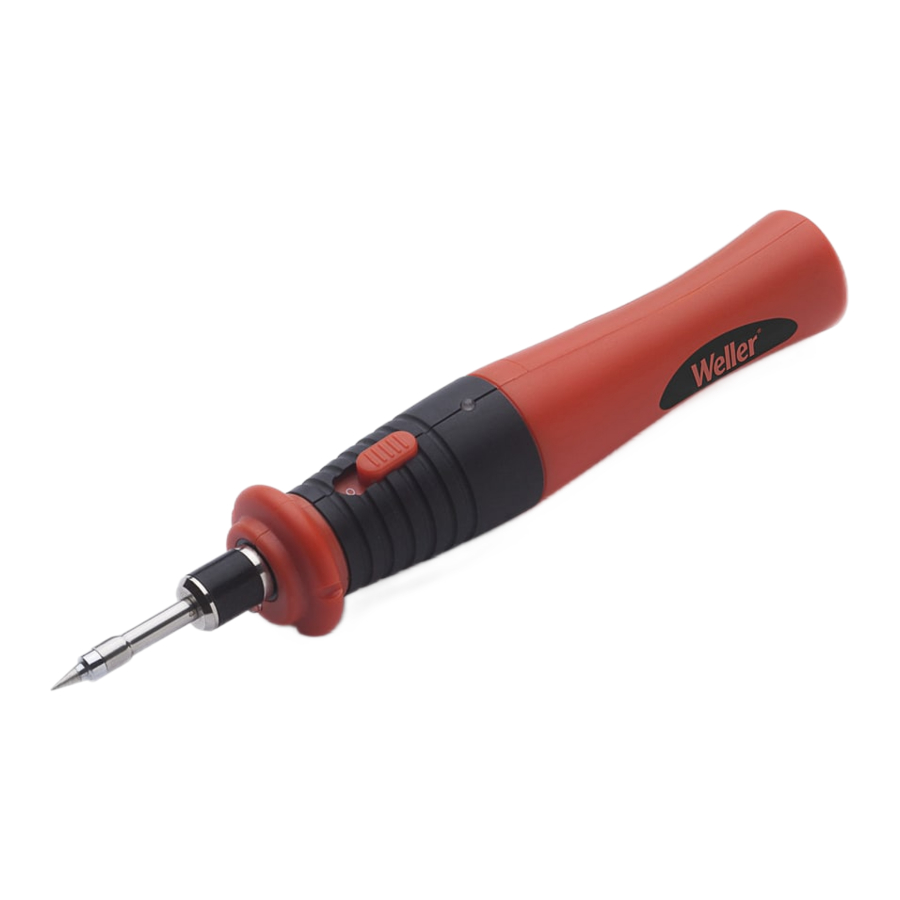

Weller BL 60 Manual

How to use

Technical Data	BL60
Power consumption	12 W
Mains supply voltage Battery Li-Ion	3,7 V
Mains supply / Supply voltage	100 - 240 V ~ 0,4 A 50 / 60 HZ
Output voltage	4,2 V 1000 mA

Safety information

This product should not be used by children. Cleaning and user maintenance should only be performed by persons familiar with the processes, when the product is unplugged and with appropriate safeguards and supervision.

Use the soldering iron exclusively for the purpose indicated in the Operating Instructions of soldering and desoldering under the conditions specified here. The manufacturer shall not be liable for damage resulting from misuse of the machine or unauthorised alterations.

This device is intended for domestic use only.

Fire and explosion hazard!
Risk of burns!

• „ Do not touch the hot soldering tips and keep them away from flammable objects.
• „ After the soldering process, the soldering tool and the workpiece holder are still hot.
• „ Risk of burning through liquid solder.
• „ Keep explosive and flammable objects well away from the device.
• „ Only replace solder tips when cold

Wear appropriate protective clothing to protect yourself against burns. Protect your eyes by wearing appropriate eye protection. Do not use the soldering tool in a damp or wet environment. Never work on voltage-carrying parts. The soldering tool must be operated only in perfect technical working order.

Avoid unintentional operation. Disconnect the soldering tool from the power supply while not in use.

Check that the mains voltage is compatible with the connected load of the soldering iron.

If the electrical tool's power supply cord is damaged, it must be replaced with a specially prefabricated power supply cord available through the customer service organization.

The switching power supply must only be used in dry rooms. Heat is generated during operation.

Use the battery for the intended purpose only. Do not use damaged chargers or batteries. Do not short-circuit the battery. Short-circuiting the poles may damage the battery or the connected item.

Your device is supplied with power by a switching power supply or battery. The battery can be charged and discharged several hundreds of times but will wear out over time. If the battery life is significantly shorter than normal, replace the battery. Only use batteries which have been approved by Weller and only charge batteries using chargers which have been approved by Weller specifically for this purpose.

Fire and explosion hazard!
Do not throw batteries into ire as there is a risk of explosion. Batteries may also explode if they are damaged.

Do not attempt to open or destroy batteries. If fluid leaks from a battery, make sure that this fluid does not come into contact with your skin or eyes. If it does, clean your skin or eyes with water immediately or seek medical attention. Never charge the battery in an environment with acids and easily flammable materials.

Battery should only be used at ambient temperatures between 10°C and +40°C.

Never put the battery on heaters and do not expose it to strong sunlight for a long time.

After being subject to heavy load, let the battery cool down first. If service is required, only send the entire device instead of removing the battery and sending it separately. The tool should be switched off and the soldering tip removed, as special hazardous goods regulations must be complied with otherwise.

Maintenance and repair

Follow the instructions on soldering tip replacement. Use original replacement parts only. Always have your soldering tool repaired by a qualified electrician. For more information, please visit www.weller-tools.com

Warranty

Weller supplies this device with a warranty valid for seven (7) years from the date of purchase. The warranty relates to material and manufacturing defects and covers both replacement parts and labor. The warranty shall be void if damage is due to improper use and if the device has been tampered with by unauthorised persons. The foregoing warranty shall not apply to tips, replacement accessories or the battery. The devices are UL and cUL listed, and comply with all the relevant safety regulations in North America.
