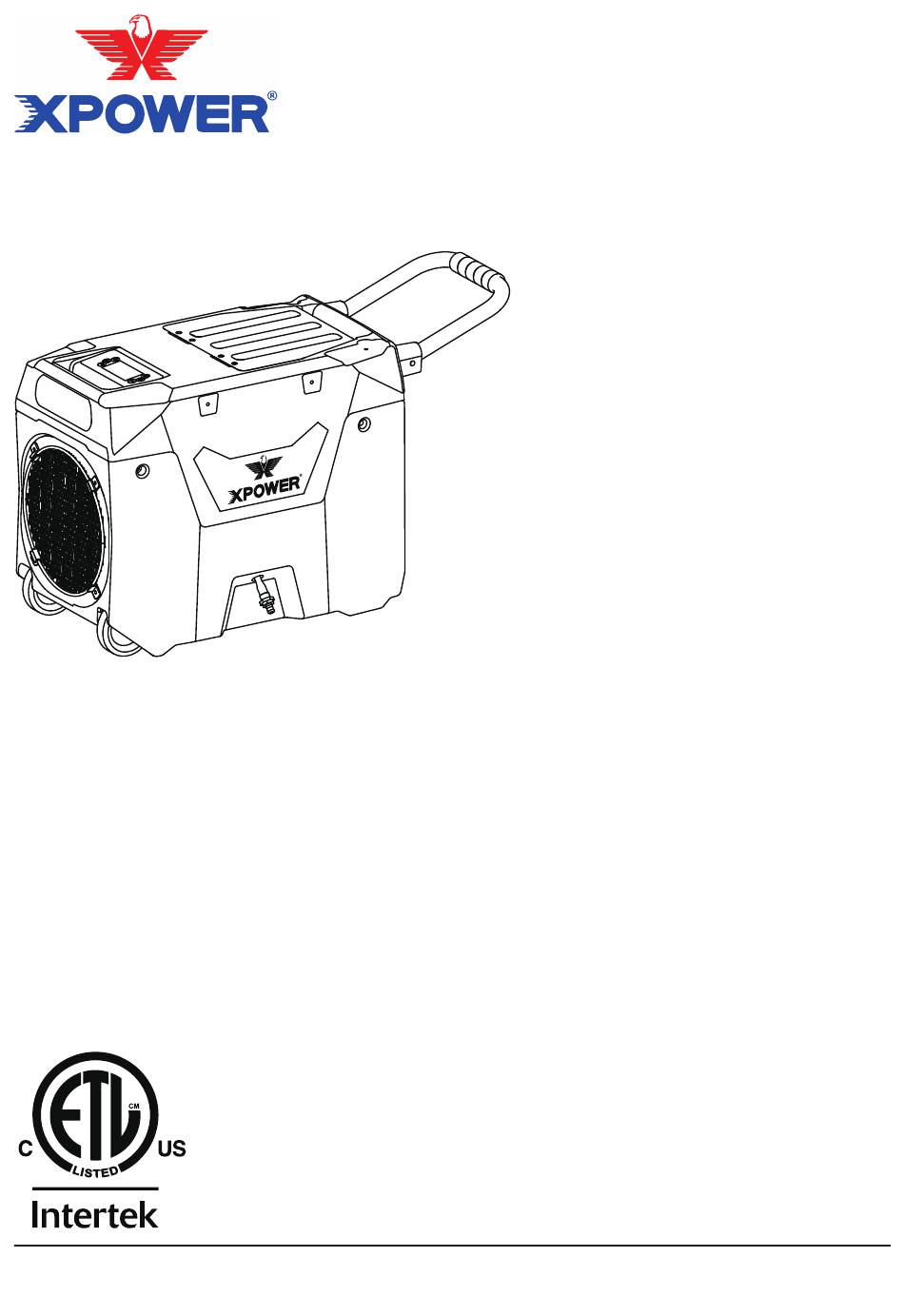

XPower XD-90L Owner's Manual

Low grain refrigerant dehumidifier
Hide thumbs

Advertisement

Table of Contents

Model / Modèle/ Modelo :
XD-90L, XD-130Li
(115V~ , 60Hz)
Low Grain Refrigerant
Dehumidifier Owner's Manual
Read and save these instructions
LGR Déshumidificateur
Manuel d'Emploi
Lisez et gadez ces instructions
LGR Deshumidificador
Refrigerante de Grano Bajo
Manual de Usuario
Lea y guarde estas instrucciones
www.xpower.com | 1-(855)-855-8868 | info@xpower.com
Index: NA-1-A47
Edition: 1.2.Final

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XD-90L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XPower XD-90L

Summary of Contents for XPower XD-90L

  • Page 1 Dehumidifier Owner's Manual Read and save these instructions LGR Déshumidificateur Manuel d'Emploi Lisez et gadez ces instructions LGR Deshumidificador Refrigerante de Grano Bajo Manual de Usuario Lea y guarde estas instrucciones www.xpower.com | 1-(855)-855-8868 | info@xpower.com Index: NA-1-A47 Edition: 1.2.Final...

  • Page 2: Safety Instructions

    DO NOT continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER. • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environment, when not in use.

  • Page 3: Items Included

    LGR Dehumidifier Introduction • XPOWER LGR (Low Grain Refrigerant) Commercial Dehumidifiers are designed to maximize water extraction while combining the highest efficiency in performance and portability. • Latest technology and a high efficiency extraction process ensures peak performance in even the most challenging environments, such as extreme temperature and low environment humidity.
  • Page 4 Parts Description (XD-90L) FRONT Control Panel Compartment Hand Carry cover Handle Hand Carry Handle Trolley Handle Intake (Grille) Filter REAR Hand Carry Compartment Handle cover Control Panel Trolley Hand Carry Handle Handle Ducting Frame Hangers Exhaust (Grille) Wheels Drainage Outlet...
  • Page 5 Parts Description (XD-130Li) FRONT Compartment cover Hand Carry Hand Carry Handle Handle Trolley Handle Intake (Grille) Filter REAR Compartment Hand Carry cover Control Handle Panel Hand Carry Trolley Handle Handle Ducting Frame Exhaust Hangers (Grille) Wheels Drainage Outlet English - 5...
  • Page 6 Turn off the air conditioning. • Air Circulation: It’s suggested to have a constant efficient air circulation inside the area that you are going to work in, for example, setting up a circulation with XPOWER Air Mover combinations. • Environment Temperature/Humidity: The dehumidifier is designed to work in an environment with a temperature of 33 °F to 105 °F (0.6 °C to 40.6 °C) and relative...
  • Page 7 Drain Hose Installation Control • Attach the drain hose Panel inlet to the drain outlet of the machine. • The machine’s outlet can be found as the graph on the left. Drainage Outlet Drain Hose • Please have a separate Press to Install/Release container to collect the...
  • Page 8 Control Panel For Model XD-130Li: Please refer to Quick Start Guide. For Model XD-90L: Power Control Temperature Display Fan Speed Manual Drainage Evaporator Coil/ Environment Temperature Switch °C TOTAL TIME Humidity Control Fahrenheit/Celsius Relative Humidity Total Running Time Scale Switch...
  • Page 9 Control Panel (Continued) °C Temperature Display TOTAL TIME This will show the temperature of the evaporator or environment (See Page 8: °C Evaporator Coil/Environment Temperature Switch). When in Celsius scale, will TOTAL TIME °C be illuminated. When in Fahrenheit scale, will turn off.
  • Page 10 (See Page 8: Humidity Control). The machine will try to match the setting humidity level and maintain it. • For model XD-90L, if you want the machine to work constantly, please adjust the humidity level down to 30%, and then press “-”...
  • Page 11 • Please do not lift the drainage hose higher than 16 feet (5 m) above the machine. °C Calculate the usage time TOTAL TIME • For model XD-90L, write down the ending time right before the machine shuts down. Compare the starting time and the ending time to calculate the usage time.
  • Page 12 Start Your Job (Continued) Transportation Before transportation, you should always: • Process a drainage manually. Otherwise the water may spill and enter in core parts of the machine during transportation. This may also void the warranty. • Disconnect the machine from the power source. •...

  • Page 13: User Maintenance Instructions

    User Maintenance Instructions Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty. Before maintenance or storage, you should always: • Process a drainage manually. • Disconnect the machine from the power source. •...
  • Page 14 Organize the Power Cord and Drain Hose Compartment Hanger Outlet • Remove the drain hose from the outlet of the machine. • Open the velcro on the hangers. • Hang the drain hose on the hangers and close the velcro. •...

  • Page 15: Troubleshooting Guide

    Troubleshooting Guide PROBLEM POSSIBLE CAUSE SOLUTION Dehumidifier No electricity. Check for power supply. does not start The power cord is not properly Remove and reconnect the plugged in. power cord. Dehumidifier The dehumidification system is Wait for 3 minutes runs but humidity within startup process.
  • Page 16 5 E4 or E5 minutes every half an hour. Contact XPOWER for more assistance. If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions. English - 16...

  • Page 17: Technical Specification

    82.0 x 32.7 x 50.2 cm 96.8 x 46.4 x 55.7 cm Unit Weight 71.2 lbs. / 32.3 kg 90.4 lbs. / 41.0 kg Safety Certification ETL/C-ETL If your product(s) is not listed above, please visit www.xpower.com for more information. English - 17...
  • Page 18 (3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the most current address provided on www.xpower.com. Please also have your original proof of purchase and the serial number(s) of your product(s) ready when you contact XPOWER.
  • Page 19 (1) Request a RMA (Return-Merchandise-Authorization) number. (2) Use the original or an equivalent packaging, prepay shipping charges at your own expense to the address provided by XPOWER, with the RMA number on the shipping label or the packaging. (3) Include all the original parts and components.
  • Page 20 XPOWER Manufacture, INC. 668 S. 6th Ave., City of Industry, CA 91746 USA www.xpower.com | 1-(855)-855-8868 | info@xpower.com Read and save these instructions Lisez et épargnez ces instructions Lea y guarde estas instrucciones Index: NA-1-A47 Edition: 1.2.Final...

This manual is also suitable for:

Xd-130li
