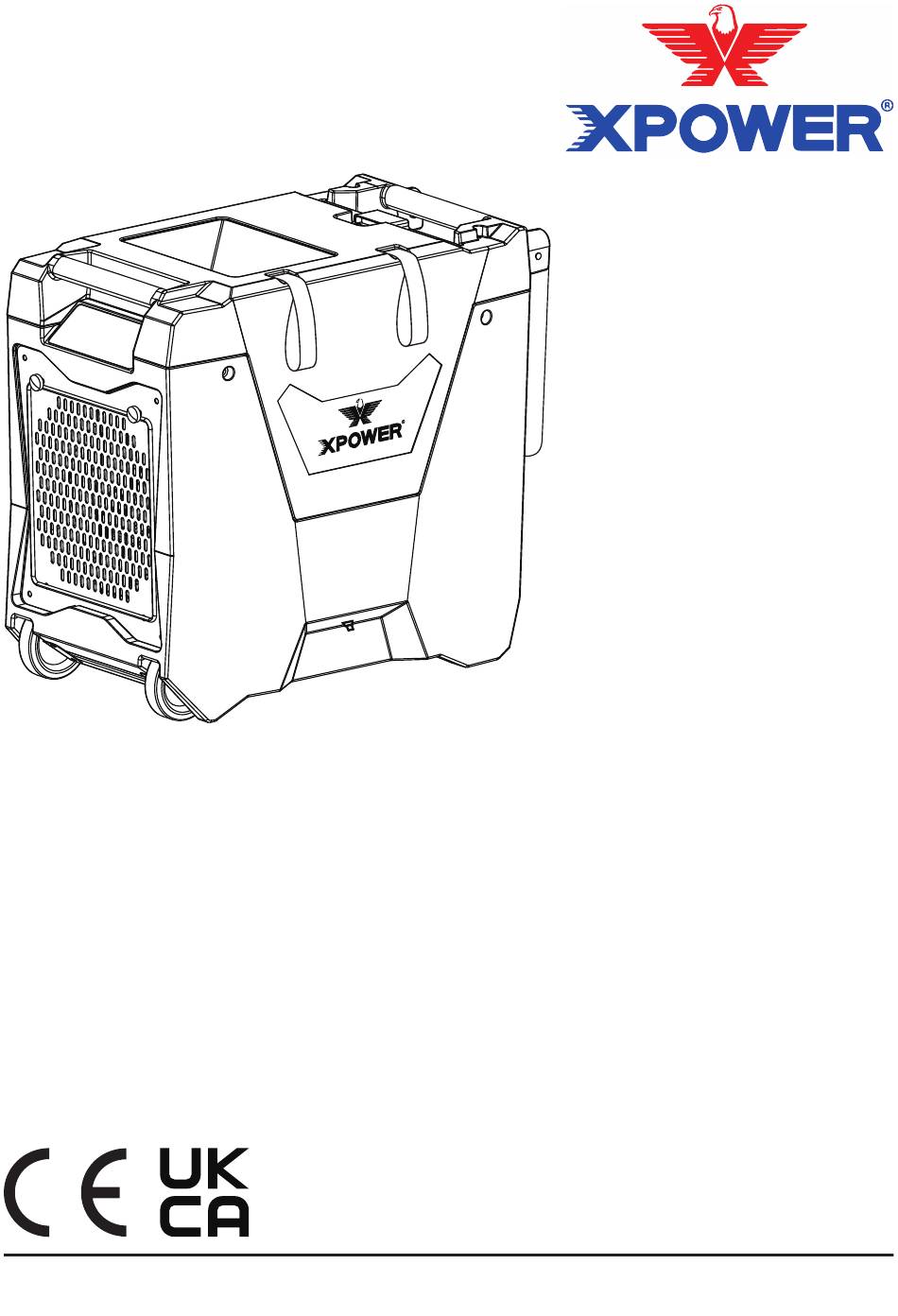

- Page 1 Low Grain Refrigerant Dehumidifier Owner's Manual Model XD-85L, XD-85LH, XD-125L (220-240V~, 50Hz) Read and save these instructions www.xpower.com | www.tx-5.com.hk Index: EU-1-A1 Edition: 2.0.Final...
- Page 2 • If the appliance is damaged or it malfunctions, continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER. • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environment, when not in use.
- Page 3 IMPORTANT SAFETY INSTRUCTION Please read the instruction carefully before operation. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 LGR Dehumidifier Introduction • XPOWER LGR (Low Grain Refrigerant) Dehumidifiers are designed to maximize water extraction while combining the highest efficiency in performance and portability. • Latest technology and a high efficiency extraction process ensures peak performance in even the most challenging environments, such as extreme temperature and low environment humidity.
- Page 5 Parts Description FRONT Secondary Secondary Filter Case Filter Hand Carry Hand Carry Handle Handle Trolley Hangers Handle* Primary Secondary Intake (Grille) Intake Power Cord Wheels* Primary Filter REAR Hand Carry Handle Hand Carry Handle Control Panel Trolley Handle* Ducting Frame Exhaust (Grille) Drainage...
- Page 6 Parts Description (Continued) Circuit Diagram XD-85/XD-85LH XD-125L Circuit Diagram RH/Temp Sensor2 Pump RH/Temp2 Display Display Board Anion Pump RH/Temp Hi / Lo COMP Full 1 AC-N Water Full COMP AC-N Defrosting Sensor AC-L Power Board RH/Temp Power AC220-240V / 50Hz Sensor...
- Page 7 Turn off the air conditioning. • Air Circulation: It’s suggested to have a constant efficient air circulation inside the area that you are going to work in, for example, setting up a circulation with XPOWER Air Mover combinations. • Environment Temperature/Humidity: The dehumidifier is designed to work in an environment with a temperature of 0.6 °C to 40.6 °C (33 °F to 105 °F) and relative...
- Page 8 Drain Hose Installation • Attach the drain hose inlet to the drain outlet Control Panel of the machine. • The machine’s outlet can be found as the graph on the left. Drain Hose • Please have a separate Press to Install/Release container to collect the water coming from the...
- Page 9 ② ①, ⑤ ③ ④ Exhaust Ducting (Lay Flat) (30.5 cm/12 inch Diameter) Screw off the two screws. Turn the ducting hose around the ① ④ Take out the ducting frame. frame to its back. ② Let the ducting hose go through the Reinstall the ducting frame and screw ③...
- Page 10 Installation and Operation Guide (Continued) Control Panel (XD-85/XD-85LH) Power Control Temperature Display Fan Speed Manual Drainage Evaporator Coil/ Environment Temperature Switch °C TOTAL TIME Humidity Control Fahrenheit/Celsius Relative Humidity Total Running Time Scale Switch Display Buttons (XD-85/XD-85LH) Power Control Manual Drainage Press to switch the dehumidifier ON or Press to drain manually.
- Page 11 Control Panel (Continued) (XD-85/XD-85LH) °C Temperature Display TOTAL TIME This will show the temperature of the evaporator or environment (See Page 8: °C Evaporator Coil/Environment Temperature Switch). When in Celsius scale, will TOTAL TIME °C be illuminated. When in Fahrenheit scale, will turn off.
- Page 12 Control Panel (XD-125L) Icons Fan Speed Manual Drainage / Cancel Inlet Humidity Inlet Temperature Humidity Set Point Power Control Outlet Humidity / Temperature Configuration Total Running Time Humidity Control / Timer Configuration / Value Change Buttons (XD-125L Power Button Configuration Press to switch the dehumidifier ON or OFF.
- Page 13 Info (XD-125L) Dehumidification Drainage Blink when the machine is now preparing Blink when the machine is in drainage for dehumidification. Illuminate when the process or when the water tank is full. machine is dehumidifying. Timer Enteisung Indicate the machine is now defrosting. Indicate a timer is configured.
- Page 14 Installation and Operation Guide (Continued) Start Your Job Turn on the dehumidifier Press the Power Control button to switch on the machine. You may see the dehumidification light is flashing. Please wait for 3 minutes (180 seconds) until the machine completes the startup. °C Write down the starting time TOTAL TIME...
- Page 15 Installation and Operation Guide (Continued) Start Your Job (Continued) Secondary Intake (Opened) Secondary Intake (Closed) Secondary Filter Case Important: Close the secondary intake when environment temperature falls under 20 °C (68 °F) or in contaminated environment for better efficiency. To close the secondary intake, remover the filter case, rotate and re-install. Drainage (Important) •...
- Page 16 Installation and Operation Guide (Continued) Start Your Job (Continued) Turn off the dehumidifier Press the Power Control button to switch off the machine. When turned off, the machine will automatically process drainage for 25 seconds. Please wait until this process completes.
- Page 17 User Maintenance Instructions Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty. Before maintenance or storage, you should always: • Process a drainage manually. • Disconnect the machine from the power source. •...
- Page 18 User Maintenance Instructions (Continued) Clean the surface • Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water directly. • Do not clean the fins of the evaporator and condenser by yourself. Store the machine •...
- Page 19 Failure of the defrost sensor. The dehumidification can function but will defrost for 5 minutes every half an hour. Contact XPOWER or authorised parties. If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions.
- Page 20 Technical Specification MODEL NUMBER XD-85L2 XD-85LH XD-125L Voltage / Frequency 220 - 240 V~ , 50 Hz Rated Power 985 W 1300W 26.7 °C (80 °F) / 60% RH Amperage 4.3 A 5.7 A Operation Temperature/ 0.6 °C to 40.6 °C (33 °F - 105 °F) / Relative Humidity 20% RH or higher Requirement...
- Page 21 This limited warranty covers defects in materials and workmanship in your XPOWER- branded products. Contact an XPOWER Distributor in your region for warranty service and parts replacement. Items mentioned but not limited to below are not covered by warranty: (1) Power cord, batteries, filters or any other components considered as a “consumable...
- Page 24 XPOWER Manufacture, INC. 668 S. 6th Ave., City of Industry, CA 91746 USA Read and save these instructions www.xpower.com | www.tx-5.com.hk Index: EU-1-A1 Edition: 2.0.Final...
