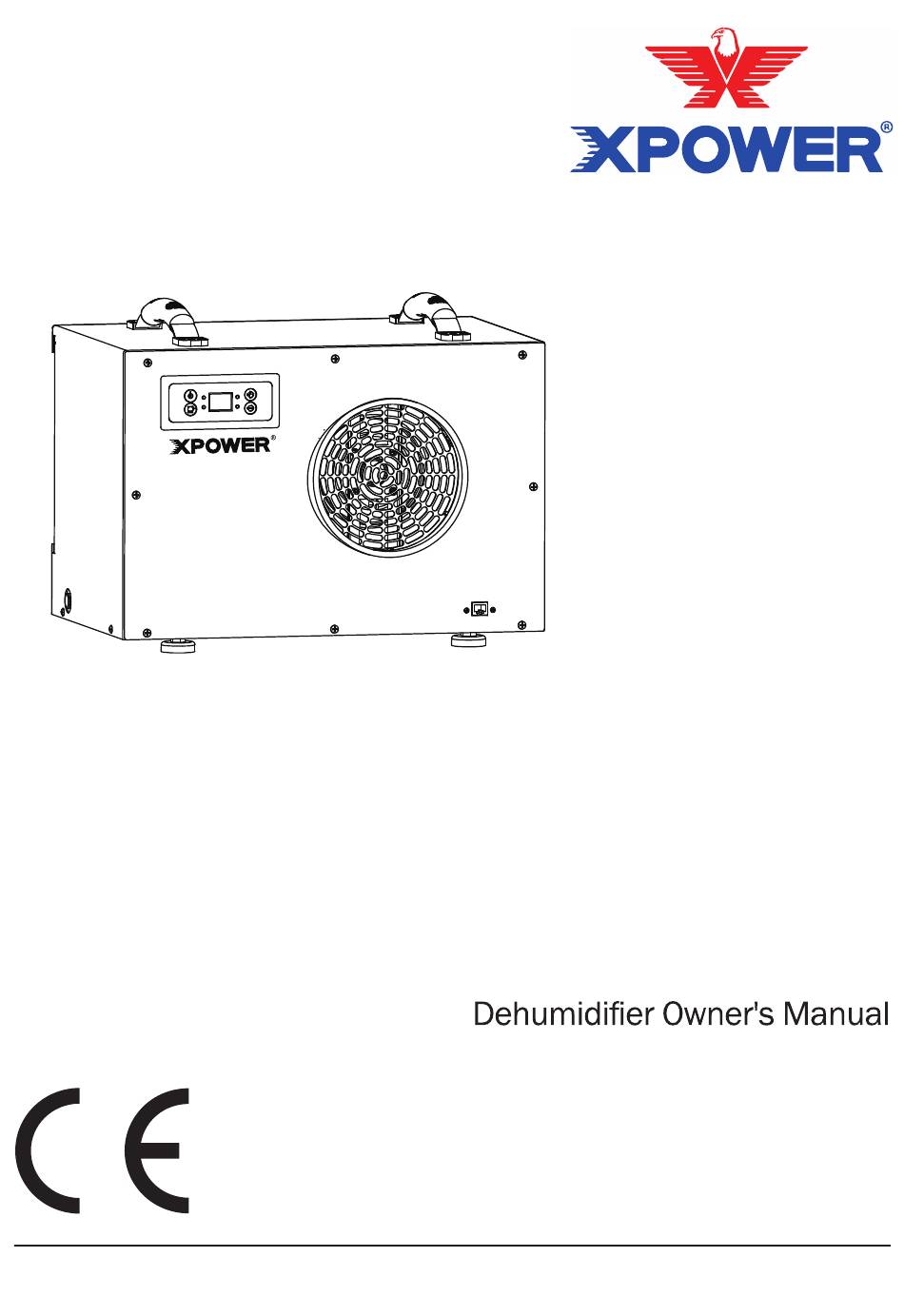

XPower BD-65 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

Model :
BD-65,
BD-90, BD-90P
BD-120, BD-120P
(220-240V~, 50Hz)
Read and save these instructions
www.xpower.com | www.tx-5.com.hk
Index: EU-1-A44
Edition: 1.0.Final

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BD-65 and is the answer not in the manual?

Questions and answers

Related Manuals for XPower BD-65

Summary of Contents for XPower BD-65

  • Page 1 Model : BD-65, BD-90, BD-90P BD-120, BD-120P (220-240V~, 50Hz) Read and save these instructions www.xpower.com | www.tx-5.com.hk Index: EU-1-A44 Edition: 1.0.Final...

  • Page 2: Safety Instructions

    • If the appliance is damaged or it malfunctions, continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER. • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environment, when not in use.
  • Page 3 MAY NOT • Be aware that refrigerants contain an odour. • XPOWER whole house dehumidifiers are designed to effectively remove excess moisture from the air and maintain proper humidity levels with their high performance and efficiency. • The standard environmentally friendly refrigerant and auto defrost function make it operate efficiently in temperatures as low as 1°C.

  • Page 4: Items Included

    XD-75L, XD-85L (115V 60HZ) Read and save these instructions before use www.vikingairmovers.com | 1-(855)-855-8868 | info@Viking.com Index: NA-1-A1 Edition: 1.1.Alpha Owner’s Manual x 1 Parts Description For Model BD-65 FRONT Handle Control Panel Air Outlet Gravity Drainage Remote Control Outlet...
  • Page 5 REAR Handle Air Inlet / Filter Pumping Drainage Outlet Circuit Dlagram Display Board Defrosting Sensor Pump Black White Blue FAN1 Black Black Yellow/ Floater Green AC-2 Power Board Brown RH/Temp Sensor AC-N Black White White Yellow/ Green Yellow/ Green Brown Yellow Blue Yellow/...
  • Page 6 For Model BD-90, BD-90P and BD-120P FRONT Handle Control Panel Air Outlet Compartment Auxiliary Terminals Pumping / Gravity Remote Control Drainage Outlet Cable Port REAR Handle Filter Air Inlet English - 6...
  • Page 7 Installation and Operation Guide Selecting a Location (Important) UPRIGHT • Positioning: Before using the dehumidifier, place the unit for at least 1 hour before use to allow the refrigerant to stabilize. If the unit was tilted on its side or upside-down during transportation, set the unit UPRIGHT for at least 4 hours before...
  • Page 8 Drain Hose Installation For model BD-65 Gravity Grain Model (1) Remove and save the drain cap on the left side of the machine (2) Attach the garden hose (Inner diame- ter:13mm, excluded) to the gravity drain outlet of the machine.
  • Page 9 Extension Setup (Optional) Intake Ducting* Attach the ducting hose to the intake adapter. * Ducting Diameter: For BD-65: over 16.5 cm; For BD-90 series: over 25.0 cm; Exhaust Ducting* (Lay Flat) Attach the ducting hose to the exhaust adapter. * For BD-90 Series and BD-120 Series only.
  • Page 10 Control Panel Power Control Humidity Control Manual Drainage Buttons Power Control Manual Drainage Press to drain manually. Manual drain Press to switch the dehumidifier ON or °C °C TOTAL TIME TOTAL TIME OFF. °C will last for 45 seconds. TOTAL TIME °C Humidity Control TOTAL TIME...
  • Page 11 Remote Control Instructions (Optional) XPOWER BD Series Dehumidifiers can be controlled using an optional remote accessory. The dehumidistat connects to your BD Series Dehumidifier via a 8.0 m CAT5e cable. The dehumidistat contains an integrated sensor which gives you multiple options for remotely controlling your unit, in addition to monitoring the conditions surrounding the dehumidifier.
  • Page 12 Remote Control Instructions (Optional， Continued) LCD Monitor 1.Power Control Press to switch the dehumidifier ON or OFF. 2.Humidity Control ▲▼ Tap ▲▼ to increase/decrease the desired humidity level by 1% increments. 3. Mode M Use the Mode button to switch between dehumidification and a ducted application.
  • Page 13 Start Your Job Turn on the dehumidifier Press the Power Control button to switch on the machine. You may see the dehumidification light is flashing. Please wait for 3 minutes (180 seconds) until the machine completes the startup. Set the desired humidity level •...
  • Page 14 Start Your Job (Continued) Drainage (Important) • Press the Manual Drainage button to process drainage manually. It will last for 45 seconds and won’t stop dehumidification or defrosting process. • If the water tank is full or not positioned horizontally, the drainage indicator light is green Any dehumidification or defrosting process will pause and the machine will automatically process drainage for 45 seconds.

  • Page 15: User Maintenance Instructions

    1. Remove the air fiter from the device. 2. For the filter of BD-65, it is not washable. Use a vacuum to remove loose debris. For the filter of BD-90, BD-90P, BD-120, BD-120P, clean and wash the filters with water.

  • Page 16: Troubleshooting Guide

    Troubleshooting Guide PROBLEM POSSIBLE CAUSE SOLUTION Dehumidifier No electricity. Check for power supply. does not start The power cord is not properly Remove and reconnect the plugged in. power cord. Dehumidifier The dehumidification system is Wait for 3 minutes runs but humidity within startup process.
  • Page 17 The dehumidification can function but will sensor. defrost for 5 minutes every half an hour. Contact XPOWER for more assistance. If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions. English - 17...
  • Page 18 MODEL NUMBER BD-65 BD-90 BD-90P BD-120 BD-120P Voltage / Frequency 220-240V~, 50Hz Power 600W 950W 1300W Operation Temperature/Relative 1 °C to 40 °C / 36% RH or higher Humidity Requirement Rated Airflow 180 CFM 336 CFM Speed Control Automatic Water Removal Efficiency...
  • Page 19 XPOWER Limited Warranty 1 YEAR LIMITED WARRANTY XPOWER-branded products purchased in the U.S. from authorized distributors include a 1-year limited warranty. Contact XPOWER to confirm warranty information about your product(s). This limited warranty covers defects in materials and workmanship in your XPOWER- branded products.
  • Page 20 XPOWER Manufacture, INC. 668 S. 6th Ave., City of Industry, San Gabriel, CA 91776 USA Read and save these instructions www.xpower.com | www.tx-5.com.hk Index: EU-1-A44 Edition: 1.0.Final...

This manual is also suitable for:

Bd-90Bd-90pBd-120Bd-120p
