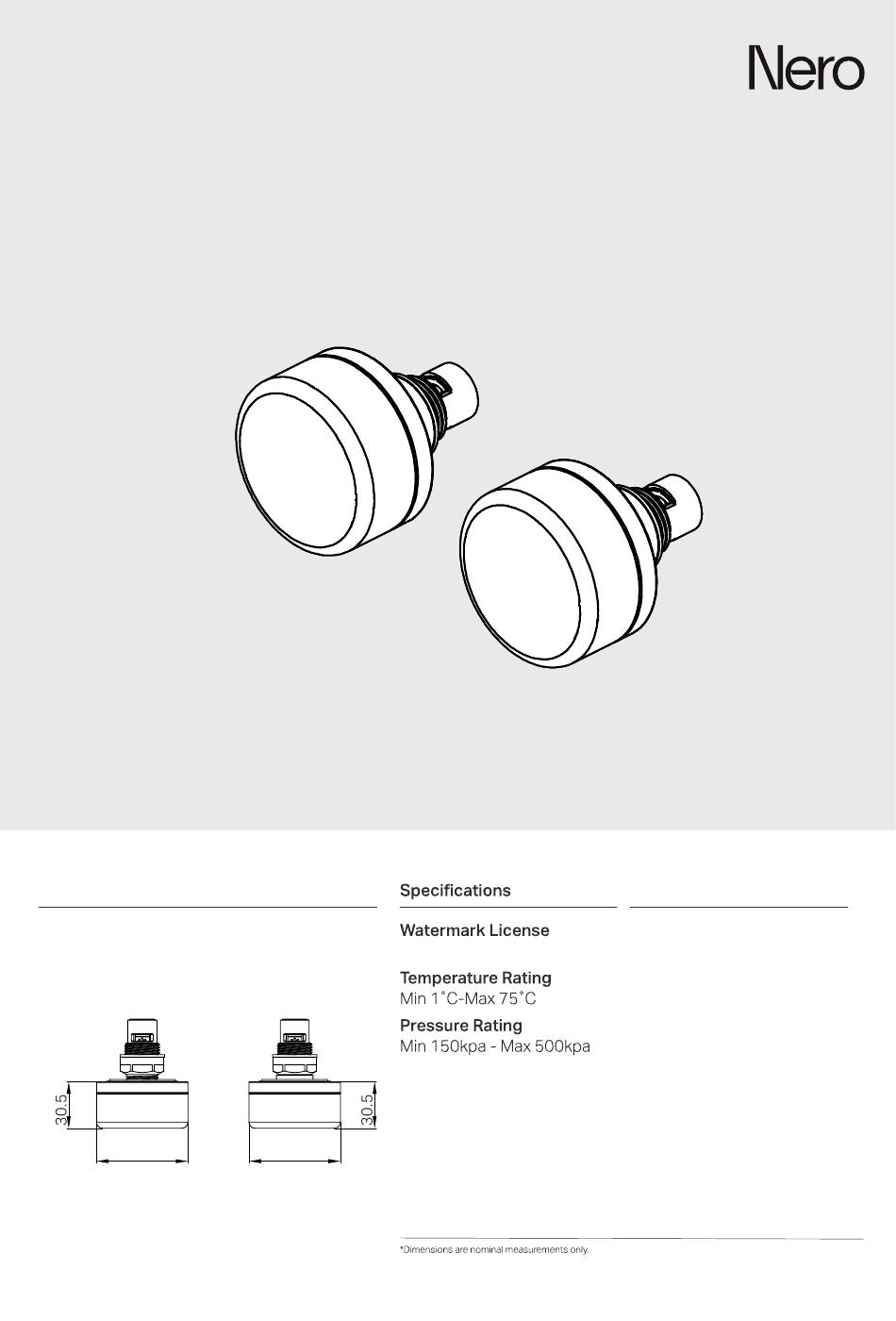

- Page 1 Serenity Wall Top Assembly Versions:202504 Group Item Drawing 2x Spindles 2x Handwheels WM-060073 Ø60 Ø60 Note: In Wall Body/ Breech Not Included.
- Page 2 Finish & SKU Serenity Wall Top Assembly With Carrara Handle 24D005BZ/ 24D005BG / 24D005BN/24D005GM / 24D005MB / 24D005CH Serenity Wall Top Assembly With Verde Alpi Handle 24D006BZ/ 24D006BG / 24D006BN/24D006GM / 24D006MB / 24D006CH Serenity Wall Top Assembly With Rome Travertine Handle 24D007BZ/ 24D007BG / 24D007BN/24D007GM / 24D007MB / 24D007CH Serenity Wall Top Assembly With Arabescato Corchia Handle 24D008BZ/ 24D008BG / 24D008BN/24D008GM / 24D008MB / 24D008CH...
-
Page 3: General Instructions
Installation Instruction GENERAL INSTRUCTIONS: - This product must be installed by a licensed plumber. Ensure that the installation complies with the Australian/New Zealand Standard AS/NZS 3500. - All pipework must be thoroughly flushed prior to the installation of the mixer. In-line filters must be fitted on both hot and cold supplies to prevent foreign particles from damaging the ceramic cartridge. - Page 4 16-31mm 23mm 2x Spindles Body Seat Plasterboard Ceramic Tile 1. Install standard body seat (Not included in the package). 2x Washers 2x Locking Nuts 2x Spindles 2x Spindle Adaptors 2x M5 Screws 2x O-Rings 2x Locking Plates 2. Disassemble pre-installed components from hot and cold spindles. Release M5 Screw to remove spindle adaptor, locking nut, locking plate and washer in sequence.
- Page 5 Locking Nuts Thread the locking nut onto the spindle and tighten firmly to hold the assembly in place. Cutting Gauge 5. Screw cutting gauge onto the spindle tightly. Trim Any Excess Thread 6. Trim any excess thread. Remove the cutting gauges after this step.
- Page 6 O-Ring Handwheel Spindle Adaptor The spindle The spindle adaptor on adaptor on Splines On the red valve the blue valve The Handwheel Gears On The Spindle Adaptor Install the handwheel Install the handwheel on the red valve on the blue valve 8.
- Page 7 9. Turn on the drainage system and water supply, and inspect all connections for any signs of leakage. Note: If you bought marble handwheel products, there are no hot/cold markings are applied to the handwheels. Tip: For metal handwheels, ensure the handwheel marked "H" is installed on the left side and the handwheel marked "C"...
- Page 8 3170862...
