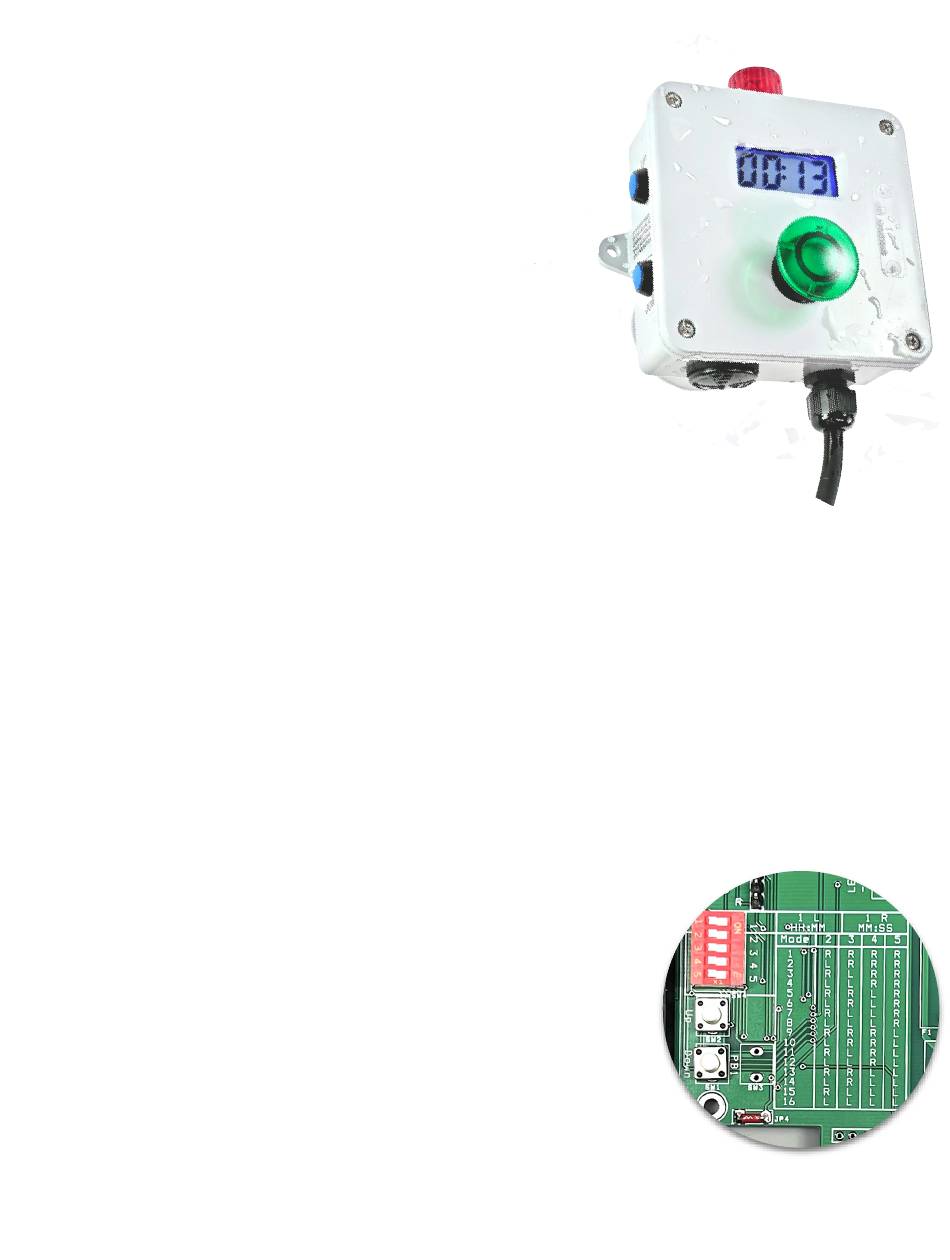

1. GENERAL
Multi purpose waterproof timer with many
behaviors to suit many different applications.
Loud buzzer and bright light.
2. SETUP.
Press the front (green) button to start a
countdown cycle. Notice that there is
an "early warning" a few seconds
before the end when the buzzer sounds.
Change the minutes setting by using the blue
buttons on the side.
To change the seconds, hold the green button, and
then the blue buttons can be immediately adjusted.
(while continuing to hold the green button)
The "early warning" time can be changed by holding the front
(green) button for 2 seconds or more. Then the "early warning" time
can be adjusted. If you want to adjust the seconds, then hold down (or
continue to hold) the front green button while adjusting the blue buttons.
Then release the buttons. After 3 seconds the display will blink to signal that
the new time is saved..
3. OTHER POINTS
If counting in HH:MM, dots will chase along the bottom of the display to let
you know that its timing. When the time counts continues lower than 99
minutes, it converts to MM:SS for the remainder of the countdown.
There is a relay output that supports a 15A resistive load. (so inductive
loads like motors must be less than 15A) Relay can be N.O. or N.C by
landing your wires on the appropriate terminals.
4. DIFFERENT BEHAVIORS
There are many behaviors that can be selected using the
red DIP switches. Each mode is best understood by
referring to the "logic charts" that details the inputs and
outputs for each mode.
Switch #1 is only for selecting HH:MM or MM:SS.
Switches 2-5 determine the behaviors in the chart
below:
T5 TIMER
1
of
2
