Summary of Contents for Varytec Easy Scan XT3 LED

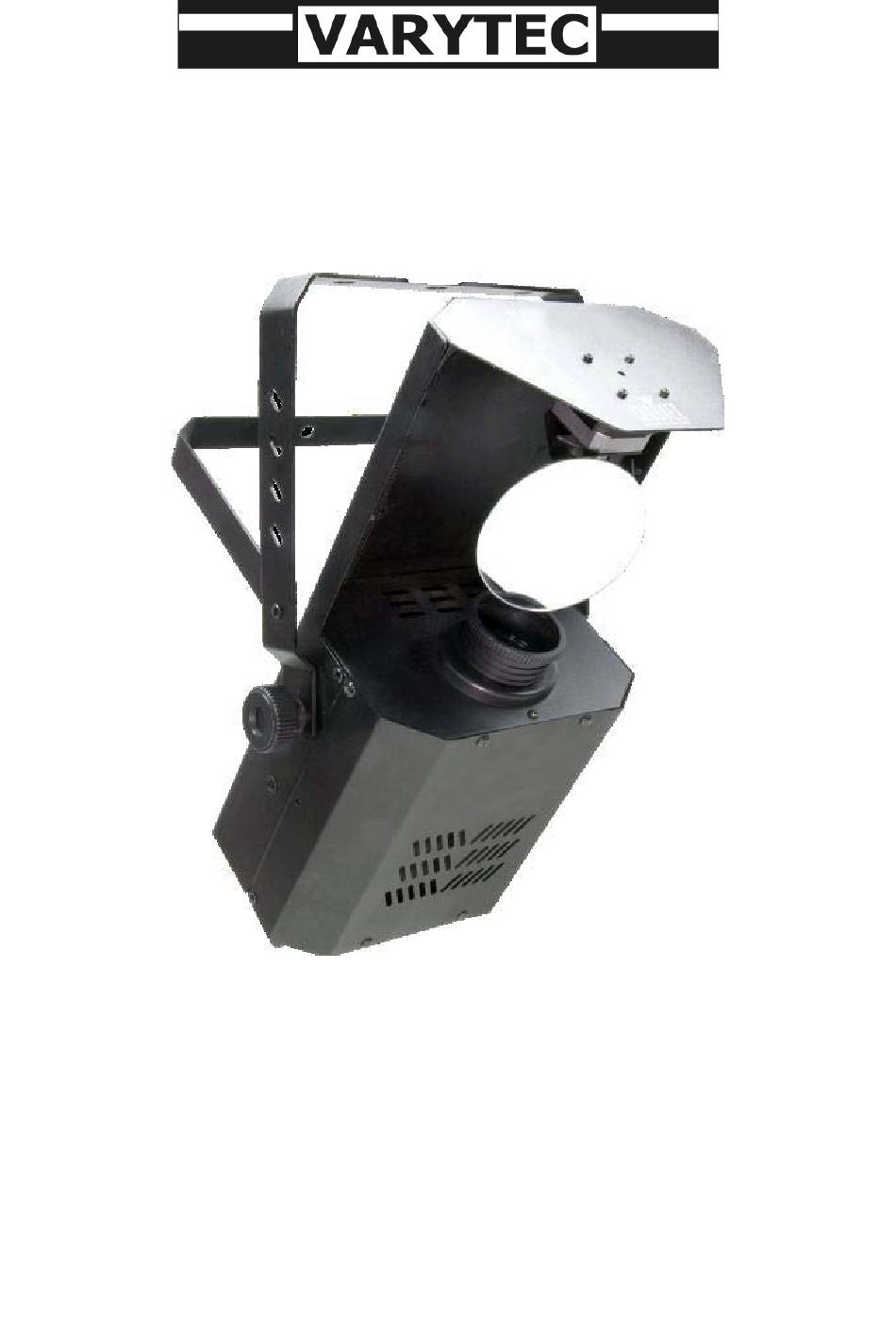

- Page 1 User’s manual Easy Scan XT3 LED...
-
Page 2: Table Of Contents
Table of content Safety instructions........................... 3 Before you begin..........................4 2.1. What is included........................4 2.2. AC Power ..........................4 Introduction ............................. 4 3.1. Features ..........................4 Product overview ..........................5 DMX Channel..........................6 Setup............................... 6 6.1. Light Source ........................... 6 6.2. -
Page 3: Safety Instructions
1. Safety instructions FOR SAFE AND EFFICIENT OPERATION Be careful with heat and extreme temperatureAvoid exposing it to direct rays of the sun or near a heating appliance. Not put it in a temperature bellow 41°F /5°C, or exceeding 95°F /35°C. Keep away from humidity, water and dust Do not place the set in a location with high humidity or lots of dust. -
Page 4: Before You Begin
2. Before you begin 2.1. What is included 1 x Easy Scan XT3 LED 1 x Power Cord 1 x Warranty Card 1 x User manual 2.2. AC Power This fixture has an auto-switching power supply that can accommodate a wide range of input voltages (100 V - 240 VAC, 50/60 Hz). -
Page 5: Product Overview
4. Product overview 5 / 14... -
Page 6: Dmx Channel
5. DMX Channel 6. Setup 6.1. Light Source The fixture does not use a halogen lamp as its light source. Instead, it uses a high luminosity LED, which comes preinstalled, and does not need to be setup or replaced. 6.2. Manual focus To adjust the focus, please follow the instructions below: 1) If operating in stand-alone mode, turn the music down... -
Page 7: Fixture Linking
7. Fixture Linking 7.1. Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 8: Pin To 5Pin Connector
7.3. 3 pin to 5pin connector A lot of fixtures are still using a 5pole DMX connector. In this case you can buy a adaptor or built up a connector on your own. Wiring then is as following: 8. Mounting It is important never to obstruct the fan or vents pathway. -
Page 9: Using Dmx Mode
9.2. Using DMX Mode Daisy chain the fixture(s), using DMX cables, from the output of the DMX controller as indicated in the Setup section. Assign the individual DMX address, using DIP switches 1 to 9 on each unit. When the fixtures detect DMX signal, they will automatically switch to DMX operation mode. 9.3. -
Page 10: Setting The Starting Address
9.4. Setting the starting Address Set the starting address using the group of DIP switches located usually on bottom of the fixture. Each DIP switch has an associated value. Adding the value of each switch in the ON position will provide the starting address. -
Page 11: Dmx Quick Reference Chart
9.4.2. DMX Quick reference chart 11 / 14... -
Page 12: Optional Controller
Optional controller Optional it is possible to buy the Easy Scan XT3 remote control. It will be connected by using the jack input, on the first unit. The other units you want to control together should be connected like a dmx line. -
Page 13: Technical Data
Technical data 13 / 14... - Page 14 Importeur: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 14 / 14...
