Summary of Contents for ADJ VS1 FLEX 45

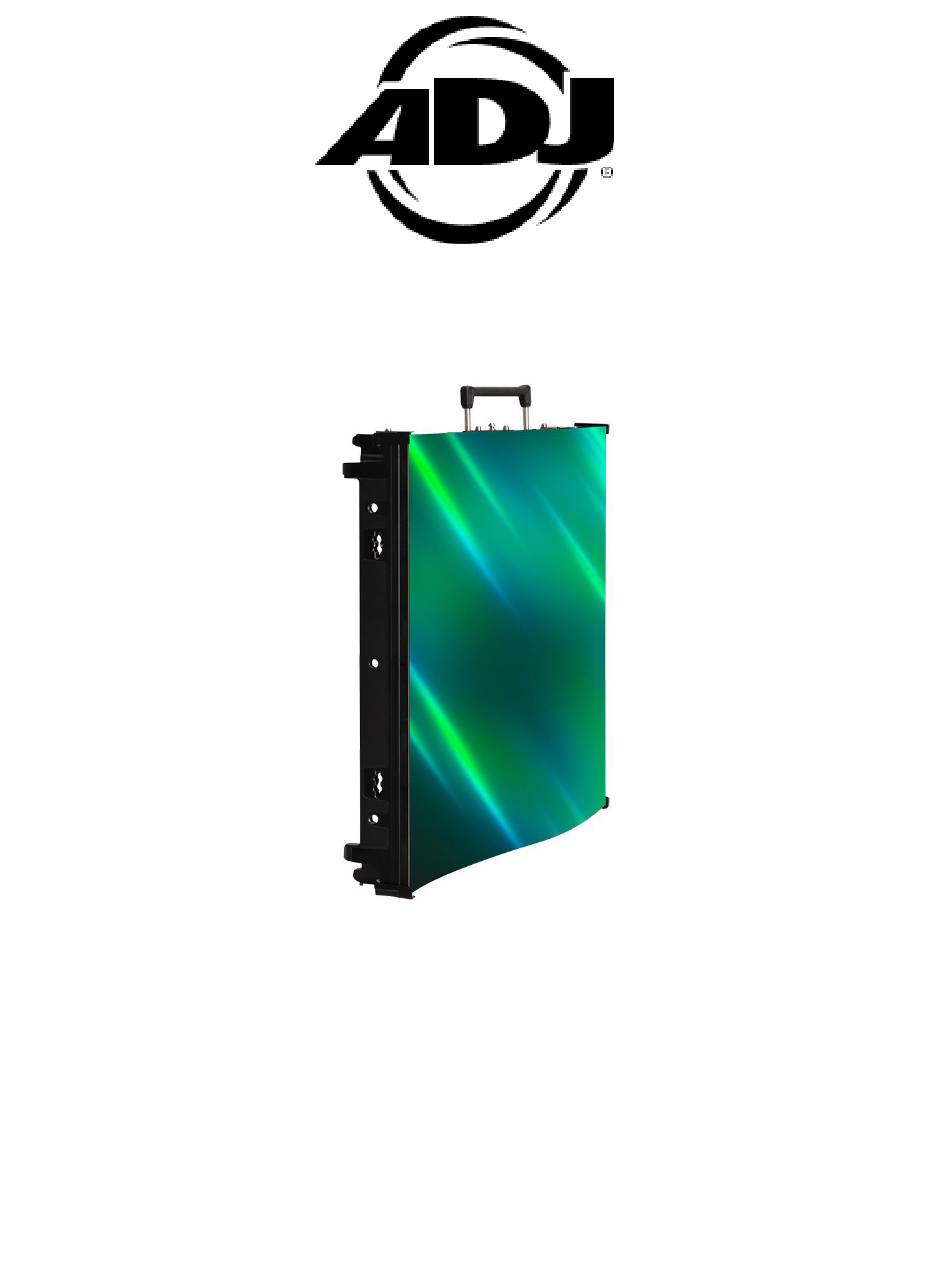

- Page 1 VS1 FLEX 45 User Manual...
- Page 2 ©2025 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
- Page 3 C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Panel Overview Handling and Transportation Installation Guidelines Panel Shape Adjustment Horizontal Panel Connectors Vertical Panel Connectors Hanging Installation Ground Stack Installation Specifications Dimensional Drawings Ordering Information...
- Page 4 G E N E R A L I N F O R M AT I O N INTRODUCTION The VS1 FLEX45, part of ADJ’s reliable Vision Series Video Panels, offers a 1.95mm pixel pitch with a 4-in-1 MiniLED configuration and the flexibility to form up to a 45° concave or convex shape. Each panel is equipped with four individual mini-modules and is designed for rear servicing.
- Page 5 The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.
- Page 6 This device is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is im- portant to follow all instructions and guidelines in this manual. ADJ is not responsible for injury and/or damages resulting from the misuse of this panel due to the disregard of the information printed in this manual.
- Page 7 S A F E T Y G U I D E L I N E S • DO NOT touch panel housing during operation. Turn OFF power and allow approximately 15 min- utes for panel to cool down before servicing. •...
- Page 8 M A I N T E N A N C E G U I D E L I N E S • Careful and regular maintenance is necessary to optimize the potential functional lifespan of the video panels. • Read the installation and operation instructions for correct operation of the video panels. •...
- Page 9 PA N E L O V E R V I E W DIMENSIONS: 20.3” x 19.7” x 4.1” (515mm x 500mm x 104mm) 4.1 in (104mm) 3.1 in 16.9 in (430mm) (80mm) 19.7 in (500mm)
- Page 10 PA N E L O V E R V I E W Vertical Locking Panel Connector Power Power Vertical Locking Panel Connector Shape Adjustment Shape Adjustment and Lock and Lock Horizontal Locking Panel Connectors Horizontal Locking Panel Connectors Vertical Locking Mounting Hole Panel Connector for Connector...
- Page 11 H A N D L I N G A N D T R A N S P O R TAT I O N INTEGRATED CORNER PROTECTORS The corners of the video panels are susceptible to damage during handling and transportation. When removing the video panels from their respective Flight Cases (sold separately), and before they are installed, exercise extra caution to avoid damaging any of the 4 corners.
- Page 12 H A N D L I N G A N D T R A N S P O R TAT I O N ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS Because these are ESD sensitive units, ESD precautions must be observed when removing the video panels from their flight case (ESD gloves, protective clothing, wrist straps, etc.).
- Page 13 I N S TA L L AT I O N G U I D E L I N E S DO NOT INSTALL THE PANEL IF YOU ARE NOT QUALIFIED TO DO SO! INSTALLATION BY QUALIFIED TECHNICIANS ONLY! INSTALLATIONS SHOULD BE CHECKED BY A QUALIFIED PERSON AT LEAST ONCE A YEAR! FLAMMABLE MATERIAL WARNING Keep panel(s) a minimum of 5.0 feet (1.5m) away from flammable materials and/or...
- Page 14 PA N E L S H A P E A D J U S T M E N T The shape of the panel can be adjusted as desired. Each panel is composed of three segments, and their relative angles to each other can be independently adjusted. First, locate the two (2) red angle locks at the panel junctions, near the Power In/Power Out connectors, and move the locks to the unlocked position.
- Page 15 H O R I Z O N TA L PA N E L C O N N E C T O R S 1. Press the spring loaded tab-keyed con- 2. Twist the tab-keyed connector until the nector until the tab-key passes through tab is in the horizontal position to secure the matching socket.
- Page 16 V E R T I C A L PA N E L C O N N E C T O R S The maximum number of panels that can be hung/stacked vertically is 6 panels. 1. Make sure the connector is in the open position. Then press and hold the red latch button, and push the connector upwards into the connector socket.
- Page 17 H A N G I N G I N S TA L L AT I O N The video panel is compatible with ADJ’s FLEX45RB Rigging Bar (sold separately), which easily and securely locks to the top of the first panel in a vertical column of up to 20 video panels, allowing them hang from a truss, hoist, or lintel beam.
- Page 18 H A N G I N G I N S TA L L AT I O N 2. Attach the first panel of the top row of panels to the Rigging Bar. Press and hold the red latch button on the Rigging Bar, then push the vertical panel connectors on the panel upward until they are fully inserted into the connector slots on the Rigging Bar.
- Page 19 H A N G I N G I N S TA L L AT I O N 4. Continue connecting panels in this way. Complete each horizontal row of panels before moving down to the next row. Connector brackets not needed where fewer than four devices met 5.
- Page 20 G R O U N D S TA C K I N S TA L L AT I O N The ADJ FLEX45RB Rigging Bar (sold separately) can also be used in conjuction with a ground stack frame to create a free-standing display with a maximum vertical height of 6 panels.
- Page 21 G R O U N D S TA C K I N S TA L L AT I O N Upper Cross Member Panel Connectors Lower Cross Member 4. Attach the Panel Connectors loosely to the front beam of each Vertical Post. They should be mounted somewhere along the span between the top horizontal beam and the lower Cross Mem- ber.
- Page 22 G R O U N D S TA C K I N S TA L L AT I O N 6. Once your ground stack frame has been assembled, set the first panel in the bottom horizontal row in place atop the first Rigging Bar. Press and hold the red latch button on the panel, then push the vertical panel connectors on the Rigging Bar upward until they are fully inserted into the con- nector slots on the panel.
- Page 23 G R O U N D S TA C K I N S TA L L AT I O N 8. Once the panels have been secured together, locate the mounting holes for attaching the ground stack frame to the panels. These should be located just above and below the horizontal panel connectors.
- Page 24 G R O U N D S TA C K I N S TA L L AT I O N 9. Continue connecting panels in this way. Complete each horizontal row of panels before moving up to the next row. Connector brackets not needed where fewer than four...
- Page 25 S P E C I F I C AT I O N S General Specifications Control System: • LED: MiniLED 4-in-1 • CControl Mode: Nova Star Synchronous System with • Pixel Pitch: 1.9mm (0.07”) Control via DVI for intuitive control. •...
- Page 26 D I M E N S I O N A L D R AW I N G S PANEL 4.1 in (104mm) 3.1 in 16.9 in (430mm) (80mm) 19.7 in (500mm) RIGGING BAR 19.7 in (500mm)
- Page 27 O R D E R I N G I N F O R M AT I O N SKU (US) SKU (EU) DESCRIPTION VS1226 ADJ VS1 Flex45 Flexible LED Video Panel EVS358 EVSF45C Flight Case FLEX45RB Rigging Bar VX4001 1226300067...
