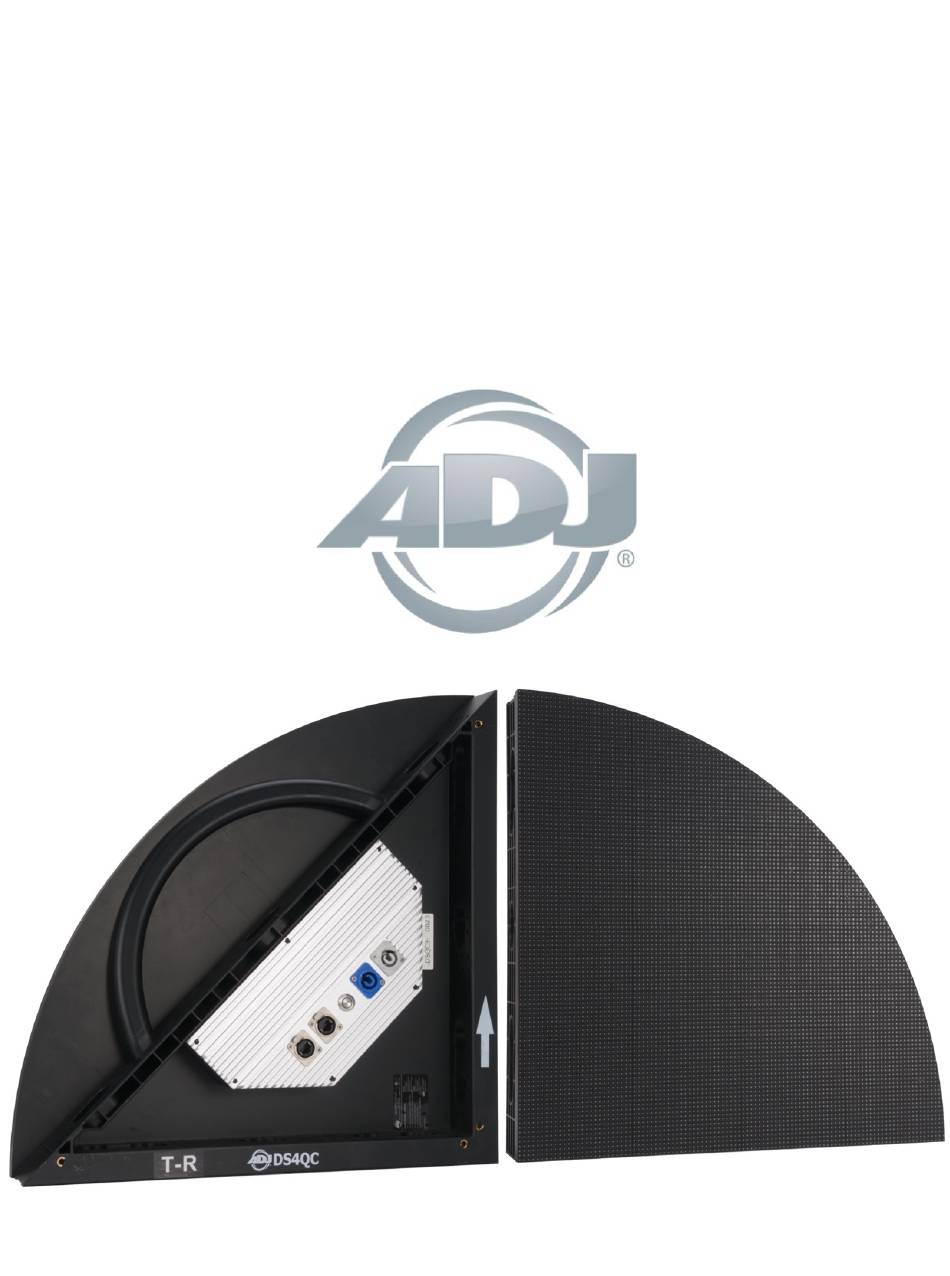

- Page 1 Design Series DS4QC User Guide ...
- Page 2 ©2018 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo, and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and ...
-
Page 3: Table Of Contents
Panel Overview 9 Handling and Transportation 12 Installation 13 Technical Specifications 16 Optional Components & Accessories 18 ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands 3 ... -
Page 4: General Information
flicker free. With an expansive screen size potential, high brightness, and curved installation options, our DS4 LED Video Panels allow manifold applications for stage, exhibitions, shows, and commercial advertising. 4 ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands ... -
Page 5: Limited Warranty (Usa Only)
LLC factory. All shipping charges must be prepaid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package and packaging ... -
Page 6: Safety Guidelines
This panel is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ is not responsible for injury and/or damages resulting from the misuse of this panel due to the disregard of the information printed ... - Page 7 CAUTION: Test panel for 2-hours per week, if not used regularly or for an extended period of time. CAUTION: Cases used to transport panel must me properly waterproofed for transportation. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands 7 ...
-
Page 8: Maintenance Guidelines
4. Check each DS4QC LED Video Panel for loose screws and other fasteners. 5. If the DS4QC LED Video Panel installation is fixed or displayed for a lengthy time, regularly inspect all rigging and installation equipment, and replace or repair it as necessary, and during ... -
Page 9: Panel Overview
PANEL OVERVIEW The DS4QC Quarter Circle LED Video Panel includes a power supply, modules, and receiver card. The cover of the power supply box can be secured to protect all internal accessories and components. Instead of traditional die cast aluminum alloy or steel, the panel of the DS4 Quarter ... - Page 10 DS4QC (1-4) Assembled DS4QC3 DS4QC1 (Top Right) (Top Left) DS4QC4 DS4QC2 (Bottom Right) (Bottom Left) 10 ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands ...
- Page 11 5 Horizontal Pattern 6 Vertical Pattern 7 Slash Pattern 8 256 Gray Gradient 9 Aging (Lifespan) ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands 11 ...
-
Page 12: Handling And Transportation
HANDLING AND TRANSPORTATION The 3 front corners of the DS4QC Quarter Circle LED Video Panel are susceptible to damage during handling and transportation. When removing DS4 LED Video Panels from their respective Flight Cases (sold separately), and before they are installed, take care to avoid damaging any of the 4 ... -
Page 13: Installation
material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury and property damage. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands 13 ... - Page 14 ?—Vertical Panel Connector w/Gap Cinching DS4—Vertical Panel Connector Mechanism DS4FW—Fastening Wrench DS4 Connectors, Clamps, & Accessories 14 ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands ...
- Page 15 Regardless of the model used (DS4VC, DS4HC, or DS4CC), all connectors have an integrated locking mechanism that, when turned 90°, will lock the respective DS4QC Quarter Circle Panels into place, ensuring maximum hold strength. When you turn the knob of the locking mechanism the full ...
-
Page 16: Technical Specifications
Minimum Circle Diameter (m) 3.8 Listings CE, FCC, & ETL Specifications subject to change without any prior written notice. 501032 16 ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands ... - Page 17 Connect t he d evice t o a n e lectrical o utlet o n a c ircuit d ifferent f rom w hich t he r adio r eceiver i s c onnected. Consult the dealer or an experienced radio/TV technician for help. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands 17 ...
-
Page 18: Optional Components & Accessories
DS4751 DS4RACA;; Right Angle Hardware Adapter MCT300 ADJ MCT RL300 Video Wall Processor MED592 Media Master Express—Video Control Software 18 ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands ... - Page 19 1/2" Shackle TBD etherCON to etherCON Coupler for Data TBD powerCON to powerCON Coupler for Power TBD Connecting Plate ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands 19 ...
