- Page 1 VS3IP User Guide...
- Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Panel Overview Handling and Transportation Installation Technical Specifications Optional Components & Accessories ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands... -
Page 4: General Information

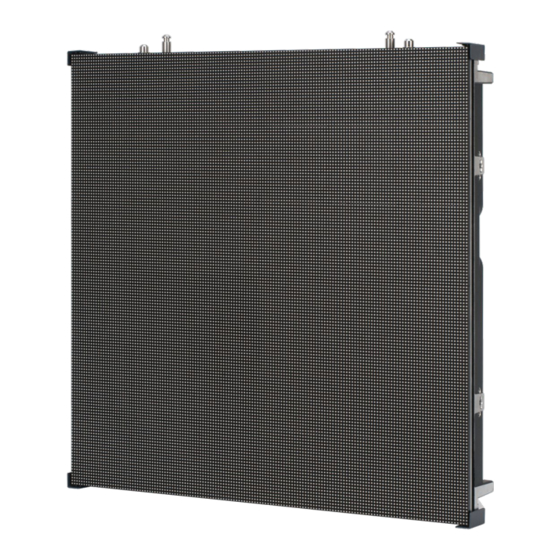

GENERAL INFORMATION The VS3IP is a high-resolution video panel from ADJ. Each panel has a pixel pitch of 3.84mm with a configuration of a 3-in-1 RGB SMD1921 LEDs. The panel is IP65 on the front and IP54 on the back, which allows for temporary outdoor use. -
Page 5: Limited Warranty (Usa Only)
All shipping charges must be prepaid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package and packaging material. -
Page 6: Safety Guidelines
This panel is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ is not responsible for injury and/or damages resulting from the misuse of this panel due to the disregard of the information printed in this manual. - Page 7 CAUTION: Test panel for 2-hours per week, if not used regularly or for an extended period of time. CAUTION: Cases used to transport panel must me properly waterproofed for transportation. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands...
-
Page 8: Maintenance Guidelines
4. Check each VS3IP LED Video Panel for loose screws and other fasteners. 5. If the VS3IP LED Video Panel installation is fixed or displayed for a lengthy time, regularly inspect all rigging and installation equipment, and replace or repair it as necessary, and during long periods of non-use, disconnect the main power to the unit. -
Page 9: Panel Overview
PANEL OVERVIEW Each VS3IP LED Video Panel includes a quick-release power supply with 2X data connectors, allowing for easy serviceability and simple repairs whilst out on the road. The cover of the power supply box can be secured to protect all internal accessories and components. - Page 10 PANEL OVERVIEW Dimensions: 22.7”x22.7”x3.0” / 576x576x75mm ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands...
-
Page 11: Handling And Transportation
HANDLING AND TRANSPORTATION The corners of the VS3IP LED Video Panel are susceptible to damage during handling and transportation. When removing VS3IP LED Video Panels from their respective Flight Cases (VS3IPFC sold separately), and before they are installed, take care to avoid damaging any of the 4 corners. - Page 12 The case is robust, so will completely protect a set of panels on the road. Designed specifically for use with ADJ video panels, it is constructed from 9mm plywood and fitted with steel ball corners, aluminum edging, large swivel castors, professional butterfly latches, four sprung handles, and a hinged lid.
-
Page 13: Installation
If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury and property damage. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands... - Page 14 Insert spring loaded tab-keyed connectors through their respective slots, then (-6°, -3°, 0°, +3°, & +6°). rotate their handles to hold them in place. Note the “LOCK” and “OPEN” directional arrows for the locking-handle. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands...
- Page 15 Note the “LOCK” and “OPEN” directional arrows for the locking- handle. Activate the orange tabs to disconnect. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands...
- Page 16 INSTALLATION – RIGGING BAR The VS3IP is compatible with ADJ’s VS3IPRB1 Rigging Bar (sold separately), which easily and securely locks to the top of the first panel in a vertical hang of up to 20 VS3IPs, allowing them hang from a truss, hoist, or lintel beam. A qualified technician or trained professional is required to fly the VS3IPRB1 Rigging Beam/VS3IP LED Video Panel assembly.
- Page 17 INSTALLATION – RIGGING BAR (BASE) The VS3IP is compatible with ADJ’s VS3IPRB1 Rigging Bar (sold separately) for use as a base, which easily and securely locks to the bottom of the panel. A qualified technician or trained professional is required to assemble the VS3IPRB1 Rigging Beam/VS3IP LED Video Panel assembly.
- Page 18 Rear Support Bracket: Use an VS3IPRSB Rear Support Bracket (sold separately) when connecting multiple panels for a larger display design, to strengthen the structural integrity of the screen, improve consistent flatness, and improve overall screen continuity. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands...
-
Page 19: Technical Specifications
Power Locking Main Power Cables PowerLock In/Out; DataLock In/Out CERTIFICATIONS: • cETLus Approved (Control #5015975) • CE Approved • Fcc Approved Specifications subject to change without any prior written notice. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands... - Page 20 • Connect the device to an electrical outlet on a circuit different from which the radio receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands...
-
Page 21: Optional Components & Accessories
CAT6PRO50 (50ft.) CAT6PRO100 (100ft.) CAT6PRO150 (150ft.) CAT6PRO25FC (25ft.) Panel to Panel Data Link Cables (Locking RJ45 Ethernet Connect In/Out to Locking RJ45 Ethernet Connect In/Out) CAT6PRO50FC (50ft.) CAT6PRO100FC (100ft.) ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands...
