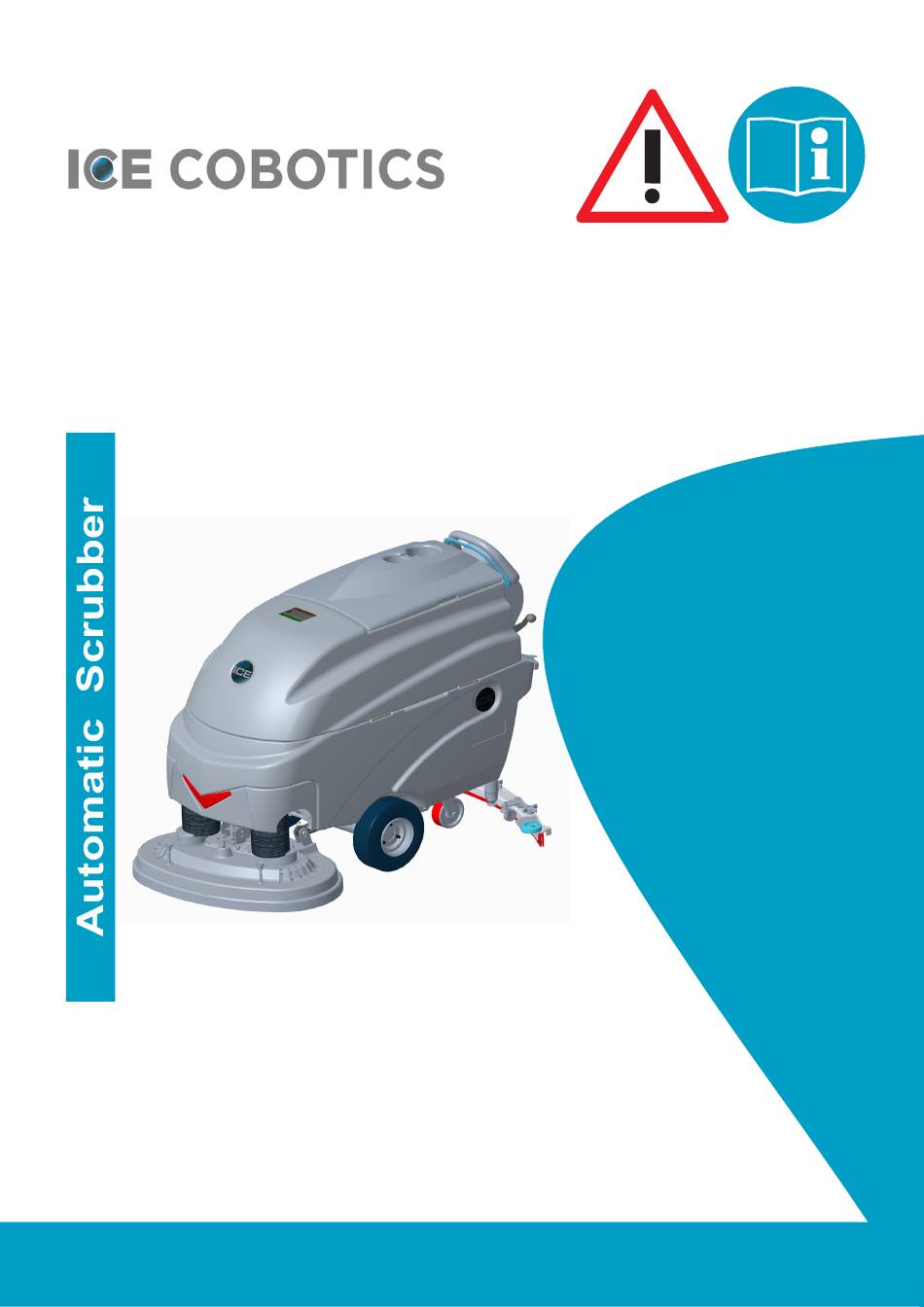

- Page 1 Operator & Parts Manual i36BT i36BT-CY 8230901 REV.01(03-2025)
-
Page 2: How To Order Parts
Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Cobotics Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label. -
Page 3: Table Of Contents
SAFETY PROCATIONS.......................4 MACHINE COMPONENTS....................5 MACHINE SETUP & INSTALLATION..................6 MACHINE OPERATION....................7 WHILE OPERATING MACHINE..................7 TANK DRAINING........................8 BATTERY CHARGING......................9 PREVENTATIVE MAINTENANCE..................9 CYLINDRICAL BRUSH MODEL..................11 CYLINDRICAL ASSEMBLY INSTRUCTIONS.............12-13 BASIC TROUBLESHOOTING....................14 TECHNICAL SPECIFICATION....................15 PARTS LIST....................16-43 WEAR AND TEAR PARTS..............44 WIRING DIAGRAM..................45 i36BT / i36BT-CY... -
Page 4: Safety Procations
- Secure machine with wheel blocks prior to jacking the machine up. - Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Wear gloves when handling batteries or battery cables. i36BT / i36BT-CY... -
Page 5: Machine Components
36. Brush Motor,36VDC 13. On-board Charger 14. Solution Tank Level / Drain Hose 37. Front Cover 15. Bumper Rollers 38. Batteries 16. Ball Valve 39. Solution Tank 17. Squeegee Assembly 40. Logo,ICE 41. Caster, 2 Inch, Squeegee i36BT / i36BT-CY... -
Page 6: Machine Setup & Installation
－ ＋ 3. Connect the vacuum hose to the squeegee ＋ － assembly. Loop the hose by using the hose clip BLACK provided. － － 4. Check the squeegee blades for proper adjustment. ＋ ＋ CHARGER PLUG i36BT / i36BT-CY... -
Page 7: Machine Operation
NOTE: Solution will not begin to flow until the WARNING: When battery meter is in the control handle bail is pulled. red, do not continue to operate the machine. Battery damage may result. 6. Turn on the vacuum motor switch(see machine components, item #10). i36BT / i36BT-CY... -
Page 8: Tank Draining
"O" ring is in the correct bail be turned on. position. WARNING: Do Not Change the Default Settings of the Electromagnetic Brake Mechanism unless Authorized, otherwise it may cause Machine Damage or Personal Injury. Contact the Authorized Service center for machine repairs. i36BT / i36BT-CY... -
Page 9: Battery Charging
NOTE: The machine will can not operate when charging. OFF-BOARD BATTERY CHARGER (OPTION) 1. Place charger and machine in a well ventilated area. 2. Turn the machine off. 3. If charging wet (lead acid) batteries check the i36BT / i36BT-CY... - Page 10 2. Keep battery tops and terminals free from corrosion. A strong solution of baking soda and water is the best way to keep the batteries corrosion free. DO NOT ALLOW THE BAKING SODA / WATER SOLUTION TO ENTER THE BATTERY CELLS. i36BT / i36BT-CY...
-
Page 11: Cylindrical Brush Model
6. Pull the control handle bail to create a brush pattern on the floor. 7. Raise the scrub head and pull the machine away. 8. Observe the brush pattern on floor. If the brush pattern is uneven or tapered, adjustment is required. i36BT / i36BT-CY... -
Page 12: Cylindrical Assembly Instructions
1.Remove cotter pin and pins(5) from scrub head lift bracket.then remove cotter pin and pin(3) from spring bracket. 2.Remove lock nut and hex bolt(6) from roller guide(1). 3.Disconnect motor power cords(2). 4.Loose clamp on the solenoid valve and remove tubing(4). 5.Remove scrub head assembly. i36BT / i36BT-CY... - Page 13 6. lnsert hex bolt into roller guide(8) through lfiting bracket and fasten lock nut(2). 7. Connect motor power cords(7). L=35±5MM STEP#4: Assembly Front Cover 1. Connect cable of the led light(3). 2. lnstall front cover through stud fixing(1) on solution tank. 3. Fasten the knobs(2). i36BT / i36BT-CY...
-
Page 14: Basic Troubleshooting
Fully recharge batteries Defective batteries Replace batteries Batteries need maintenance See BATTERY MAINTENANCE Short run time Faulty battery charger Repair or replace battery charger Down pressure lever is set for extra scrub Lower down pressure lever head pressure i36BT / i36BT-CY... -
Page 15: Technical Specification
WATER LIFT - AIR FLOW 73 inch BATTERIES 6 - 6V, 260AH optional 305AH @ 20 hr RUN TIME PER CHARGE 4 or 4.5 Hours VOLTAGE DC DECIBEL RATING AT 68 dB(A) OPERATOR'S EAR, INDOORS GRADE LEVEL, MAX 10% (6°) i36BT / i36BT-CY... -
Page 16: Parts List
PARTS LIST RECOVERY TANK GROUP i36BT / i36BT-CY... - Page 17 1123507 LOCK NUT,M5 8112005 GASKET, VACUUM MOTOR 1121605 HEX NUT,M6 8210209 STUD,M6 X 110 8230200 3 STAGE VACUUM MOTOR,36VDC,640W,KIT 1421612 FLAT WASHER,M6 X 12 X 1.6 1123608 LOCK NUT,M6 8230110 KIT,RECOVERY TANK(Replace the old version) i36BT / i36BT-CY...
- Page 18 8111007 RECOVERY TANK SUPPORT 8115404 SLEEVE, P/M 1021830 HEX BOLT,M8 X 30 1221510 SCREW,M5 X 20 8230210 BRACKET,FILTER 8320237 FILTER,DUST 8310230 GASKET,FILTER 1421511 FLAT WASHER,M5 X 12 X 1 8111016 PLATE 1221510 SCREW,M5 X 10 8230207 PLATE i36BT / i36BT-CY...
-
Page 19: Solution Tank Group
PARTS LIST SOLUTION TANK GROUP i36BT / i36BT-CY... - Page 20 BATTERY, 305AH @ 20Hr (OPTIONAL) 8230121 BATTERY TRAY 8230104 COVER, FRONT 1321110 SELF-TAPPING SCREW,ST3.5 X 10 1421409 FLAT WASHER,M4 X 9 X 0.8 8230750 LED LIGHT,36V,KIT 8133601 LED LIGHT MOUNTING BASE 1221520 SCREW,M5 X 20 8133602 LED LIGHT COVER i36BT / i36BT-CY...
- Page 21 STAND-OFF, M6, RED 8230013 BRUSH MOTOR OVERLOAD PROTECTION KIT 8230012 BREAKER STICKER 8230011 BREAKER FIXED PLATE 1123608 LOCK NUT M6 1883020 TERMINAL BLOCK NOTES: NO.53,8230013,the BRUSH MOTOR OVERLOAD PROTECTION KIT,Also contains stickers 8230014 1pc and 8230015 1pc.(see P25). i36BT / i36BT-CY...
-
Page 22: Frame & Drive Group
PARTS LIST FRAME & DRIVE GROUP i36BT / i36BT-CY... - Page 23 FLAT WASHER,M12.1 X 20 X 2 8230129 WHEEL,12", FOAM FILL 8230116 WHEEL,12", PNEUMATIC (OPTIONAL) 8230118 BRACKET, TRANSAXLE MOUNTING 8230810 TRANSAXLE, 36VDC,KIT 8230811 ELECTRIC BRAKE KIT 8230119 5",CASTER 1022809 HEX BOLT,M8 X 90 1021820 HEX BOLT,M8 X 20 1422821 LOCK WASHER,M8 i36BT / i36BT-CY...
- Page 24 LOCK NUT,M10 100293- for i36BT 8230137 BUSHING for i36BT-CY -100292 for i36BT 8210116 BUSHING(OLD) -100161 for i36BT-CY 100293- for i36BT HEX BOLT,M10 X 90 1032090 for i36BT-CY 100293- for i36BT 8230140 FRAME for i36BT-CY -100292 for i36BT 8230105 FRAME(OLD) -100161 for i36BT-CY...
-
Page 25: Scrub Head Group
PARTS LIST SCRUB HEAD GROUP i36BT / i36BT-CY... - Page 26 PARTS LIST SCRUB HEAD GROUP PART SERIAL NUMBER DESCRIPTION NUMBER REQ'D 8230830 100293- for i36BT BRACKET, SCRUB HEAD LIFT, RIGHT 8210830 -100292 for i36BT BRACKET, SCRUB HEAD LIFT, RIGHT(OLD) 8230138 100293- for i36BT PIN 8210807 -100292 for i36BT PIN(OLD) 8210309...
-
Page 27: Scrub Head Lift Group
PARTS LIST SCRUB HEAD LIFT GROUP i36BT / i36BT-CY... - Page 28 FLAT WASHER,M 12 X 32 X 1.5 8210322 8210309 PIN, COTTER 8210318 SPRING 8230311 SLEEVE 8210321 BOLT, SHOULDER, 3/8 8230302 ACTUATOR, 36VDC 8210301 8210303 BRACKET, ACTUATOR MNTG 1421612 FLAT WASHER,M6 X 12 X 1.6 1422616 LOCK WASHER,M6 HEX BOLT,M6 X 16 1021616 i36BT / i36BT-CY...
- Page 29 PARTS LIST SQUEEGEE GROUP (46.5 INCH STANDARD) i36BT / i36BT-CY...
- Page 30 RETAINER,SQUEEGEE 8230503 SQUEEGEE BLADE, FRONT, LINATEX 8230506 SQUEEGEE BLADE, FRONT, PU (OPTIONAL) 8118400 CASTER, 2 INCH 1121008 HEX NUT,M10 8118200 LEFT BRACKET 8230500 SQUEEGEE ASSEMBLY 8118109 HOLDER VACUUM HOSE 8118018 VACUUM HOSE 1962050 CLAMP 1123608 LOCK NUT,M6 i36BT / i36BT-CY...
- Page 31 PARTS LIST SQUEEGEE GROUP (OLD) i36BT / i36BT-CY...
- Page 32 S Q U E E G E E B L A D E , F R O N T , P U 8210516 (OPTIONAL) 8210519 CLAMP, FRONT BLADE 8210530 KNOB, M6 8118400 CASTER, 2 INCH 1121008 HEX NUT,M10 8118200 LEFT BRACKET 8210510 SQUEEGEE ASSEMBLY 8118109 HOLDER VACUUM HOSE 8118015 VACUUM HOSE 1962050 CLAMP 1123608 LOCK NUT,M6 i36BT / i36BT-CY...
- Page 33 PARTS LIST SQUEEGEE GROUP (44.5 INCH OPTIONAL) i36BT / i36BT-CY...
- Page 34 SQUEEGEE BLADE, FRONT, PU (OPTIONAL) 8220518 FRONT CLAMP,LEFT 1121403 HEX NUT,M4 1123406 LOCK NUT,M4 1421409 FLAT WASHER,M4 X 9 X 0.5 1211435 SCREW,M4 X 35 8220515 FRONT CLAMP,RIGHT 8220500 SQUEEGEE ASSEMBLY 8118109 HOLDER VACUUM HOSE 8118006 VACUUM HOSE 1962050 CLAMP i36BT / i36BT-CY...
-
Page 35: Solution Group
PARTS LIST SOLUTION GROUP i36BT / i36BT-CY... - Page 36 FLAT WASHER,M5 X 10 X 1 8230122 SOLENO 0 VALVE,36V0C 1914300 T E, NYLON, 5X300 8230307 TUB NG, 0=16 X 300MM 8310903 TUB NG, 0=12 X 175MM 8230308 F TT NG, PLAST C, TEE 1962016 CLAMP, 10-16mm i36BT / i36BT-CY...
-
Page 37: Control Console Group
PARTS LIST CONTROL CONSOLE GROUP i36BT / i36BT-CY... - Page 38 TIMER 8114709 KEY SWITCH 8114752 8124717A POTENTIOMETER, KIT 8124718 KNOB, POTENTIOMETER 8210410 CONTROL PANEL 8210416 CONTROL PANEL DECAL, i36BT 1221512 SCREW M5×12 1021616 HEX BOLT M6 X 16 1421618 PLAIN WASHER 6×18×1.6,SS 8310707 EMERGENCY STOP BUTTON 8144029 DECAL, EMERGENCY STOP...
- Page 39 SET SCREW M6 ×30 8114306 SPRING 8114101 SHAFT 8134300 LEVER, BAIL 1123507 LOCK NUT M5 8230704A SPEED CONTROL BOARD 8134021 REAR PLATE, CONTROL CONSOLE 1421824 FLAT WASHER M8×24×2 1021820 HEX BOLT M8×20 1021535 SCREW, M5 × 35 8114707 RELAY, 40A i36BT / i36BT-CY...
- Page 40 PARTS LIST CYLINDRICAL SCRUB HEAD GROUP i36BT / i36BT-CY...
- Page 41 8210807 -100161 for i36BT-CY PIN(OLD) 8210309 PIN, COTTER 1021820 SCREW, M8 X 20 8230850 for i36BT-CY BRACKET, SCRUB HEAD LIFT, LEFT 8236032 -100161 for i36BT-CY BRACKET, SCRUB HEAD LIFT, LEFT(OLD) 8230840 for i36BT-CY BRACKET, SCRUB HEAD LIFT, RIGHT 8236031 -100161...
- Page 42 PARTS LIST CYLINDRICAL SC RUB DRIVE GROUP i36BT / i36BT-CY...
- Page 43 CLAMP,SKIRT 8236014 SKIRT,CYLINDRICAL 8236013 BEARING, 6002LLU 1612602 DRIVEN PULLEY,6PJ 8236007 BUSHING 8236024 PLUG, DRIVE,BRUSH 8236025 SHAFT 8236010 KEY,5 X 5 X 15 1655015 BRUSH MOTOR LABEL 01 8230014 BRUSH MOTOR LABEL 02 8230015 STAINLESS STEEL TUBE 8236041A i36BT / i36BT-CY...
-
Page 44: Wear & Tear Parts List
DESCRIPTION NUMBER REQ'D 8230116 WHEEL, 12 INCH 8116009 PROTECTIVE WHEEL 8230119 CASTER, 5 INCH 8210513 SQUEEGEE BLADE, FRONT, LINATEX 8210514 SQUEEGEE BLADE, REAR, LINATEX 9050016 16" BRUSH 9040016 16" PAD HOLDER 8236005 CYLINDRICAL BRUSH 8236013 CYLINDRICAL SKIRT i36BT / i36BT-CY... -
Page 45: Wiring Diagram
WIRING DIAGRAM i36BT / i36BT-CY... - Page 46 CERTIFICATE OF QUALIFIED MODEL:__________ SERIAL NO.:__________ INSPECTOR:__________ DATE:__________ ICE Cobotics (GuangDong)Company Limited TEL:(+86) 769 8186 9000 FAX:(+86) 769 8186 3000...
