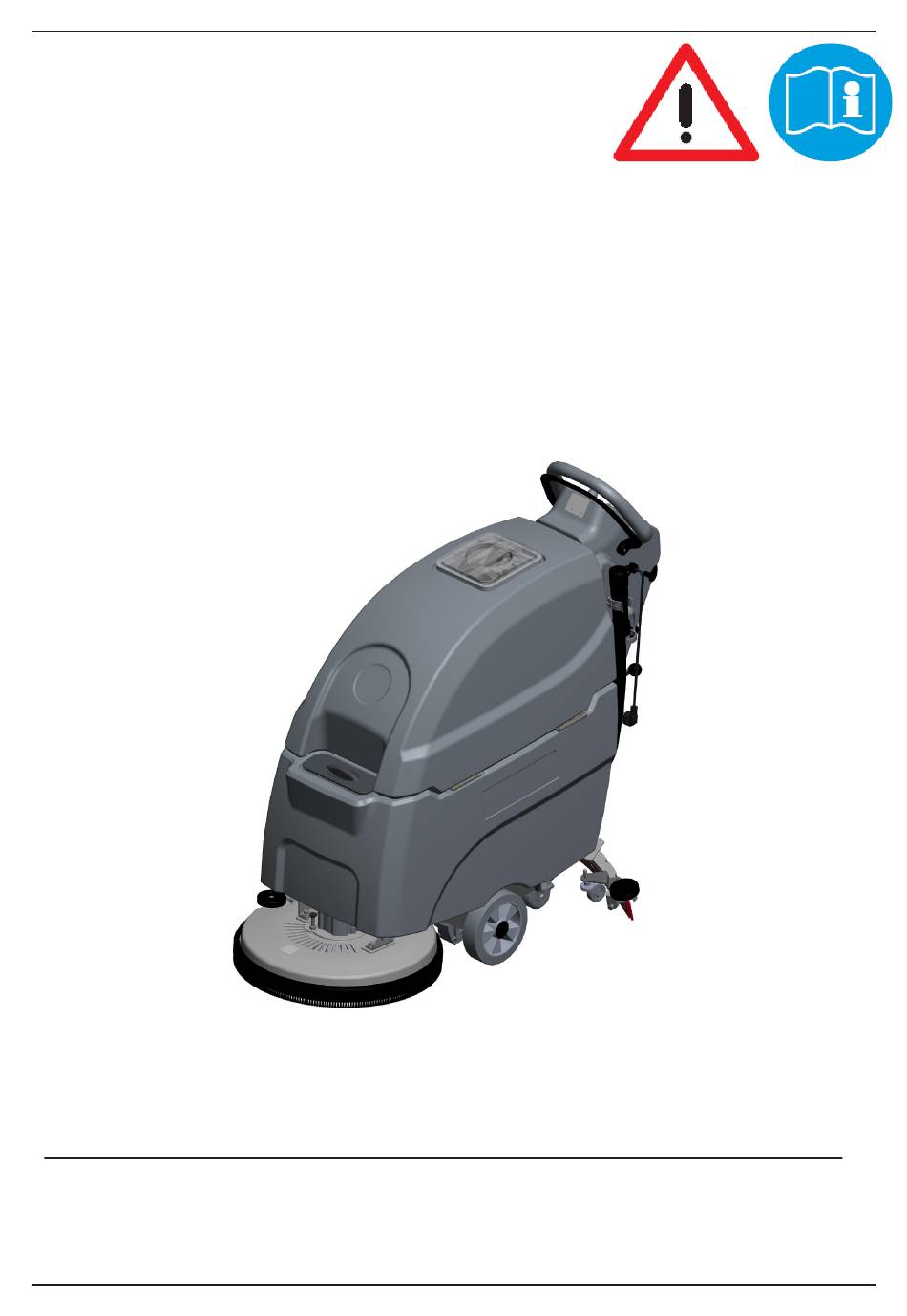

- Page 1 OPERATOR MANUAL Operator & Parts Manual Battery Automatic Floor Scrubber Model: i20NBVT 8130064 REV.01(01-2024)
- Page 2 Please dispose of packaging materials, old machine components such as batteries, hazardous fluids, including antifreeze and oil, in an environmentally safe way according to local waste disposal regulations. Always remember to recycle. Specifications and parts are subject to change without notice. i20NBVT...
-
Page 3: Table Of Contents
SAFETY PRECAUTIONS......................4 MACHINE COMPONENTS....................5 PANEL COMPONENTS......................6 MACHINE SETUP & INSTALLATION..................7 MACHINE OPERATION....................8 WHILE OPERATING MACHINE..................8 TANK DRAINING........................9 BATTERY CHARGING......................9 PREVENTATIVE MAINTENANCE...................9-10 ADJUSTMENT OF SQUEEGEE ASSEMBLY ..............11 BASIC TROUBLESHOOTING.....................12 TECHNICAL SPECIFICATIONS.................13 PARTS LIST......................14-33 WEAR AND TEAR PARTS....................34 WIRING DIAGRAM .......................35 i20NBVT... -
Page 4: Safety Precautions
- Secure machine with wheel blocks prior to jacking the machine up. - Use approved jack or hoist to safely elevate the machine. - Disconnect batteries prior to working on machine. - Wear gloves when handling batteries or battery cables. i20NBVT... -
Page 5: Machine Components
12. Caster, 3.15 Inch 30. Cover 13. Caster, 2 Inch, Squeegee Blade Adjustment 31. Transaxle overload breaker 14. Hose Fill-Port 15. Squeegee Storage Bracket 16. Control panel (see Panel components) 17. Emergency Stop Button 18. On-board battery charger / Window i20NBVT... -
Page 6: Panel Components
OPERATOR MANUAL PANEL COMPONENTS 1. Battery capacity indicator 2. Bush motor switch 3. Vacuum motor switch 4. Main power on/off switch 5. Speed control knob i20NBVT... -
Page 7: Machine Setup & Installation
COM completely seated into the slots before securing port with the batteries. knobs. 3. Connect the vacuum hose to the squeegee assembly. Loop the hose by using the hose clip provided. 4. Check the squeegee blades for proper adjustment. i20NBVT... -
Page 8: Machine Operation
6. Turn on the vacuum motor switch (see Panel components, item #3). 7. i20NBV: Pull the control handle bail (see machine components, item #2) backwards to start scrubbing by moving the machine forward. i20NBVT... -
Page 9: Tank Draining
WARNING: Repairs are to be completed or floor drain. by Dealer only. Any repairs completed by 2. Remove the cover of the filter assembly (see unauthorized persons will avoid the warrenty. machine components, item #24) to drain the i20NBVT... - Page 10 9. Charge the batteires before storing silicon spray and approved grease. the machine to prolong the life of the 5. Check the machine for loose nuts and bolts. batteries. Charge batteries once a 6. Check the machine for leaks. month. i20NBVT...
-
Page 11: Adjustment Of Squeegee Assembly
OPERATOR MANUAL ADJUSTMENT OF SQUEEGEE ASSEMBLY Model: i20NBVT Tools: Offset spanner (17mm) Gauge block (2mm) For optimum squeegee blade performance, the squeegee assembly casters might need to be adjusted to the floor type and squeegee blade wear. Adjustment Process: 1. Turn off the machine after you lower the squeegee assembly down. -
Page 12: Basic Troubleshooting
Properly position cover Damaged recovery tank cover seal Replace seal Faulty vacuum motor Contact Dealer Low battery charge Recharge batteries Low battery charge Fully recharge batteries Short run time Defective batteries Replace batteries Faulty battery charger Repair or replace battery charger i20NBVT... -
Page 13: Technical Specifications
OPERATOR MANUAL TECHNICAL SPECIFICATIONS i20NBVT MODEL W/Drive DIMENSIONS L 55.7 in / 1,415 mm DIMENSIONS W 22 in / 560 mm DIMENSIONS H 44.9 in / 1,140 mm WEIGHT 210 lbs / 95 Kg WEIGHT WITH BATTERIES 410 lbs /185 Kg RECOVERY TANK 17.2 Gal / 65 L... -
Page 14: Parts List
OPERATOR MANUAL RECOVERY TANK GROUP i20NBVT... - Page 15 SLEEVE, P/M 1021830 HEX BOLT M8×30 8111015 FLOAT, SHUT-OFF 2320220 BEND 1321210 SCREW, SELF-TAPPING, ST4×10 2320216 COVER, CLEAR 2320218 GASKET, CLEAR WINDOW 1221410 SCREW M4×10 1421409 FLAT WASHER M4.3×DIA9×0.8 2320217 RUBBER HINGE 8111022 WARNING LABEL 2320216A CLEAR COVER, KIT i20NBVT...
- Page 16 OPERATOR MANUAL VACUUM FAN GROUP i20NBVT...
- Page 17 8112005 GASKET, VACUUM MOTOR 1121605 HEX NUT M6 8112006 STUD M6×92 8116500 VACUUM MOTOR , 24VDC, 2-STAGE, KIT 1421612 FLAT WASHER M6×DIA12×1.6 1123608 LOCK NUT M6 1914300 TIE, NYLON, 5×300 8132007 MUFFLER, VACUUM MOTOR 1221512 SCREW M5×12 8133012 BRACKET i20NBVT...
- Page 18 OPERATOR MANUAL SOLUTION TANK GROUP i20NBVT...
- Page 19 FILTER ASSEMBLY 1421510 FLAT WASHER M5×DIA10×1 1221512 SCREW M5×12 8119005 BALL VALVE, G1/2 8119007 ELBOW G1/2 8113013 SPACER, BATTERY 24V 120Ah, LITHIUM BATTERY, NO N240200 MODEM 8050156 LID, SOLUTION TANK FILL PORT 1321210 SCREW, SELF-TAPPING, ST4×10 8050153 CHAIN 8050152 SEAL i20NBVT...
- Page 20 OPERATOR MANUAL SOLUTION TANK GROUP SERIAL PART DESCRIPTION NUMBER NUMBER REQ'D 8050150-BK LID, KIT 1221512 SCREW M5×12 8113009 NYLON, CLAMP 8133027 LABEL,BALL VALVE i20NBVT...
- Page 21 OPERATOR MANUAL CONTROL CONSOLE GROUP i20NBVT...
- Page 22 REQ'D 8124718 KNOB, POTENTIOMETER 1221512 SCREW M5×12 1422513 LOCK WASHER M5 1421510 FLAT WASHER M5×DIA10×1.0 8014006 WATERPROOF SWITCH 8134747 DECAL，i20NBVT CONTROL PANEL 8124717 POTENTIOMETER 8134821 CONTROL PANEL 8134015 GASKET 8134120 CONTROL PANEL PCAB 1883102 Washer, M3, PB 1221306 SCREW M3×6...
- Page 23 LOCK WASHER M8 1021820 HEX BOLT M8×20 1021320 SCREW M3×20 8124743 MICRO SWITCH 8134022 BRACKET, SWITCH 1123608 LOCK NUT M6 8114402 BRACKET, SPRING 1521616 SCREW M6×16, HEX SCOKET 8134301 LEVER, BAIL 1535630 SET SCREW M6×30 1121605 HEX NUT M6 i20NBVT...
- Page 24 OPERATOR MANUAL CONTROL CONSOLE GROUP PART SERIAL DESCRIPTION NUMBER NUMBER REQ'D 8114101 SHAFT 8114306 SPRING 1534608 SET SCREW M6×8 8114300 ACTUATOR 8134070 REAR PLATE, CONTROL CONSOLE 8114712 MICRO SWITCH i20NBVT...
- Page 25 OPERATOR MANUAL FRAME & WHEEL GROUP i20NBVT...
- Page 26 WHEEL, 8 INCH 1421816 FLAT WASHER M8×DIA16×1.6 8125409 FLAT KEY 8125406 TRANSAXLE 8125408 TRANSAXLE KIT 1123810 LOCK NUT M8 8117007 NYLON WASHER DIA12.9×DIA24×2.5 8115404 BEARING, JOURNAL 8145001 BUSHING 1021840 HEX BOLT M8×40 8115405 SLEEVE, P/M 8114511 BALL JOINT M6 i20NBVT...
- Page 27 OPERATOR MANUAL SCRUB HEAD GROUP i20NBVT...
- Page 28 LOCK WASHER M10 1421030 FLAT WASHER M10×DIA30×2.5 8116202 8116205 SCREW M14×20 8111023 WARNING LABEL 1121913 HEX NUT M14 8116204 SPRING 8116210 KNOB M6 8116078 PROTECTIVE WHEEL 8115404 SLEEVE, P/M 1421824 FLAT WASHER M8×DIA24×2.0 1021825 HEX BOLT M8×25 8210803 SPACER,RUBBER i20NBVT...
- Page 29 OPERATOR MANUAL SCRUB HEAD LIFT GROUP i20NBVT...
- Page 30 8117005 SPACER 8117003 RIGHT BRACKET 1022860 HEX BOLT M8×60 8117008 SPRING 8113109 BEARING, THRUST 1022845 HEX BOLT M8×45 8117004 ROLLER 1421612 FLAT WASHER M6×DIA12×1.6 1422616 LOCK WASHER M6 1021616 HEX BOLT M6×16 8133150 SPRING 8117001 BRACKET, GUIDE 8133151 BUMPER i20NBVT...
- Page 31 OPERATOR MANUAL SQUEEGEE GROUP i20NBVT...
- Page 32 S Q U E E G E E B L A D E , F R O N T, 8118001 PU(OPTION) 8118610 SHORT CLAMP ASSEBLY 1221575 SCREW M5×75 8118200 RIGHT BRACKET 1121008 HEX NUT M10 8118600A CLAMP ASSEMBLY 8118624 SHAFT 8118623 SPACER 1123507 LOCK NUT M5 8118109 HOLDER VACUUM HOSE 8118018 VACUUM HOSE 8118052 SQUEEGEE ASSEMBLY, LINATEX i20NBVT...
- Page 33 OPERATOR MANUAL SOLUTION GROUP i20NBVT...
- Page 34 CAP, FILTER ASSEMBLY 1421510 FLAT WASHER M5×DIA10×1 1221512 SCREW M5×12 8119202 TUBING ID=12MM L=100MM 1221412 SCREW M4×12 1422411 LOCK WASHER M4 1421409 FLAT WASHER M4×DIA9×0.8 8119003 SOLENOID VALVE, 24VDC 8119203 TUBING ID=12MM L=135MM 8119204 TUBING ID=10MM L=360MM 8116100 WATER SUPPLY TUBE i20NBVT...
-
Page 35: Wear And Tear Parts
2 0 " B R U S H , 0 . 7 M M P P B R I S T L E , 9050020 BLACK. (OPTIONAL) 20" BRUSH, 0.5MM PP BRISTLE, BLUE. 9050020E (OPTIONAL) 9040019 19" PAD HOLDER i20NBVT... -
Page 36: Wiring Diagram
OPERATOR MANUAL WIRING DIAGRAM(i20NBVT) i20NBVT... - Page 37 CERTIFICATE OF QUALIFIED MODEL : SERIAL NO.: INSPECTOR: DATE : ICE Cobotics (GuangDong) Company Limited TEL : (+86) 769 8186 9000 FAX : (+86) 769 8186 3000...
