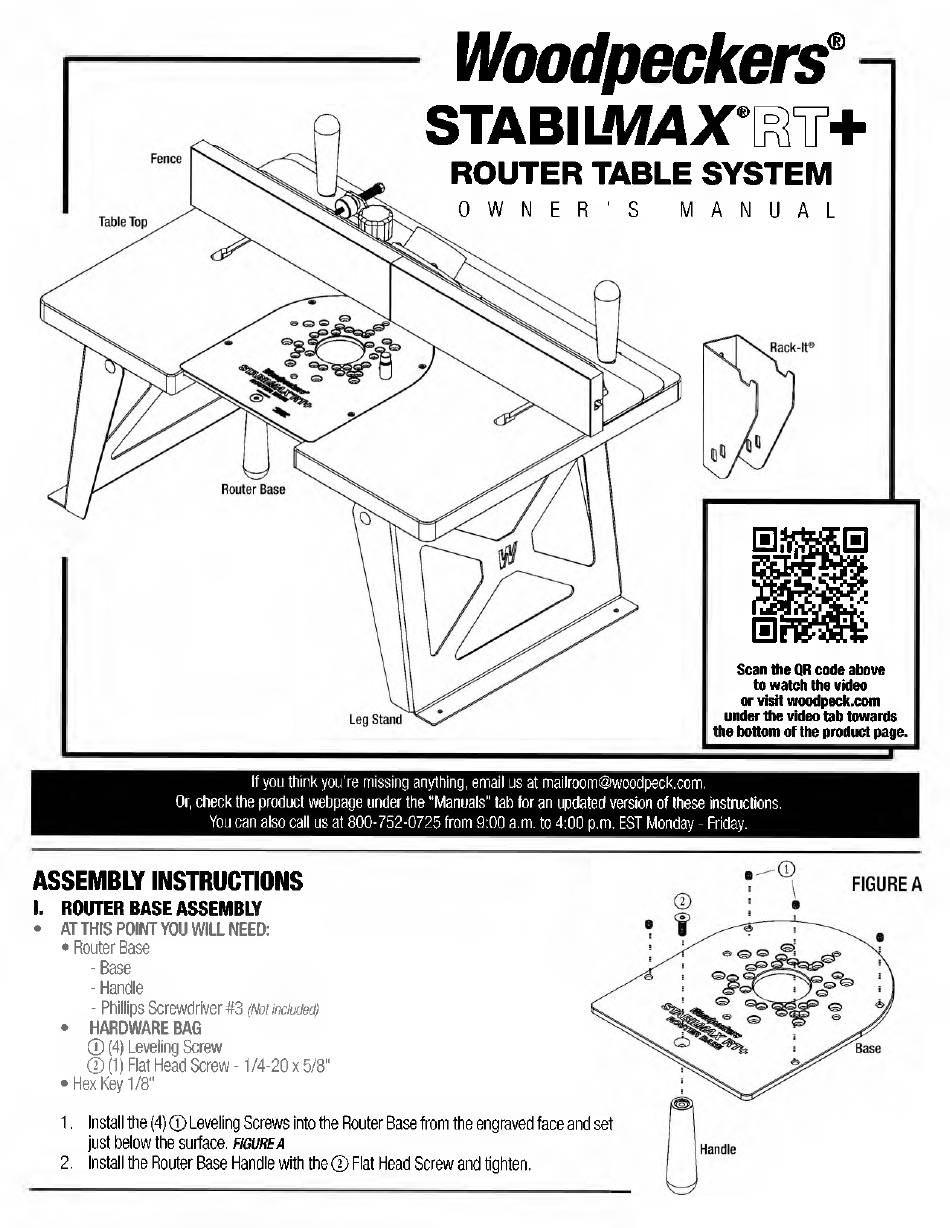

Woodpeckers STABILMAX RT+ Owner's Manual

oodpeckers
Stable Max R.T. Plus
OUTE TABLE SYSTEM
WNER ' S MANUAL
Scan the Q code above
to watch the video
or visit woodpeck.com
under the video tab towards
the bottom of the product page.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
Or, check the product webpage under the "Manuals " tab for an updated version of these instructions.
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
ASSEMBLY INST UCTIONS
. ROUTER BASE ASSEMBLY
AT THIS POINT YOU WILL NEED:
Router Base
- Base
- Handle
- Phillips Screwdriver #3 Not included)
HARDWARE BAG
1 (4) Leveling Screw
2 (1) Flat Head Screw - 1/4-20 x 5/8"
Hex Key 1/8"
1. Install the (4) 1 Leveling Screws into the Router Base from the engraved face and set
just below the surface,
igure a
.
2. Install the Router Base Handle with the 2 Flat Head Screw and tighten.
