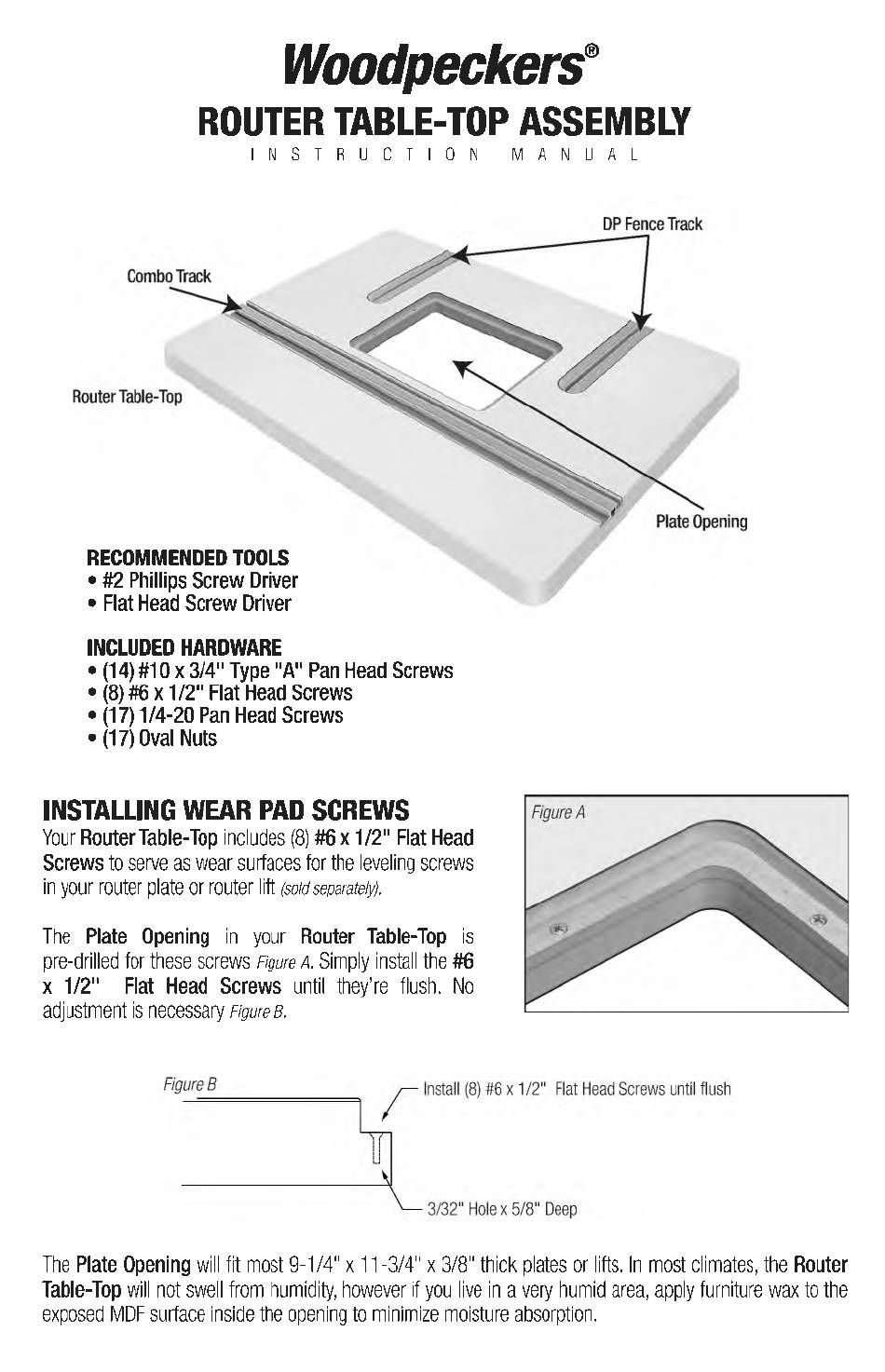

Woodpeckers PRP-1 Instruction Manual

oodpeckers®
OUTE TABLE-TOP ASSEMBLY
NSTRUCT ON MANUAL
INCLUDED HA DWA E
• (14) #10 x 3/4" Type "A" Pan Head Screws
• (8) #6 x 1/2" Flat Head Screws
• (17) 1/4-20 Pan Head Screws
• (17) Oval Nuts
NSTALL NG WEAR PAD SCREWS
Your outer Table-Top includes (8) #6 x 1/2" Flat Head
Screws to serve as wear surfaces for the leveling screws
in your router plate or router lift
sold separately).
The Plate Opening in your outer Table-Top is
pre-drilled for these screws
Figure
. Simply install the #6
x 1/2" Flat Head Screws until they ' re flush. No
adjustment is necessary
Figure
b
.
The Plate Opening will fit most 9-1/4" x 11 -3/4" x 3/8" thick plates or lifts. n most climates, the outer
Table-Top will not swell from humidity, however if you live in a very humid area, apply furniture wax to the
exposed MDF surface inside the opening to minimize moisture absorption.
ECOMMENDED TOOLS
• #2 Phillips Screw Driver
• Flat Head Screw Driver
