KTI KWR-005 Extended Manual

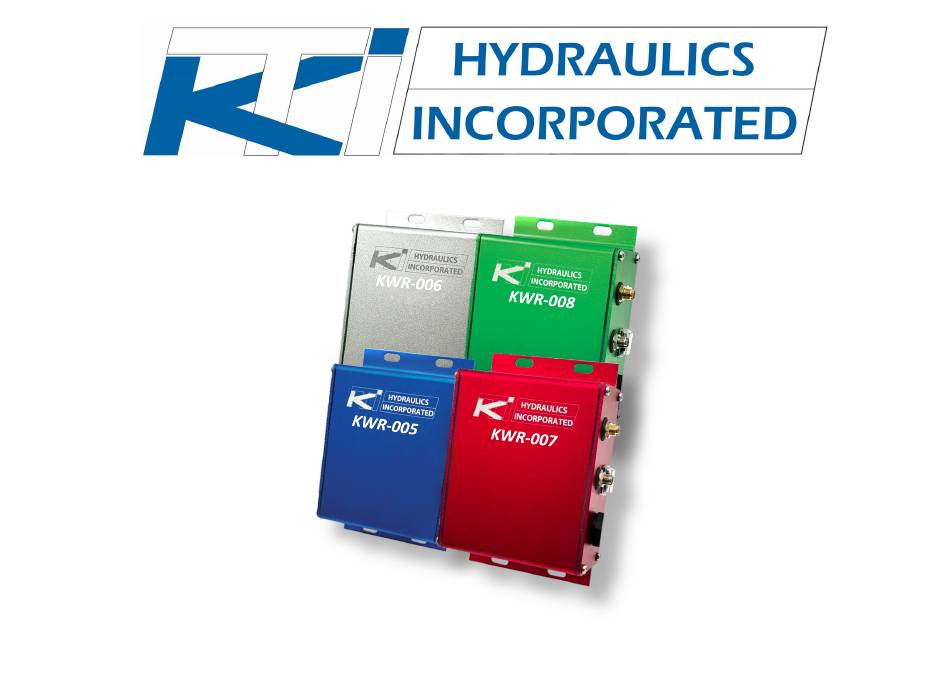

Bluetooth wireless controller
Hide thumbs Also See for KWR-005:

Advertisement

Quick Links

Download this manual
Extended Manual
For KWR-005, KWR-006, KWR-007, KWR-008

Advertisement

loading
Need help?

Need help?

Do you have a question about the KWR-005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KTI KWR-005

Summary of Contents for KTI KWR-005

  • Page 1 Extended Manual For KWR-005, KWR-006, KWR-007, KWR-008...
  • Page 2 This manual is for the unit with serial number in the pattern of KTI##-MMYY#### If your KWR has a serial number in the format KTI5######## or KTI6######## please visit our website for the links to download the correct app for your Android or iOS device.

  • Page 3: Fcc Statement

    FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    Table of Contents Getting Started Front View ………………………………………………………………….…….….…..…..Back View ………………………….…………………………………….…….….…………... Key Fob …………………………………............Android / iOS KTI KWR App………………………………………..….….…………….. Using the KWR Basic operation ..………………………….………………………………..….……… Pairing a new Key Fob …..………………………………………………....Clearing KWR Memory of Previously Paired Key Fobs ……………………..
  • Page 5 Table of Contents Appendix A: Android Device Basics Turning on/off Bluetooth ..…………………………………………………….……….. KTI KWR App Permissions ..…………………………………………..…..…………. Appendix B: iOS Device Basics Turning on/off Bluetooth .……………………………………………………………….. KTI KWR App permissions .……………………………………………..……………….

  • Page 6: Getting Started

    Getting Started...

  • Page 7: Front View

    Front View Wireless Remote Antenna Bluetooth Antenna Connection Port Connection Port Pair/Reset Button Power On/Off Switch* * We highly recommend switching the KWR unit to “OFF” when not in use Getting Started...
  • Page 8 Front View (continued) • Wireless Remote Antenna Connection Port (Silver color): Used with the included antenna to extend the unit’s wireless signal. • Bluetooth Antenna Connection Port (Gold color): Used with the included antenna to extend the unit’s Bluetooth signal. •...

  • Page 9: Back View

    Back View Indicator Light Getting Started...
  • Page 10 Back View (continued) • Indicator Light - Status Explanations  Blinking green – The unit is receiving power and is ready to communicate with a key fob / Bluetooth device • Quick-pace blinking – ready for pairing / connection • Slow-pace blinking – connected to a mobile device ...

  • Page 11: Key Fob

    Key Fob (for KWR-005 and KWR-008) Signal Light / Battery Status 397-8 397-11 KWR-005 KWR-008 Power Up Power Up Power Down Power Down Gravity Down* Key Fob ON/OFF Switch * Please consult your power unit’s hydraulic schematic diagram to understand which functions are actuated when connected to the KWR unit...
  • Page 12 Key Fob (for KWR-006 and KWR-007) Signal Light / Battery Status 397-9 397-10 KWR-006 KWR-007 Power Up Power “In”* Power Down Power “Out”* Power “In”* Power Up Gravity Down Power “Out”* Key Fob ON/OFF Switch * Please consult your power unit’s hydraulic schematic diagram to understand which functions are actuated when connected to the KWR unit Getting Started...
  • Page 13 Key Fob (for all models) Key Fob ON/OFF Switch* Lanyard Loop * We highly recommend switching the Key Fob to “OFF” when not in use Getting Started...
  • Page 14 Key Fob • Power Up: This will send a Power Up signal to the KWR unit. • Power Down: This will send a Power Down signal to the KWR unit. • Signal Light / Battery Status: When either the Power Up or Power Down button is pressed, this will have a solid light to indicate that the signal is being sent.

  • Page 15: Android / Ios Kti Kwr App

    Android / iOS Bluetooth KTI KWR App List Available Pair New Device Paired Devices Getting Started...
  • Page 16 Android / iOS Bluetooth App • Pair New Device: This will access the phone’s camera to scan for the KWR QR code, which is located on 2. Back of the 3. The OEM KWR Box 1. The KWR unit itself included key fob When asked for the passcode to pair with the device use “123456”...
  • Page 17 Android / iOS Bluetooth App (cont'd) • List Available Paired Device: Please press the search button on the upper right to search the surrounding area for previously paired KWR units and will be listed for selection if the units are available. This is used when you need to select between multiple KWR’s that are in range.

  • Page 18: Using The Kwr

    Using the KWR...

  • Page 19: Basic Operation

    • The KWR unit will favor the Bluetooth device if it successfully connected. You must close the KTI KWR app on your device if you wish to operate the KWR with the key fob. • Sleep Mode – If the KWR unit is powered on and left idle for 5 minutes, the indicator light will stop blinking green.

  • Page 20: Pairing A New Key Fob

    Pairing a new Key Fob with the KWR unit If you want to pair an additional key fob to a single receiver. 1. Locate the Pair / Reset Button on the KWR device. Press and hold the button for 3 seconds, then release it once the unit emits a beep and the indicator light turns orange.

  • Page 21: Clearing Kwr Memory Of Previously Paired Key Fobs

    Clearing KWR Memory of Previously Paired Key Fobs 1. Locate the Pair / Reset Button on the KWR device. Press and hold the button for 10 seconds after the unit emits 2 beeps and the indicator light flashes orange twice. Pair/Reset Button If the reset was successful, all previously paired key fobs will be unable to communicate with the KWR device.

  • Page 22: Clearing Kwr Memory (Bluetooth Devices)

    Clearing KWR memory (Bluetooth devices) 1. Go to the landing page when open the app 2. Swipe towards right of the serial number and click Remove Using the KWR...
  • Page 23 Troubleshooting – Key Fob...

  • Page 24: Basic Troubleshooting - Key Fob

    2) Check if the battery in the key fob is functioning. 3) Make sure you have disconnected the Successfully Paired device from the app. Operation of KTI Check wiring connection Hydraulic Power Unit 1) Check to see if KWR makes a clicking sound HPU doesn’t work...

  • Page 25: Troubleshooting

    Troubleshooting...

  • Page 26: Basic Troubleshooting - Bluetooth

    Cannot pair a) Bluetooth Pair device to KWR b) Location c) Camera Successfully Paired 3) Try restarting the KTI KWR app and attempt to pair again. Operation of KTI Check wiring connection Hydraulic Power Unit HPU doesn’t work 1) Check to see if KWR makes a clicking sound...

  • Page 27: Typical Problems / Error Messages - Android

    Android The message is typically encountered when  Permissions were not granted to the Bluetooth KTI app Other typical problems:  KWR is in sleep mode  Another device or key fob is currently paired with the KWR and operating the unit...

  • Page 28: Typical Problems / Error Messages - Ios

    Permissions not Allowed These messages are typically encountered when  Permissions were not granted to the Bluetooth KTI app Camera permission is not Other typical problems: allowed, please click the  KWR is in sleep mode right button access Settings ...

  • Page 29: Typical Problems / Error Messages - Solutions

    Typical Problems / Error Messages Connection Failed / QR Code Mismatch / No equipment / Device is not found (cont'd) Possible Solutions 1. Check to make sure that the KWR unit is powered on and the indicator light is blinking green. 2.
  • Page 30 Appendices...

  • Page 31: Appendix A - Android Device Setup

    Appendix A – Android Device Setup Turn on/off Bluetooth on your Android device 1. Open the Quick Settings menu. This is typically done by swiping down from top of your device. 2. Locate the Bluetooth Symbol and check to see if it is turned on. If it is not, simply tap the Bluetooth symbol.
  • Page 32 Checking Application Permissions for the KTI KWR 4. All permissions must 1. On your Android 3. Select “Permissions” be enabled. If these device, find the are not enabled, the app and press on application will not the app until work correctly options pop up 2.

  • Page 33: Appendix B - Ios Device Setup

    Appendix B – iOS Device Setup Turn on/off Bluetooth on your iOS device 2. Locate the Bluetooth 1. Open the Control Center menu. Symbol and check to see if • On iPhone X or it is turned on. If it is not, later, swipe down from the top-right simply tap the Bluetooth...
  • Page 34 Checking application permissions for the KTI KWR app 3. On your iPhone device, 1. On your iOS device, go to “Bluetooth” and “Camera” must “Settings” be enabled. If these are not 2. Scroll down and find the enabled, the application will not app “KTI KWR”...
