WolfVision 102227 Quick Start Manual

102227 VESA ™
The Cynap Videobar by WolfVision allows versatile installation and can also be mounted on the optional VESA™ mount.
The VESA mounting kit needs to be fixed securely onto the monitor in the right orientation (adapter plate on top of the monitor).
When the mounting kit is fixed securely, hang the Cynap Videobar on the adapter plate until the fixing screws engage in the slots.
Set up the device horizontally and tighten all three hex nuts. Establish the required cable connections (guide the cables either from
top, bottom, or through the centre-hole of the mounting plates).
Adjust the camera view to your room requirements by tilting the Cynap Videobar.
Note the required space for the unit (782mm x 147mm x 95mm [30.79" x 5.79" x 3.74"]).
To remove, disconnect all cables, loosen the three hex nuts and simply lift the device to pull it off.
Safety Instructions
· Pay attention to local regulations and laws.
· Pay attention to the mechanical load of 7kg [15.43lb], the monitor and its stand must be suitable for this additional load.
Avoid overloading: Do not exceed the recommended maximum load. Overloading may cause damage to the products or lead to
accidents.
· Prevent the system from falling down.
· Use the mount only for systems that support the recommended screen size.
· Ensure that the screw-in depth of the display in use is suitable. Failure to follow this instruction contrary to the display's
documentation may result in damage to the monitor.
· Regular inspection: Check the monitor mount regularly for wear, loose screws, or other signs of deterioration. Replace defective
parts immediately.
· Do not modify: Do not make any changes to the mount, as this may compromise its safety and functionality.
Warning
· Improper installation or failure to adhere to weight and size restrictions may result in serious injuries or damage to the monitor.
· Keep out of reach of children.
· Contains small parts that are not suitable for children under 3 years. Choking hazard!
Disclaimer
WolfVision disclaims any liability for injuries or damages resulting from improper use or installation.
Please follow the operating instructions and contact your WolfVision partner if you have any questions or concerns.

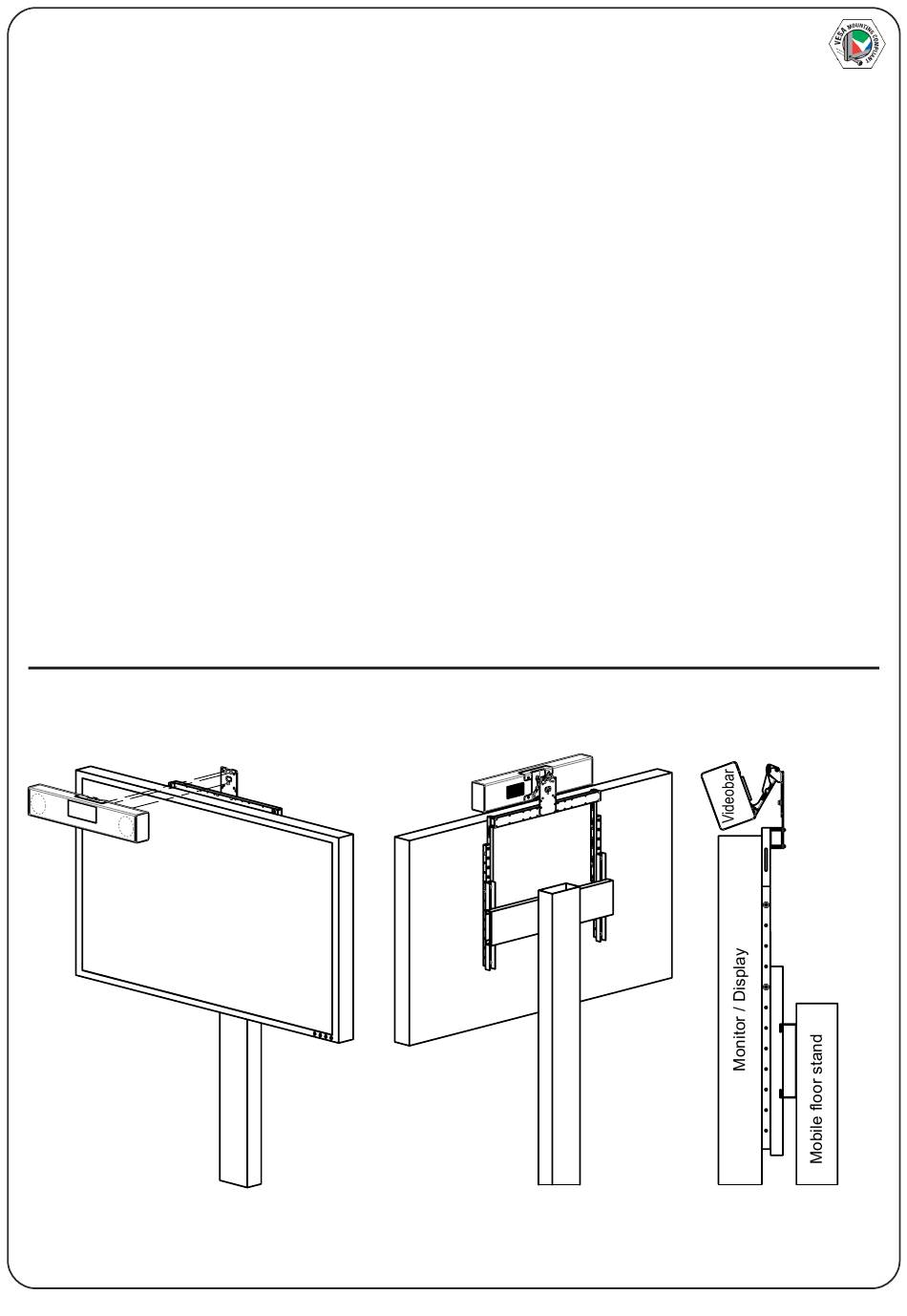

Example of mounted Cynap Videobar
Page 1 of 6
Top mounting kit for Cynap Videobar
(H 100 to 600mm / W 200 to 800mm)
Printed in Austria - April
.
.
