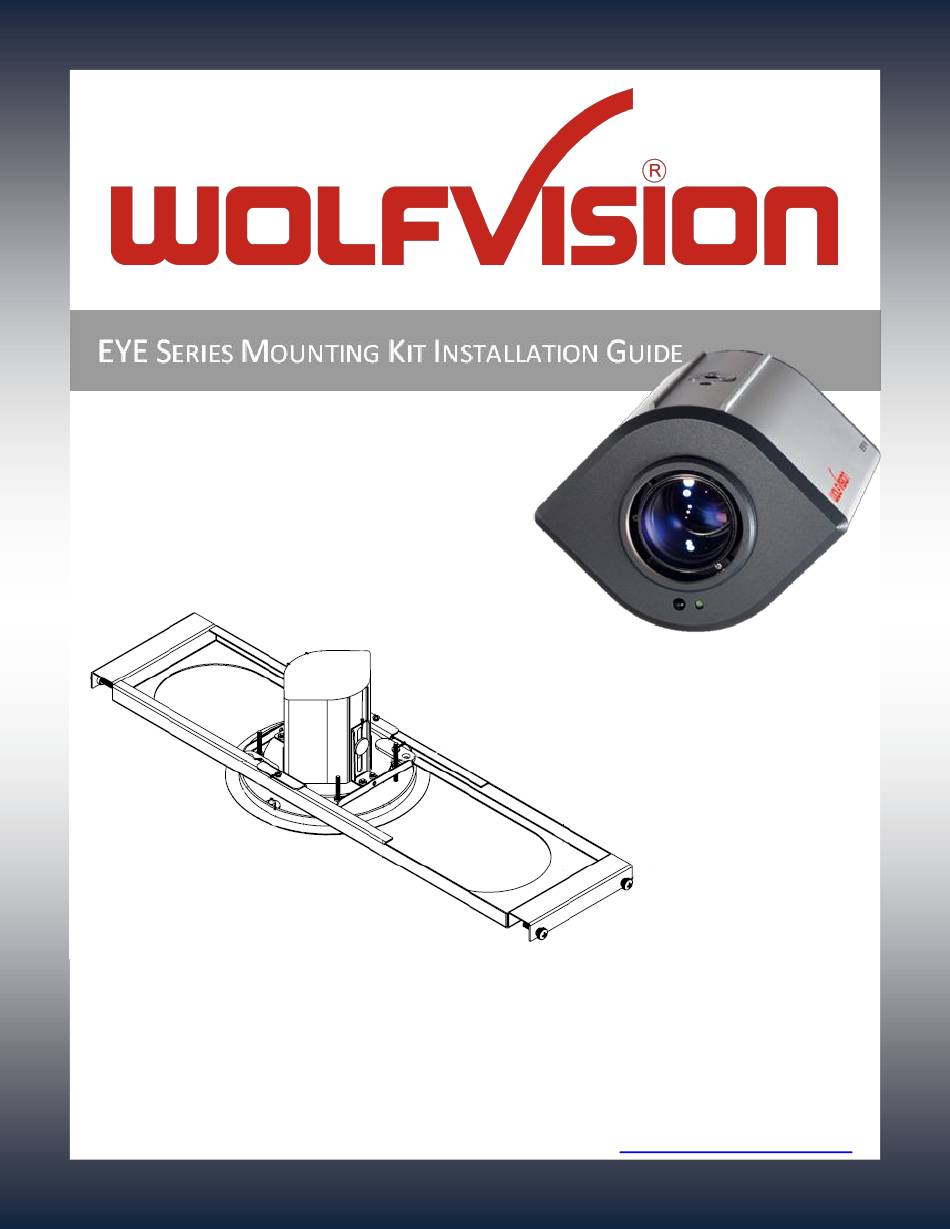

- Page 1 Ceiling Tile Ceiling Tile Installations – Part 1 Sheetrock Installations – Part 2 WolfVision Support 2055 Sugarloaf Circle, Suite 125 Duluth, GA 30097 (877) 873-WOLF support@wolfvision.us...
- Page 2 Part 1: Tile Bridge Installation The Ceiling Tile Bridge is designed to support the WolfVision EYE Series models only. T-Grid ceilings are not designed to support weight loads – support wires must be attached to the structural ceiling above. It is the responsibility of the installer to ensure this product is properly supported and meets all local building codes and plenum requirements.
-
Page 3: Assemble Unit
Ceiling Tile Assemble Unit Camera Bracket Trim Mounting Screw Mounting Tab Mounting Screw Mounting Screw Rail Clamp Screw Alignment Ring Nut (Optional) Light Mask Using Mounting Screw (E), attach Camera Bracket (A) to circular plate. Note: For installations using optional lenses, longer brackets are available for purchase. - Page 4 Ceiling Tile Slide assembly into the frame. Note: After assembly is in place, insert the two Rail Clamp Screws (F). Loosen frame screws. Install camera into the assembly – tighten ¼ - 20 knurled screws (supplied with camera). Note: It is recommended that the lens cap be left on for the entire installation process.
-
Page 5: Mounting Instructions
Ceiling Tile Mounting Instructions Using the center focal point on the table, run a plum-line to the ceiling tile and mark the center point where the camera will mount. At this point you are ready to cut the hole. Be sure you have checked the clearances side to side and above the tile. - Page 6 Ceiling Tile Install assembly above ceiling tile. Verify the hole alignment. Secure assembly by tightening the Frame Screws onto the grid and tightening the Rail Clamp Screws (F). Note: If you need to change the orientation of the image to match the architectural specifications of the room, loosen the Mounting Tabs (C) and rotate the camera assembly as needed.
- Page 7 Ceiling Tile Using this anchor point, attach safety cable to building structure. (Safety cable not included) Loosen knurled screws and lower camera until flush with bottom of ceiling tile. A straight edge may be used to verify. Attach alignment ring to face-plate with Nuts (G) provided.
- Page 8 Ceiling Tile (Optional) Place the four Trim Mounting Screws (B) though the trim ring. Peel back the adhesive backing from the Light Mask (H). Use the four screws (B) to align the mask properly and adhere to rear of trim ring. Note: The Light mask (H) is optional.
- Page 9 EYE Series Mounting Kit Part 2: Sheetrock Installation Guide This lightweight mounting bracket is designed to support the WolfVision EYE Series models above sheetrock ceilings. A safety cable anchor point is provided to secure the unit to the building structure. It is the responsibility of the installer to ensure this product is properly supported and meets all local building codes and plenum requirements.
- Page 10 Ceiling Tile Sheetrock Slide circular plate into mounting assembly. Secure circular plate into mounting assembly using Mounting Tabs (C) and Mounting Screws (D). Note: Use the center hole of the Mounting Tab (C). (Countersunk screw hole is not needed in this step). Only 2 Tabs are required. You must use the screw holes closest to rail clamps (see photo).
- Page 11 Ceiling Tile Sheetrock Rotate Tabs inward until inside the edge of the assembly. Install camera into the assembly using ¼ - 20 knurled screws (supplied with camera). Note: It is recommended that the lens cap be left on for the entire installation process. Adjust the camera until the distance from the front of the Mounting Tab (C) to the end of the camera matches the ceiling...
- Page 12 Ceiling Tile Sheetrock Mounting Instructions Using the center focal point on the table, run a plum-line to the ceiling tile and mark the center point where the camera will mount. Be sure you have checked the clearances side to side and above the ceiling. Cut a 7 ”...
- Page 13 Ceiling Tile Sheetrock Connect all necessary cables to the camera at this time. Using this anchor point, attach safety cable to building structure. Carefully insert assembly with all cables attached into the hole. Rotate Mounting Tabs outward so they support the weight of the assembly above the ceiling.
- Page 14 Ceiling Tile Sheetrock Tighten Screws on Mounting Tabs. Attach alignment ring to face-plate with Nuts (G) provided. This ring centers and stabilizes the assembly once the face-plate is installed. (Optional) Place the four Trim Mounting Screws (B) though the trim ring. Peel back the adhesive backing from the Light Mask (H).
- Page 15 Ceiling Tile Sheetrock Note: Screws must go into the holes designated by these arrows. Trim Mounting Screws Trim Mounting Screws Final Product...
- Page 16 Ceiling Tile WolfVision Support 2055 Sugarloaf Circle, Suite 125 Duluth, GA 30097 (877) 873-WOLF support@wolfvision.us...
