Sealey VS217 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
‰
DO NOT use tools if seals or threads are damaged. Any defective seal MUST be changed before use to avoid incorrect readings.
8
Maintain tools in good and clean condition for best and safest performance.
9
Ensure that a vehicle which has been jacked up is adequately supported with axle stands.
9
Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9
Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9
Ensure that the correct connector is used for the engine being tested.
9
WARNING! Always release the pressure from the gauge before disconnecting the coupling.
‰
Account for all tools, and parts being used and DO NOT leave them in or near the engine.
9
IMPORTANT: Always refer to the vehicle manufacturer's service instructions, or a proprietary manual, to establish the current procedure
and data.
WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions and
‰
situations that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but
must be applied by the operator.
2. INTRODUCTION
Real-time oil pressure readings. Easy-to-read digital display. 2.8-inch Backlit display. Pressure units – psi, bar, kg/cm². Auto-power-off.
The set includes 16 adaptors, a 90° quick-release connector, oil-resistant hose with a quick-release connector. Suitable for passenger
vehicles, light commercial and motorcycles. Supplied in storage case.
3. SPECIFICATION
Model No: VS217
Nett Weight: 1.5kg
Operating Temperature: -10 to 60°C
Operating Voltage: 6V
Pressure units: PSI, bar, kg/cm²
Accuracy: 0.5% FS
Range: 0 to 435psi (0 to 30 bar)
Resolution: 0.01bar, 0.01kg/cm²,
0.01psi.

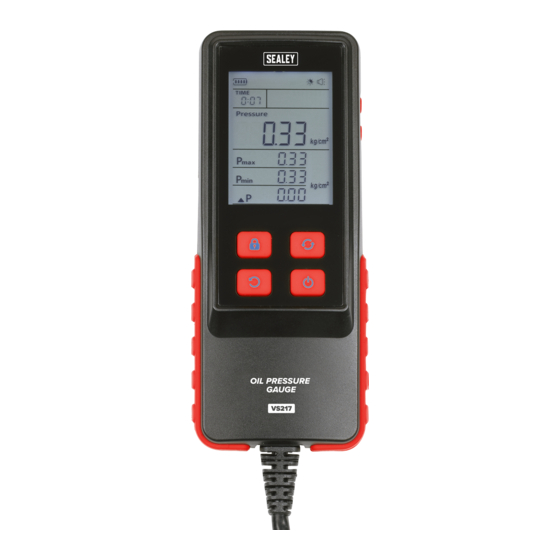

4. FEATURES
A Display
B press to lock/unlock the interface
C Pressure units convert
D Press to reset testing time; Long press to zero pressure
E Press to switch between Chinese/English mode; Long press to turn the device On/Off
F Measuring Probe
G Press to turn On/Off the key tone
H Press to turn On/Off the backlight
I Battery Cover
© Jack Sealey Limited
DIGITAL OIL PRESSURE TEST KIT 18PC
VS217
MODEL NO:
Battery: AAA x4 (not supplied)
Overload Pressure: 580psi (40bar)
Hose Length: 2600mm
Contents: M10x1.0, M10x1.25, M12x1.25, M12x1.5, M12x1.75,
Refer to attached M14x1.25, M14x1.5, M16x1.25, M16x1.5, M18x1.5, 3/8-24UNF,
parts list. 1/2-20UNF, NPT-1/4-18, NPT-1/8-27, NPT-3/8-18, ZG1/8-28,
90° Quick-release connector, Oil-resistant hose with a quick-
release connector.
Original Language Version
G
A
E
B C
D E
F
fig.A
VS217 Issue 2 11/03/25
I
