Sealey VSE3158 Instructions Manual

thank you for purchasing a sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to Wear eye
instructions protection
1. safety
WarninG! ensure Health and safety, local authority and general workshop practice regulations are adhered to when using tools.
‰
do not use tools if threads are damaged. Any defectives must be recified before use, to avoid incorrect readings.
�
maintain tools in a good, clean condition for the best and safest performance.
9
ensure that a vehicle that has been jacked up, is adequately supported with axle stands.
9
Wear approved eye protection. A full range of personal safety equipment is available from your sealey stockist.
9
Wear suitable clothing to avoid snagging. do not wear jewellery and tie back long hair.
9
ensure any disconnected fuel pipes are plugged to avoid spillage.
9
ensure that the correct connector is used for the engine being tested.
9
Always release the pressure from the gauge, before disconnecting the quick release coupling.
9
Account for all tools and parts being used and do not leave them in or near the engine.
9
Always refer to the vehicle manufacturer's service instructions, or a proprietary manual, to establish the current procedure and data.
9
2. introduction

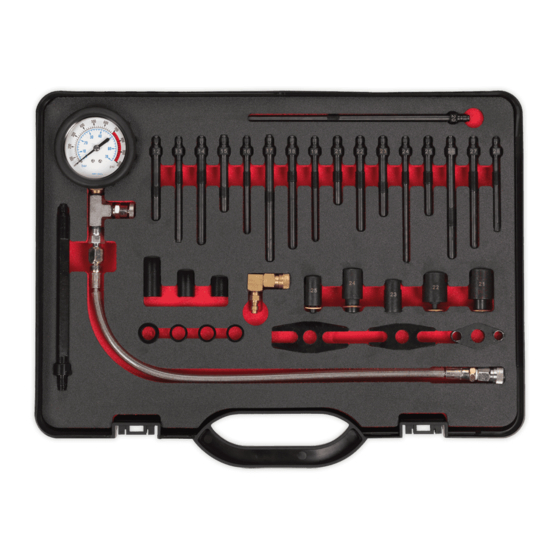

up-to-date kit for compression testing on diesel vehicles. contains 17 of the most common dummy glow plugs, covering 29 glow plug types,
33 manufactures and over 500 model/engine varients from 1999 to 2015. Also includes a set of injector adaptors if an alternative method of
testing is required. see instructions on sealey website for complete vehicle applications.
3. specification
model no: ................................................................ Vse3158
Glow Plug Adaptors: ...............................................................
Alfa romeo, Audi, BmW, cadillac, chrysler, citroen, dacia, dodge, fiat, ford, Honda, Jaguar, Jeep, lancia, land rover, mazda,
mercedes, mG, mini, mitsubishi, nissan, Peugeot, Porsche, renault, rover, saab, seat, skoda, suzuki, toyota, Vauxhall/opel, Volvo,
VW
Gauge Pressure range:...........................0-70bar(0-1000psi)
© Jack sealey limited
instructions for
compression test kit - diesel
model no:
Wear protective
gloves
Original Language Version
Vse3158
Vse3158 | issue 1 04/11/16
