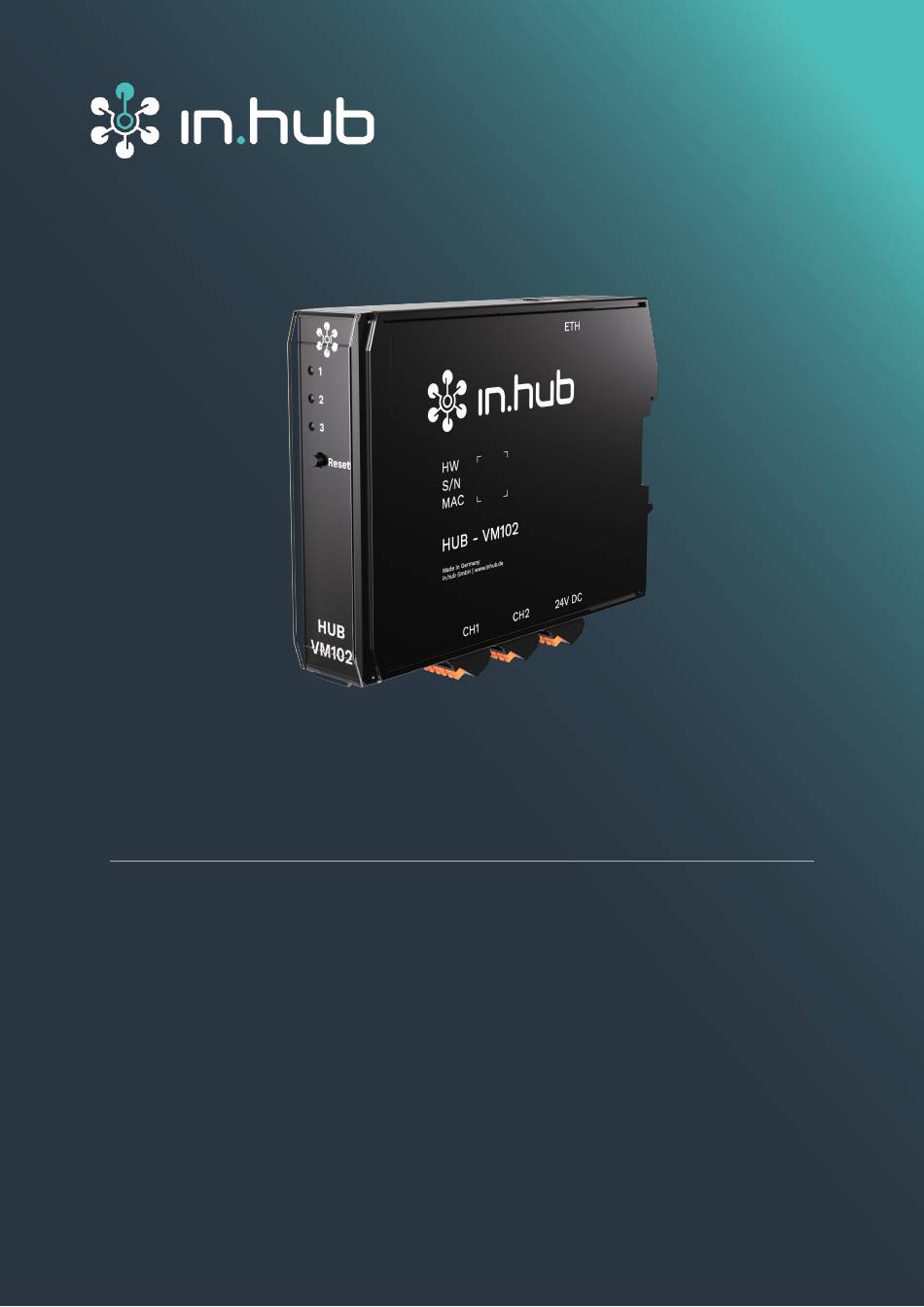

- Page 1 HUB-VM102 Operating Instructions Valid SIINEOS version: from 2.9.0 Document version 1.0 | Publication date: 25. April 2025...
-
Page 2: Table Of Contents
5. Further steps in the master gateway’s SIINEOS ..............16 5.1. Establishing communication with the HUB-VM102 via a network ........16 5.2. Establishing communication with the HUB-VM102 via a backplane bus ......19 6. Typical use cases in practice ....................21 6.1. -
Page 3: Legal Information
NOTE A note gives you useful information on specific actions and issues. A tip gives you tips, tricks or recommendations from in.hub that have proven to be helpful in handling the products. Qualified personnel The product associated with this documentation may only be handled by personnel quali- fied for the respective task. - Page 4 Legal information Intended use in.hub products may only be used for the applications specified in the corresponding tech- nical documentation. If third-party products and components are used, they must be recommended or approved by in.hub. Proper storage, set-up, assembly, installation, commissioning, operation and maintenance are essential for the correct and safe operation of the products.
-
Page 5: General Information
1× HUB-VM102 1× Operating Instructions as a PDF If the HUB-VM102 is to be supplied with power via the backplane bus of a master gateway (HUB-GM200), please note that you will need additional DIN-rail bus connectors. You can order these at in.hub as an option for your HUB-VM102. Please contact service@inhub.de... -
Page 6: Disposal
Please observe the national regulations. Do not dispose of the device with normal household waste, but appropriately for its nature and country-specific regulations, e.g. as waste electrical and electronic equipment (WEEE) or by commissioning a certified disposal company. Operating Instructions HUB-VM102... -
Page 7: General Product Information
General product information 2. General product information The HUB-VM102 module is specially designed for the detection of up to 2 parallel vibration signals. It is also possible to limit the measured frequency range using various digital filters. At the same time, instantaneous ADC values can be buffered in the internal RAM. These values can be used to perform a fast Fourier transform (FFT), for example. -
Page 8: Hardware - Design And Interfaces
General product information 2.2. Hardware – design and interfaces Views of the HUB-VM102 including interfaces Device-specific information is stored in a barcode: HW: Hardware revision S/N: in.hub internal serial number MAC: Hardware address of the Ethernet interface Backplane bus Ethernet (ETH) Supports the MQTT and Modbus TCP protocols and is equipped with two LEDs. -
Page 9: Power Supply
The technical parameters of the interfaces can be found in the chapter Specification of the CH1 and CH2 interface [25]. Pin assignment of interfaces CH1 and CH2 Analogue input AIN GND Ground / 0 V DIN GND Ground / 0 V Digital input Operating Instructions HUB-VM102... -
Page 10: Led Display
General product information 2.2.3. LED display The three bicolour (red/green) LEDs on the front of the device indicate the following status: LEDs on the HUB-VM102 Device status Status of IEPE interface 1 (CH1) Status of IEPE interface 2 (CH2) Behaviour of LED 1... -
Page 11: Led Display On The Eth Socket
2.2.4. LED display on the ETH socket The two single-colour LEDs (one green and one yellow LED) on the ETH interface can only be seen from above. Colour Meaning (function) Green Data transmission (link on) Yellow Network communication established (activity) Operating Instructions HUB-VM102... -
Page 12: Assembly
Assembly 3. Assembly The HUB-VM102 must be installed on a DIN EN 60715 (35 mm) mounting rail. Observe the applicable safety and accident prevention regulations for specific areas of application, such as the Machinery Directive. CAUTION Electric shock due to conductive dirt can cause personal injury! •... -
Page 13: Installation On A Backplane Bus
Put another DIN-rail bus connector onto the DIN rail and push it along the DIN rail until directly next to the master gateway Click the HUB-VM102 onto the DIN-rail bus connector you have just attached. HUB-GM200 master gateway with a HUB-VM102 3.3. Dismantling the device... -
Page 14: Installation
4.1. Connecting a power-supply unit The HUB-VM102 requires its own power supply if it is NOT connected directly via the backplane bus as an extension of a master gateway. Whenever the HUB-VM102 is installed as an individual device or spatially separated from the master gateway, you must provide it with a separate power supply. -
Page 15: Connecting Vibration Sensors
• Repeat the procedure with the blue connecting cable and plug it into the AIN GND pin (number 2 on the connector). Connecting a “PCB Piezotronic” vibration sensor to the HUB-VM102 (with wire-end ferrules in this example) Operating Instructions HUB-VM102... -
Page 16: Further Steps In The Master Gateway's Siineos
The newly added I/O unit is automatically enabled. If you want to use it later, set the Enabled slider to Off. Optional: Enter the Location. Enter the IP address of the HUB-VM102. Each HUB-VM102 has a factory-set IP address 192.168.1.200, which is always the same. Operating Instructions HUB-VM102... - Page 17 Further steps in the master gateway’s SIINEOS If you want to use more than one HUB-VM102 in the network, you must change the IP address(-es) of the other devices. To do this, open the I/O units one after the other and give each HUB-VM102 a different IP address: Switch to Advanced viewing mode.
- Page 18 Configuring the signal processing steps. 14. Click on Save. 15. On the Measurement modelling tab, you specify how the measurements are to be visualized. You can find out more at Measurement modelling. 16. Finally, click on Save & close. Operating Instructions HUB-VM102...
-
Page 19: Establishing Communication With The Hub-Vm102 Via A Backplane Bus
Further steps in the master gateway’s SIINEOS 5.2. Establishing communication with the HUB-VM102 via a backplane If you want to connect a HUB-VM102 via the backplane bus of a master gateway, you must complete the following steps: • Have the device mounted to the right of the master gateway, see... - Page 20 NOTE For each additional HUB-VM102 (up to 3 devices on one master gateway), you must create your own Modbus RTU client and always derive the Modbus ID from the respective device serial number located on the housing.
-
Page 21: Typical Use Cases In Practice
Connect the vibration sensors – max. 2 current sensors on each device. Make sure that the HUB-VM102 is accessible in the network. In the master gateway’s SIINEOS, add a HUB-VM102 I/O unit in I/O management. In I/O management, you also configure the signals, as well as signal processing and measure- ment modelling. -
Page 22: Communication Via Network And Data Transfer To Plc Or Pc
6.2. Communication via network and data transfer to PLC or PC CASE 2: One or more HUB-VM102s are individually installed, have their own power supplies and are integrated into the network. A PLC or PC collects the data from HUB-VM102, where it is processed and visualized using the applications there. -
Page 23: Communication Via Backplane Bus And Data Transfer To A Master Gateway Or Third-Party System
Under Modbus ID, enter the backplane bus ID, which is made up of the last three digits of the serial number of the HUB-VM102. The range defined by in.hub for the Modbus ID is between 1 and 100. Therefore, an ID cannot be 0 and cannot be greater than 100. -
Page 24: Technical Data
139 mm × 100 mm × 25 mm Weight 142 g Ambient conditions Temperature range Storage: –40°C to 85°C Operation: 0°C to 50°C Humidity Storage: 10% to 95% RH, non-condensing Operation: 20% to 90% RH, non-condensing Operating altitude Max. 2,000 m above sea level Operating Instructions HUB-VM102... -
Page 25: Specification Of The Ch1 And Ch2 Interface
~4 mA and monitoring of the IEPE voltage Maximum AC input level IEPE channel bandwidth 0.5 Hz to 10 kHz ADC sampling frequency 48 kHz ADC resolution 24 bit Circuit diagram of the CH interface (CH1 and CH2 are identical) Operating Instructions HUB-VM102... -
Page 26: Backplane Bus Specification
7.2. Backplane bus specification Backplane bus Voltage on the backplane bus Voltage of the power supply unit minus 0.5 V Switchable in the signals of the master gateway Communication Modbus RTU Max. number of additional mod- ules on one master gateway Operating Instructions HUB-VM102... - Page 27 This document is available in electronic form in the download portal of in.hub. Printed versions or copies not explicitly provided by in.hub are deemed uncontrolled. The original language of this document is German. Made in Germany. Service & Support: service@inhub.de https://community.inhub.de/...
