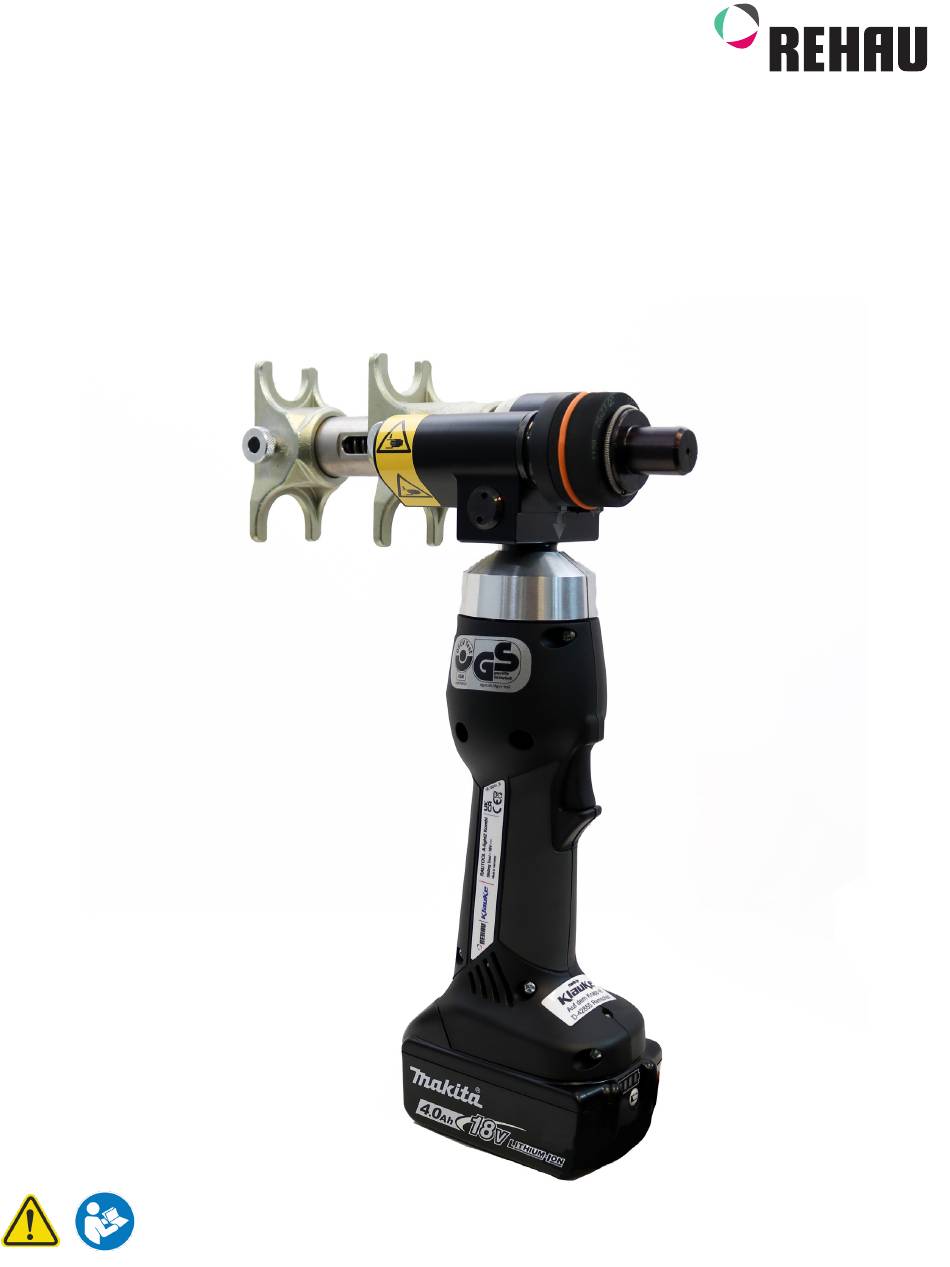

RAUTOOL™ A-light2 Kombi
Compression-sleeve Tool
Product Instructions
Read this instruction manual thoroughly before use and follow all safety precautions - improper use can cause
serious personal injury. SAVE THIS INSTRUCTION MANUAL.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAUTOOL A-light2 Kombi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rehau RAUTOOL A-light2 Kombi

Summary of Contents for Rehau RAUTOOL A-light2 Kombi

  • Page 1 RAUTOOL™ A-light2 Kombi Compression-sleeve Tool Product Instructions Read this instruction manual thoroughly before use and follow all safety precautions - improper use can cause serious personal injury. SAVE THIS INSTRUCTION MANUAL.

  • Page 2: Table Of Contents

    Use only REHAU or REHAU-approved expander heads and compres- REHAU product information conflicts with applicable code require- sion jaws that match the dimension of the REHAU MLP pipe being ments, industry standards, or the recommendations of other manu- installed (e.g., 25 mm expander head and compression jaws for 25 facturers regarding their components, contact your local Mitsubishi mm pipe).
  • Page 3 Power tools are dangerous in the hands of - For use only with REHAU or REHAU-authorized accessories or untrained users. attachments. Although certain unauthorized accessories and...

  • Page 4: Standard Kit / Accessories

    - For use only with REHAU MLP pipe and REHAU SDR11 compres- - Never grasp or support the power tool near the expander head, sion-sleeve fittings and polymer compression sleeves. Other hydraulic slide or compression jaws.
  • Page 5 Item No. Tool Element Function Operating trigger Switch for actuating expander head or compression jaws Release button Switch for opening hydraulic release valve Hydraulic slide Slide for compression and expansion Expansion cone Slide for opening expansion head Pins Fasten jaw sets to compression cylinder Battery Rechargeable Li-ion battery Battery release...

  • Page 6: Tool Diagnostics

    WARNING Moving parts can crush and cut. This power tool uses a strong hydraulic force to expand REHAU MLP pipe and compress components of the REHAU SDR11 compression-sleeve fittings and polymer compression sleeves.
  • Page 7 3. Slide the compression jaws onto the tool cylinder. When 7. Attach expander head (power tool). Ensure expansion cone is installing the compression jaws, always slide the long compression fully retracted. Lock expander head into position. Make certain jaw onto the hydraulic cylinder first, followed by the short expander head secures with an audible click.
  • Page 8 9. Use the expansion function. With the expander head in the direction of the operating trigger, press the operating trigger for expansion. The power tool is designed for one-handed operation. Wrap your fingers tightly around the control handle and keep a secure grasp on the tool during work.

  • Page 9: Fitting Assembly

    - Use only with REHAU or REHAU-authorized attachments of the proper size for the REHAU MLP pipe (e.g., 25 mm expander head and compression jaws for 25 mm. pipe). Using an unauthorized attachment or an attachment of the wrong size may result in a faulty joint, which could leak and lead to property damage.

  • Page 10: Inspection,Maintenance, Cleaning, Transportation And Storage

    9. INSPECTION, MAINTENANCE, CLEANING, Maintenance - Lubricate the expansion cone regularly with the grease included in TRANSPORTATION AND STORAGE the standard kit. Prevent grease from entering the pipe being installed. Avoid over-lubricating the expansion cone. Do not apply WARNING grease to the expander head segments. Should excess grease reach the outer surface of any segment, the segment must be thoroughly To reduce the risk of serious personal injury from accidental cleaned with a de-greasing cleaning solvent and then dried.

  • Page 11: Troubleshooting

    Only trained personnel should operate this tool. Persons recycling. using the RAUTOOL A-light2 Kombi power tool must be experienced and appropriately licensed professional contractors who understand Recycle depleted batteries promptly. Follow instructions in...
  • Page 12 The information contained herein is believed to be reliable, but no representations, guarantees or warranties of any kind are made as to its accuracy, suitability for particular applications or the results to be obtained therefrom. Before using, the user will determine suitability of the information for user’s intended use and shall assume all risk and liability in connection therewith. © 2023 REHAU 855.612ISF US,CA/en 03.2023...
