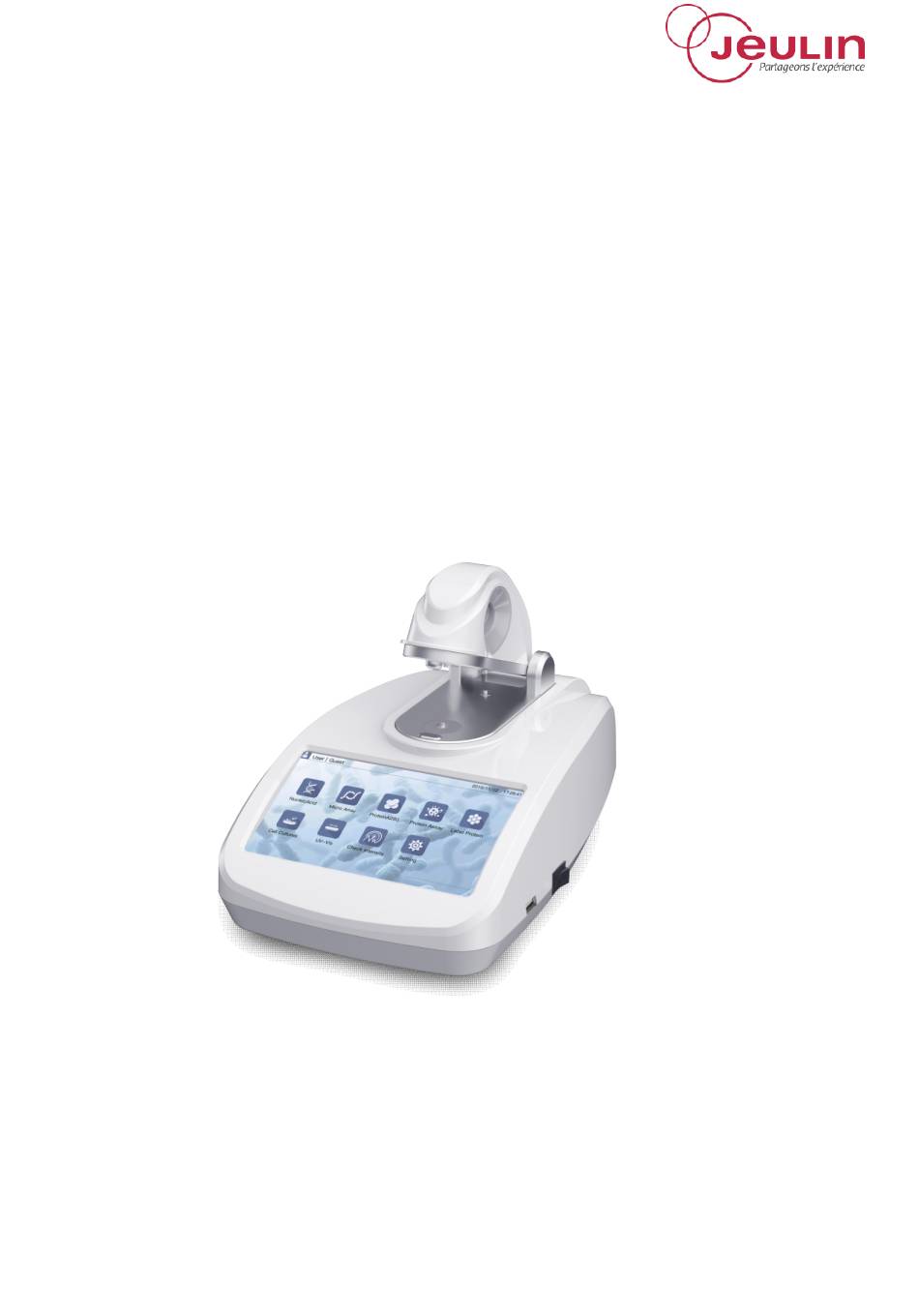

- Page 1 Operation Manual Version 1.0 ND-100 Ultra-micro ultraviolet-visible spectrophotometer Hangzhou Miu Instruments Co.,Ltd...
- Page 2 Foreword Thank purchasing Ultra-micro ultraviolet-visible spectrophotometer. This Manual for users contains function and operation of the Instrument. In order to use the instrument properly, please read this manual carefully before using the Instrument. Opening Check Please check the instrument and appendix with the packing list when you first open the packing case.
- Page 3 This instrument should be placed in a place with low humidity, little dust and far away from water source and avoid direct sunlight and strong light source. The room should be well ventilated and free from corrosive gas or strong magnetic field interference. It should be far away from heating, furnace and other heat sources.Do not place the instrument in damp or dusty places.
-
Page 4: Table Of Contents
Content CHAPTER 1 INTRODUCTION-----------------------------------------------------------------------------错 误！未定义书签。 CHAPTER 2 SPECIFICATIONS----------------------------------------------------------------------------2 1. THE NORMAL OPERATING CONDITION:--------------------------------------------2 2. THE PARAMETERS AND FUNCTION------------------------------------------------- 2 CHAPTER 3 BASIC OPERATION-------------------------------------------------------------------------3 1. STRUCTURE DESCRIPTION -------------------------------------------------------------错 误！未定义书签。 2. BASIC INSTRUCTIONS FOR BASE INSPECTION---------------------------------- 4 CHAPTER 4 OPERATION GUIDE-------------------------------------------------------------------------5 1. BLANK CONTROL AND LIGHT ABSORPTION CALCULATIONS--------------5 2. -
Page 5: Chapter 2 Specifications
ND-100 Operation Manual Chapter 2 Specifications Chapter 2 Specifications 1. The normal operating condition: Ambient temperature: 4 C 45 C Recommended ambient temperature: 15 C 35 C The relative humidity: ≤70% Power supply: DC12V 5A 2. The parameters and function... -
Page 6: Chapter 3 Basic Operation
ND-100 Operation Manual Chapter 3 Basic Operation Network port Power socket 2. Basic instructions for base inspection 1. Lift the sample arm and add the sample to the test base. (Theoretical value of sample volume is 0.5 ~ 2μl, 2μl is recommended) 2. -
Page 7: Chapter 4 Operation Guide
ND-100 Operation Manual Chapter 4 Operation guide 4. Starting up After the instrument is powered on, press the power switch, the LCD screen lights, the instrument enters the welcome interface (see Figure 1), the LCD screen displays the product name in the welcome interface, and then enters the main menu interface (see Figure 2). -
Page 8: Micro Nucleic Acid Array
ND-100 Operation Manual Chapter 4 Operation guide 260/280： The ratio of 260nm absorbance to 280nm absorbance. This value is used to determine the purity of DNA and RNA. Generally, the ratio of pure DNA is about 1.8, and the ratio of pure RNA is about 2.0. If the ratio is too small, it indicates the presence of protein, phenol or other contaminants, these substances have obvious light absorption at 280nm. -
Page 9: Labeled Protein Detection(Label Protein)
ND-100 Operation Manual Chapter 4 Operation guide Baseline： Baseline calibration wavelength, default is 340nm, default is on; the user can customize the wavelength and can turn it on and off. SW nm：Select the measurement wavelength, the default protein is 280nm, users can customize the measurement wavelength. - Page 10 ND-100 Operation Manual Chapter 4 Operation guide ViewLine：Because the drawing of the standard curve requires data of at least two standard products, this button is not clickable by default; click this button to view the standard curve of the currently measured protein standard sample.
-
Page 11: Other Testing
ND-100 Operation Manual Chapter 4 Operation guide 8. Other testing 1）Microbial cell culture testing(Cell-Cultures) The instrument can measure the suspension density of cells or microorganisms by detecting the absorbance at a wavelength of 600 nm. SW nm： The incident wavelength and absorbance value are displayed in SW Abs. -
Page 12: Dye
ND-100 Operation Manual Chapter 4 Operation guide Delete：Delete the selected graphic data. 2） Lable data file export Click the DATA (Table) button on the measurement page to enter the graphical data viewing page. Export：Insert the U disk and click the button to enter the file export page。... -
Page 13: User Management
ND-100 Operation Manual Chapter 4 Operation guide displayed. If you want to browse earlier files, you can customize the time period. 12. User Management Click the Setting button on the main menu page to enter the Setting page: The user management provided on the settings page includes switching the current user (SwitchUser) and entering the user management interface (Managenment);... -
Page 14: Dye Editing
ND-100 Operation Manual Chapter 4 Operation guide 14. Dye editing Click the Setting button on the main menu page to enter the Dye Editor page: Users can view related dye parameters, or they can add custom dyes and save them for use. The system's default dyes cannot be deleted, and users can delete custom dyes. -
Page 15: Annex A Wiring Diagram For Photometer
Annex A Wiring Diagram for Photometer...
