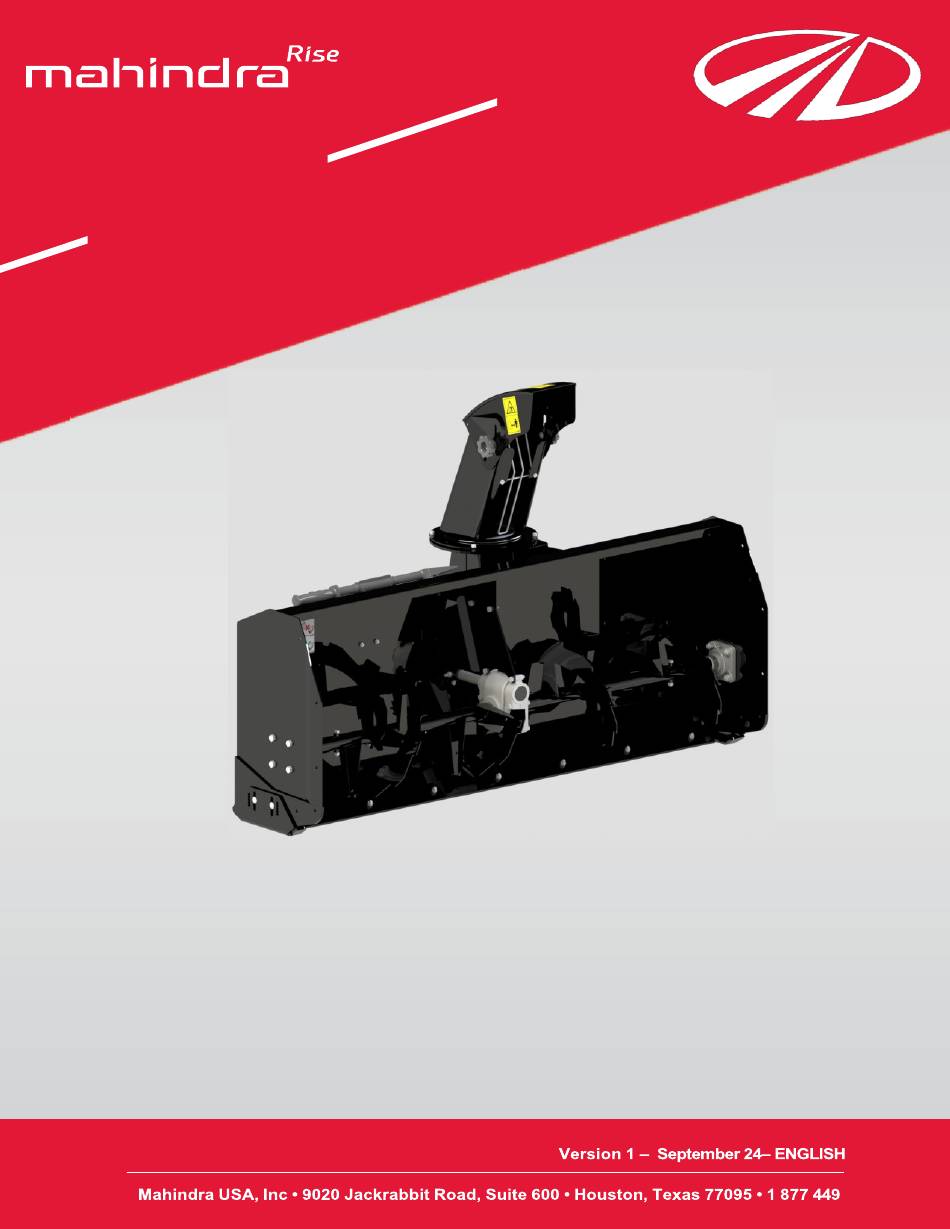

OPERATOR
MANUAL
BERSB58
58'' Snowblower
For
MAX 22, 24, 25 & 26, 28, EMAX & 2123 / 2126
SERIES TRACTOR
*110898*
110898_EN
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BERSB58 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mahindra BERSB58

  • Page 1 OPERATOR MANUAL BERSB58 58’’ Snowblower MAX 22, 24, 25 & 26, 28, EMAX & 2123 / 2126 SERIES TRACTOR *110898* 110898_EN...
  • Page 2: Limited Warranty

    Instructions for Obtaining Warranty Services: Contact the Mahindra dealer where equipment was purchased or any other Mahindra service dealer to arrange service at their dealership. To locate a dealer convenient to you, access our website at Don't forget to bring your proof of purchase (sales receipt) to the Mahindra dealer.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS PAGE INTRODUCTION ..............................SAFETY PRECAUTIONS ............................SAFETY DECALS ..............................ASSEMBLY Step 1 Snowblower Preparation ......................Step 2: Snowblower Installation ........................ ADJUSTMENTS ............................... OPERATION Snowblower Operation ..........................Controls ............................... Snow Removal ............................MAINTENANCE Lubrication ..............................Shear Bolt Replacement ..........................Belt Replacement ............................
  • Page 4: Purchase Date

    INTRODUCTION TO THE PURCHASER This new accessory was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but are intended for reference only and are based on the latest product information available at the time of publication.
  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS Careful operation is your best insurance against an accident. Read this section carefully before operating the vehicle and accessory. This accessory is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury. All operators, no matter how experienced they may be, should read this and other manuals related to the vehicle and accessory before operating.
  • Page 6 SAFETY PRECAUTIONS OPERATION: MAINTENANCE AND STORAGE Do not put hands or feet near, under or inside rotating parts. When cleaning, repairing or inspecting the vehicle and accessory: stop the engine, set brake, remove Exercise extreme caution when operating on or ignition key, and wait that all moving parts have crossing gravel drives, walks or roads.
  • Page 7: Safety Decals

    SAFETY DECALS REPLACE IF DECALS ARE DAMAGED SEE PARTS BREAKDOWN FOR DECAL LOCATION Symbol Description Decal #108550 To avoid serious injury or death: Keep hands, feet & clothing away from rotating auger while the tractor’s engine is running. Shut off engine and remain clear of the machine until all moving parts come to a complete stop.
  • Page 8: Assembly

    ASSEMBLY ASSEMBLY INSTRUCTIONS IMPORTANT: UNLESS OTHERWISE SPECIFIED TORQUE ALL BOLTS ACCORDING TO TORQUE SPECI- FICATION TABLE (SEE TABLE OF CONTENTS) WHEN STATED: TIGHTEN FIRMLY. REFER TO PARTS BREAKDOWN SECTION FOR PART IDENTIFICATION. NOTE: In this manual, the right and left side is determined by sitting on the seat of the vehicle facing toward. WARNING Remove the snowblower from the shipping crate.
  • Page 9: Step 1 Snowblower Preparation

    ASSEMBLY STEP 1 SNOWBLOWER PREPARATION: Refer to parts breakdown section for parts identification. NOTE: Lower the parking stand (item 1)(See the “ADJUSTMENTS” section for details). Turn the snowblower face down. Take care to avoid being pinched by the parking stand. Insert the key (item 2) in the half drive line (item 3) as shown.
  • Page 10 ASSEMBLY ASSEMBLY Loosen the tensioner (item 1) of the hydraulic motor. Install the metal rotation ring (item 2) over the opening of the chute as shown. Install the nylon rotation ring (item 3) over the opening of the chute as shown. Place the chute (item 4) facing the rear of blower on the opening as shown.
  • Page 11: Step 2 Snowblower Installation

    ASSEMBLY ASSEMBLY STEP 2 SNOWBLOWER INSTALLATION: Install the P.T.O. drive mechanism (item 1) from separate kit, into the snowblower’s driveline (item 2) by aligning the stamped marks (item 3) (located between the splines at the end of the shaft) with the large groove (item 4) in the hollow tube on the snowblower’s section.
  • Page 12: Verify Tire Pressure

    ADJUSTMENTS ADJUSTMENTS Skid shoe adjustment: LEVEL PAVED SURFACE: Adjust skid shoes to allow 3/16" to 1/4" or 5mm to 7mm clearance (A) between cutting edge and surface. UNEVEN OR GRAVEL SURFACE: Adjust skid shoes to allow 1/2" to 5/8" or 13mm to 16mm clearance (A) between cutting edge and surface.
  • Page 13: Operation

    Read the tractor Owner’s Manual carefully. Be operate the snowblower, blade or broom for the thoroughly familiar with the controls & proper Max series Mahindra tractors. use of the attachment. Know how to stop the attachment & disengage the controls quickly NOTE: To increase the life span of the components, always disengage the snowblower when it is raised.
  • Page 14: Cutting Edge Maintenance

    MAINTENANCE MAINTENANCE WARNING TO PREVENT INJURIES: Stop the snowblower motor. Apply parking brake. Remove the ignition key. MAINTENANCE a) Check mounting bolts at frequent intervals for proper tightness in order to prevent costly repairs. Make sure your snowblower is in safe working condition.
  • Page 15: Belt Replacement

    MAINTENANCE WARNING TO PREVENT INJURIES: Park the vehicle on a flat surface outside in a well ventilated area. Disengage the P.T. O. Lower the attachment to the ground. Apply parking brake. Stop the motor and remove the ignition key. Wait until all moving parts have stopped before leaving the driver’s seat.
  • Page 16: Dismounting & Storage

    DISMOUNTING & STORAGE SNOWBLOWER DISMOUNTING END OF SEASON STORAGE a) Clean thoroughly and repaint all parts from which WARNING paint has worn. b) List the replacement parts that will be needed for the next season. TO PREVENT INJURIES: c) Store the components in a dry place. Park the vehicle on a flat surface in a well ventilated d) Follow the instructions in the Lubrication section.
  • Page 17: Troubleshooting

    TROUBLESHOOTING * Please refer to parts breakdown section for parts identification. PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Snowblower vibrates or is Damaged pulley. Replace pulley. abnormally noisy. Damaged drive shaft. Replace drive shaft. Damaged bearing. Replace bearing. Damaged fan. Dismount & repair or replace fan. Driveline is not well installed.
  • Page 18: Parts Breakdown And Parts List

    BERSB58 BERSB58...
  • Page 19 BERSB58 BERSB58...
  • Page 25 104000 105627...
  • Page 26 NOMENCLATURE ET LISTE DE PIÈCES / PARTS BREAKDOWN & PARTS LIST MOTEUR HYDRAULIQUE ASSEMBLÉ / HYDRAULIC MOTOR ASSEMBLY #501007...
  • Page 27 NOMENCLATURE ET LISTE DE PIÈCES / PARTS BREAKDOWN & PARTS LIST MOTEUR HYDRAULIQUE ASSEMBLÉ / HYDRAULIC MOTOR ASSEMBLY #501007...
  • Page 29: Torque Specification Table

    TORQUE SPECIFICATION TABLE GENERAL TORQUE SPECIFICATION TABLE USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used. This applies to both UNF and UNC threads.
  • Page 30 TORQUE SPECIFICATION TABLE Dash Torque Dash NPSM Torque size thread size Foot/LBS size thread size Foot/LBS 7/16"-20 13-15 1/8"-27 9/16"-18 22-24 1/4"-18 3/4"-16 40-43 3/8"-18 7/8"-14 43-48 1/2"-14 1 1/16"-12 68-75 3/4"-14 1 5/16"-12 112-123 1"-11 1/2 1 1/4"-1 1/2 1 5/8"-12 146-161 Dash...
  • Page 31 NOTES _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________...
  • Page 32 Mahindra USA, inc. 9020 Jackrabbit Road, Suite 600 Houston, TX 77095 USA www.mahindrausa.com www.mahindracanada.com IMPRIMÉ AU CANADA PRINTED IN CANADA...
