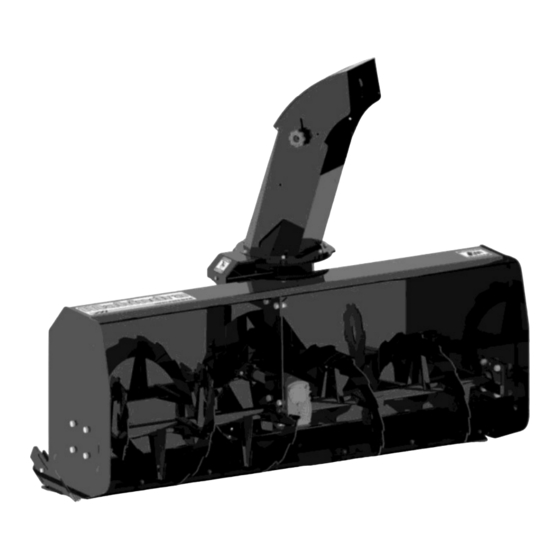

- Page 1 700624-2 700947 27" hydraulic hoses extensions kit * ASSEMBLY * REPAIR PARTS * OPERATION * MAINTENANCE READ & FOLLOW ALL SAFETY RULES & INSTRUCTIONS BEFORE OPERATING YOUR EQUIPMENT *108386* 108386_EN R - 08172018...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE INTRODUCTION ............................... SAFETY PRECAUTIONS ..........................SAFETY DECALS .............................. ASSEMBLY Step 1 Snowblower Preparation ......................OPERATION Snowblower Operation ......................... Controls ..............................Snow Removal ............................. MAINTENANCE Adjustments ............................Lubrication ............................Shear Bolt Replacement ........................Belt Replacement ..........................Pulley Replacement ..........................DISMOUNTING &... -
Page 4: Introduction
INTRODUCTION TO THE PURCHASER This new accessory was carefully designed to give years of dependable service. This manual has been provided to assist in the safe operation and servicing of your attachment. NOTE: All photographs and illustrations in the manual may not necessarily depict the actual models or attachment, but are intended for reference only and are based on the latest product information available at the time of publication. -
Page 7: Safety Decals
SAFETY DECALS REPLACE IF DECALS ARE DAMAGED SEE PARTS BREAKDOWN FOR DECAL LOCATION Symbol Description Decal #105126 To avoid serious injury: Keep hands, feet & clothing away from rotating auger while the vehicle’s engine is running. Decal #105127 To avoid serious injury: Keep hands out of this discharge chute while the vehicle’s engine is running. -
Page 8: Assembly
ASSEMBLY ASSEMBLY INSTRUCTIONS IMPORTANT: UNLESS OTHERWISE SPECIFIED TORQUE ALL BOLTS ACCORDING TO TORQUE SPECI- FICATION TABLE (SEE TABLE OF CONTENTS) WHEN STATED: TIGHTEN FIRMLY. REFER TO PARTS BREAKDOWN SECTION FOR PART IDENTIFICATION. NOTE: In this manual, the right and left side is determined by sitting on the seat of the vehicle facing toward. WARNING When installing and operating the accessory, the front loader must be removed from the vehicle. -
Page 9: Step 1 Snowblower Preparation
ASSEMBLY STEP 1 SNOWBLOWER PREPARATION NOTE: This step requires two people. Wrap the rotation ring (item 1) (groove inside) around the edge of the discharge chute (item 2) as shown. Place the chute (item 3) (opening facing forward) over the rotation ring. IMPORTANT: The ring must be inside the base of the chute. - Page 10 ASSEMBLY NOTE: To facilitate installation, turn the snowblower face down. Insert the 1/4’’ key (item 1) on the input shaft (item 2). Slide the half drive line (item 3) on the input shaft until the hole in the drive line lines up with the hole in the input shaft.
- Page 11 ASSEMBLY Unite the half driveline (item 2) to the shaft (item 3). Unite driveline to shaft Lift the parking stand by removing the lock pin (item 1) from the hole A, then raise the parking stand (item 2) and secure the parking stand in the raised position by inserting the lock pin in the hole B Do the inverse to lower the parking stand Lift parking stand...
- Page 12 ASSEMBLY IMPORTANT FOR THE 3016 - 3616: Make sure to thread the hoses through the hook on the hydraulic hose support and the hook on the front hitch bracket as done previously with the hoses for the hydraulic lift system. IMPORTANT FOR THE 1500series - 1626 : Make sure to thread the hoses through the front bumper to avoid any contact with the exhaust system.
-
Page 13: Operation
OPERATION CAUTION WARNING The subframe kit is to be used only to lift and Read the tractor Owner’s Manual carefully. Be operate the snowblower, blade or broom. thoroughly familiar with the controls & proper use of the attachment. Know how to stop the NOTE: To increase the life span of the components, attachment &... -
Page 14: Maintenance
MAINTENANCE MAINTENANCE WARNING AUGERS SHEAR BOLT REPLACEMENT TO PREVENT INJURIES: Stop the vehicle’s motor. Shear bolts are to be considered a preventive Apply parking brake. measure and not an assured protection. Operator Remove the ignition key. vigilance is required. Thoroughly inspect the areas where the snowblower is to be used and remove all foreign objects. -
Page 15: Belt Replacement
MAINTENANCE WARNING TO PREVENT INJURIES: Park the vehicle on a flat surface outside in a well ventilated area. Disengage the P.T. O. Lower the attachment to the ground. Apply parking brake. Stop the motor and remove the ignition key. Wait until all moving parts have stopped before leaving the driver’s seat. -
Page 16: Dismounting & Storage
DISMOUNTING & STORAGE SNOWBLOWER DISMOUNTING WARNING TO PREVENT INJURIES: Park the vehicle on a flat surface in a well ventilated area. Disengage the P.T. O. Apply parking brake. Wait until all moving parts have stopped before leaving the driver’s seat. Use wheel chocks. -
Page 17: Troubleshooting
TROUBLESHOOTING * Please refer to parts breakdown section for parts identification. PROBLEM POSSIBLE CAUSES CORRECTIVE ACTION Snowblower vibrates or is Damaged pulley. Replace pulley. abnormally noisy. Damaged drive shaft. Replace drive shaft. Damaged bearing. Replace bearing. Damaged fan. Dismount & repair or replace fan. Driveline is not well installed. -
Page 18: Torque Specification Table
TORQUE SPECIFICATION TABLE GENERAL TORQUE SPECIFICATION TABLE USE THE FOLLOWING TORQUES WHEN SPECIAL TORQUES ARE NOT GIVEN NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used. This applies to both UNF and UNC threads. - Page 20 O/L = Obtain Locally / Obtenir localement Part numbers starting with 500XXX are not available for sale, however, separate parts are available for sale individually. Les numéros 500xxx ne sont pas disponibles pour la vente. Au besoin, veuillez commander les numéros de pièces séparé- ment.
- Page 23 O/L = Obtain Locally / Obtenir localement Part numbers starting with 500XXX are not available for sale, however, separate parts are available for sale individually. Les numéros 500xxx ne sont pas disponibles pour la vente. Au besoin, veuillez commander les numéros de pièces séparé- ment.
- Page 25 O/L = Obtain Locally / Obtenir localement Part numbers starting with 500XXX are not available for sale, however, separate parts are available for sale individually. Les numéros 500xxx ne sont pas disponibles pour la vente. Au besoin, veuillez commander les numéros de pièces séparé- ment.
- Page 26 O/L = Obtain Locally / Obtenir localement Part numbers starting with 500XXX are not available for sale, however, separate parts are available for sale individually. Les numéros 500xxx ne sont pas disponibles pour la vente. Au besoin, veuillez commander les numéros de pièces séparé- ment.
-
Page 27: 27" Hydraulic Hoses Extensions Kit
O/L = Obtain Locally / Obtenir localement Part numbers starting with 500XXX are not available for sale, however, separate parts are available for sale individually. Les numéros 500xxx ne sont pas disponibles pour la vente. Au besoin, veuillez commander les numéros de pièces séparé- ment.
