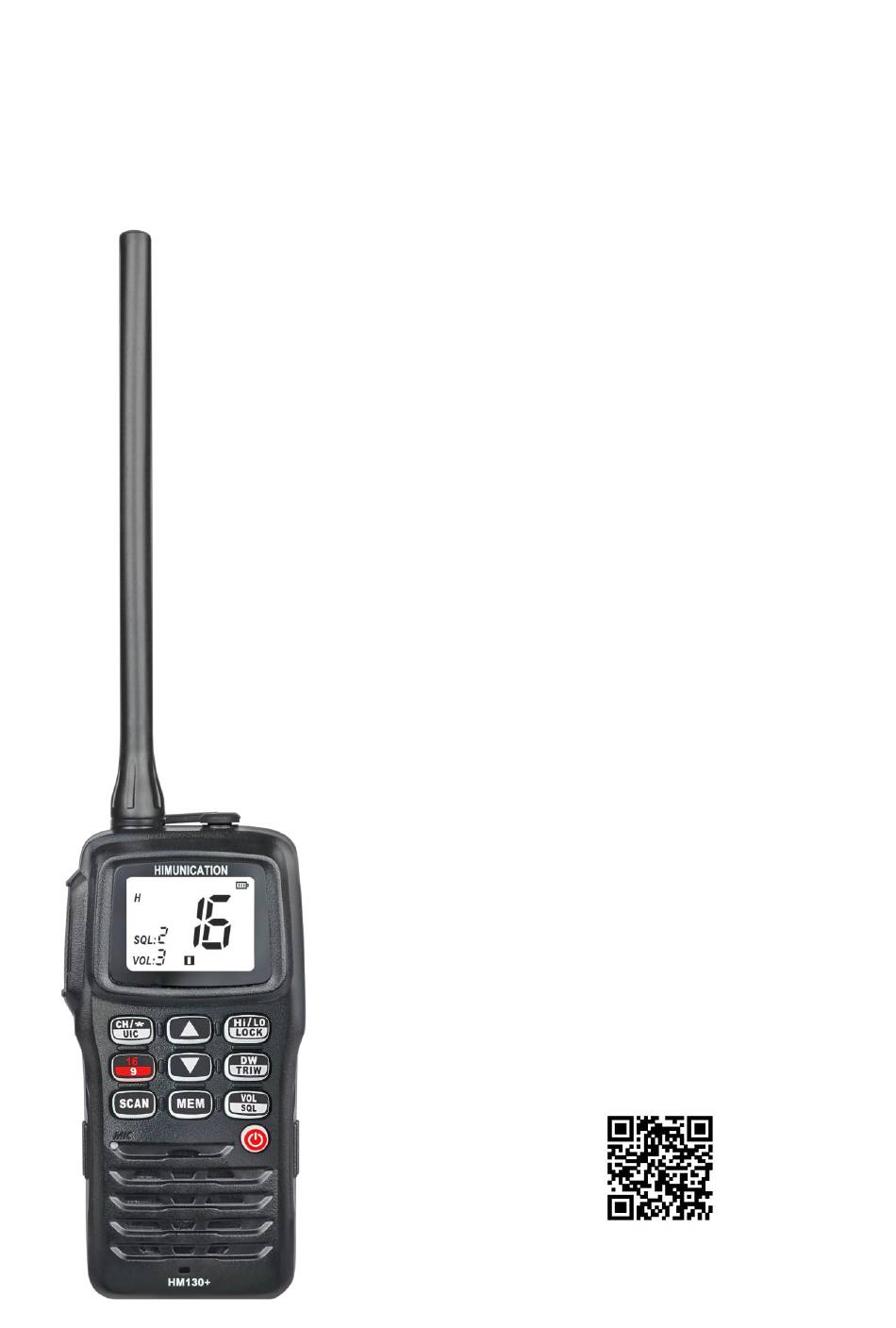

- Page 1 HIMUNICATION VHF MARINE RADIO HM130+ User Manual http://www.himunication.com Please Scan the QR Code to Download EN/FR/ES/ITA Multi-language User Manual...
-
Page 2: Eu Regulatory Conformance
Numbel：11005103 Adresse：3rd Floor,Block C,Huafeng Second Industry Park,Hangcheng Road,Gushu,Xixiang town, Baoan District, Shenzhen,China Hereby, HIMUNICATION declares that this Maritime Radio is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. Caution 1. The device can only receive signals when in charging mode. -
Page 3: Waterproof Design Warning
HM130+ The device complies with RF specifications when the device used at 25mm from your front face and 0mm from your body.Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. -
Page 4: Table Of Contents
HM130+ TABLE OF CONTENT HM130+ KEYS LOCATION DESCRIPTION..........................2 A.KEY Arrangement FUNCTION............................... 3 A.1 Key Arrangement................................3 A.2 LCD....................................3 B. DIRECT KEY OPERATION..............................4 B.1 Power ON/OFF (Hardware)............................4 B.2 VOL/SQL KEY................................4 B.3 UP/DOWN..................................4 B.4 16/9 Channel.................................. 4 B.5 H/M/L/LOCK Key.................................5 B.6 Private Channel................................5 B.7 WX Channel(Only available for USA,Canada)......................5 B.8 UIC Band.................................. -
Page 5: Hm130+ Keys Location Description
HM130+ HM130+ KEYS LOCATION DESCRIPTION / LOCK H/M/L POWER DISPLAY DW/TRIW CH/* /UIC VOL/SQL 16 / 9 DOWN SCAN POWER SWITCH Caution： 1. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 2. -
Page 6: A.key Arrangement Function
HM130+ A.KEY Arrangement FUNCTION Short Press ( < 3 sec ) Long Press ( > 3 sec ) H/M/L /Lock TX Power H/M/L /Lock Key Lock 16/9 CH16 CH09 DW/TRIW Dual Watch mode Tri Watch mode Power Switch SCAN All Scan/all memory Scan Priority all/memory Scan MEMORY Mode Save/Delete Memory Channel... -
Page 7: Direct Key Operation
HM130+ B. DIRECT KEY OPERATION B.1 Power ON/OFF (Hardware) Long press power switch 2s to start normal operation mode, long press again 2s will power down. B.2 VOL/SQL KEY Short press VOL/SQL key to adjust volume level,press UP/DOWN key to select volume level accordingly.Long press VOL/SQL key will flash squelch level,press UP/DOWN key to select squelch level accordingly. -
Page 8: H/M/L/Lock Key
HM130+ 4. While the channel number is flash,it can be changed with“UP”and“DOWN”arrow buttons.The selection can be saved by short pressing ‘’16/9’’ key and the screen display ‘’P’’ icon to indicate that the secondary priority channel has been changed. 5.The user can reprogram the secondary priority channel on the HM130+ B.5 H/M/L/LOCK Key Short press Hi/LO/LOCK Key will toggle the TX power from H to M or L ,corresponding H to M or L icon will display on the LCD. -
Page 9: Scan
HM130+ B.9 SCAN This is the function to scan for broadcasting channels. When available channel detected, the receiver will stop at that channel and continue to search when that transmission ceased. There are 4 Scan modes available – All SCAN, Memory Scan,Priority Scan & memory Scan, Default is All Scan 1、At the normal mode,short press the SCAN key to activate SCAN function. -
Page 10: Dual Watch
HM130+ 2. Long press the MEM key to store up the channel as memory channel.The “M” icon shows up to indicate the current channel has been saved in the memory. No limited of memory channels. 3. Separate memory channel exists for USA, International, and Canadian Frequency group. Deleting CH from the memory: 1.During the normal mode, use the UP/DOWN key to select the channel to be deleted. -
Page 11: Power Save Mode
HM130+ C.2 Power save Mode Normal Mode 100ms ON, 300ms OFF C.3 TX Indicator When the radio is transmitting, the “TX” icon will be lit up. C.4 BEEP Adjustment The radio features BEEP by default.However,you can choose switch on/off BEEP. Power off radio when radio is on,press POWER key as well as SQL/VOL key to start up radio,the BEEP by default will switch off. -
Page 12: Special Function Keys
HM130+ the ATIS ID will be flashed in sequence one time on the screen. 7. Turn off radio,permanently save ATIS ID to the EEPROM of the radio. 8. After the ATIS ID being programmed into the radio, from OFF position holding DOWN and turning the radio ON will make the radio flash its ATIS ID. -
Page 13: List Of Abbreviations
HM130+ List of Abbreviations Auxiliary Equipment Conducted Emissions Electromagnetic Compatibility European Norm Equipment Under Test Fast Transient Burst Marine Equipment Directive Quasi Peak Safety The high voltage interference pulse can contain a very large quantity of energy and every precaution shall be taken to avoid contact with EUT during a test. -
Page 14: Appendix B - Channel List
HM130+ Appendix B – Channel List International Marine VHF Channels & Frequencies TX Freq RX Freq Simplex Freq Use 156.050 160.650 Public Correspondence, Port Operations and Ship Movement 156.100 160.700 Public Correspondence, Port Operations and Ship Movement 156.150 160.750 Public Correspondence, Port Operations and Ship Movement 156.200 160.800 Public Correspondence, Port Operations and Ship Movement... - Page 15 HM130+ 156.325 156.325 Non-Commercial 156.375 156.375 Inter-ship, Port Operations and Ship Movement [2] 156.425 156.425 Port Operations and Ship Movement 156.475 156.475 Inter-ship, Port Operations and Ship Movement 156.575 156.575 Port Operations and Ship Movement 156.625 156.625 Inter-ship 156.675 156.675 Inter-ship [2] 156.725 156.725...
- Page 16 HM130+ U.S. Marine VHF Channels and Frequencies TX Freq RX Freq Simplex Freq Use Port Operations and Commercial, VTS. Available only in New Orleans / 156.050 156.050 Lower Mississippi area. U.S. Government only 156.150 156.150 Port Operations or VTS in the Houston, New Orleans and Seattle areas. 156.250 156.250 Inter-ship Safety...
- Page 17 HM130+ Commercial. Used for Bridge-to-bridge communications in lower 156.375 156.375 Mississippi River. Inter-ship only. Non-Commercial 156.425 156.425 156.475 156.475 Non-Commercial 156.525 156.525 Non-Commercial 156.575 156.575 Non-Commercial 156.625 156.625 Non-Commercial (Inter-ship only) 156.675 156.675 Port Operations 156.725 156.725 Port Operations 156.875 156.875 Port Operations (Inter-ship only) 156.925...
- Page 18 HM130+ Canadian Marine VHF Channels and Frequencies TX Freq RX Freq Area of Operation Use 156.050 160.650 PC Public Correspondence 156.100 160.700 PC Public Correspondence 156.150 160.750 PC Public Correspondence 156.200 156.200 PC Inter-ship, Ship/Shore and Safety: Canadian Coast Guard S&R 156.250 156.250 Ship Movement...
- Page 19 HM130+ – 161.650 All areas Safety: Continuous Marine Broadcast (CMB) service. All areas Inter-ship, Ship/Shore, Commercial and Non-commercial: For 157.100 157.100 communications between Canadian Coast Guard and non-Canadian Coast Guard stations only. PC Ship/Shore and Public Correspondence: Also in the inland waters of British 157.150 161.750 Columbia and the Yukon.
- Page 20 HM130+ EC, PC Inter-ship, Commercial and Non-commercial: May be used to communicate 156.625 156.625 with aircraft and helicopters in predominantly maritime support All areas except EC Inter-ship, Ship/Shore, Commercial, Non-commercial, Safety:May 156.675 156.675 also be used for communications with aircraft engaged in coordinated search and rescue and antipollution operations.
- Page 21 HM130+ Country TX Freq RX Freq Freq Use Belgium 162.425 162.425 Marina Denmark 155.500 155.500 Leisure 155.525 155.525 Leisure Denmark, Finland, 155.625 155.625 Fishing Norway & Sweden 155.775 155.775 Fishing 155.825 155.825 Fishing Finland, Norway&Sweden 155.500 155.500 Leisure 155.525 155.525 Leisure 155.650 155.650...
-
Page 22: Specifications
HM130+ SPECIFICATIONS DESCRIPTION Unit LIMIT Frequnecy Range:Transmit 156.025 To 157.425 Frequnecy Range:Receive 156.300 To 162.000 56 INT Channels 52 USA Channels Number Of Channels 59 Canada Channels 10 Weather Channels(only for USA) 99 Private Channels Oscillate Mode Modulation FM(16K0G3E) Channel Spacing Frequency Stability ±5 Standard Operation Temperature... -
Page 23: Dimension And Weight
HM130+ RECEIVER 1.Sensitivity For 12dB Sinad dBμV ≤-6(EMF) 2.Squelch a) squelch threshold dBμV <-6.0(EMF) b) hysteresis c) squelch tight dBμV 0dBuV ~ +6dBuV 3.Rated audio output @10% Thd Speaker ≥1000 4.Max.S/N ratio @ 1mV ≥40 5.Audio frequency resp. 1000Hz/0dB ref. @300Hz +7.5~+11.5 @2000Hz...
