Himunication TS19 User Manual

Vhf marine radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HIMUNICATION
VHF MARINE RADIO
TS19
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS19 and is the answer not in the manual?

Questions and answers

Related Manuals for Himunication TS19

Summary of Contents for Himunication TS19

  • Page 1 HIMUNICATION VHF MARINE RADIO TS19 User Manual...
  • Page 2 Please Scan the QR Code to Download EN/FR/ES/ITA Multi-language User Manual...

  • Page 3: Table Of Contents

    Contents EU REGULATORY CONFORMANCE ........................2 CAUTION ................................... 2 TS19 PRODUCT DESCRIPTION ..........................4 PTT BUTTON ................................5 DISTRESS BUTTON ..............................5 SHORTCUT KEYS ..............................6 ICON ..................................6 1. MAIN ................................6 2. DSC ................................9 3. MOB ................................10 4.

  • Page 4: Eu Regulatory Conformance

    OTHER FEATURES AND SOLUTIONS .......... FOUT! BLADWIJZER NIET GEDEFINIEERD. TX Time Out ..............................13 How to update the software of TS19 ........................ 13 The local time and date on screen ........................13 Appendix A – Near Lightning Strike Test ......................15 Appendix B –...
  • Page 5 Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Maximum SAR Value (10g):0.459W/Kg. Hereby, Shenzhen Himunication Technology Co ., Ltd declares that this Maritime Radio is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU.

  • Page 6: Ts19 Product Description

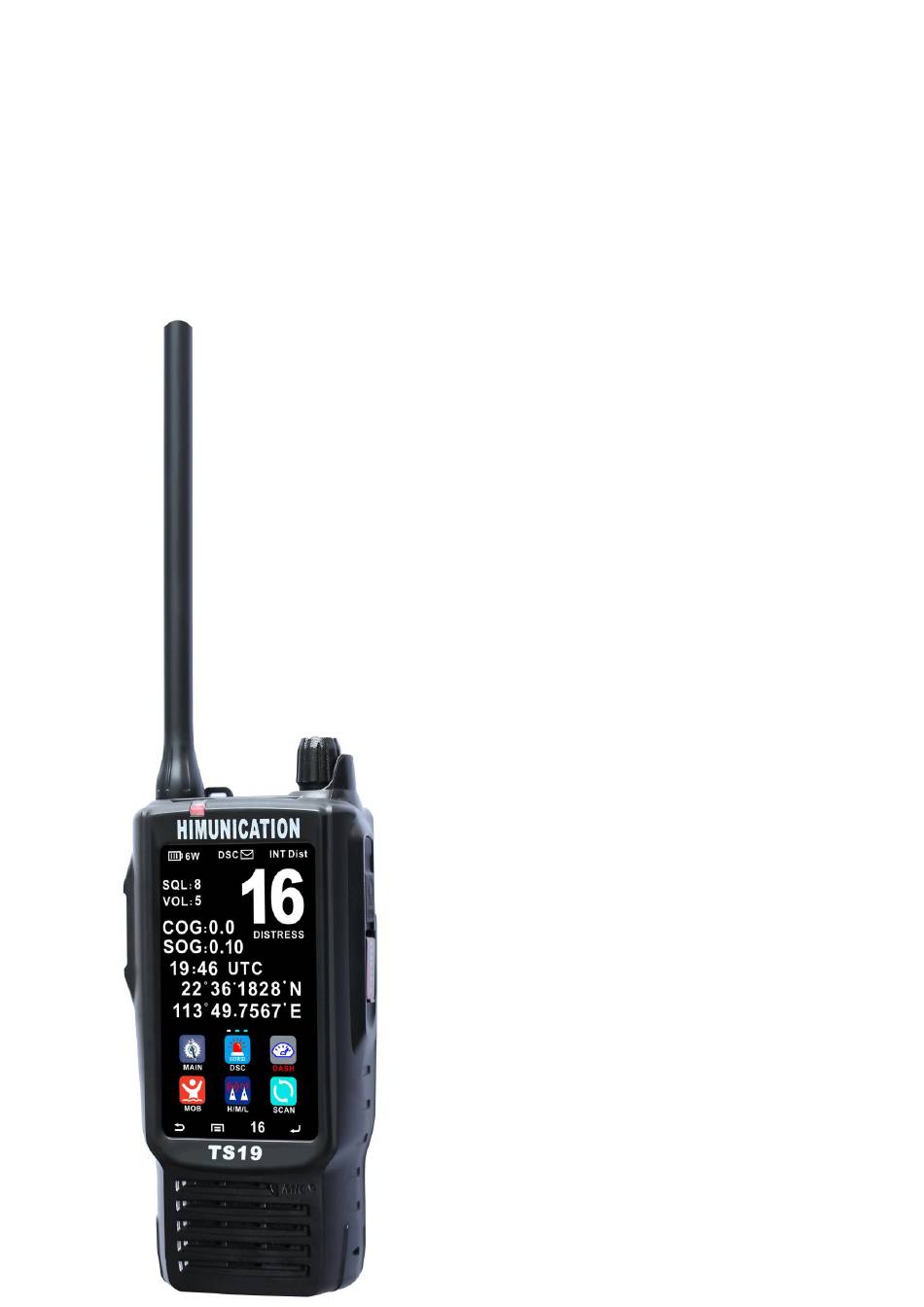

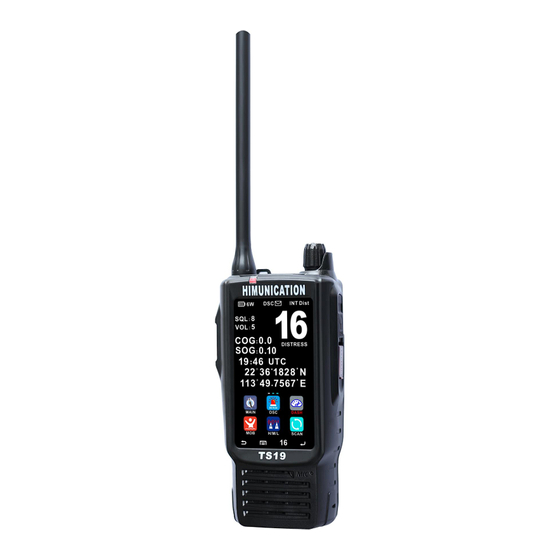

    TS19 Product Description Knob Antenna Headset jack DISTRESS key GPS position Icon Shortcut keys Speaker...

  • Page 7: Ptt Button

    Figure 1 - TS19 VHF Hand Held Radio Figure 2 - TS19 AC/DC adapter and charge base When turned on, the top of the interface is the information display: battery power, high and low power, DSC, etc. The large word shows the current channel. You can click the large word and select the channel in the pop up interface.

  • Page 8: Shortcut Keys

    Knob After power off, long press the knob until the screen display and then released the knob, the radio will power on. After power on, long press the knob until the screen turns black and release to turn off, the radio will power off. After power on, turn the knob or lower pressure knob to enter VOL adjustment;...
  • Page 9 VHF Operation You can enter the setting of VHF Operation when you click the VHF Operation submenu. VHF Operation Channel Band Set > Priority 2nd Ch > You can enter the setting of BAND when you click the Channel Band Set submenu. Click Priority 2nd Ch to enter the setting of the second Priority channel.
  • Page 10 DSC Operation You can click the DSC Operation submenu to enter DSC setting. DSC Operation MY MMSI ID > DSC Function > Click MY MMSI ID: if the MMSI ID is set, the MMSI ID will be displayed. If not, you can set the MMSI ID. Click DSC Function to enable or disable the DSC Function.

  • Page 11: Dsc

    2.4G ON/OFF You can set the 2.4G switch by click the 2.4G ON/OFF. 2.4G ON/OFF ⚫ 2. DSC You can enter the DSC operation interface (mode) when you click icon, and you can swipe the screen up and down or click the scroll bar to display other menus. DSC Menu Individual Call >...

  • Page 12: Mob

    ◆ All Ship Call Click into the interface of All ShipCall and select Safety or Urgency, then click Enter to enter the next page and select the channel which need to be sent, then go to the next page and click Call to transmit. ◆...

  • Page 13: Lock

    To click SCAN icon to start scanning all channels, and click "STOP" on the scan screen to STOP scanning. At the channel display, you can swipe up to change the scan direction to increase, and swipe down to change the scan direction to decrease.

  • Page 14: Triw

    When you click and enter the DUAL mode, the current channel and priority channel will be scanned circularly. Click "STOP" on the scan screen to STOP scanning. Note: this function does not work in ATIS mode. 15. TRIW When you click and enter TRIW mode. the current channel, priority channel and second priority channel will be scanned circularly.

  • Page 15: Tx Time Out

    The local time and date on screen When the TS19 is unable to receive the GPS signal to display the current position, the screen will automatically display the UTC local time and date. The user can press the menu to switch the local time according to the UTC time.
  • Page 16 Time offset UTC - 00:00 Exit ▲▼ Enter UTC TIME LOCAL TIME Generally, it all likes when you operate your locate time at your computer or laptop...

  • Page 17: Appendix A - Near Lightning Strike Test

    Appendix A – Near Lightning Strike Test This appendix describes the general procedure for evaluating the immunity to near lightning strikes (NLS) of the TS19 VHF Radio. The test simulates a slow, high-energy pulse produced by an NLS event. Related External Documents •...
  • Page 18 Performance Criteria From BS EN 61000-4-5 : 2006 Performance criteria C: Temporary loss of function or degradation of performance, the correction of which requires operator intervention.

  • Page 19: Appendix B - Channel List

    Appendix B – Channel List International Marine VHF Channels & Frequencies TX Freq RX Freq Mode FreqUse 156.050 160.650 Public Correspondence, Port Operations and Ship Movement 156.100 160.700 Public Correspondence, Port Operations and Ship Movement 156.150 160.750 Public Correspondence, Port Operations and Ship Movement 156.200 160.800 Public Correspondence, Port Operations and Ship Movement...
  • Page 20 2020 161.600 161.600 Public Correspondence, Port Operations and Ship Movement 157.050 161.650 Public Correspondence, Port Operations and Ship Movement 157.100 161.700 Public Correspondence, Port Operations and Ship Movement 157.150 161.750 Public Correspondence, Port Operations and Ship Movement 157.200 161.800 Public Correspondence, Port Operations and Ship Movement 157.250 161.850 Public Correspondence, Port Operations and Ship Movement...
  • Page 21 2078 161.525 161.525 Public correspondence, Port Operations and Ship Movement 156.975 161.575 Public correspondence, Port Operations and Ship Movement 1079 156.975 156.975 Public correspondence, Port Operations and Ship Movement 2079 161.575 161.575 Public correspondence, Port Operations and Ship Movement 157.025 161.625 Public correspondence, Port Operations and Ship Movement 157.075...

  • Page 22: Marine Vhf Channels And Frequencies

    and all precautions should be taken to avoid harmful interference to channel 16. Transmit power is limited to 1 Watt. U.S. Marine VHF Channels and Frequencies FreqUse TX Freq RX Freq Mode Port Operations and Commercial, VTS. Available only in New Orleans / 156.050 156.050 Simplex...
  • Page 23 157.050 157.050 Simplex U.S. Coast Guard only Coast Guard Liaison and Maritime Safety Information Broadcasts. 157.100 157.100 Simplex Broadcasts announced on channel 16. 157.150 157.150 Simplex U.S. Coast Guard only 157.200 161.800 Public Correspondence (Marine Operator) Public Correspondence (Marine Operator) 157.250 161.850 157.300...
  • Page 24 U.S. Government only – Environmental protection operations. 157.075 157.075 Simplex U.S. Government only 157.125 157.125 Simplex 157.175 157.175 Simplex U.S. Coast Guard only 157.225 161.825 Public Correspondence (Marine Operator) Non-Commercial 157.225 157.225 157.275 161.875 Public Correspondence (Marine Operator) 157.275 157.275 Non-Commercial 157.325 161.925...

  • Page 25: Canadian Marine Vhf Channels And Frequencies

    Canadian Marine VHF Channels and Frequencies TX Freq RX Freq Area of Operation Use 156.050 160.650 PC Public Correspondence 156.100 160.700 PC Public Correspondence 156.150 160.750 PC Public Correspondence 156.200 156.200 PC Inter-ship, Ship/Shore and Safety: Canadian Coast Guard S&R 156.250 156.250 Ship Movement...
  • Page 26 156.900 156.900 All areas Inter-ship, Ship/Shore and Commercial: Towing on the Pacific Coast. 156.950 156.950 All areas except PC Inter-ship and Ship/Shore: Canadian Coast Guard only. 157.000 161.600 All areas Ship/Shore, Safety and Ship Movement: Port operation 157.050 157.050 All areas Inter-ship and Ship/Shore: Canadian Coast Guard only. –...
  • Page 27 Inter-ship, Ship/Shore, Commercial, Non-commercial, Safety and Ship Movement: 156.325 156.325 Port operations only in the St.Lawrence River/Great Lakes Areas with 1-watt maximum power. All areas except EC Inter-ship, Ship/Shore, Commercial, Non-commercial, Safety: 156.375 156.375 May also be used for communications with aircraft engaged in coordinated search and rescue and antipollution operations.
  • Page 28 157.275 161.875 AC, GL, NL Ship/Shore and Public Correspondence 157.325 161.925 PC Ship/Shore and Public Correspondence 157.375 161.975 AC, GL, NL Ship/Shore and Public Correspondence 157.425 162.025 AC, GL, NL Ship/Shore and Public Correspondence AC: Atlantic Coast, Gulf and St. Lawrence River up to and including Montreal EC: (East Coast): includes NL, AC, GL and Eastern Arctic areas GL: Great Lakes (including St.

  • Page 29: European Private Channels And Frequencies

    European Private Channels and Frequencies In addition to the channels listed above in the International Marine VHF Channels & Frequencies table, your radio may also include some of the following private channels. Which channels are included depend upon the country in which the radio is to be operated and whether you possess the appropriate licensing Country CH No.

  • Page 30: Weather Channels And Frequencies

    Weather Channels and Frequencies Frequency (MHz) WX channel Remarks Transmit Receive RX only 162.550 Weather (receive only) RX only 162.400 Weather (receive only) RX only 162.475 Weather (receive only) RX only 162.425 Weather (receive only) RX only 162.450 Weather (receive only) RX only 162.500 Weather (receive only)

  • Page 31: Specifications

    Specifications GENERAL TX Frequency………………………………………………………………………………………156.025 - 157.425 MHz RX Frequency…………………………………………………………………………………….156.025 - 163.425 MHz Modulation Type ………………………………………………………………………FM(16K0G3E) DSC(16K0G2B) Frequency stability ………………………………………………………………………………±5 ppm (-20°C to +60°C) Channel spacing………………………………………………………………………………………………………25 kHz Digital Selectivity Calling (DSC) ………………………………………………………………Class H (ITU-R M.493-13) Private channels……………………………………………………………………………………………………………99 Built-in GPS………………………………………………………………………………………………Integrated GNSS Built-in 2.4G MODULE…………………………………It can receive and show the information of dashboard Floating&Flash.…………………………………………………………………………………………………………YES Waterproof…………………………………………………………………………………………………IP67(1m/30min) Communication Range……………………………………………………………………………About 5 nautical miles...
  • Page 32 TX Current drain (Hi / Mid / Low)…………………………………………………….…………………<1.8A / <1.4A /<1A Emission designator........Voice communication: 16K0G3E; DSC: 16K0G2B; 2.4G:1M00F1D RECEIVER Sensitivity for 12dB SINA…………………………………………………………………………………≤-6(EMF) dBμV Squelch sensitivity............................0.20 uV Rated audio output @10% Thd Speaker…………………………………………………………………………≥800 Max.S/N ratio…………………………………………………………………………………………………………≥40 dB Audio frequency resp.………………………………………………………+1 dB to –3 dB of 6 dB oct. from 0.3–3KHz Adjacent channel selection…………………………………………………….……...……………………………≥70 dB Intermodulation rejection (3-Gen.Method)…………………………………………………………………………≥68 dB Spurious response rejection …………………………………………………………………………………………≥70 dB...
  • Page 33 Chanel number......................56 Mode..........................GPS/GALILEO Position accuracy........................5m, C/A mode Cold start..............................60 seconds Hot start.............................30 seconds Built-in 2.4G module Frequency....................2.401 -2.480 GHz Chanel number............................80 Output power..............................20 dBm BATTERY AND CHARGER Adapter/Charging Cradle …………………………………………………………………………………220VAC/12VDC Charging current….……………………………………………………………………………………………800±200 mA Li-polymer Battery ………………………………………………………………………………………………2300 mAh Battery life.................8 Hours (with GPS/DSC on and 6W 5/5/90% ratio) Cigarette Lighter Socket ……………………………………………………………………………………………Optional Ear-Piece Mic ………………………………………………………………………………………………………Optional...

  • Page 34: Declaration Of Conformity

    Declaration of Conformity with Marine VHF Radio Product Designation: TS19 Handheld Marine Radio Registration No: 1622-RED-200902 Brand: HIMUNICATION Trademark number: 11005103 Applicant Name & Address: 7th Floor, 13 building, Run Dong Sheng Industrial Park, National Road 107, Longzhu community, Xixiang, baoan district, Shenzhen, China...
  • Page 35 conformity marking as shown on the right. Technical Details: Shenzhen,February 28,2020 1. Frequency Range: VHF 156.025-157.425MHz 2.4G Receiver:2402 MHz(RX) GPS:1575.42 MHz(RX) 2. Rated Output Power:6W/3W/1W 3. Modulation Type:VHF PM,FSK Francis Sun, General Manager 2.4G Receiver:N/A GPS:BPSK...
