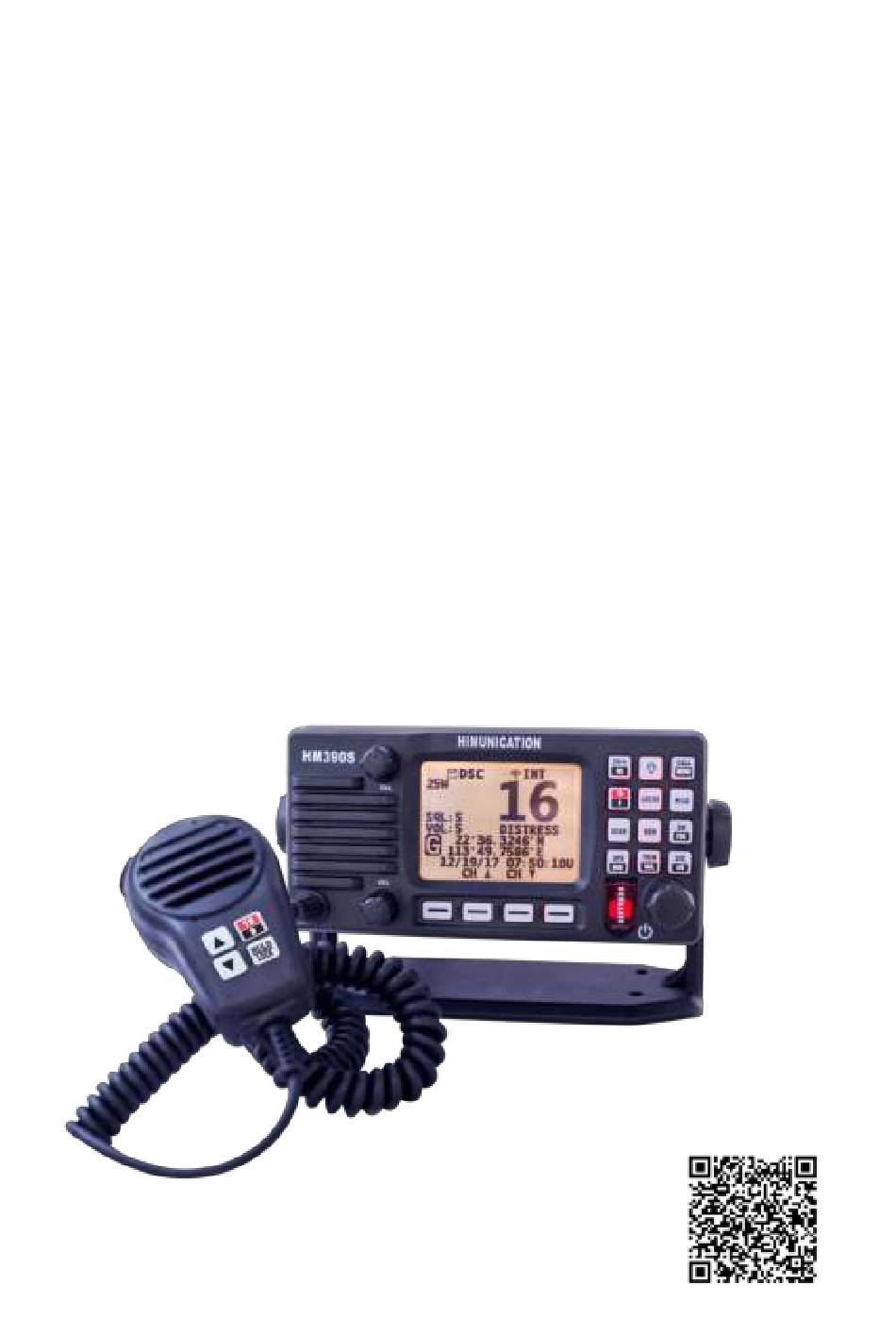

- Page 1 HIMUNICATION VHF MARINE DSC RADIO HM390 HM390C HM390S User Manual Please Scan the QR Code to Download EN/FR/DE/ES/NL Multi-language User Manual http://www.himunication.com...
-
Page 2: Table Of Contents
Contents Power on/off & rotate to get up/down function ………15 RF Radiation Information…………………………………2 Optional Accessories Handset……………………………3 Special Function of DISTRESS key & Real-time Installation………………………………………………4 DSC……………………………………………………15 Front Panel………………………………………………4 UIC/AIS Control………………………………………16 Back Panel………………………………………………5 TRIW/HAIL (Tri Watch/Hailer)………………………16 Connection cables The table………………………………6 GPS/MOB Key…………………………………………16 LCD Display………………………………………………7 DW/ FOG (Dual Watch/Foghorn)………………………16 Main Menu Operation on Screen………………………... -
Page 3: Rf Radiation Information
HM390/HM390C/HM390S User Manual they can be marketed in the U.S, and the manufacturer RF Radiation Information SHAIL post a RF label on the product to inform users of operational instructions, so as to enhance their occupational health against exposure to RF energy. -
Page 4: Optional Accessories Handset
Manufacturer: HIMUNICATION Warning - Limitations on Use Trademark number: 11005103 This TS18S product contains simple PPI chart, only as Address: 3rd Floor,Block C,Huafeng Second Industry an aid to navigation for reference. Only Official Park,Hangcheng Road,Gushu,Xixiang town, Baoan Government Charts and Notice to Mariners contain all District,Shenzhen,China the current information needed for safe navigation. -
Page 5: Installation
Back Light On/Off—short press to back light On/Off. 1. Installation Call/MENU—short press to enter “DSC Menu”, long press to enter “Main Menu”. Yoke Mount Installation: 16/9—short press to enter channel 16 or press this button to quit all other modes and back to the priority channel quickly, long press will get second-priority channel 09 or any channel that you’ve set as second-priority channel. -
Page 6: Back Panel
Back Panel 1、RF antenna port SMA (Female) 2、Power + wire (red, 210 mm length) 3、Power – wire (black, 210 mm length) 4、Hailer/Fog cable with 3.5 mm plug (180 mm length) 5、External speaker cable with 3.5 mm plug (180 mm length) 6、NMEA 2000 cable (180 mm length) 7、NMEA 0183 cable/upgrade USB (180 mm length) 8、EXT GPS ANT... - Page 7 Connection cables The details please check the below table Serial General Description Function Description Different Color Code of the cable wires Number RF antenna connector SMA VHF antenna (Female) Power+ +13.8V Red & Black Power Power supply wires Black Power- GND White SPK+ Audio Connector...
-
Page 8: Lcd Display
3.LCD Display DSC Menu Individual Call Position Request All Ship Call Group Call Test Call Receive Call Log Send Call Log Phone Book 4. Main Menu Operation on Screen DSC Setup My MMSI ID DSC Menu Short press the CALL/MENU key will be displayed as ▲... -
Page 9: My Mmsi Id Setup
Input Address MY MMSI ID setup Input 9 digits 0----------- Firstly, long press CALL/MENU key to enter “Main Menu”. Secondly, select “ Operation” to enter “MY MMSI ID”. ▲ ▼ EXIT ENTER Then you can set up your related MMSI ID as below, generally you need to double confirm the MMSI ID. -
Page 10: All Ship Call
All Ship Call Select the All Ship item The All Ship Call is sent Menu All Ship Call Safety Individual Call Safety Select Channel: Position Request Urgency 01 telephone All Ship Call Group Call 02 telephone Test Call 03 telephone Receive Call Log 04 port ops Send Call log... -
Page 11: Phone Book
Phone Book DSC Menu Buddy List Individual Call Group List Position Request All Ship Call Group Call ▲ ▼ EXIT ENTER Test Call Receive Call Log DSC Setup Send Call Log Phone Book DSC Setup DSC Menu My MMSI ID Individual Call ▲... -
Page 12: Vhf Operation
Channel Band Set My ATIS ID ATIS Operation Operation Priority 2nd Ch ATIS Function GPS Source My MMSI ID DSC Operation GPS Setting DSC Function GPS Setup NMEA0183 Setting GPS ALARM Back Light lumi Key Beep AIS Output Version Info System Config AIS Display Set Factory Reset... -
Page 13: Gps Setup
GPS Setup Click the “GPS Setup” to enter “GPS Setup” item for setup as below shown. Main Menu GPS Setup GPS Source √Built-in GPS VHF Operation GPS Source GPS Setup GPS Setting NMEA0183 AIS Setup NMEA0183 Setting NMEA2000 ATIS Operation GPS ALARM DSC Operation System Config... -
Page 14: Ais Setup (Only Hm390S)
AIS Setup (Only HM390S) Long press the CALL/MENU key to enter “AIS Setup” item for setup as below shown Main Menu AIS Setup AIS Output VHF Operation AIS Output All Off GPS Setup AIS Display Set NMEA0183 AIS Setup AIS ALARM NMEA2000 ATIS Operation √N0183+N2000... -
Page 15: Dsc Operation
Long press the CALL/MENU key to enter “system config” for setup. Main Menu VHF Operation GPS Setup AIS Setup ATIS Operation DSC Operation Main Menu System Config EXIT ▲ ▼ ENTER VHF Operation GPS Setup AIS Setup ATIS Operation System Config DSC Operation Back Light Time... -
Page 16: Ais Operation(Only Hm390S)
hold this for more NO. MMIS 00/3 than 3 seconds for 00 413903183 transmitting sinking 233° 0.97nM Distress Menu message out. 01 413997668 Undesignated 213° 1.33nM Fire, Explosion 02 413401340 Flooding 277° 1.48nM Collision 03 413454520 Grounding 280° 1.54nM Capsizing 04 000000000 Sinking choose... -
Page 17: Key Operation
HM390 is operated in separate way which means any arriving DSC message will not be ignored even if you are GPS/MOB Key using HM390 for transmitting or receiving. If you want to check those messages, please press Short press “GPS/MOB” key to get GPS activated... -
Page 18: Dw/ Fog (Dual Watch/Foghorn)
long press “GPS/MOB” key “MOB”icon will be shown on Short press MEM key to enter the memory mode, the memory channel will be marked and “M” icon show on the LCD, then Press Distress for 3 seconds, Distress call with nature MOB is sent. -
Page 19: Loc/Dx
Short press to enter “DSC Menu”, long press to enter Thus, the software needs to check against the channel “Main Menu” (detailed operation please see 3. Main Menu setting stored in the EEPROM long press the Hi/Lo/LOCK switch lock function Operation on Screen) Up/Down Key Back Light... -
Page 20: Tx Time Out
The Local Time & Date on Screen: UTC time Local time When HM390 cannot receive the GPS signal to display the current position, screen will automatic display the time and date. When radio received the GPS signal, screen will show the current GPS location, related UTC time and date will be shown below the GPS location mark. -
Page 21: Appendix A-List Of Abbreviations
Appendix A-List of Abbreviations Auxiliary Equipment Conducted Emissions Electromagnetic Compatibility European Norm Equipment Under Test Fast Transient Burst Marine Equipment Directive Quasi Peak... - Page 22 HM390S/HM390C AND NMEA2000 COMMUNICATION PGN HM390S SEND NMEA2000 PGN: 59392 ISO acknowledgement 60928 ISO Address Claim 126208 Nmea request/command/acknowledge Group function 126464 PGN List 126720 fast data packet, multi_frame, proprietary PGN 126996 Product information 129799 Radio frequency/Mode/power 129025 Position,rapid update 129026 COG/SOG Rapid update 129033...
-
Page 23: International Marine Vhf Channels & Frequencies
International Marine VHF Channels & Frequencies TX Freq RX Freq Simplex Freq Use 156.050 160.650 Public Correspondence, Port Operations and Ship Movement 156.100 160.700 Public Correspondence, Port Operations and Ship Movement 156.150 160.750 Public Correspondence, Port Operations and Ship Movement 156.200 160.800 Public Correspondence, Port Operations and Ship Movement... - Page 24 International Marine VHF Channels & Frequencies TX Freq RX Freq Simplex Freq Use 156.425 156.425 Port Operations and Ship Movement 156.475 156.475 Inter-ship, Port Operations and Ship Movement 156.575 156.575 Port Operations and Ship Movement 156.625 156.625 Inter-ship 156.675 156.675 Inter-ship [2] 156.725 156.725...
- Page 25 The use of Channels 75 and 76 should be restricted to navigation related communication only and all precautions should be taken to avoid harmful interference to channel 16. Transmit power is limited to 1 Watt.
-
Page 26: Marine Vhf Channels And Frequencies
U.S. Marine VHF Channels and Frequencies TX Freq RX Freq Simplex Freq Use Port Operations and Commercial, VTS. Available only in New Orleans / 156.050 156.050 Lower Mississippi area. 156.150 156.150 U.S. Government only Port Operations or VTS in the Houston, New Orleans and Seattle areas. 156.250 156.250 156.300... - Page 27 U.S. Marine VHF Channels and Frequencies TX Freq RX Freq Simplex Freq Use 156.475 156.475 Non-Commercial 156.525 156.525 Non-Commercial Non-Commercial 156.575 156.575 156.625 156.625 Non-Commercial (Inter-ship only) 156.675 156.675 Port Operations Port Operations 156.725 156.725 156.875 156.875 Port Operations (Inter-ship only) 156.925 156.925 Non-Commercial...
-
Page 28: Canadian Marine Vhf Channels And Frequencies
Canadian Marine VHF Channels and Frequencies TX Freq RX Freq Area of Operation Use 156.050 160.650 PC Public Correspondence 156.100 160.700 PC Public Correspondence 156.150 160.750 PC Public Correspondence 156.200 156.200 PC Inter-ship, Ship/Shore and Safety: Canadian Coast Guard S&R 156.250 156.250 Ship Movement... - Page 29 Canadian Marine VHF Channels and Frequencies TX Freq RX Freq Area of Operation Use All areas Inter-ship, Ship/Shore, Commercial and Non-commercial: For 157.100 157.100 communications between Canadian Coast Guard and non-Canadian Coast Guard stations only. PC Ship/Shore and Public Correspondence: Also in the inland waters of British 157.150 161.750 Columbia and the Yukon.
- Page 30 Canadian Marine VHF Channels and Frequencies TX Freq RX Freq Area of Operation Use All areas except EC Inter-ship, Ship/Shore, Commercial, Non-commercial, 156.675 156.675 Safety:May also be used for communications with aircraft engaged in coordinated search and rescue and antipollution operations. 156.725 156.725 EC, PC Inter-ship, Ship/Shore, Commercial, Non-commercial and Ship Movement.
- Page 31 European Private Channels and Frequencies In addition to the channels listed above in the International Marine VHF Channels & Frequencies table, your radio may also include some of the following private channels. Which channels are included depend upon the country in which the radio is to be operated and whether you possess the appropriate licensing Country TX Freq...
-
Page 32: Specifications
Specifications ---VHF radio TX Frequency……………………………………………………………….…………………………156.025--157.425MHz RX Frequency………………………………………………………………………………………….156.300--162.000MHz Digital Selectivity Calling (DSC)…………………………………………Class-D with dual receiver (individual CH70) CH70……………………………………………………………………………………………………………156.525MHz Channel spacing………………………………………………………………………………………………………25kHz Channel banks………………………………………………………………………………………All INT/USA/Canadian 10 WX (only available for USA and Canada) Modulation mode…………………………………………………………………FM (16K0G3E), DSC/ATIS (16K0G2B) Antenna impedance……………………………………………………………………………………………50Ω (nominal) Power supply………………………………………………………………………………………………………13.8V DC Sensitivity at 12dB SINAD…………………………………………………………………………………≤-5 dBμV (EMF) Squelch sensitivity……………………………………………………………………………………….…≤-5 dBµ... -
Page 33: Declaration Of Conformity
Maritime Radio,Model HM390S,HM390C,HM390，HM390 Non DSC,HM390S-BB, HM390C-BB,HM390-BB,HM390-BBN Registration No: G111010J Brand: HIMUNICATION Trademark number: 11005103 Applicant Name & Address: Shenzhen Jiuzhou Himunication Technology Co., Ltd Factory1,3rd Floor,Block C,Huafeng Second Industry Park, Hangcheng Road,Gushu,Xixiang town, Baoan District, Shenzhen, China Radio Equipment Directive 2014/53/EU Essential Requirement...
