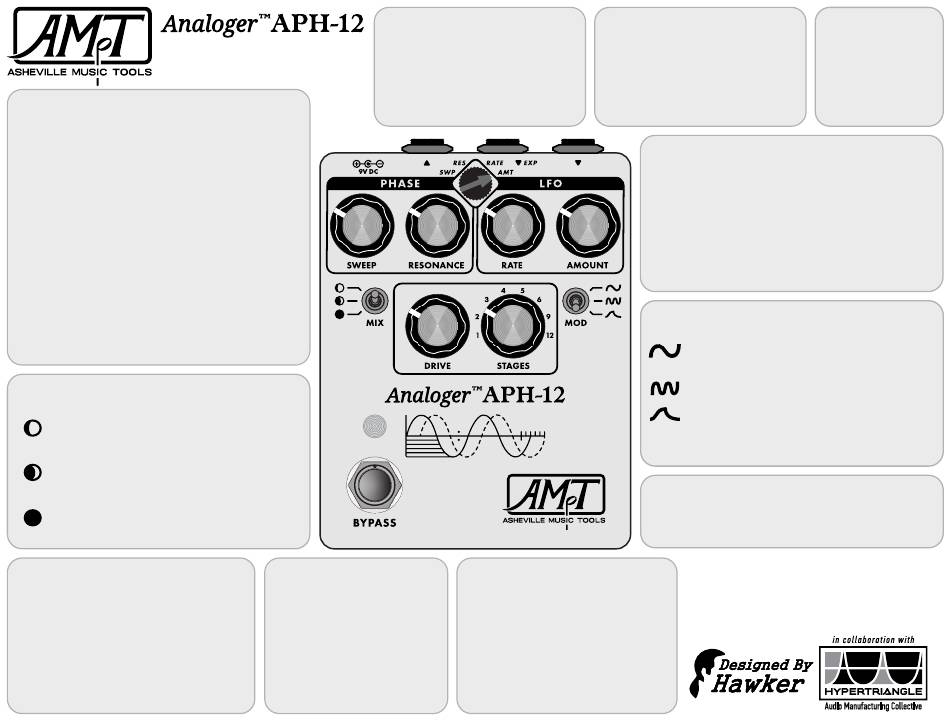

Quick Reference Guide
PHASE Block
SWEEP:
All pass filter center
frequency. Moves an entire bank
of filters. Small knob adjustments
go a long way.
Use to set the overall tonal
character of phasing: bright and
airy, or deep and rich.
RESONANCE:
Feeds the filter back
onto itself to amplify peaks and
deepen notches. Will introduce
oscillation at max.
MIX Switch
FX mode:
Favors the dry
signal, tames intense settings.
Phase mode:
Balanced mix,
calibrated for deep phasing.
Vibrato mode:
100% wet
signal for true vibrato tones.
BYPASS
Simple, reliable,
mechanical true bypass
switching. When engaged,
the bypass LED will light to
the LFO rate or the amount
of envelope modulation
Power
9V DC only, 125mA
nominal. Protected
against reverse polarity
and over-voltage.
DRIVE
Controls a JFET
preamplifier and
saturation circuit.
Increase for level
matching or to add
harmonics.
.
EXP
Expression or CV input,
tip active with 5V ring
supply. Assign using
EXP rotary.
STAGES
Choose your phaser
adventure. More stages,
more complexity. Odd
numbered stages are
out of phase, for a
unique, expressive tone.
I/O
1/4" mono,
works on
guitar, bass,
& synth!
LFO Modulation Block
RATE:
Modulation speed, High/
Low set by MOD switch.
AMOUNT:
LFO level, from subtle
to intense. Or, in ENV mode,
controls the amount of envelope.
MOD Switch
Slow:
From glacial to
moderate.
Fast:
Leslie range to ring mod!
Envelope:
A funky invisible
hand turning the SWEEP knob
to your playing dynamics.
Pro tip:
Modulation is added to the
SWEEP knob. The LFO is bipolar,
while the Envelope is unipolar.
Have fun getting the Purple
Phaze all in your brain. For the
complete technical manual, visit
us at AshevilleMusicTools.com
