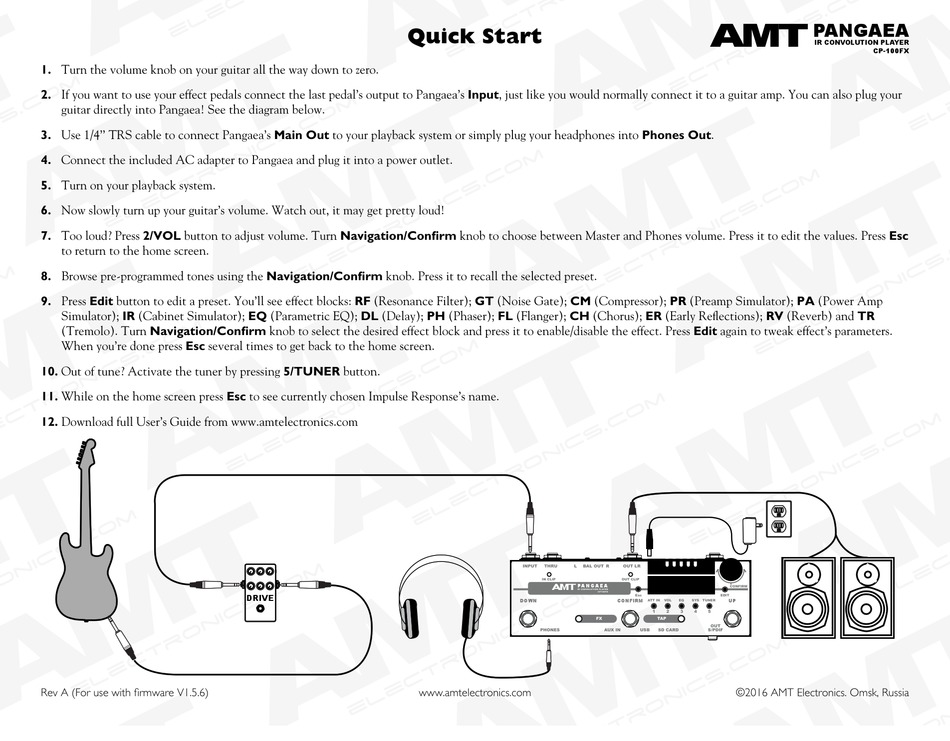

AMT Pangaea CP-100FX Quick Start

1. Turn the volume knob on your guitar all the way down to zero.
2. If you want to use your effect pedals connect the last pedal's output to Pangaea's Input, just like you would normally connect it to a guitar amp. You can also plug your
guitar directly into Pangaea! See the diagram below.
3. Use 1/4'' TRS cable to connect Pangaea's Main Out to your playback system or simply plug your headphones into Phones Out.
4. Connect the included AC adapter to Pangaea and plug it into a power outlet.
5. Turn on your playback system.
6. Now slowly turn up your guitar's volume. Watch out, it may get pretty loud!
7. Too loud? Press 2/VOL button to adjust volume. Turn Navigation/Confirm knob to choose between Master and Phones volume. Press it to edit the values. Press Esc
to return to the home screen.
8. Browse pre-programmed tones using the Navigation/Confirm knob. Press it to recall the selected preset.
9. Press Edit button to edit a preset. You'll see effect blocks: RF (Resonance Filter); GT (Noise Gate); CM (Compressor); PR (Preamp Simulator); PA (Power Amp
Simulator); IR (Cabinet Simulator); EQ (Parametric EQ); DL (Delay); PH (Phaser); FL (Flanger); CH (Chorus); ER (Early Reflections); RV (Reverb) and TR
(Tremolo). Turn Navigation/Confirm knob to select the desired effect block and press it to enable/disable the effect. Press Edit again to tweak effect's parameters.
When you're done press Esc several times to get back to the home screen.
10. Out of tune? Activate the tuner by pressing 5/TUNER button.
11. While on the home screen press Esc to see currently chosen Impulse Response's name.
12. Download full User's Guide from www.amtelectronics.com
Rev A (For use with firmware V1.5.6)
