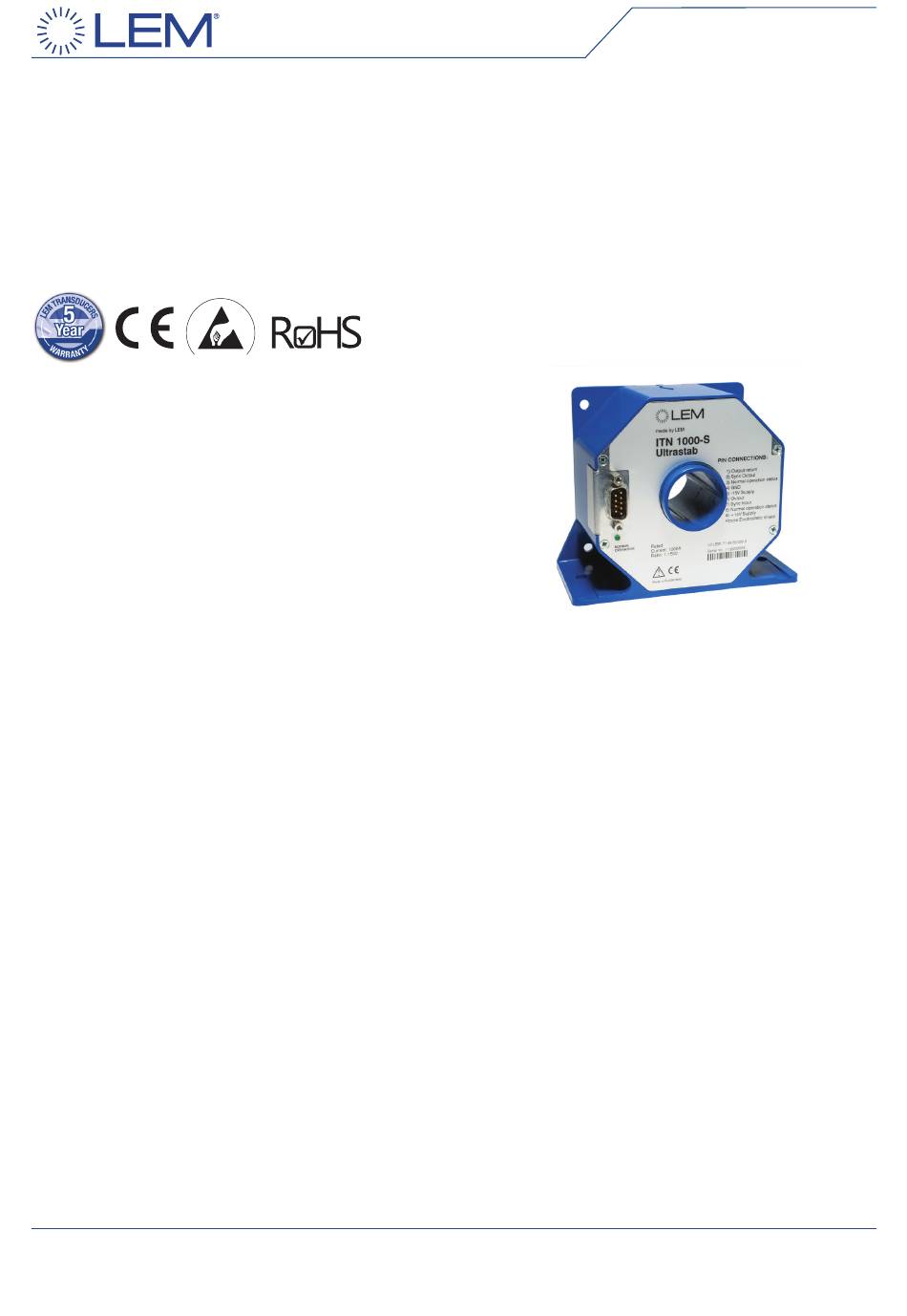

Current Transducer ITN 1000-S ULTRASTAB
For ultra-high precision measurement of current: DC, AC, pulsed..., with galvanic separation
between primary and secondary.
Features
● Closed loop (compensated) current transducer using an
extremely accurate zero flux detector
● Electrostatic shield between primary and secondary circuit
● 9-pin D-Sub male secondary connector
● Status signal to indicate the transducer state
● LED indicator confirms normal operation.
Advantages
● Very high accuracy
● Excellent linearity
● Extremely low temperature drift
● Wide frequency bandwidth
● High immunity to external fields
● No insertion losses
● Low noise on output signal
● Low noise feedback to primary conductor.
N° 88.44.60.000.0
19February2014/version 3
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice
Applications
● Feed back element in high performance gradient amplifiers
for MRI
● Feedback element in high-precision, high-stability power
supplies
● Calibration unit
● Energy measurement
● Medical equipment.
Standards
● EN 61000-6-2: 2005
● EN 61000-6-3: 2007
● EN 61010-1: 2010.
Application Domains
● Industrial
● Laboratory
● Medical.
I
= 1000 A
PM
