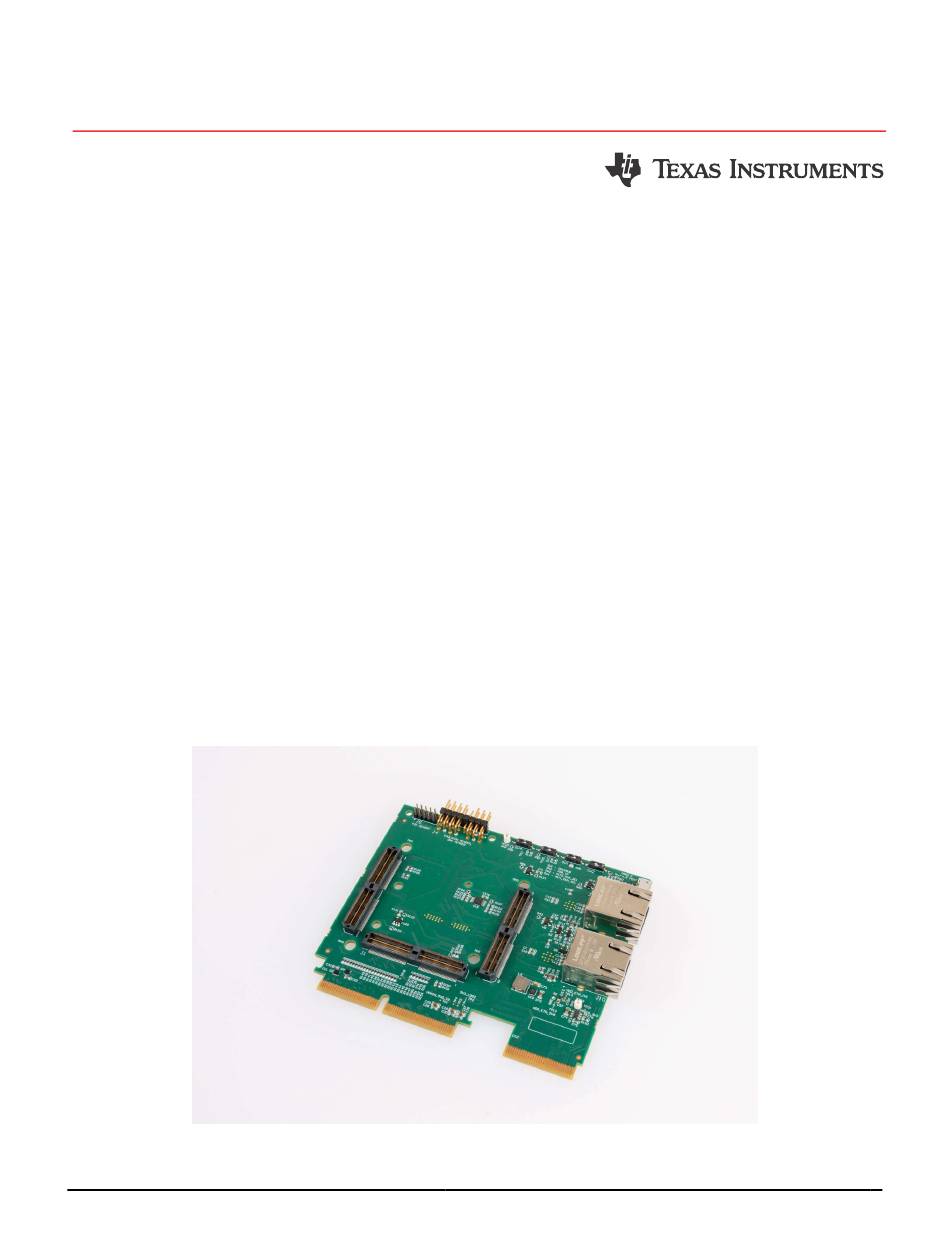

EVM User's Guide: HSEC180ADAPEVM-AM2
AM261x SOM to HSEC Adapter Board
Description
This evaluation module is a 180-pin High Speed
Edge Card (HSEC) adapter for TI AM261x System-
On-Module (SOM) platforms, allowing for SOM-
based platforms to have backwards compatibility
with Sitara/C2000 HSEC-based EVMs. The
HSEC180ADAPEVM-AM2 connects 180 pins from
the SOM board to HSEC pins for use with legacy
Sitara/C2000 HSEC Docking Stations, such as the
TMDSHSECDOCK-AM263
Get Started
1. Order the AM261x SOM to HSEC Adapter Board
(HSEC180ADAPEVM-AM2)
2. Order the AM261 controlSOM Evlaution Board
(AM261-SOM-EVM)
3. Order the XDS110 emulation board
EVM)
4. Order the HSEC Docking Station hardware. For a
board comparison, see
a. AM26x HSEC Docking Station
(TMDSHSECDOCK-AM263)
b. C2000 HSEC Docking Station
(TMDSHSECDOCK)
SPRUJF7 – MARCH 2025
Submit Document Feedback
and TMDSHSECDOCK.
(XDS110ISO-
Table 2-1
Copyright © 2025 Texas Instruments Incorporated
5. Download the latest
Code Composer
TM
Studio
Integrated Development Environment
(IDE) and the
AM261x MCU PLUS Software
Development Kit (SDK)
6. Read the Setup chapter
User's Guide to get started
Features
Standard 180-pin HSEC interface
Compatibility with XDS110ISO-EVM for emulation
2x DP83869 10/100/1000-Mbps Ethernet PHY with
2x RJ-45 Ethernet jacks
1x Ethernet Add-on Board Connector compatible
with:
– DP83826-EVM-AM2 Industrial Ethernet add-on
board
– DP83TG720-EVM-AM2 Automotive Ethernet
add-on board
USB 2.0 Interface with Micro-AB port
Fast Serial Interface (FSI) Header
ADC filtering and ESD protection for dedicated
analog HSEC pins
OSPI Memory expansion board connector
MCAN and LIN Transceiver connectivity when
used with TMDSHSECDOCK-AM263
AM261x SOM to HSEC Adapter Board
Description
(Section
2.2) in this
1
