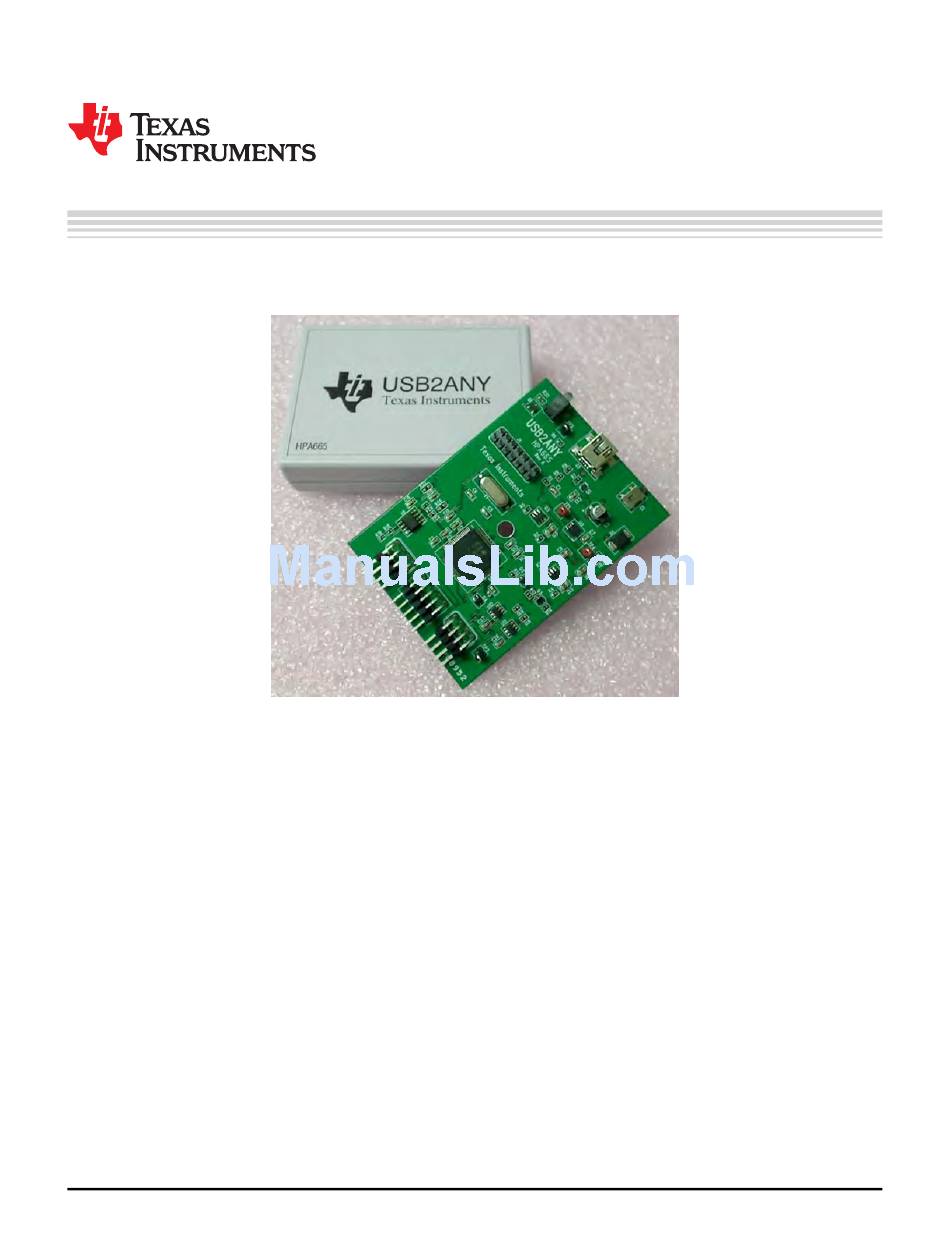

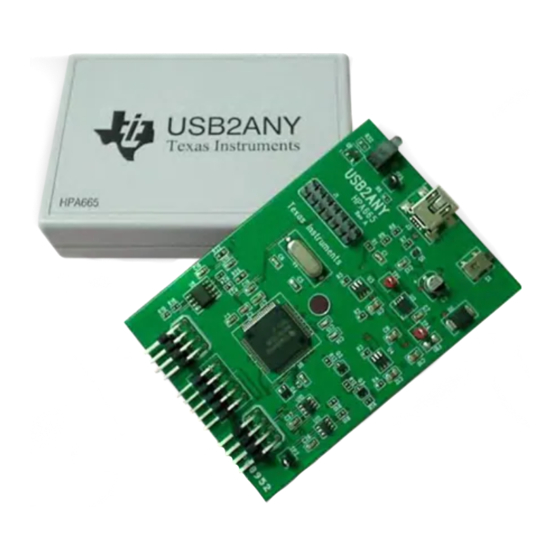

    User's Guide SNAU228 – January 2018 USB2ANY Interface Adapter This user's guide describes the USB2ANY Interface Adapter and its general setup and operation. Contents ........................Introduction ................... How to Use This Manual ..............Information About Cautions and Warnings ......................FCC Warning ......................

  • Page 2: Introduction

    Introduction www.ti.com ..............Connection Between the USB2ANY and the EVM ....................USB2ANY Schematic 1 ....................USB2ANY Schematic 2 ....................USB2ANY Schematic 3 ..................USB2ANY Interface Connectors ..................... 10-Pin IDC Cable Connector ....................10-Pin IDC Cable Detail ..................... 30-Pin IDC Cable Connector ....................

  • Page 3: Fcc Warning

    Switchable 3.3-V or 5-V power to DUT The USB2ANY board can source regulated 3.3-V and 5.0-V DC power to the target device, up to a maximum of 300 mA (combined 3.3 V and 5.0 V). The voltage outputs have built-in current sensing and limiting circuits that protect both the EVM and the USB2ANY from overcurrent, shorts, and so forth.

  • Page 4: Overview Of Hardware Design

    9. Analog Inputs – The USB2ANY has four analog inputs. Two of the inputs (ADC0, ADC1) have no external amplifiers (effectively unity gain) and the other two inputs (ADC2, ADC3) have a gain of two.
  • Page 5 Figure 2. USB2ANY Block Diagram Figure 3 shows the USB2ANY PCB without the enclosure. One end has three interface connectors that are typically connected to an EVM (J3, J4, and J5). Connectors J3 and J5 have eight pins and J4 has 10 pins.
  • Page 6 USB2ANY firmware and is entered whenever the board is powered-up while Switch S1 is depressed. The USB Mini-B (J2) connector is used to connect the USB2ANY to the host computer. A cable with a USB Mini-B connector on one end and a USB A connector on the other end is provided with the USB2ANY.

  • Page 7: Connecting The Usb2Any

    Figure 4. 10-Pin Cable With Key NOTE: If you are using the USB2ANY board without its enclosure, the key must face away from the PCB. Be sure to carefully align the male pins on the PCB with the cable connector.

  • Page 8: Using The 10-Pin Cable

    (see Table 2 for a list of all the signals). Figure 6. 30-Pin Cable Connection USB2ANY Interface Adapter SNAU228 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...

  • Page 9: Connecting The Usb2Any To The Computer

    Connecting the USB2ANY to the Computer The USB2ANY has a USB Mini-B connector on the right side. Plug the provided USB cable (or any USB cable with a Mini-B connector) into the USB2ANY. Plug the other end of the cable (USB ‘A’) into the computer.
  • Page 10 0.1µF VCORE P3.4/UCA0RXD/UCA0S OMI GPIO0/I2C(SDA) GPIO2/SPI(SCLK) I2CPU 0.47µF SCLBRD EFC0/GPIO12/CLOCK SDABRD GPIO7/PWM0 GPIO6/PWM1/SPI(CS) GPIO3/PWM2 Copyright © 2017, Texas Instruments Incorporated Figure 9. USB2ANY Schematic 1 USB2ANY Schematic SNAU228 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 11 +3.3V +3.3V VOUT DAC1 1.00k 1.00k TLV2442AIDR AIN_B_1 DAC5571IDBV ADC1 SCLBRD 0.1µF 0.15µF SDABRD Copyright © 2017, Texas Instruments Incorporated Figure 10. USB2ANY Schematic 2 SNAU228 – January 2018 USB2ANY Schematic Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 12 +3.3V_EXT +3.3V_EXT GPIO2/SPI(SCLK) 1.5k 1.5k GPIO3/PWM2 GPIO1/I2C(SCL) GPIO0/I2C(SDA) GPIO10/VEREF- GPIO11/VEREF+ GPIO8/ADC3 GPIO9/ADC2 ADC1 ADC0 Copyright © 2016, Texas Instruments Incorporated Figure 11. USB2ANY Schematic 3 USB2ANY Schematic SNAU228 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 13 SNAU228 – January 2018 USB2ANY Cable Connections The USB2ANY has four interface connectors: one USB 2.0 connector (J2) and three I/O connectors (J3, J4, and J5). The USB connector is a standard ‘A’ type mini USB receptacle. The I/O connectors are standard dual-row, 0.1-in center, pin headers.
  • Page 14 Interrupts: INT0, INT1, and INT2 The 10-pin cable is about 6 in long and has a keyed female 10-pin IDC connector on each end. Connect the cable to the USB2ANY board as Figure 13 shows (note that the key must be facing up, away from the board).
  • Page 15 The 30-pin cable is also about 6 inches in length and has a keyed female 30-pin IDC connector on each end. This cable provides access to all available signals. The cable should be connected to the USB2ANY board as Figure 15 shows (note that the key must be facing up, away from the board).
  • Page 16 NOTE: The pin numbers for J3, J4, and J5 on the schematics are for reference only and do not correspond to the pin numbers for cable connections. USB2ANY Cable Connections SNAU228 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
