Summary of Contents for TagMaster XT Series

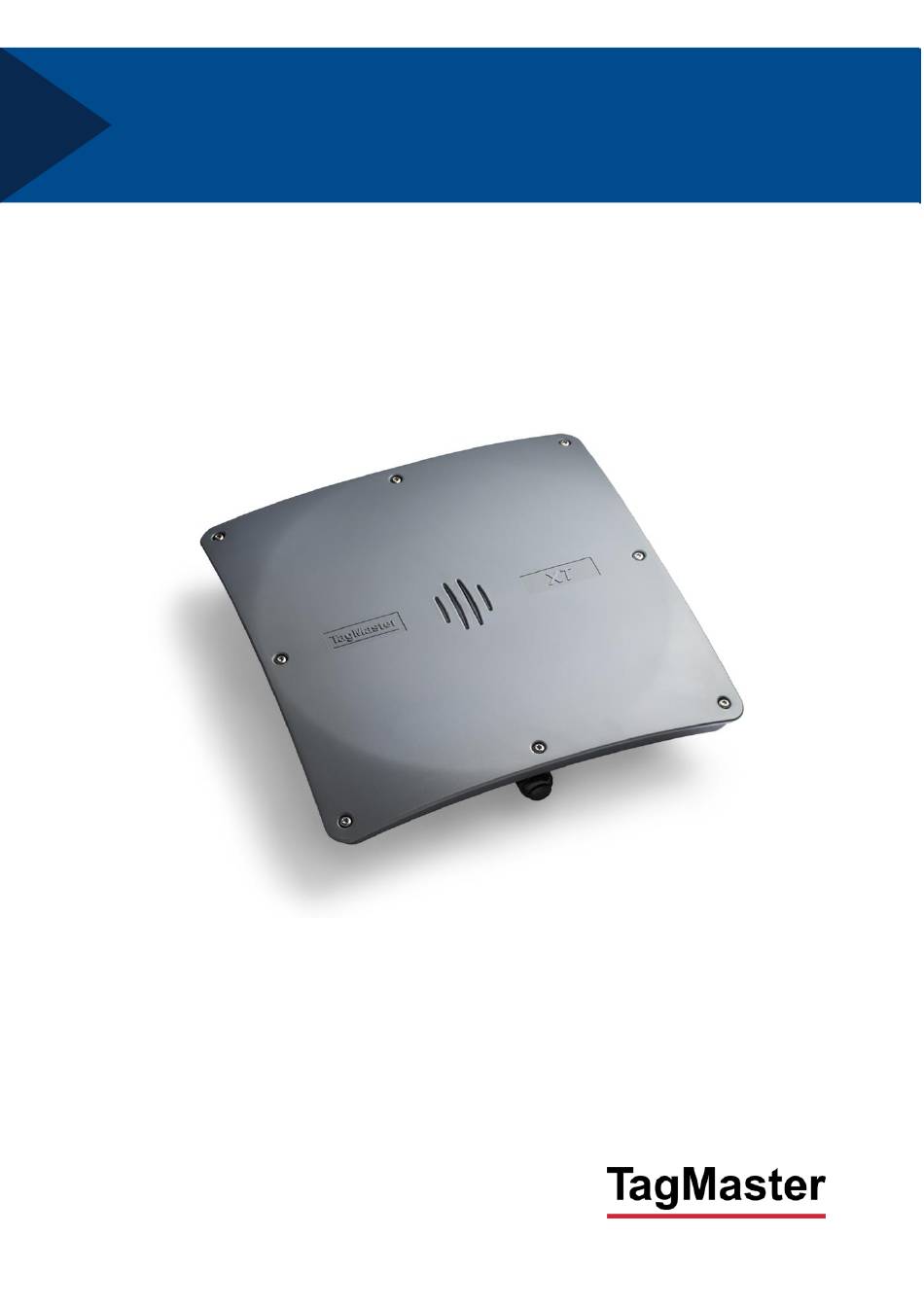

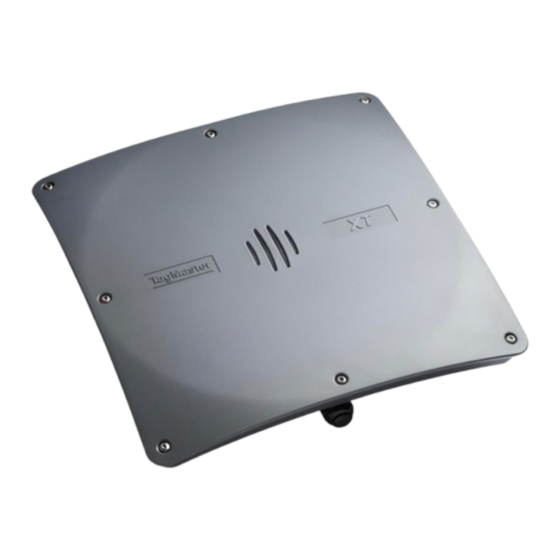

  • Page 1 XT Series Reader Manual English XT Mini · XT-1 · XT-1 ETC · XT-5 · XT-5 ETC...
  • Page 2 TagMaster AB. Disclaimer While effort has been taken to ensure the accuracy of the information in this document, TagMaster AB assumes no responsibility for any errors or omissions, or for damages resulting from the use of the information contained herein.
  • Page 3: Table Of Contents

    13-111 11, 2018-09-19 XT Series Reader Manual Table of Contents Introduction Readers ......................5 Tags ......................5 ® SecureMarkID ....................5 Installation Safety Instructions ..................5 Reader and Tag Placement ................6 Mounting Instructions ..................8 2.3.1 Universal Mounting Kit (UMK) ..............8 2.3.2...
  • Page 4 XT Series Reader Manual 13-111 11, 2018-09-19 Connecting to an External System Wiegand/Magstripe ..................27 OSDP (RS485) .................... 27 Push (RS232, RS485, TCP/IP) ..............28 TAGP (TCP/IP) .................... 28 Other Protocols .................... 28 Built-in Access Controller Troubleshooting Definitions and Abbreviations...
  • Page 5: Introduction

    All reader models have upgradable firmware. XT-5 models have a user-programmable Linux system. Tags RAIN RFID tags are typically passive, which means that they are powered by the reader's electromagnetic field instead of having a battery. TagMaster's XT readers support all RAIN RFID tags. Specifically, the ® readers support the SecureMarkID tags developed by TagMaster to ensure that each tag has a truly unique identity that is difficult to clone.
  • Page 6: Reader And Tag Placement

    XT Series Reader Manual 13-111 11, 2018-09-19 Reader and Tag Placement Figure 1 shows some typical installations for the XT-1 and XT-5 reader models. A. Single lane parking entrance. The reader is directed to read windshield or headlight tags. B. Multilane parking entrance. To minimize the risk for cross reads, the readers/antennas are mounted above the cars and the cars are equipped with windshield or headlight tags.
  • Page 7 13-111 11, 2018-09-19 XT Series Reader Manual The reader's radiation pattern or read lobe (the region where the reader can read tags) is shaped like a balloon in front of the reader as shown in Figure 3. The maximum read range is obtained when the tag is at the tip of the balloon.
  • Page 8: Mounting Instructions

    2.3.1 Universal Mounting Kit (UMK) The UMK (TagMaster part. no. 193600) makes it easy to mount the reader in a wide variety of positions and angles. The kit contains all parts needed to mount the reader on a wall or a pole.
  • Page 9: Cable Connections

    13-111 11, 2018-09-19 XT Series Reader Manual Cable Connections 2.4.1 XT Mini On XT Mini, cables should be connected through the two M16 cable glands. A cable tie should be used to guide the wires when the lid is closed. Make sure to use cables with flexible wires. It is recommended to use the left cable gland for Ethernet connections and the right cable gland for other connections.
  • Page 10: Etc And Xt-5 Etc

    XT Series Reader Manual 13-111 11, 2018-09-19 2.4.3 XT-5 On XT-5, Ethernet and power (PoE+) should typically be connected to the external RJ45 connector. The three M16 blind plugs can be replaced with cable glands if connections to internal interfaces are needed.
  • Page 11: Wire Connections

    All reader models work with many types of antennas. XT-5 models should preferably be used with TagMaster's range of intelligent antennas with built-in LED indicator and variable polarization. With these antennas, all communication between the reader and the antenna is sent over the RF cable to eliminate the need for extra cables.
  • Page 12: Interfaces

    XT Series Reader Manual 13-111 11, 2018-09-19 3 Interfaces Overview Figure 13 shows the locations of all internal interfaces in the different reader models. The name of each interface is listed in Table 2. The following sections refer to the interfaces as named in the table.
  • Page 13: Power Supply

    13-111 11, 2018-09-19 XT Series Reader Manual Power Supply XT Mini and XT-1 models have a single 12-24 VDC power supply input. XT-5 models can be powered either from 12-24 VDC or Power-over-Ethernet (PoE+, IEEE 802.3at). When using the power supply input, the readers shall be powered from an isolated power supply.
  • Page 14: Wiegand/Magstripe

    XT Series Reader Manual 13-111 11, 2018-09-19 Wiegand/Magstripe The readers have one or two Wiegand/Magstripe interfaces. XT Mini and XT-1 models have one interface. XT-5 models have two interfaces (A and B) that can be configured as a single interface using IF_DIP:7 if a card load signal is needed.
  • Page 15 13-111 11, 2018-09-19 XT Series Reader Manual The most common predefined formats can be selected by setting SW_DIP/S101:5-8 as shown in the table below. When any of these switches are in the ON position, the reader is also configured to report tags once and only accept SecureMarkID tags.
  • Page 16: Wiegand Timing

    XT Series Reader Manual 13-111 11, 2018-09-19 3.4.1 Wiegand Timing The following values apply when all outputs are pulled up to 5 V with 1 k resistors. Symbol Parameter Unit s CL to D# setup time 1520 Fall time (all signals) s...
  • Page 17: Status Indicators

    The default output of the RS232 interface is tag data in ASCII format. If SecureMarkID tags from TagMaster are being used (recommended) the numeric identity is sent out. If other EPC tags are being used the default output is the EPC data. The data is followed by CR+LF ("\r\n").
  • Page 18: Rs485

    The default output of the RS485 interface is tag data in ASCII format. If SecureMarkID tags from TagMaster are being used (recommended) the numeric identity is sent out. If other EPC tags are being used the default output is the EPC data. The data is followed by CR+LF ("\r\n").
  • Page 19: Inputs

    13-111 11, 2018-09-19 XT Series Reader Manual Inputs The reader has three (XT Mini and XT-1 models) or four (XT-5 models) opto-coupled inputs. INPUTS:IN1+ Input 1 positive terminal INPUTS:IN1− Input 1 negative terminal INPUTS:IN2+ Input 2 positive terminal All models INPUTS:IN2−...
  • Page 20: Relay

    XT Series Reader Manual 13-111 11, 2018-09-19 Relay The relay output can be used to control a barrier, gate, or other object. The relay can either be activated when any tag has been read or when an accepted tag has been read.
  • Page 21: Tamper Switch (Xt Mini And Xt-5 Models)

    13-111 11, 2018-09-19 XT Series Reader Manual Tamper Switch (XT Mini and XT-5 models) XT Mini and XT-5 models have a tamper switch that can be connected to an external alarm loop. The circuit is opened when the lid is opened.
  • Page 22: Software Configuration Dip Switch (Sw_Dip/S101)

    XT Series Reader Manual 13-111 11, 2018-09-19 3.15.2 Software Configuration DIP Switch (SW_DIP/S101) Position(s) Description Firmware upgrade mode SW_DIP/S101 SW_DIP/S101:1 is used for complete firmware upgrade and should normally not be used. See section 4.5 for information about normal firmware upgrade.
  • Page 23: Configuration

    13-111 11, 2018-09-19 XT Series Reader Manual 4 Configuration Web Interface The readers have a web interface that works with modern versions of all common web browsers. The interface is available in multiple languages and the desired language can be selected by clicking the corresponding flag in the lower left corner as shown in Figure 21.
  • Page 24: Reader Discovery

    13-111 11, 2018-09-19 Reader Discovery Sometimes it is necessary to connect to a reader with an unknown IP address. The TagMaster Device Discovery Tool, which is shown in Figure 22, can discover all readers on a local network or directly connected to a PC.
  • Page 25: Region

    13-111 11, 2018-09-19 XT Series Reader Manual Region To meet different radio regulations around the world, the reader can be configured to work in different regions. Each reader model comes in two versions: EU and US. Each reader version supports a number of regions as listed in the table below.
  • Page 26: Data Selection

    RS232, RS485, TCP Client, and the built-in access controller. Firmware Upgrade Download the latest firmware from TagMaster's FTP server [5] under Vigilant/Firmware. Go to the “Reboot/Upgrade” page on the web interface, check “Start boot loader” and press the “Reboot”...
  • Page 27: Connecting To An External System

    13-111 11, 2018-09-19 XT Series Reader Manual 5 Connecting to an External System The following sections describe how to connect the reader to another system. Note that the reader requires more power than a typical proximity reader and should have its own power supply.
  • Page 28: Push (Rs232, Rs485, Tcp/Ip)

    SecureMarkID tags and hexadecimal for other tags. TAGP (TCP/IP) TagMaster readers can be controlled and monitored using a protocol called TAGP. The TAGP protocol is human readable and can be used over TCP/IP, RS232 and RS485. A terminal emulation program such as PuTTY is all that is required to interact with TAGP.
  • Page 29: Built-In Access Controller

    13-111 11, 2018-09-19 XT Series Reader Manual 6 Built-in Access Controller The reader has a built-in access controller that can control a barrier or gate using the reader's relay output. All accesses can be logged. A presence indicator such as an inductive loop can be connected to one of the reader's inputs.
  • Page 30: Troubleshooting

    Recommended Standard 485 (serial interface) RP-TNC Reverse Polarity Threaded Neill-Concelman (RF connector) ® SecureMarkID A TagMaster implementation for improved security using EPC tags TAGP A TagMaster protocol for RFID reader communication TCP/IP Transmission Control Protocol/Internet Protocol Tag IDentifier (tag memory bank)
  • Page 31: Technical Specification

    FCC: CFR 47, Part 15 subpart C Safety & health EN 60950-1, EN 60950-22 & 1999/519/EC Mechanical EN 60068-2-27 Ea, EN 60068-2-64 Fh Manuals and 13-111 XT Series Reader Manual documentation 05-172 TAGP Manual Accessories Universal Mounting Kit: 193600 ISO Card: 225000...
  • Page 32: Technical Support

    Technical Support Phone: +46 8 632 19 50 E-mail: support@tagmaster.com Office Address TagMaster AB Kronborgsgränd 11 164 46 KISTA SWEDEN Phone: +46 8 632 19 50 E-Mail: sales@tagmaster.com Web: www.tagmaster.com 13-111 11...
