Summary of Contents for Engl EP635 Fireball IR

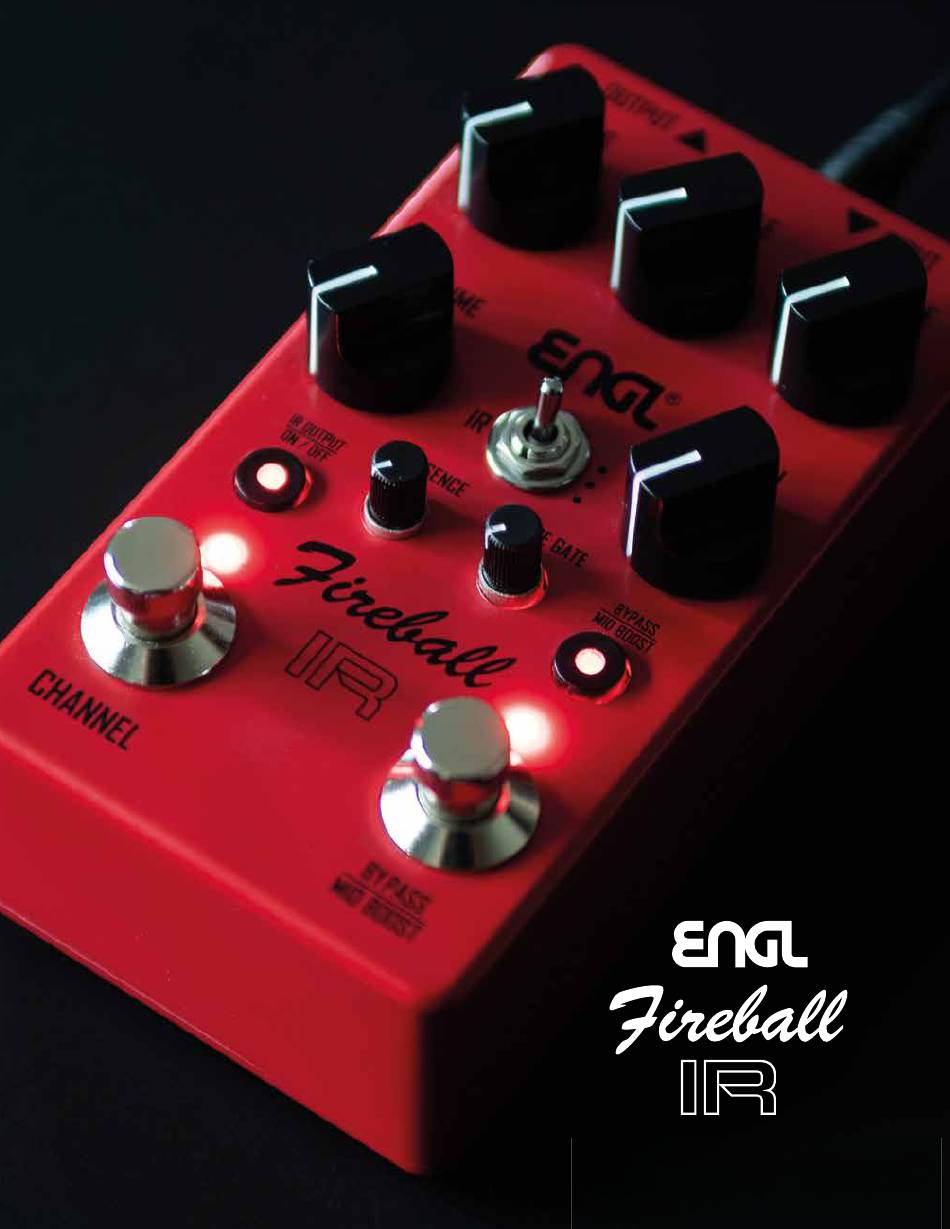

  • Page 1 Operator´s Manual...
  • Page 2 INTRODUCTION The ENGL Fireball IR preamp pedal is a versatile 2 channel pedal based on the re- nowned ENGL Fireball amp, allowing for independent knob settings for each channel. It features a built-in MID BOOST function that can be toggled on/off by pressing the Bypass, as well as a built-in NOISE GATE with adjustable threshold.

  • Page 3: Pedal Layout

    PEDAL LAYOUT 1. BASS knob: Adjusts low frequencies 2. MIDDLE knob: INPUT OUTPUT OUTPUT Adjusts mid frequencies BASS BASS MIDDLE MIDDLE TREBLE TREBLE 3. TREBLE knob: Adjusts high frequencies 4. VOLUME knob: VOLUME VOLUME GAIN GAIN Adjusts output volume 5. GAIN knob: PRESENCE PRESENCE PRESENCE...
  • Page 4 PEDAL LAYOUT 13. CHANNEL footwitch LED 14. BYPASS/MID BOOST LED 15. Headphone jack: 1/8” TRS headphone output 16. USB port: Type-C USB for connecting to PC software to import/replace or delete IR cabinet files 17. INPUT jack: 1/4“ unbalanced mono input 18.

  • Page 5: Channel Switching

    LED on the button indicates cab sim on, and LED indicates off for cab sim off. Toggle the IR selector in the center of the panel to switch between three different IR cabinet files. FACTORY IMPULSE RESPONSES Up Position: ENGL E212VHB V30 Middle Position: ENGL E412VSB V30 Down Position: ENGL E412XXL V30...

  • Page 6: Connecting The Software

    Use the PC Fireball IR software to manage the three built-in IR files of the Fireball IR. Downloading the Software: Visit the official website at www.engl-amps.com, find the product page for the Fi- reball IR, and download the installer for your operating system (Windows or MacOS).

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS Input: 1/4” unbalanced mono input jack (4.7M Ohms) Output: 1/4” unbalanced mono output jack (100 Ohms), 1/8” TRS headphone output jack (32 Ohms) Number of Preamp Channels: 2 IR File Loading Slots: 3 IR File Format: .wav IR Sampling Specifications: 44.1 kHz / 24 bit / 2048 points Signal-to-Noise Ratio: 94dB Power Requirements: 9V DC 300mA (center negative) Dimensions: 118×65×54.5 mm...
  • Page 8 www.engl-amps.com...
