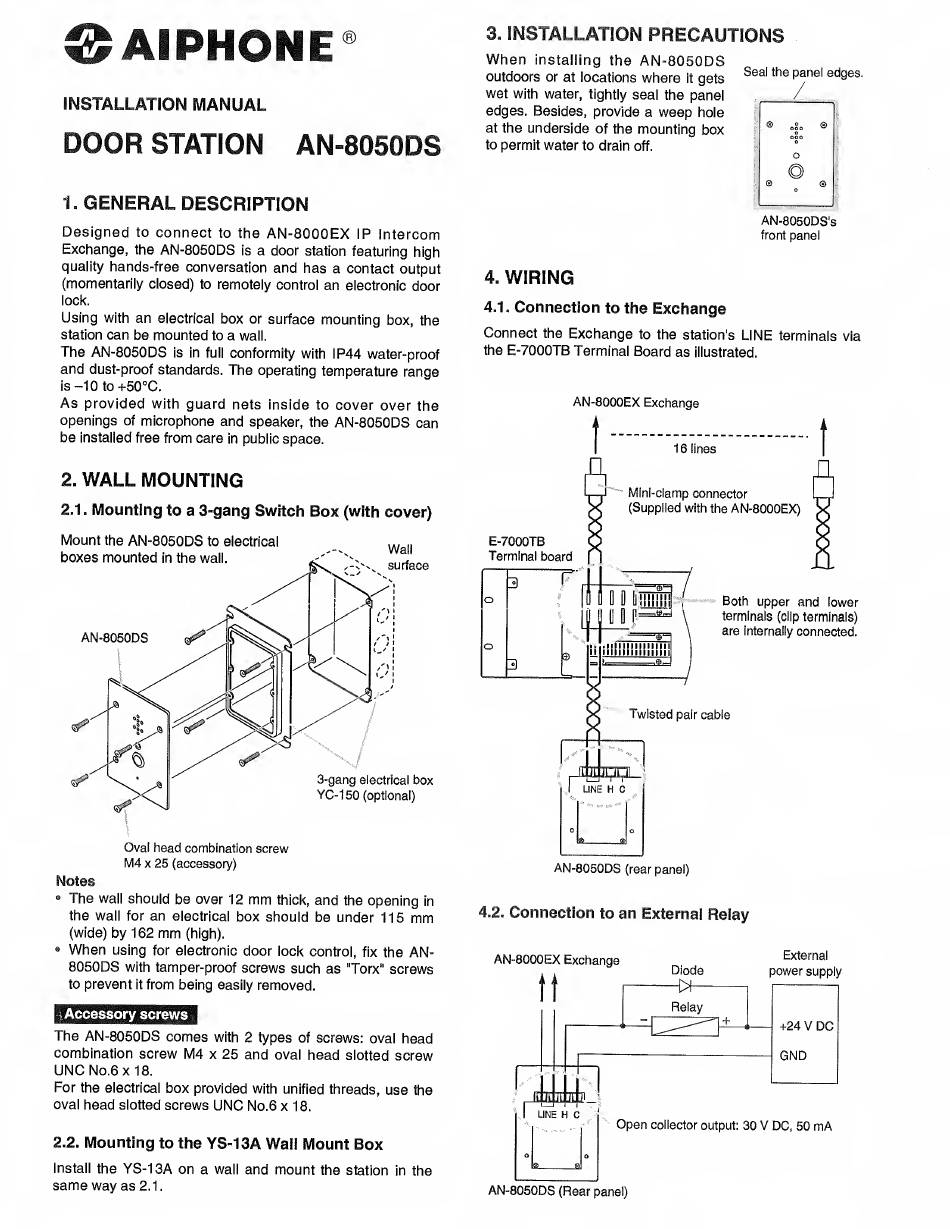

Aiphone AN-8050DS Installation Manual

@ AIPHONE
INSTALLATION MANUAL
DOOR STATION AN-8050DS
1. GENERAL DESCRIPTION
Designed to connect to the AN-8000EX IP Intercom
Exchange, the AN-8050DS is a door station featuring high
quality hands-free conversation and has a contact output
(momentarily closed) to remotely control an electronic door
lock.
Using with an electrical box or surface mounting box, the
station can be mounted to a wall.
The AN-8050DS is in full conformity with IP44 water-proof
and dust-proof standards. The operating temperature range
is -10 to +50°C.
As provided with guard nets inside to cover over the
openings of microphone and speaker, the AN-8050DS can
be installed free from care in public space.
2. WALL MOUNTING
2.1. Mounting to a 3-gang Switch Box (with cover)
Oval head combination screw
M4 x 25 (accessory)
Notes
• The wall should be over 12 mm thick, and the opening in
the wall for an electrical box should be under 115 mm
(wide) by 162 mm (high).
• When using for electronic door lock control, fix the AN-
8050DS with tamper-proof screws such as "Torx" screws
to prevent it from being easily removed.
Accessory screws
The AN-8050DS comes with 2 types of screws: oval head
combination screw M4 x 25 and oval head slotted screw
UNC No.6 x 18.
For the electrical box provided with unified threads, use the
oval head slotted screws UNC No.6 x 18.
2.2. Mounting to the YS-13A Wall Mount Box
Install the YS-13A on a wall and mount the station in the
same way as 2.1.
3. INSTALLATION PRECAUTIONS
When installing the AN-8050DS
outdoors or at locations where it gets
wet with water, tightly seal the panel
edges. Besides, provide a weep hole
at the underside of the mounting box
to permit water to drain off.
Seal the panel edges.
AN-8050DS's
front panel
4. WIRING
4.1. Connection to the Exchange
Connect the Exchange to the station's LINE terminals via
the E-7000TB Terminal Board as illustrated.
AN-8000EX Exchange
16 lines
4.2. Connection to an External Relay
AN-8000EX Exchange
External
power supply
Open collector output: 30 V DC, 50 mA
AN-8050DS (Rear panel)
