An series weather resistant door station

Advertisement

The AN-8050DSW is a weatherized door station for the AN IP Network Intercom system. This unit is enhanced from
the standard AN-8050DS, with the PC board conformal coated and a mylar cover over the microphone to protect from
moisture. The rating on this unit is IP-54. Ingress protection rating indicates that the unit is protected against dust with
limited ingress (no harmful deposit), and from water sprayed from all directions with limited ingress permitted.

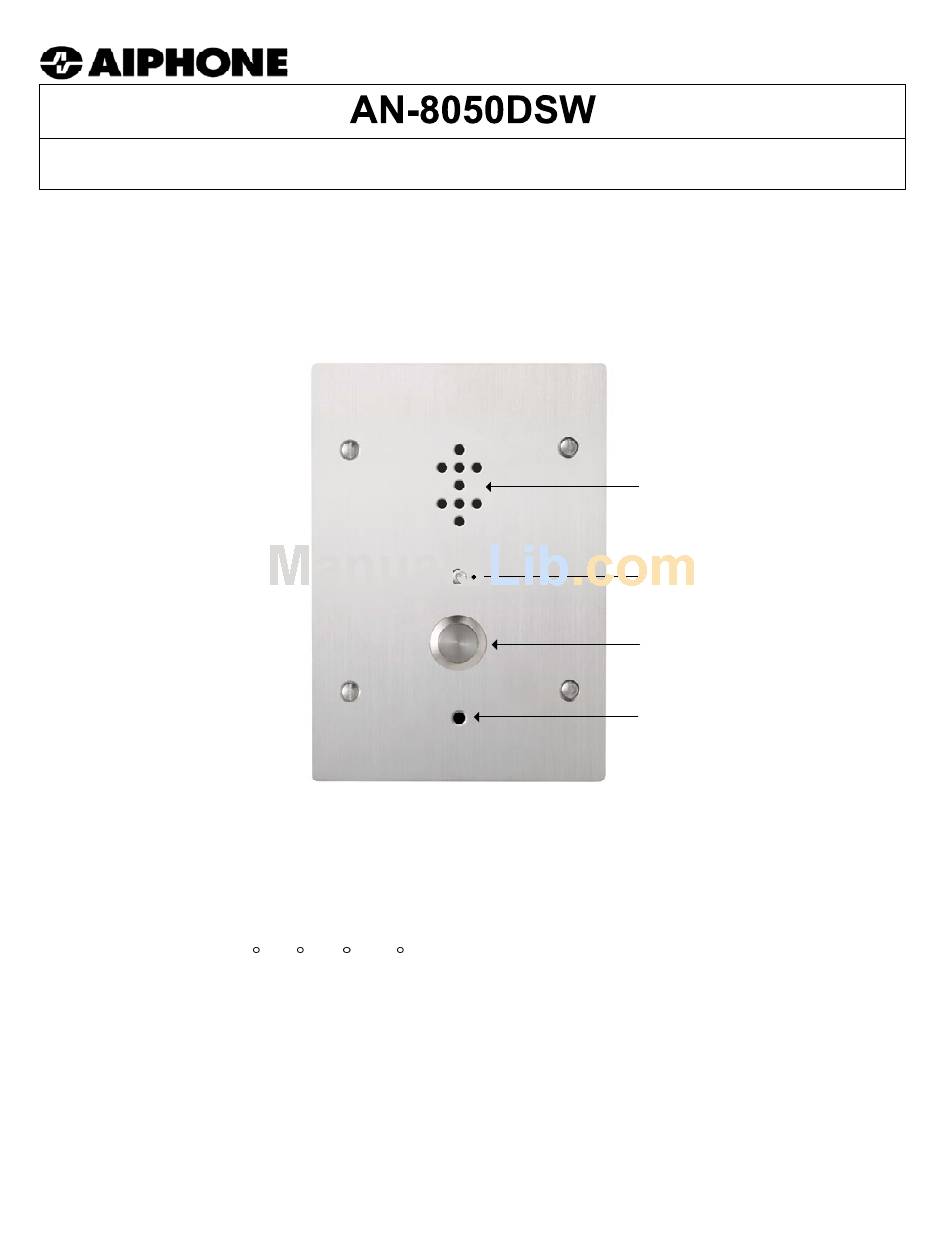

AN-8050DSW
Please note:
Unit must be installed
vertically as shown.

SPECIFICATIONS:

Power Source:
Speaker:
Microphone:
Call Button:
IP Rating:
Temperature Rating:
Mounting:
Terminations:
Wiring:
Wiring Distance:
Dimensions (HxWxD): 6-3/8" x 4-9/16"" x 2"
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
AN Series Weather Resistant Door Station
- SUPPLEMENTAL INSTRUCTIONS -
Supplied by AN-8000EX Exchange Unit
8 ohm, weather resistant
ECM, protected by mylar film
Normally open momentary contact
IP-54
-10 ~ 50 C; 14 ~ 122 F
Flush mount into 3-gang electrical box
PCB mounted terminal block
2 conductor solid, non-shielded, homerun from AN-8000EX to each door station
4,920' w/ 22AWG, 2,950'' w/ 24AWG
TOLL FREE TECHNICAL SUPPORT: (800) 692-0200
E-MAIL: tech@aiphone.com
NOTE:
Only information relating to the characteristics of the AN-8050DSW are shown
here. Please refer to standard AN-8050DS door station instructions, and AN-8000
Series Installation Manual for complete installation and programming information.
Speaker
Call-in / Talk LED
Call button
Microphone
AN-8050DSW Instr.
0412JD
