Summary of Contents for Parrot Uncle Vaczon VZA01A117

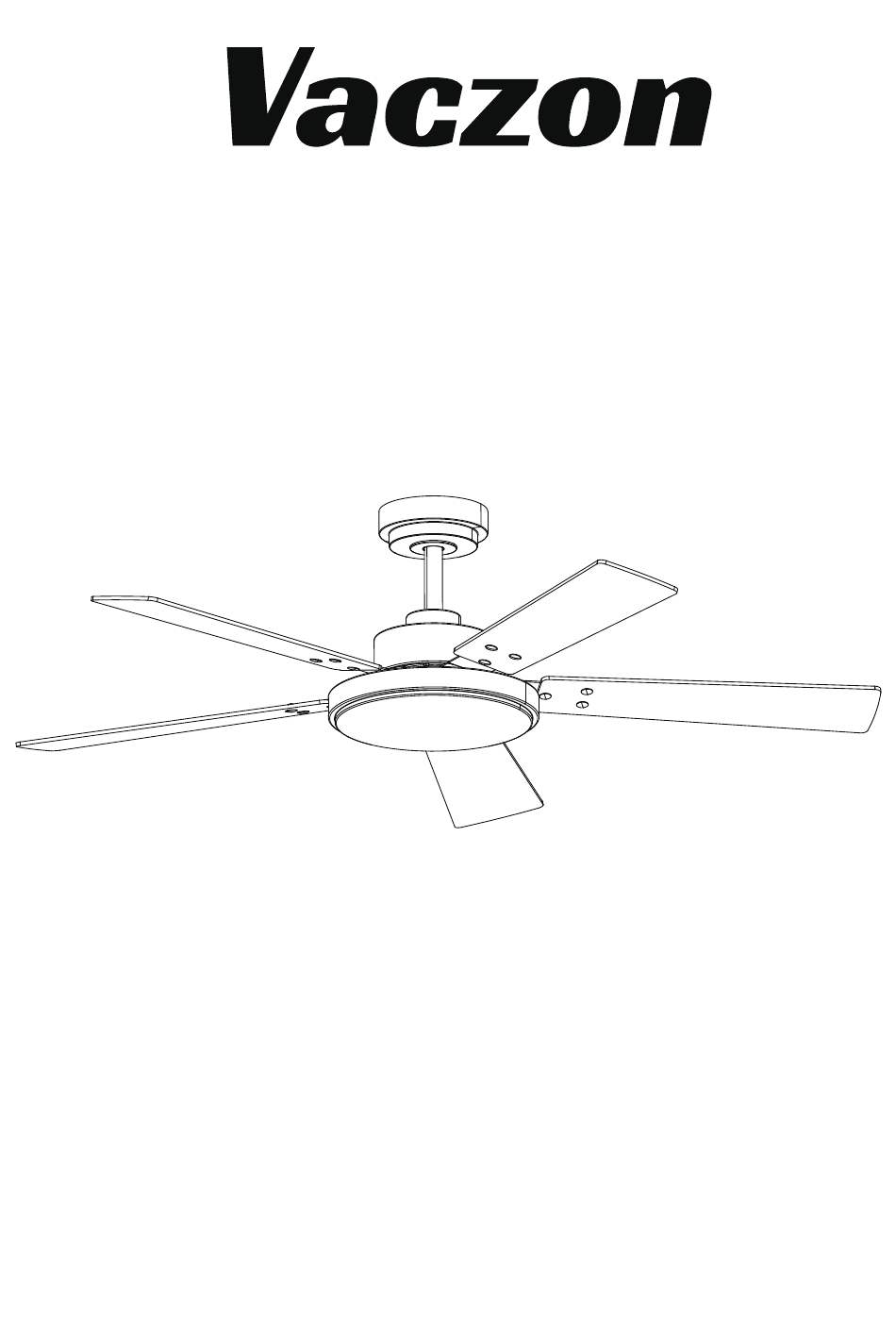

- Page 1 CEILING FAN INSTALLATION MANUAL VZA01A117 READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CONTENTS 01 IMPORTANT SAFETYINSTRUCTIONS 02 PACKAGE CONTENTS 03 BEFORE INSTALLATION 04 ASSEMBLING THE CEILING BRACKET 05 ASSEMBLING THE DOWNROD 06 HANGING YOUR CEILING FAN BODY 07 ASSEMBLING THE CEILING BRACKET 08 ASSEMBLING THE LIGHT KIT 09 ASSEMBLING THE LIGHT SHADE 9-10 10 REMOTE CONTROL OPERATION 11 PRODUCT SIZE... -
Page 3: Important Safetyinstructions
IMPORTANT SAFETYINSTRUCTIONS 1. WARNING: To reduce the risk of fire, electric shock, or personal injury, mount directly to a structural framing member or to an outlet box marked acceptable for fan support of 15.9kg (35 lbs). For outlet box mounting, use mounting screws provided with the outlet box. -
Page 4: Package Contents
PACKAGE CONTENTS PARTS 1 X Ceiling Bracket 1 X Ceiling Fan Body 1 X Downrod Ball 5 X Blades Brackets 5 X Blades 1 X 6-inch Downrod 1 X 10-inch Downrod 1 X Canopy 1 X Light Kit 1 X Canopy Cover 1 X Light Shade 1 X Coupling cover ACCESSORIES... -
Page 5: Before Installation
BEFORE INSTALLATION TOOLS NEEDED (NOT INCLUDED) Ladder Phillips Screwdriver Wire Stripper Drill 30 inches 7 feet from blade tip to nearest wall or obstruction from bottom edge of blade to the floor CHECK THE ROOM DIMENSIONS 15° CHECK THE ROOM CEILING ANGLE Make sure your room ceilingangle is less than 15°... -
Page 6: Assembling The Ceiling Bracket
ASSEMBLING THE CEILING BRACKET WARNING: To avoid possible electrical shock, before installing your ceiling fan, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location. Option 1: Concrete ceiling Use 2 mounting screws provided when: Securing to existing ceiling fan-rated outlet box. - Page 7 ASSEMBLING THE DOWNROD Step 3: Step 4: Carefully slide the downrod intothe yoke of the Tighten the setscrew with a screwdriver. motor assembly. Align the holes in the downrod. Carefully re-installthe downrod pin and clip. Step 5: Put down the coupling cover. NOTE: The downrod ball has been pre-installed on the 6-inch downrod.
-
Page 8: Hanging Your Ceiling Fan Body
HANGING YOUR CEILING FAN BODY Step 1: Place the downrod ball into the ceiling bracket. Make sure the downrod ball slot matches the inner lock. Rotate the downrod until it secured. Step 2: a. Connect the white wire from the ceiling to the white wire from the controller using a wire nut. -
Page 9: Assembling The Blades
ASSEMBLING THE BLADES Step 1: Step 2: Remove 10 screws from the ceiling fan body, Attach the fan blade to the blade bracket using 3 blade place the screws for subsequent. bracket screws and decorative nuts provided, tighten them firmly. Complete 5 blades assembly. Step 3: Attach the blade assembly to the fan body using 2 removed screws and tigtem firmly. -
Page 10: Assembling The Light Kit
ASSEMBLING THE LIGHT KIT Step 1: Step 2: Remove 3 screws from the ceiling fan body, Connect the wires of the ceiling fan body with light kit. Attach place the screws for subsequent. the light kit to the ceiling fan body using removed 3 screws and tighten firmly. -
Page 11: Remote Control Operation
REMOTE CONTROL OPERATION Control buttons Power Switch Forward and Reverse Press to turn Press to change the airflow direction. the power ON/OFF Forward: the airflow will be directed downwards, for cooling in summer. Reverse: The airflow will be directed upwards assisting inthe circulation of warm air, for energy conservation in winter. - Page 12 REMOTE CONTROL OPERATION REMOTE CONTROL MATCHING CODE: Power on the receiver, press the key within 5 seconds of the light on, when you hear a beep or a light flashes, the code match is successful. If you need to match the code a second time, you need to wait 30 senconds before turning on the power and repeat above operation.
-
Page 13: Product Size
PRODUCT SIZE Dia 6.3 in. (Ø160mm) Dia 1.04 in. x 6 in. or 10 in. (Ø26.5mm x150mm or 250mm) Dia 12.2 in. ( Ø 310mm) 52 in. (1338mm) 52 in. (1338mm) -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE Clean the motor housing and blades with a soft brush or lint-free cloth to avoid scratching the finish. At least twice each year,lower the canopy to check the downrod assembly and tighten all screws on the fan. Shut off the main power supply before you begin any maintenance task. -
Page 15: Troubleshooting
TROUBLESHOOTING Problem Solution · Make sure the power switch is on. Fan Doesn't Work · Check the circuit breaker to ensure the power is turned on. · Make sure the blades spin freely. · Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram ·...
