CEILING FAN INSTALLATION MANUAL
VZA01A116
READ AND SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vaczon VZA01A116 and is the answer not in the manual?

Questions and answers

Summary of Contents for Parrot Uncle Vaczon VZA01A116

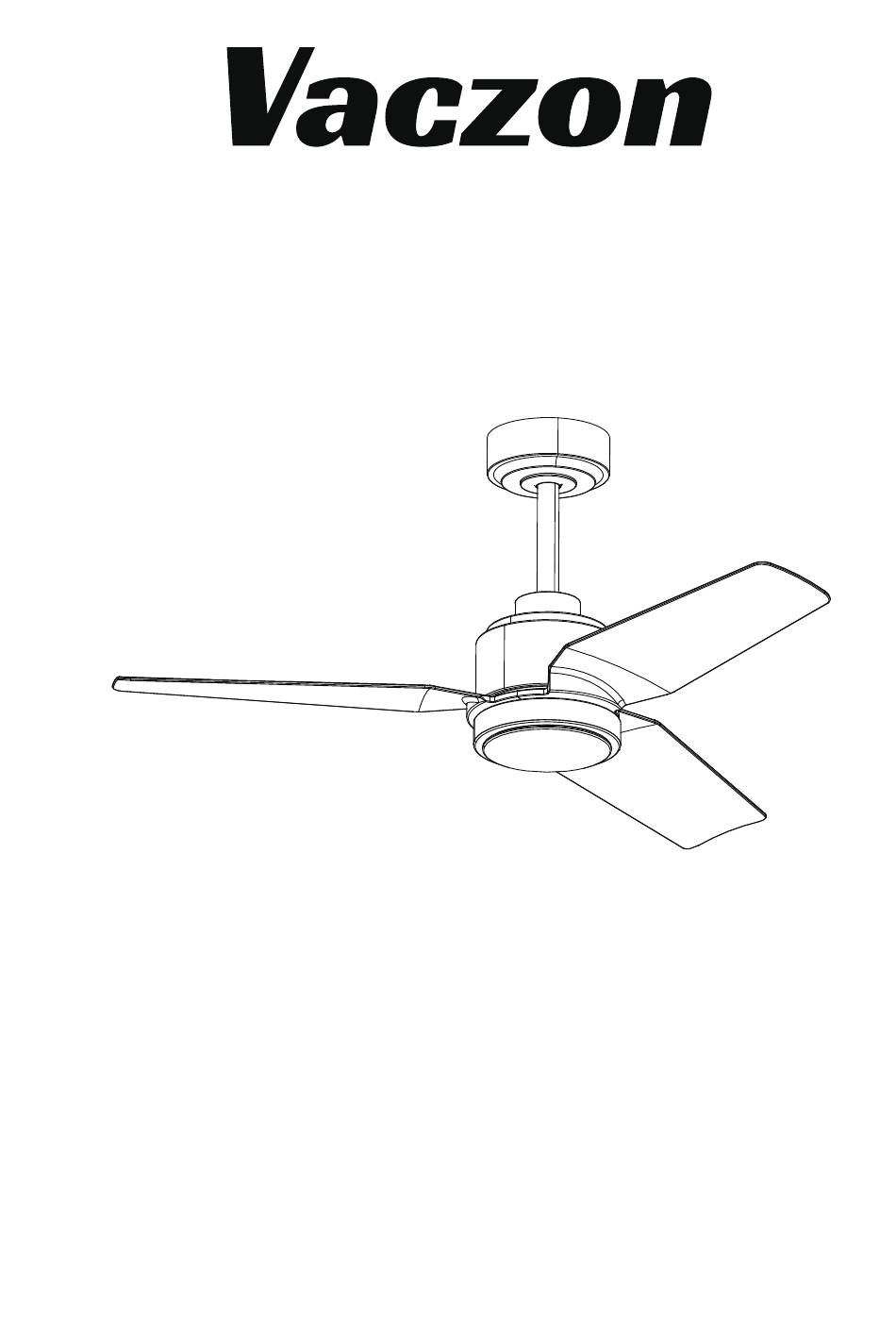

  • Page 1 CEILING FAN INSTALLATION MANUAL VZA01A116 READ AND SAVE THESE INSTRUCTIONS...
  • Page 2: Table Of Contents

    CONTENTS 01 IMPORTANT SAFETYINSTRUCTIONS 02 PACKAGE CONTENTS 03 BEFORE INSTALLATION 04 ASSEMBLING THE CEILING BRACKET 05 ASSEMBLING THE DOWNROD 06 HANGING YOUR CEILING FAN BODY 07 ASSEMBLING THE CEILING BRACKET 08 ASSEMBLING THE LIGHT KIT 09 ASSEMBLING THE LIGHT SHADE 9-10 10 REMOTE CONTROL OPERATION 11 PRODUCT SIZE...
  • Page 3: Important Safetyinstructions

    IMPORTANT SAFETYINSTRUCTIONS 1. WARNING: To reduce the risk of fire, electric shock, or personal injury, mount directly to a structural framing member or to an outlet box marked acceptable for fan support of 15.9kg (35 lbs). For outlet box mounting, use mounting screws provided with the outlet box.
  • Page 4: Package Contents

    PACKAGE CONTENTS PARTS 1 X Ceiling Bracket 1 X Ceiling Fan Body 1 X Downrod Ball 3 X Blades 1 X 6-inch Downrod 1 X 10-inch Downrod 1 X Canopy 1 X Light Kit 1 X Canopy Cover 1 X Light Shade 1 X Coupling cover ACCESSORIES 4 X ST5 X 35mm...
  • Page 5: Before Installation

    BEFORE INSTALLATION TOOLS NEEDED (NOT INCLUDED) Ladder Phillips Screwdriver Wire Stripper Drill 30 inches 7 feet from blade tip to nearest wall or obstruction from bottom edge of blade to the floor CHECK THE ROOM DIMENSIONS 15° CHECK THE ROOM CEILING ANGLE Make sure your room ceilingangle is less than 15°...
  • Page 6: Assembling The Ceiling Bracket

    ASSEMBLING THE CEILING BRACKET WARNING: To avoid possible electrical shock, before installing your ceiling fan, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location. Option 1: Concrete ceiling Use 2 mounting screws provided when: Securing to existing ceiling fan-rated outlet box.
  • Page 7 ASSEMBLING THE DOWNROD Step 3: Step 4: Carefully slide the downrod intothe yoke of the Tighten the setscrew with a screwdriver. motor assembly. Align the holes in the downrod. Carefully re-installthe downrod pin and clip. Step 5: Put down the coupling cover. NOTE: The downrod ball has been pre-installed on the 6-inch downrod.
  • Page 8: Hanging Your Ceiling Fan Body

    HANGING YOUR CEILING FAN BODY Step 1: Place the downrod ball into the ceiling bracket. Make sure the downrod ball slot matches the inner lock. Rotate the downrod until it secured. Step 2: a. Connect the white wire from the ceiling to the white wire from the controller using a wire nut.
  • Page 9: Assembling The Blades

    ASSEMBLING THE BLADES Step 1: Step 2: Remove 6 screws from the ceiling fan body, Attach the blade assembly to the fan body using 2 removed place the screws for subsequent. screws and tigtem firmly. Install 3 blades. ASSEMBLING THE LIGHT KIT Step 1: Step 2: Remove 3 screws from the ceiling fan body,...
  • Page 10: Assembling The Light Shade

    ASSEMBLING THE LIGHT SHADE Rotate the light kit clockwise to securely fasten it into place. NOTE Turn on the circuit breakers to the outlet box associated with the wall switch location, then turn on the wall switch and check if the ceiling fan starts flashing white light. If it does not flash a white light, please, check all wiring connections for any wrong connections.
  • Page 11: Remote Control Operation

    REMOTE CONTROL OPERATION Control buttons Power Switch Forward and Reverse Press to turn Press to change the airflow direction. the power ON/OFF Forward: the airflow will be directed downwards, for cooling in summer. Reverse: The airflow will be directed upwards assisting inthe circulation of warm air, for energy conservation in winter.
  • Page 12 REMOTE CONTROL OPERATION REMOTE CONTROL MATCHING CODE: Power on the receiver, press the key within 5 seconds of the light on, when you hear a beep or a light flashes, the code match is successful. If you need to match the code a second time, you need to wait 30 senconds before turning on the power and repeat above operation.
  • Page 13: Product Size

    PRODUCT SIZE Dia 5.9 in. (Ø150mm) Dia 1.04 in. x 6 in. or 10 in. (Ø26.5mm x150mm or 250mm) Dia 7.1 in. ( Ø 180mm) 42 in. (1062mm) 42 in. (1062mm)
  • Page 14: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Clean the motor housing and blades with a soft brush or lint-free cloth to avoid scratching the finish. At least twice each year,lower the canopy to check the downrod assembly and tighten all screws on the fan. Shut off the main power supply before you begin any maintenance task.
  • Page 15: Troubleshooting

    TROUBLESHOOTING Problem Solution · Make sure the power switch is on. Fan Doesn't Work · Check the circuit breaker to ensure the power is turned on. · Make sure the blades spin freely. · Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram ·...
