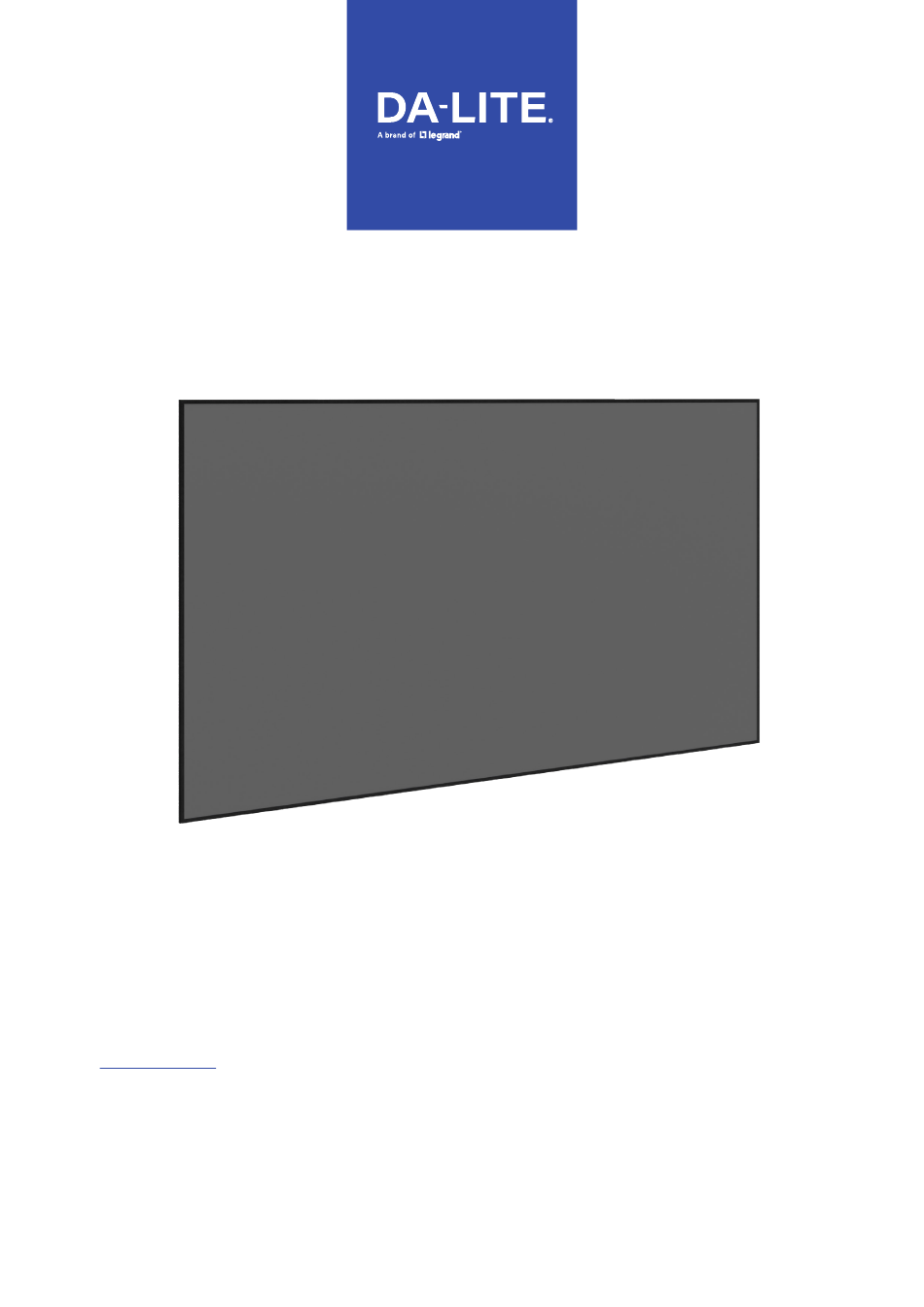

- Page 1 Parallax ® Thin USER MANUAL 240427 Rev A...
- Page 3 ORIGINAL INSTRUCTIONS DISCLAIMER PREPARATION Legrand AV Inc. and its affiliated companies and It requires two people to install a Parallax Thin. To subsidiaries (collectively, “Legrand AV”), intend to maintain optimal projected image geometry and screen make this manual accurate and complete. However,...
-
Page 4: Hardware Provided
HARDWARE PROVIDED Thick Pull Hook Thin Pull Hook Allen Wrench Phillips Screwdriver (For Silver Corner Springs) (For Black Springs) Black Spring Concrete Anchor (To Be Used with Silver Spring (Corners) Wall Mount Screw in Concrete Walls) Connects Inner Connects Spreader Bars Connects Outer Bezel Connects Wall Mount Connects Additional... -
Page 5: Mounting Hardware
MOUNTING HARDWARE (2) Upper Wall Mount Bracket (2) Optional Lower Bracket (152" diagonal screen includes 3 brackets) -
Page 6: Inner Frame Assembly
INNER FRAME ASSEMBLY 1. Assemble the inner frame sections with black corner brackets and black center connector brackets with (24) 1/4" – 20 x 3/8" screws. Ensure that the connector brackets are oriented with the flanges facing the front of the frame. -
Page 7: Spreader Bar Attachment
SPREADER BAR ATTACHMENT 1. Attach spreader bars to inner frame using (4) 1/4" – 20 x 3/4" screws. - Page 8 SURFACE TO FRAME ATTACHMENT 1. Unroll screen surface and place it viewing side down on the non-woven fabric (included in package). 2. With another person, lift the frame and place it screw side down onto the back of the screen. 3.
- Page 9 SURFACE TO FRAME ATTACHMENT (CONT.) 4. Insert the tension rods into corresponding sleeves on the outer edges of the screen surface. Gently push the rod to pop off the eyelets on the sleeve. 5. With two people positioned on opposite sides, start with attaching the black springs at the middle and work your way to the corners, where you'll use two silver springs per corner.
- Page 10 OUTER BEZEL ASSEMBLY Top Outer Bezel Side Outer Bezel 1. Slide the outer bezel onto the inner frame.
- Page 11 OUTER BEZEL ASSEMBLY (CONT.) 2. Attach silver outer brackets and silver corner brackets along the outer bezel frame using set screws and Allen wrench to secure into place.
- Page 12 CLAMP SPRING INSTALLATION 1. Prepare the hook and clamp springs. 2. Fasten one end of the clamp spring to the internal frame by hand and hold it steady. 3. Pull the other end of the clamp spring with the hook by the other hand and fasten it to the outer frame. 4.
- Page 13 MOUNTING THE SCREEN ON THE WALL 1. Align the wall mount brackets in the same horizontal line and secure them to the wall. Secure the two or three wall brackets to wall studs at the desired height. The outside edge of each wall bracket must be no greater than 5"...
- Page 14 LIMITED FIVE-YEAR WARRANTY ON DA-LITE PRESENTATION PRODUCTS Legrand AV Inc. warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase by the original purchaser; provided they are properly operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the factory.
- Page 16 EMEA +31 495 580 840 av.emea.sales@legrand.com APAC +852 2145 4099 av.asia.sales@legrand.com ©2024 Legrand AV Inc. 240427 Rev A 06/24 Da-Lite is a registered trademark of Legrand AV Inc. All other brand names or marks are used for identification purposes and are...
