- Page 1 COMMERCIAL DEHUMIDIFIER Instruction Manual Model：ZX-DH-80/ZX-DH-100...
- Page 2 Dear Customer: Welcome to our family. Thank you for purchasing one of our products. Our goal is to provide you with superior service. If there is anything missing from or wrong with your order, or if you have any questions about using our Dehumidifier, PLEASE contact us.
-
Page 3: Table Of Contents
Contents INSTRUCTIONS SAFETY & WARNING 02-03 PARTS DIAGRAM OPERATIONAL PRECAUTIONS OPERATION INSTRUCTION 06-07 INSTALLATION AND ASSEMBLY OF ACCESSORIES 08-12 DRAINAGE METHOD 13-15 CLEANING AND MAINTENANCE 16-17 SAFETY PRECAUTIONS ON SERVICING TRANSPORTATION AND CUSTODY PRODUCT PAREMETERS PACKING LIST TROUBLESHOOTING WARRANTY AND SERVICE... -
Page 4: Instructions
INSTRUCTIONS SAFETY & WARNING When using electrical appliances, basic safety precautions should always be followed including the following: Read all instructions before using this product. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards... - Page 5 SAFETY & WARNING Component parts are designed for propane and non-incentive and non-sparking. Component parts shall only be replaced with identical repair parts. FAILURE TO ABIDE BY THIS WARNINGCOULD RESULT IN AN EXPLOSION,DEATH, INJURY AND PROPERTY DAMAGE. If the power cord is damaged,do not attempt to repair.It must be replaced with a new power cord supplied by the unit manufacturer in order to avoid a hazard.
-
Page 6: Parts Diagram

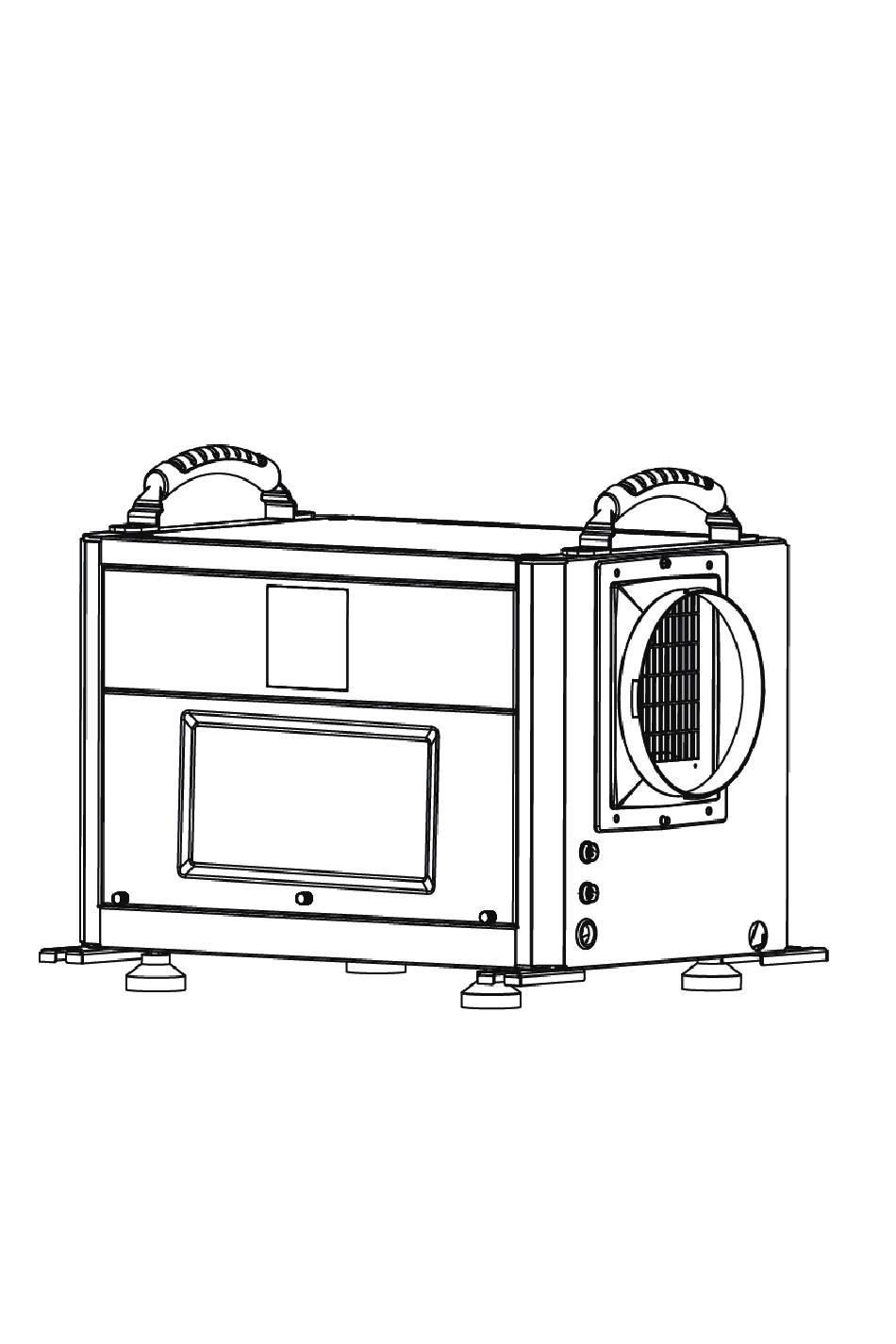

PARTS DIAGRAM... -
Page 7: Operational Precautions
OPERATIONAL PRECAUTIONS WARNING-to reduce the risk of fire,electric shock or injury to persons or property: If the supply cord is damaged,it must be replaced by the manufacturer,its service agent or similarly qualified persons in order to avoid a hazard. The appliance shall be disconnected from its power source during service. Always operate the unit from a power source of equal voltage,frequency and rating as indicated on the product identification plate. -
Page 8: Operation Instruction
OPERATION INSTRUCTION Button Description A.On/Off(Power) Button Press the on/off button and the machine will start running (one beep). Press the button again to the turn the machine off. this button while on electric, screen light on,machine automatically goes to standby mode,display screen shows environmental humidity. B.Mode Button Press the "mode"... - Page 9 OPERATION INSTRUCTION Operating Mode 1.Auto Mode Default auto mode after on electric (default setting humidity 50%) a) Environmental humidity ＞machine set humidity+3%, compressor, and fan start running. Environmental humidity ＜ machine set humidity+3%, the compressor stops, and the fan stops after a delay of 5 seconds, and the compressor meets the three-minute delay protection.
-
Page 10: Installation And Assembly Of Accessories
INSTALLATION AND ASSEMBLY OF ACCESSORIES 1.Take out the accessories from the packing box: ceiling mount gasket, screws, duct adapter. 2.Ducting installation a.Align the duct adapter with the 4 screw positioning holes on the side. b. Lock and fix the duct adapter with screws. - Page 11 INSTALLATION AND ASSEMBLY OF ACCESSORIES 4.Ceiling mount gasket installation When the machine is suspended in the air, the machine needs to be installed with ceiling mount gasket. a.Install the ceiling mount gasket in the body (accessories: 4 ceiling mount gaskets, 12 spring spacers, 12 flat spacers, 12 screws)- 1 screw with 1 spring shim and 1 flat shim.
- Page 12 INSTALLATION AND ASSEMBLY OF ACCESSORIES 5.Wall assembly method for control panel When the machine is shipped, the control panel is assembled on the front of the machine. In order to facilitate the user to install the control panel on the wall, the control panel needs to be removed and the control panel installed on a wall surface that is convenient for operation, as follows.
- Page 13 INSTALLATION AND ASSEMBLY OF ACCESSORIES c.screwdriver to screw down the 2 fixed screws and remove the control panel assembly, then install the cover in the location of the control panel of the machine and fix it with 2 screws. d.Remove the upper cover of the control panel assembly with a screwdriver; then remove the 2 screws and remove the lower cover.
- Page 14 INSTALLATION AND ASSEMBLY OF ACCESSORIES g.Then plug the other end of the signal cable of the control panel into the signal interface of the machine.
-
Page 15: Drainage Method
DRAINAGE METHOD 1.Water pipe drainage method Operation instructions: When using the water pipe drainage method, connect the water pipe at the drain, place the water pipe in place, place the other end of the water pipe at the drain, or at the drain sink,or in the water storage container;... - Page 16 DRAINAGE METHOD...
- Page 17 DRAINAGE METHOD 2.External pump drainage method(not include pump,need to buy) When it is necessary to connect an external water pump, one end of the drainpipe is connected to the water outlet, and the other end is connected to the water inlet of the water pump. Note:The reserved external water pump signal input port cannot be connected to the power supply, so as not to cause the main board of the product to burn out.
-
Page 18: Cleaning And Maintenance
CLEANING AND MAINTENANCE Note: Before cleaning and maintaining the machine, please make sure to turn off the machine and unplug it from the power source to prevent electric shock. Cleaning : Before doing any cleaning and maintenance work on the machine, the machine must be turned off, unplugged, and no water should be spilled on the machine. - Page 19 CLEANING AND MAINTENANCE b.Clean the filter Use a vacuum cleaner to gently absorb the dust on the surface of the filter. If the filter is very dirty, you can use tap water to rinse the filter, and completely cool and dry it, then put it back into the forward air sheet, which can improve the performance of the machine.
-
Page 20: Safety Precautions On Servicing
SAFETY PRECAUTIONS ON SERVICING Please follow these warnings when to undertake the following when servicing an appliance with R32. 1.Checks to the area Prior to beginning work on systems containing flammable refrigerants,safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system. -
Page 21: Transportation And Custody
TRANSPORTATION AND CUSTODY During transportation, this product should be handled preciously to prevent violent vibration. Generally, the packaged product should not be stored in the open air for a long time. It should be placed in a well-ventilated, non-corrosive gas warehouse. It should not be placed upside down. Set unit upright.Always store, transport, and use the unit in a horizontal position. -
Page 22: Product Paremeters
PRODUCT PAREMETERS ZX-DH-80-AZ-HM ZX-DH-100-AZ-HM Dehumidify Capacity 80Pint/Day 100Pint/Day (80℉,60%RH) Power Supply 110- 120V 60Hz 110-120V 60Hz Air Flow 237CFM 237CFM Rated Input Current 6.6A 7.9A Maxi Input Current 8.3A 11.0A Refrigerant/Charge R32/6.35oz R32/9.18oz Noise ≤60dB(A) ≤60dB(A) Low Side Pressure 260 Psi... -
Page 23: Packing List
PACKING LIST Part Name PICTURE Dust Adapter External Pump Full Water Signal Input Cable Control Panel External Connection Cable Control Panel Hole Cover Drain Pipe Adjustable Feet Ceiling Mount Gasket Flat Washer Spring Washers Hexagon Head Screw Hex Key Cross Recessed Pan Head Screw... -
Page 24: Troubleshooting
TROUBLESHOOTING Symptom Cause Solution Power outage Restoration of power supply Power plug is not Connect the plug to the socket Machine Won't Run connected well Room temperature over 113℉ The machine's protection device isactivated or below 38℉ so that the machine does notrun Filter with dirt accumulation Cleaning filters Remove obstructions... -
Page 25: Warranty And Service
WARRANTY AND SERVICE WARRANTY AND SERVICE This product is covered by a 12-month product and warranty from the date of initial purchase in case of any problems, please contact the Customer Service Center via the contact information listed in this User Guide. Our warranty covers replacement products by repairing or replacing any defective parts and labor necessary to bring it up to its original specifications, and we can provide a replacement product instead of repairing the defective product.
