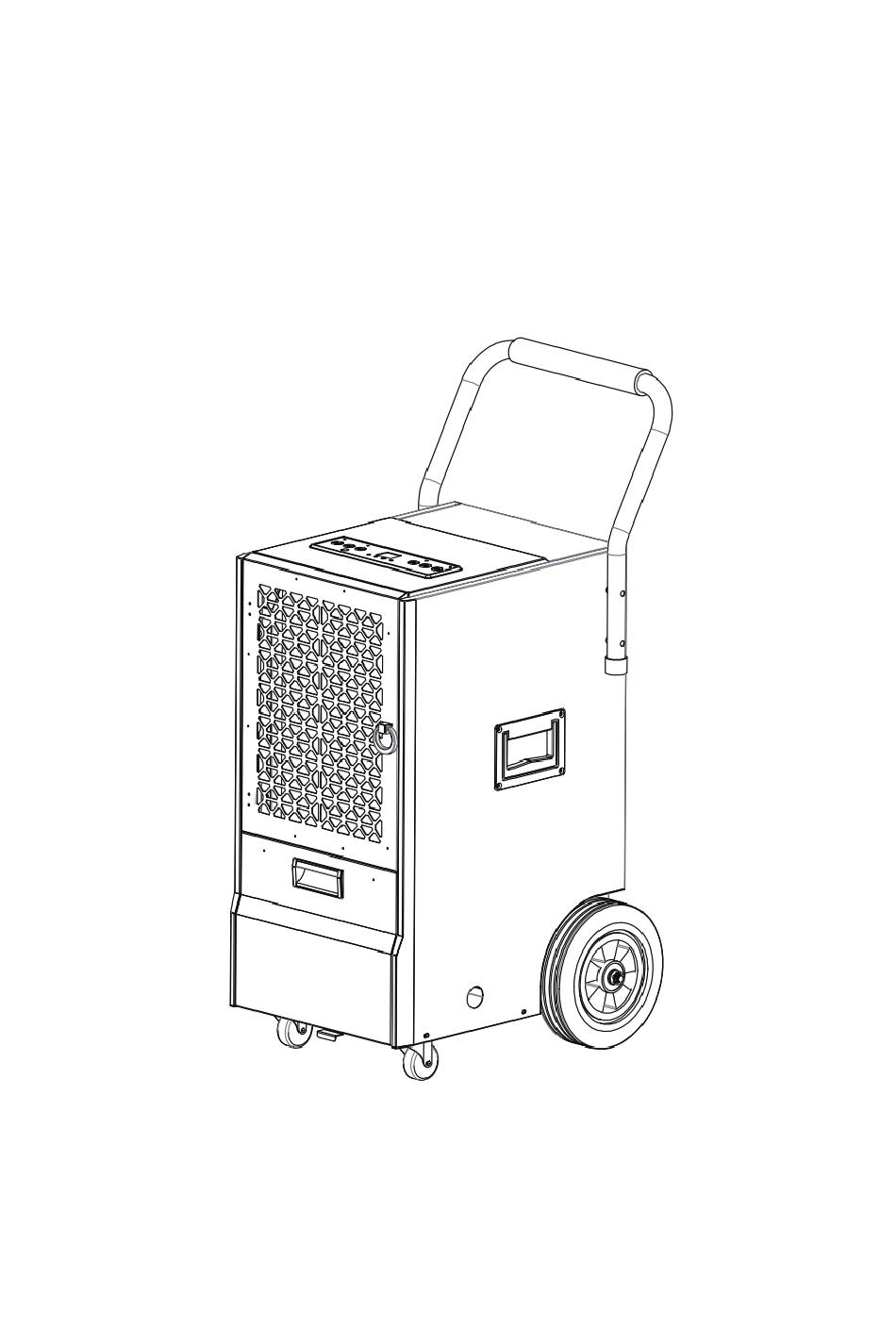

- Page 1 Commercial Dehumidifier Instruction Manual Model: OL50D-BDD056CE SKU:ZX-DH-01-AZ-HM...
-
Page 2: Dear Customer
Dear Customer: Welcome to our family. Thank you for purchasing one of our products. Our goal is to provide you with superior service. If there is anything missing from or wrong with your order, or if you have any questions about using our Dehumidifier, PLEASE contact us. -
Page 3: Table Of Contents
Contents IMPORTANT INSTRUCTIONS PRODUCT DRAWINGS INSTALLATION MACHINE SETUP AND OPERATION ERROR MAINTENANCE 9-10 MACHINE STORAGE TECHNICAL PARAMETERS TROUBLE SHOOTING WARRANTY AND SERVICE... -
Page 4: Important Instructions
IMPORTANT INSTRUCTIONS Note: When using electrical appliances, please follow these basic precautions to reduce the risk of fire, electric shock, and personal injury or property damage. All refrigeration products contain refriger- ants, which under federal law must be removed prior to disposal. 1. -
Page 5: Product Drawings
PRODUCT DRAWINGS 2.1 Front View Transport Handle Control Panel Air Inlet grille Recessed Handle Air Filter Wheel Continuous Drainage opening Back View Air Outlet Power Cord Wrapping Post Grille... -
Page 6: Installation
INSTALLATION 3.1 Handle and Support Frame Installation Main Body Push Handle Stainless Steel Bolt Flat Washer Wheel... -
Page 7: Machine Setup And Operation
MACHINE SETUP AND OPERATION 4.1 Button Function (1) Press this button while on electric, screen light on, machine automatically goes to continuous drying mode, display screen shows environmental humidity, compressor on after the fan run for 3 seconds; press this button again, compressor stops, display screen become darker, but still show environmental humidity, machine goes into standby mode, the fan will run for another minute and stop. -
Page 8: Defrost Function
MACHINE SETUP AND OPERATION Note: 1) The default humidity is 50%RH, to increase and decrease as follow: 20%-25%--30%-35%-40%45%-50%-55%-60%-65%-70%-75%-80%-85%-90% 2) Environmental humidity and machine set humidity will decide the status of the compressor and fan as follow: Environmental humidity≥machine set humidity+3%, compressor and fan start running. Environmental humidity＜machine set humidity+3%, compressor and fan stop running. - Page 9 MACHINE SETUP AND OPERATION Note: During defrost, light won’t be off until the defrosting is over. 4.4 DRAINAGE There are two ways of removal collected water produced by the unit. A. Manual draining: Empty water tank by manual. B. Continuous draining: Use gravity to drain condensate water by attaching a drain hose. 4.4.1 EMPTYING THE WATER TANK The water tank built in unit will fill up and shut the unit down once it is full.
- Page 10 MACHINE SETUP AND OPERATION 4.4.2 CONTINUOUS DRAINING For continuous operation or unattended dehumidification, please connect the attached drain hose to the unit. 1.Press the POWER button to turn off the machine. 2.Open the front lower cover; remove the water tank from the unit. 3.Push the drain hose through the continuous drainage opening and connect one end to the hose connection.
-
Page 11: Error
ERROR (1) “E1”: If the copper pipe temperature sensor got failure, it will show “E1”. The system works in cycles of dehumidification for 30 minutes and defrosting for 15 minutes. Failure temperature sensor should be replaced with a new one. (2) “FL”: Water tank full, customer need to clear the tank and unit will work again. - Page 12 MAINTENANCE CLEANING UP OF REFRIGERANT General Measures: 1. Gas/vapor heavier than air. May accumulate in confined spaces, particularly at or below ground level. 2. Eliminate every possible source of ignition. 3. Use appropriate personal protection equipment (PPE). 4. Evacuate unnecessary personnel, isolate, and ventilate area. 5.
-
Page 13: Machine Storage
MACHINE STORAGE If you don’t use the unit for an extended period of time, please store it per the following steps: (1) Clean the filter mesh. (2) ATTENTION: The evaporator inside the machine has to be dried out before the unit is packed to avoid component damage and molds. -
Page 14: Technical Parameters
TECHNICAL PARAMETERS ZX-DH-01-AZ-HM Power Supply 115V~60Hz 45Pints/D(65°F/60%RH) Dehumidifier Capacity 70Pints/D(80°F/60%RH) 120Pints/D(86F/80%RH) Rated Input Current 5.8A (80F/60%RH) Gross Weight 89.1lb Net Weight 76.6lb Dimension 16.3*21.3*34.6in... -
Page 15: Trouble Shooting
TROUBLE SHOOTING Please confirm by after-sale service for the following conditions. Trouble Cause Solution Unit is not plugged in. Plug in the unit. Machine does not run To protect the machine, use it only Room temperature under when ambient temperature is between 41 °F or above 100.4°F. -
Page 16: Warranty And Service
WARRANTY AND SERVICE WARRANTY AND SERVICE This product is covered by a 12-month product and warranty from the date of initial purchase in case of any problems, please contact the Customer Service Center via the contact information listed in this User Guide. Our warranty covers replacement products by repairing or replacing any defective parts and labor necessary to bring it up to its original specifications, and we can provide a replacement product instead of repairing the defective product.
