POOLEX VARILINE WIFI User Manual

POOLEX VARILINE WIFI User Manual

Variable speed filtration pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

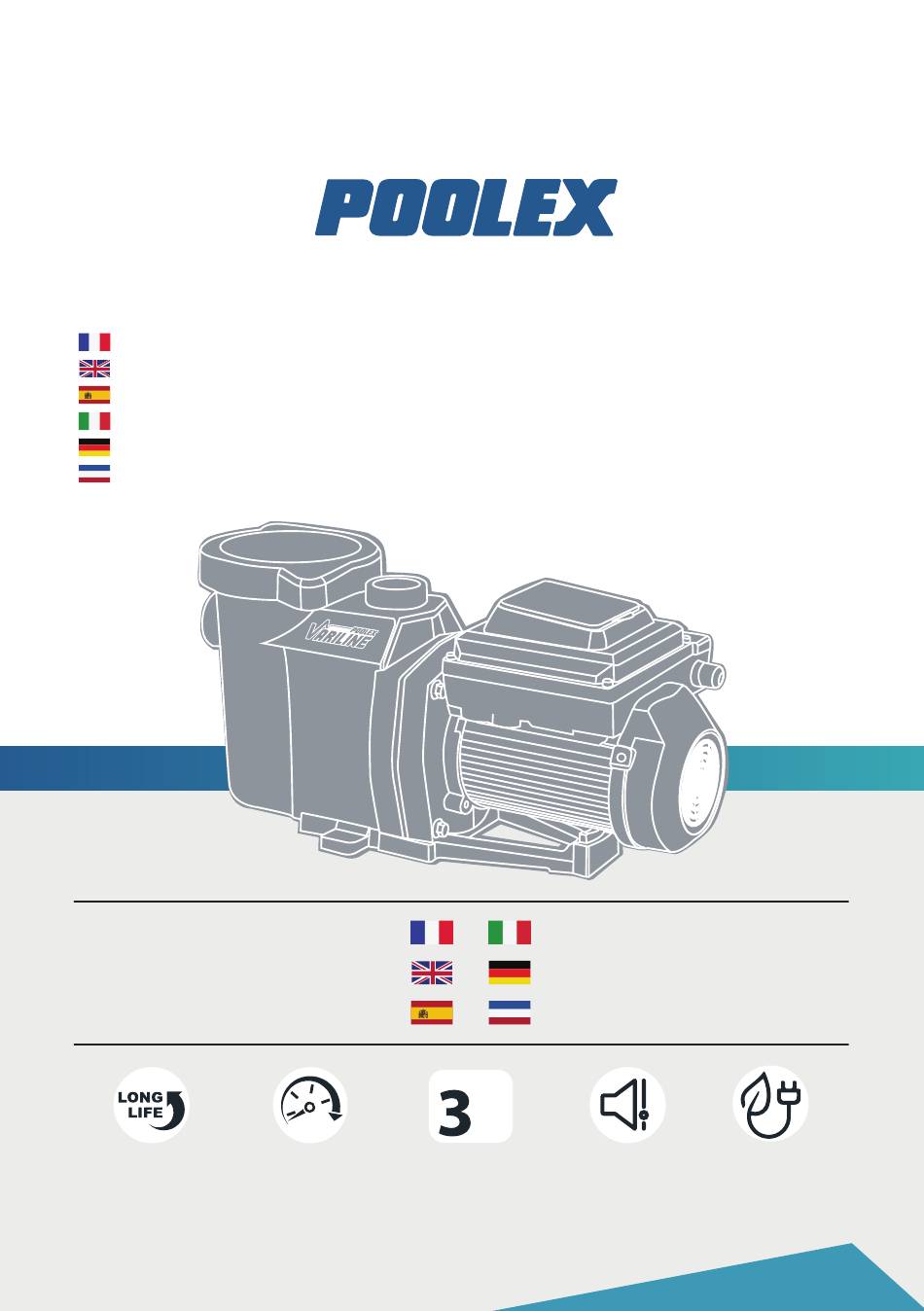

Pompe de filtration à vitesse variable
Variable speed filtration pump
Bomba de filtración de velocidad variable
Pompa di filtrazione a velocità variabile
Filtrationspumpe mit variabler Geschwindigkeit
Filterpomp met variabele snelheid
MANUEL D'UTILISATION
USER MANUAL
MANUAL DEL USUARIO
Longue durée de vie
4 vitesses programmables
Long Life
4 programmable speeds
Larga vida útil
4 velocidades programables
Lunga durata
4 velocità programmabili
Lange Lebensdauer
4 programmierbare Drehzahlen
Lange levensverwachting
4 programmeerbare snelheden
VARILINE WIFI
GARANTIE
GARANTIE
3 ans de garantie
3 years warranty
3 años garantía
Garanzia di 3 anni
3 Jahre Garantie
3 jaar garantie
MANUALE D'USO
BENUTZERHANDBUCH
HANDLEIDING
ANS
Silencieux & efficace
Silent & efficiency
Silenciosa & eficiencia
Silenziosità & efficienza
Leise & effizient
Stil & efficiënt
Économie d'énergie
Energy saving
Ahorro de energía
Risparmio energetico
Energiesparend
Energiebesparend
WWW.POOLEX.FR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VARILINE WIFI and is the answer not in the manual?

Questions and answers

Related Manuals for POOLEX VARILINE WIFI

Summary of Contents for POOLEX VARILINE WIFI

  • Page 1 VARILINE WIFI Pompe de filtration à vitesse variable Variable speed filtration pump Bomba de filtración de velocidad variable Pompa di filtrazione a velocità variabile Filtrationspumpe mit variabler Geschwindigkeit Filterpomp met variabele snelheid MANUEL D'UTILISATION MANUALE D’USO USER MANUAL BENUTZERHANDBUCH MANUAL DEL USUARIO...
  • Page 2 Our aim is to provide you with a quality product that delivers outstanding per- formance. We have taken great care in compiling this manual so that you can get the best out of your Poolex filtration pump.

  • Page 3: Important Notice

    IMPORTANT NOTICE This guide provides instructions for installing and using this pump. Consult the distributor for any questions regarding this equipment. For the Installer: This guide contains important information about the safe installation, operation and use of this product. This information must be given to the owner and/or operator of this equipment after installation, or left on or near the pump.

  • Page 4: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS 2. DESCRIPTION 2.1 Model characteristics 2.2 Exploded view 2.3 Pump dimensions 3. CONTROL PANEL 3.1 Using the Control Keyboard 3.2 Controller features 3.3 Controller function 4. INSTALLATION 4.1 Location 4.2 Piping 4.3 Fittings and valves 4.4 Electrical specifications 4.5 Overview and installation of wiring 5.

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions must always be followed, including: DANGER - Do not allow children to use this product. DANGER - This device is not intended for use by persons (including children) with reduced physical, sensory or mental abilities, or a lack of experience and knowledge, unless they have been supervised or instructed by a person responsible for their safety.
  • Page 6 1. SAFETY INSTRUCTIONS Using an unapproved anti-vortex BDF (bottom bung) or using the pool or spa when the BDF is missing, cracked or broken may result in body or limb blockage, hair entanglement, evisceration and/or death. TO MINIMIZE THE RISK OF INJURY DUE TO THE DANGER OF BEING BLOCKED DUE TO ASPIRATION: •...
  • Page 7 1. SAFETY INSTRUCTIONS General information on the installation - All work must be performed by a qualified professional and must meet all national, provincial and local standards. - Install to ensure drainage of compartment for electrical components. - These instructions contain information on a variety of pump models and therefore some instructions may not apply to a specific model.

  • Page 8: Description

    2. DESCRIPTION Model characteristics Model PF-VL15HW Input voltage 220-240 V ~ Input frequency Single-phase, 50/60 Hz Input current 5.5 A Input power 1300 W Speed range 450 - 3 450 rpm Maximum gauge height 22 .5 Protection Variable speed pump IPX4 Threading 1"1/2 x 1"1/2’...

  • Page 9: Exploded View

    2. DESCRIPTION Exploded view part N° Description Qty. Ref. part N° Description Qty. 12A PF- FB2010- 1 PF-FB2010SCK Strainer Lid Kit Engine module for PF- VL10P MD-W 2 PF-FB2010CO 12B PF-FB2015- Lid O-ring Engine module for PF- VL15H and PF-VL15P MD-W 12C PF-FB2020- 3 PF-FB2010-B...

  • Page 10: Pump Dimensions

    2. DESCRIPTION Pump dimensions Dimensions in mm PF-VL15HW PF-VL10PW / PF-VL15PW / PF-VL20PW / PF-VL30PW EN | 37...

  • Page 11: Control Panel

    3. CONTROL PANEL (4) Display mode LED indicators Speed Time Duration (1) Speed buttons Watts (5) Display (8) Arrows “+” and “-” (7) Arrows “<” and “>” Quick Clean (6) Quick cleaning < > Display Manual Schedule Mode Start (2) Program Select Stop selection...

  • Page 12: Controller Features

    3. CONTROL PANEL Controller features - Simple user interface - IPX4 certified housing resistant to UV and rain - Scheduling of customized schedules - Adjustable priming mode - Programmable quick clean mode - Alarm diagnostics display. - Active power factor correction - Accepts 220-240V ~ 50/60Hz input power - Automatic power limiting protection circuit - Clock maintained for one week in case of power failure...

  • Page 13: Installation

    4. INSTALLATION Only a qualified professional is allowed to install the variable speed pump. For more information on installation and safety, see «Safety Instructions». Location NOTE: Make sure the pump is connected to a protected socket and connected to the electrical panel.

  • Page 14: Piping

    4. INSTALLATION Piping To improve the hydraulic installation of the pool: • The diameter of the piping on the suction side of the pump must be the same or greater than that of the return pipe. • The piping on the pump suction side should be as short as possible. •...

  • Page 15: Overview And Installation Of Wiring

    4. INSTALLATION DANGER - RISK OF ELECTRIC OR ELECTRIC SHOCK. The variable speed pump must be installed by a qualified professional in accordance with NF C15-100. An improperly designed electrical installation can result in serious personal injury or death as a result of an electrical shock, and can also cause property damage. Always disconnect the pump power supply before servicing the pump.

  • Page 16: Pump Operation

    5. PUMP OPERATION WARNING - NEVER START THE PUMP WITHOUT WATER! Clock setting When first installing the pump, it is necessary to set the clock, otherwise the pump will not work properly. Any user-defined daily schedule must be based on a precise time setting. To set the clock: Setting the time is only possible during the 5 seconds of blinking.

  • Page 17: Using The Default Schedule

    5. PUMP OPERATION Using the default schedule Default schedule is designed to ensure sufficient daily renewal to serve a typical pool. See Table 2 for default schedule. Duration Speed (hours) (rpm) SPEED 1 3000 SPEED 2 1500 SPEED 3 2500 SPEED 4 1000 Table 2: Default Schedule...

  • Page 18: Personalized Schedules And Quick Cleaning

    5. PUMP OPERATION Personalized schedules and quick cleaning To customize the program of operation of your variable speed pump, the pump must be stopped. Make sure the ON/OFF LED is not lit.. Programming a personalized schedule: NOTE: When programming, the indicator light next to the parameter (“Speed”, “Time” and “Duration”) that you set flashes.
  • Page 19 5. PUMP OPERATION 6. Press the “1” button again and the display changes to the duration of SPEED 1. The LED of the “Duration” parameter begins to flash. See Figure 7. 7. Use the “+” and “-” arrows to set the duration of SPEED 1 in hours and minutes Speed Time Duration...

  • Page 20: Priorities For Speed Programs

    5. PUMP OPERATION Priorities for Speed Programs For time settings, SPEEDS are prioritized as follows: SPEED 1 -> SPEED 2 -> SPEED 3 -> SPEED 4. SPEED 1 has the highest priority, while SPEED 4 has the lowest priority. The box will not allow a user to schedule a schedule with a duration of more than 24 hours.

  • Page 21: Priming Function

    5. PUMP OPERATION Priming function The installer must adjust the priming speed so that it is sufficient to prime the pump from a new installation. The time it takes for the pump to prime may vary depending on local environmental conditions such as water temperature, atmospheric pressure and pool water level.

  • Page 22: Application

    Wifi function Clean < > Display Manual You can also control your pump remotely using the dedicated Poolex application Schedule iOS : and built-in Wi-Fi. Mode Start Go to your store to download it. You can also scan the QR code for your interface...

  • Page 23: Setting

    6. APPLICATION Setting On the Home screen, when the device is switched off, press the icon to access the settings menu. Priming settings Freeze protection settings Quick clean settings Programmation settings Unit settings (°C or °F) Checking parameters History Priming parameters From the priming parameters menu, you can enable / disable the priming function, as well as adjust the priming speed and time.
  • Page 24 6. APPLICATION Programmation settings From the programmation settings menu, you can create weekly or daily programmes and choose to activate/deactivate them at any time. Each programme is made up of several parameters: • adjusting the circulation speed, • selecting the days on which the programme is to be applied •...

  • Page 25: Maintenance

    7. MAINTENANCE WARNING - DO NOT open the pre-filter cover if the variable speed pump does not prime or the pump has operated without water in the filter basket. Pumps used in these circumstances may present an increase in steam pressure and contain hot hot water. Opening the pump may result in serious injury.

  • Page 26: Winter Preparation: Passive Wintering

    7. MAINTENANCE CAUTION - THIS SYSTEM OPERATES UNDER HIGH PRESSURE. When servicing any part of the circulation system (e.g. locking ring, pump, filter, valves, etc.), air may enter the system and be compressed. Compressed air can cause the lid to separate, which can cause serious injury, death or property damage.

  • Page 27: Troubleshooting

    8. TROUBLESHOOTING CAUTION - Always disconnect power from the variable speed pump to the circuit breaker and disconnect the power cable before servicing the pump. Failure to do so may result in death or serious injury to maintenance personnel, users or others due to the danger of a potential electric shock.

  • Page 28: Restart Instructions

    8. TROUBLESHOOTING Restart instructions If the variable speed pump is installed below the pool water level, close the return and suction lines before opening the pump filtration basket. Make sure to reopen the valves before putting them into service. Pump priming The pump prefilter basket must be filled with water before starting the pump again.

  • Page 29: Problem Solving

    9. PROBLEM SOLVING CAUTION - The diagnosis of certain indicators may require work to be carried out on components supplied with electricity or in their immediate vicinity. Contact with electricity can cause death, personal injury or damage to property. When troubleshooting the pump, electrical diagnostics must be carried out by an approved professional.
  • Page 30 9. PROBLEM SOLVING Problems Possible causes Corrective measures Pump is 1/ Debris in contact with the 1/ Check that the rear of the pump is free of dirt and fan. debris. Use compressed air to clean. noisy. 2/ Debris in strainer basket 2/ Clean the strainer basket.

  • Page 31: Errors And Alarms

    9. PROBLEM SOLVING Errors and alarms If an alarm is triggered, the meter’s LCD screen will display the error code text and the variable speed pump will stop running. Switch off the power to the pump and wait until all the LEDs on the keypad have gone out.

  • Page 32: Warranty

    10. WARRANTY Poolstar warrants to the original owner that the Poolex Variline will be free from defects in materials and workmanship for a period of three (3) years. Wearing parts (O-rings, diffuser, impeller, basket, mechanical seal) are guaranteed for six (6) months.
  • Page 33 11. ANNEXE Courbes de performance de la pompe pour des vitesses préréglées Hauteur dynamique totale selon débit volumétrique Pump performance curves for preset speeds Total dynamic head depending on volumetric flow rate Curvas de rendimiento de la bomba para velocidades preestablecidas Carga dinámica total en función del caudal Curve di prestazione della pompa per velocità...
  • Page 34 11. ANNEXE...
  • Page 35 Asistencia técnica - Assistenza tecnica - Technische unterstützung - Technische bijstand www.assistance.poolstar.fr c o n t a c t @ p o o l s t a r . f r Poolex is a brand of the group : 12-2024 WWW.POOLEX.FR...
