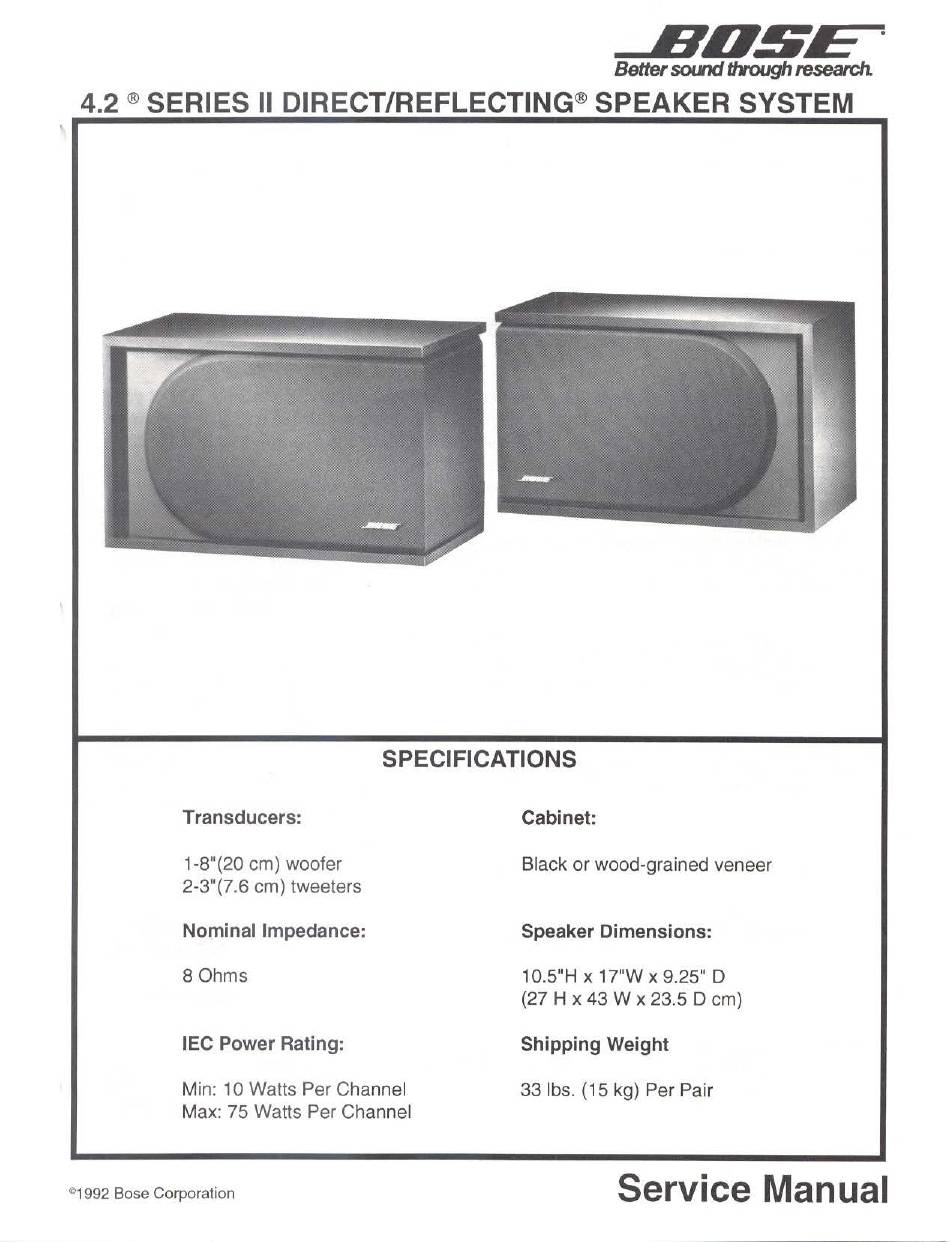

Bose II DIRECT/REFLECTING Series Service Manual

BOSE·
Better
sound through research
4.2
®
SERIES II DIRECT/REFLECTING®
SPEAKER SYSTEM
SPECIFICATIONS
Transducers:
1-8"(20 cm) woofer
2-3"(7.6 cm) tweeters
Nominal Impedance:
8Ohms
IEC Power Rating:
Min: 10 Watts Per Channel
Max: 75 Watts Per Channel
0
1992 Bose Corporation
Cabinet:
Black or wood-grained veneer
Speaker Dimensions:
10.5"H x 17"W x 9.25" 0
(27 H x 43 W x 23.5 D cm)
Shipping Weight
33 lbs. (15 kg) Per Pair
Service Manual
