79510-BS
ROTARY HAMMER
INSTRUCTION MANUAL
SAVE THIS MANUAL !
You will need this manual for safety instructions, operating procedures and warranty.
Put it and the original sales receipt in a safe dry place for future reference.
220-240V~ 800W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX FORCE XPRESS 79510-BS and is the answer not in the manual?

Questions and answers

Related Manuals for TOLSEN TOOLS FX FORCE XPRESS 79510-BS

Summary of Contents for TOLSEN TOOLS FX FORCE XPRESS 79510-BS

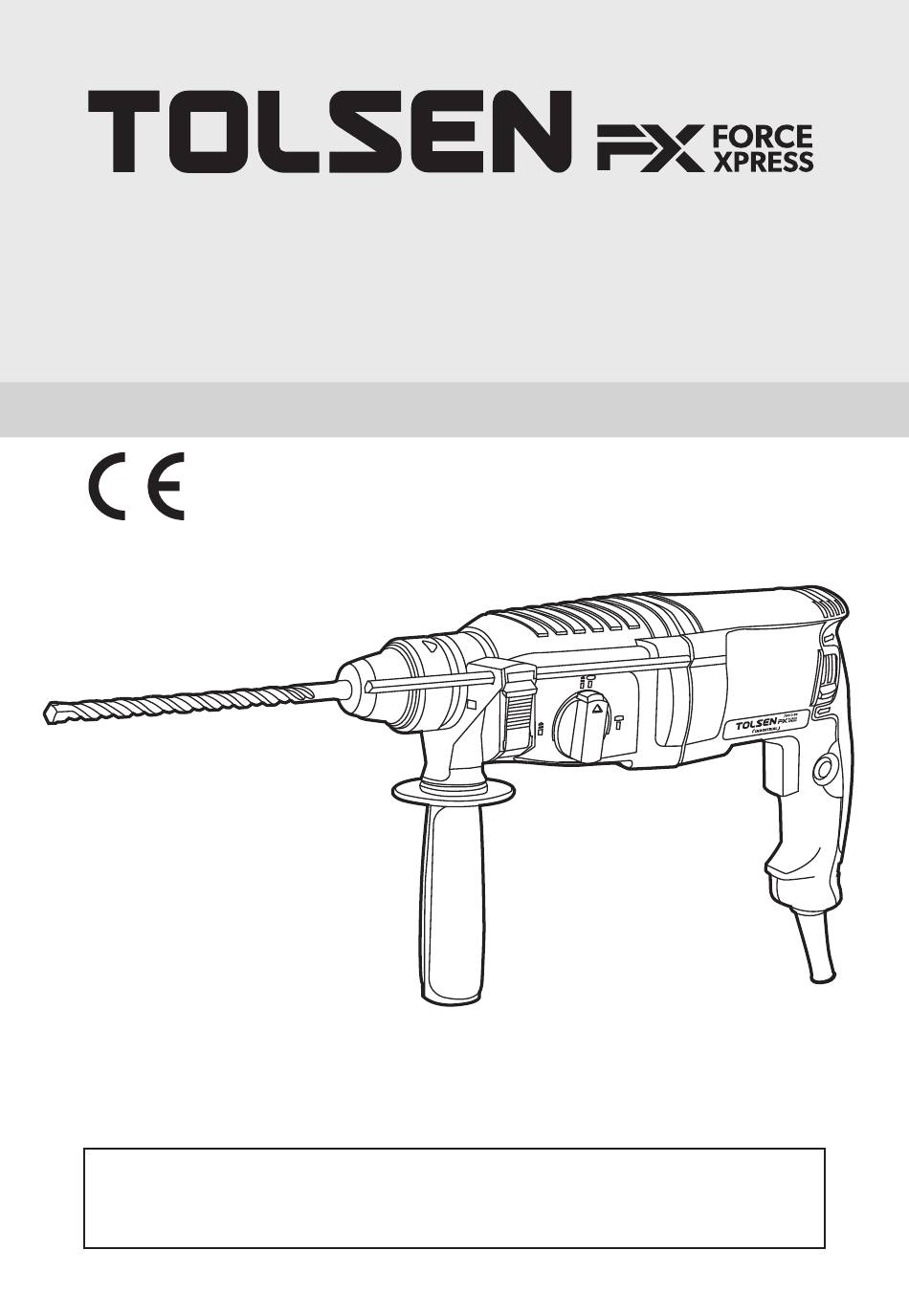

  • Page 1 79510-BS ROTARY HAMMER INSTRUCTION MANUAL 220-240V~ 800W SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.

  • Page 2: Important Safety Information

    SAFETY IMPORTANT SAFETY INFORMATION General Power Tool Safety Warnings WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ”power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 3 SAFETY turning the power tool on. A wrench or a key before making any adjustments, changing le attached to a rotating part of the power tool accessories, or storing power tools. Such may result in personal injury. preventive safety measures reduce the risk of 15.
  • Page 4 SAFETY Rotary Hammer Safety WARNING complete stop. Moving parts can grab the surface and pull the tool out of your control. 1. Wear ear protectors with rotary hammers. 9. When using a handheld power tool, maintain a Exposure to noise can cause hearing loss. firm grip on the tool with both hands to resist 2.

  • Page 5: Safety And Specifications

    SAFETY AND SPECIFICATIONS Vibration Safety This tool vibrates during use. Repeated or medical advice as soon as possible. long-term exposure to vibration may cause 2. Do not smoke during use. Nicotine reduces the temporary or permanent physical injury, blood supply to the hands and fingers, particularly to the hands, arms and shoulders.

  • Page 6: Before Use

    SYMBOLOGY AND SETUP Note: Symbology Some of the following symbols may be used on your No load speed tool. Please study them and learn their meaning. revolutions or reciprocations Proper interpretation of these symbols will allow you ./min or minˉ¹ per minute to operate the tool better and safer.
  • Page 7 SETUP Functions Replacement drill chuck On/Off switch Operational mode selection switch Unlocking button Auxiliary handle ACCESSORIES & CARTON CONTENTS DESCRIPTION Rotaryhammer Use only accessories recommended for this Chisels electric hammer chisel. Follow instructions Drill Bits that accompany accessories. Use of improper Auxiliary Handle accessories may cause injury to the operator Depth Gauge...
  • Page 8 SETUP OPERATING INSTRUCTIONS Always make sure the power tool is isolated from the power supply before fitting any attachment Put the bit into the hex housing Handle (Fig3) (Fig1) Put the bit into the hex housing and clamp the bit Always make sure the fixed handle is secure by turning the stop lever half a turn anti clockwise.

  • Page 9: Maintenance And Servicing

    MAINTENANCE AND SERVICING MAINTENANCE AND SERVICING This electric hammer chisel does not have reverse direction, so always take care not to force the chisel in case the chisel bit gets stuck. Always make sure you keep the chisel going in and out to remove debris.
  • Page 10 MAINTENANCE AND SERVICING Hammer chisel prior to operation 1. Power source 3. Power switch Ensure that the power source to be utilized Ensure that the power switch is in the off conforms to the power requirements specified position before any work is carried out on the on the product nameplate.

  • Page 11: Maintenance And Inspection

    MAINTENANCE AND SERVICING MAINTENANCE Maintenance and inspection 1. Inspecting the tool 4. Inspecting the carbon brushes. When using dull tool bits this can cause motor The motor employs carbon brushes that are malfunction and degraded efficiency. Always consumable parts; since an excessively worn replace dull bits with new ones without delay carbon brush could result in motor trouble, when abrasion is noted.

  • Page 12: Troubleshooting

    MAINTENANCE AND SERVICING Troubleshooting Problem Possible Causes Likely Solutions Tool will not start. 1. Cord not connected. 1. Check that cord is plugged in. 2. No power at outlet. 2. Check power at outlet. If outlet is 3. Tool’s thermal reset breaker unpowered, turn off...

  • Page 13: Ce Declaration Of Conformity

    CE DECLARATION OF CONFORMITY SUZHOU TOLSEN TOOLS CO.,LTD. Building No.2, Zhenxing Road, Hexing, Jinfeng Town, Zhangjiagang City, Jiangsu Province, China Declare that the product 79510-BS ROTARY HAMMER "Rated voltage:220~240V Rated frequency:50Hz Rated input power:800W Protection class:Ⅱ" Serial number: N/A Complies with the essential health and safety requirements of the...
  • Page 14 SUZHOUTOLSEN TOOLS CO.,LTD. www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. MADE IN CHINA...
