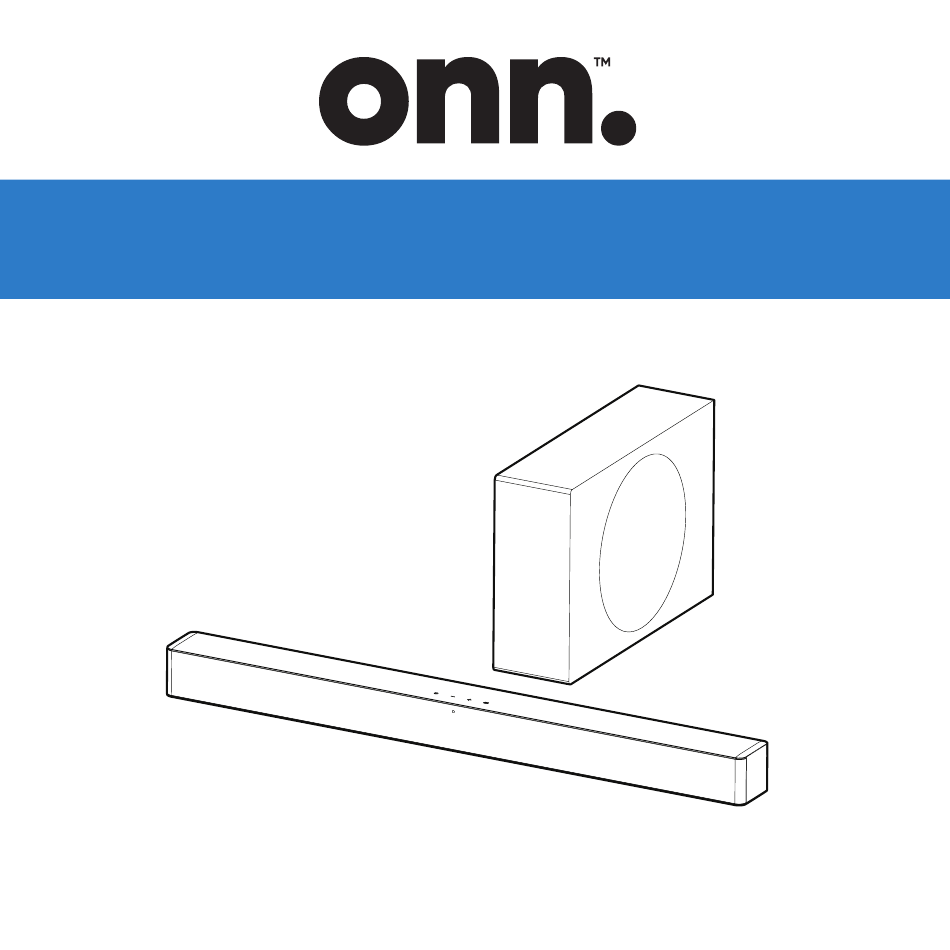

- Page 1 USER GUIDE 2.1CH Soundbar with Subwoofer 100130683...
-
Page 2: Table Of Contents
Contents & Information Contents & Information......First Time Setup....Overview..........Operation......Safety Precautions......... Cleaning & Care....Unpacking..........Specifications..... Wall Mounting Setup (Optional)..Troubleshooting....Features • 2.1 Channels • 2 Internal speakers + 1 wireless subwoofer • Roku TV Ready™ • 120 W RMS output / 480 W peak output (4 x RMS) •... -
Page 3: Overview
Overview ON/OFF VOLUME UP SOUNDBAR VOLUME DOWN SOURCE STATUS LED Standby Solid Red HDMI (TV eARC/ARC) Solid Yellow Optical Solid Purple Aux in Solid White Solid Green Bluetooth pairing mode Flashing Blue Bluetooth device connected Solid Blue Volume up/down Corresponding source color flash 1 time Maximum/minimum volume Corresponding source color flash 3 times Mute... -
Page 4: Wall Mounts
WIRELESS SUBWOOFER BACK PAIR INDICATOR POWER PAIR BUTTON OPTICAL HDMI AUX AUDIO IN POWER AUDIO IN (TV eARC/ARC) (STEREO 3.5MM) SOUNDBAR BACK WALL MOUNTS... -
Page 5: Remote Control
REMOTE CONTROL POWER ON/OFF SOURCE BLUETOOTH VOLUME UP PLAY/PAUSE PREVIOUS TRACK NEXT TRACK MUTE VOLUME DOWN BASS UP TREBLE UP TREBLE DOWN BASS DOWN MOVIE MUSIC TALK DTS® VIRTUAL: X™... -
Page 6: Safety Precautions
Safety Precautions WARNING • Heed all warnings – All warnings on CAUTION appliance and in operating instructions RISK OF ELECTRIC should be adhered to. SHOCK DO NOT OPEN • All operating and use instructions should be CAUTION: TO REDUCE THE RISK OF ELECTRIC followed. - Page 7 • Only use attachments/accessories specified example,in the case of some lithium battery by the manufacturer. types). • Use only with the cart, stand, tripod, bracket, • Do not dispose of a battery in a fire or a or table specified by the manufacturer, or hot oven.
- Page 8 FCC Statement : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 9 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: • This device may not cause interference. • This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 10 Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved. The Adopted Trademarks HDMI, HDMI High-Denition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
-
Page 11: Unpacking
Unpacking PARTS Part Description Part Description Soundbar Wall mounting template Wireless Subwoofer Wall mounting kit Remote control HDMI cable (AAA batteries x2) Power cable PARTS DIAGRAM 27.48” / 698 mm Attach to soundbar Attach to wall Not supplied Wall Mounting Template... -
Page 12: Wall Mounting Setup (Optional)
Wall Mounting Setup (Optional) SETUP TOOLS NEEDED (NOT SUPPLIED) Drill bit Drill Cross Head Screwdriver Ruler Level Hammer HARDWARE Part Description Picture Rubber pads Screws Anchor 27.48” / 698 mm Attach to soundbar Attach to wall Not supplied Wall Mounting Template (Wall mounting, optional) Wall mounting template... -
Page 13: First Time Setup
First Time Setup ON A SURFACE 1A. CENTER 1. Below TV, close to ear level 2. Go to step 4 ON A WALL 1B. PLACE 1. Place wall mount template on wall under TV. 2. Mark Bracket holes (Ensure enough space between Soundbar and TV) See 3B. - Page 14 ON A WALL 2B. INSTALL REQUIRED Wall mounts Screws and Anchors (if required) (A) Rubber pads x2 1. Drill holes (B) Screws x2 2. Hammer 3. Screw (C) Anchors x2 Anchors not in anchors(C) in screws(B) needed if screwed into anchors into Studs Remove the backing paper from the backs of the rubber pads and stick them to the back of the soundbar in the position shown in the diagram.
- Page 15 CAUTION If you are unfamiliar with power tools or layout of electrical wiring in the walls of your home, consult a professional installer. 3B. HANG Mounting hooks on screws then slide down to lock in place. Note: Make sure wall mount orientation matches example...
- Page 16 4. CHOOSE CABLE Connect one cable to Soundbar and TV • To use in HDMI (TV eARC/ARC) mode, your TV has to support Dolby Atmos® • Enable CEC and ARC on TV • Settings for CEC and ARC may differ by TV manufacturer. See OPTICAL HDMI 3.5MM AUX...
-
Page 17: Connect Power
5. CONNECT POWER 6. INSTALL BATTERIES Remove battery door Insert batteries Close battery door WARNING WARNING Do not mix alkaline, standard Alk/Zinc/Ni-Mh Do not mix old and (carbon-zinc) or rechargeable (ni- new batteries. cad, ni-mh, etc.) batteries. -
Page 18: Operation
Operation Connect Wireless Subwoofer 1A. AUTOMATIC PAIRING -OR- LED State Status Quick flash Subwoofer in pairing mode Slow flash Connection/Pairing Failed Solid Connected/Pairing successful... - Page 19 Connect Wireless Subwoofer 1B. MANUAL PAIRING (IF AUTOMATIC PAIRING FAILED) A: Press and hold the PAIR button ( ) of the wireless subwoofer. B: Press the Power button ( ) on the soundbar or on the remote control. C: When wireless connection is successful, the indicator will be solid orange.
-
Page 20: Bluetooth Operation
Bluetooth® Operation 1C. POWER ON/OFF ON/OFF Soundbar ON/OFF SOURCE (Remote control or Bar) SOURCE -OR- 2C. SELECT SOURCE To switch between audio sources (Remote control or Bar button button on remote control ) Press and hold 3C. PAIR DEVICE Press and hold the button on -OR- remote control. -
Page 21: Play Audio
4C. SEARCH ON DEVICE Select “onn. 2.1 Soundbar” on device IMPORTANT Soundbar does not BLUETOOTH include microphone Bluetooth and cannot operate as hands-free device. DEVICES onn. 2.1 Soundbar Device is connected when Blue LED stops flashing and becomes solid. 5C. PLAY AUDIO... - Page 22 Bluetooth use Your Soundbar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the Soundbar, as long as you stay within range of the Soundbar, your device should remain paired.
-
Page 23: Usb Operation
USB Operation 1D. INSERT THE USB DEVICE 2D. SELECT SOURCE Select USB Mode (Remote or Soundbar button) 3D. PLAY AUDIO Tip: Support the USB music file format of MP3. Button Action Play, pause or resume play. Skip to the previous or next track. Increase/decrease the volume. -
Page 24: Cleaning & Care
Cleaning & Care CLEANING • Wipe down surfaces with a light cloth. • Never use abrasive pads to clean device. • Avoid using liquids to clean device. CAUTION Ensure the unit is fully unplugged from the power supply before cleaning. -
Page 25: Specifications
Specifications Soundbar 100-240V~ 50/60Hz Power 30 W / < 0.5 W (StandBy) 500mA Full Speed USB / FAT32 / FAT16, MP3 Dimension (WxHxD) 31.57” x 2.62” x 3.09” (802 x 66.5 x 78.5 mm) Net weight 2.64 lbs (1.2 kg) Audio input sensitivity 500mV Frequency Response... -
Page 26: Troubleshooting
Troubleshooting Problem Cause Solution Press “ ” button on remote Power off control or on Soundbar. Ensure the power cord is securely Loose power cord No power connected. Plug a different device into the Faulty outlet electrical outlet to verify that the outlet is working correctly Press “... - Page 27 Problem Cause Solution Increase volume / unmute source Bluetooth source device device The wireless subwoofer is out of range, please move the No audio Wireless subwoofer and wireless subwoofer closer to the soundbar too far soundbar. Make sure the wireless subwoofer is within 5m of the soundbar.
- Page 28 For product assistance: THIS GUIDE CONTAINS IMPORTANT SAFETY WE CAN HELP INFORMATION. 1-888-516-2630 PLEASE READ AND KEEP 7 DAYS/WEEK 7:00am- 9:00pm CST FOR FUTURE REFERENCE. Walmart.com Find more at Manufactured in China for Walmart Inc.
