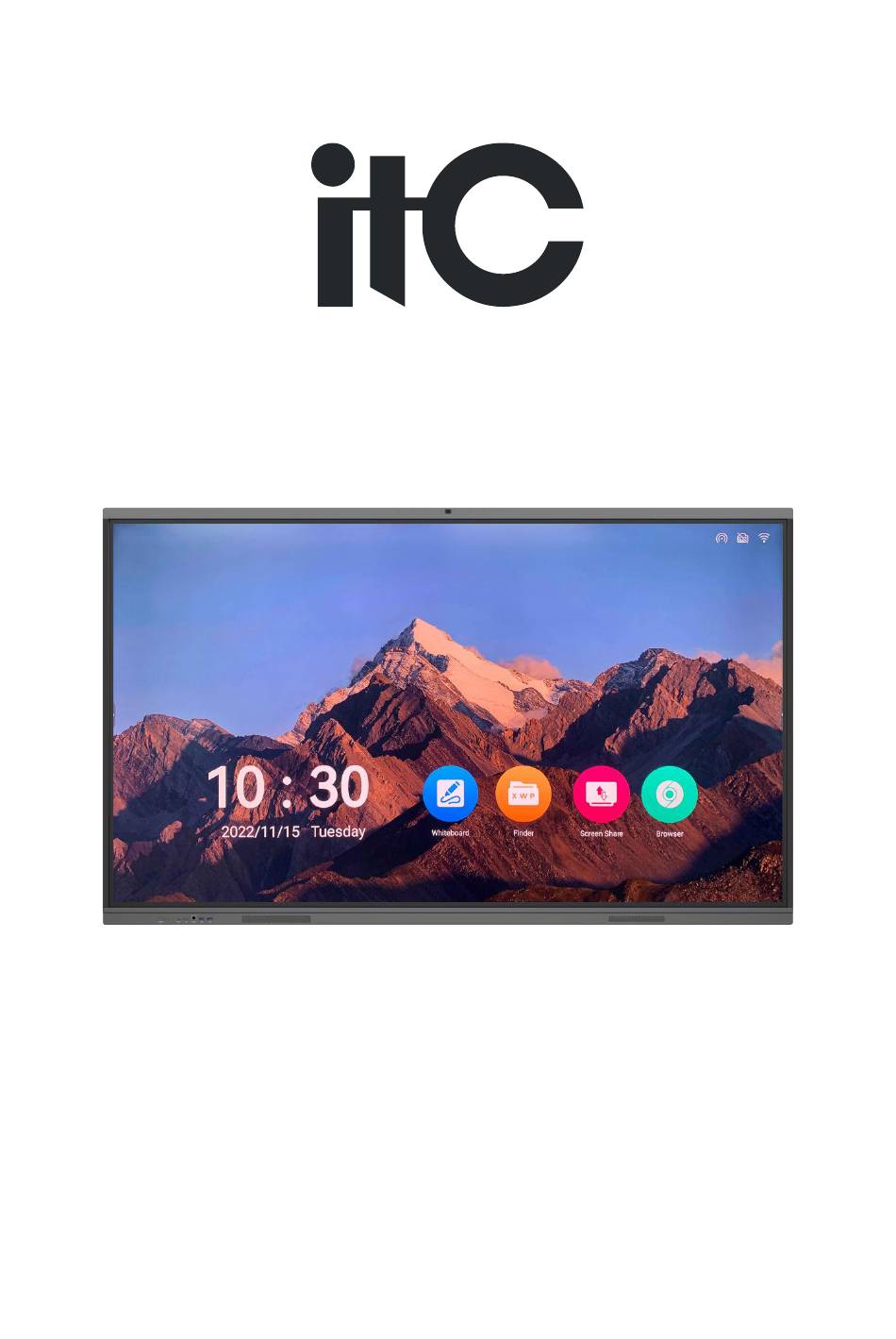

- Page 1 Interactive Intelligent Flat Panel User Manual TV-65820 / TV-75820 TV-86820 / TV-98820 Please read this user manual in detail before use...
- Page 2 Notification WARNING To ensure the reliability of the equipment and the safety of personnel, please observe the following when installing, using and maintaining: ● If any of the following conditions are found, please immediately turn off the power, plug out and quickly contact your nearest dealer.
- Page 3 ● This product uses a power plug or appliance input socket as a disconnecting device with the power supply, and must be disconnected if necessary for safety reasons. ● This equipment is only suitable for safe use at altitudes under 2000 meters. Precautions 1.
-
Page 4: Table Of Contents
CONTENT 1. Description.............................- 1 - 2. Feature............................- 1 - 3. Appearance/Interface Introduction....................- 2 - 4. Specification..........................- 3 - 5. Operating Instructions........................- 7 - 6. The Software Description......................- 8 - 6.1 Whiteboard writing....................... - 8 - 6.2 Annotation.......................... - 13 - 6.3 Small blackboard......................... -
Page 5: Description
1. Description The interactive intelligent flat panel integrates multiple functional modules such as presentation, writing, interaction and sharing, so as to easily create a simple paperless conference/teaching scenario and realize an efficient and harmonious conference/teaching mode. 2. Feature 1．True 4K ultra HD display, zero lamination design, AG tempered glass, high color gamut; 2．Built-in intelligent core and operating system;... -
Page 6: Appearance/Interface Introduction
3. Appearance/Interface Introduction Appearance: Panel interface: Interface description: Power switch Full-featured interface USB interface - 2 -... -
Page 7: Specification
Touch interface HDMI input Camera 4. Specification Model TV-65820 TV-75820 Screen size 65 inches (16:9) 75 inches (16:9) 1428.48×803.52mm Display size 1649.66×927.94mm【H×V】 【H×V】 Processor Quad-Core A55, Mali-G53 MP2 dual-core System version Android 11 Storage space 32GB Screen type LED LCD screen Physical resolution 3840(H)×2160(V) - Page 8 Audio channel Speaker unit 2 ×10W@8Ω Camera pixel ≥12 million (support 48 million-8000×6000@5fps) Number of cameras Camera field of view ≥92° Mic pickup distance 0-10m Number of microphones 8 arrays TYPE-C*1; HDMI port*1; TUOCH port*1; USB3.0*2; HDMI2 Input port IN*1; HDMI1 IN*1; RJ45 IN*1; AUDIOIN*1; GVAIN*1; DPIN*1 OPTICAL OUT*1;...
- Page 9 Model TV-86820 TV-98820 Screen size 86 inches (16:9) 98 inches (16:9) 1895.04×1065.96mm Display size 2160.5 ×1217.3mm【H×V】 【H×V】 Processor Quad-Core A55, Mali-G53 MP2 dual-core System version Android 11 Storage space 32GB Screen type LED LCD screen Physical resolution 3840(H)×2160(V) Pixel pitch 0.4935×0.4935mm 0.5622×0.5622mm Color Gamut NTSC (Typ)
- Page 10 HDMI OUT*1; RJ45 OUT*1; LINE OUT*1 Communication port RS232 port: 1 group Touch embedding method Built-in integrated design, non-external type IR recognition touch technology: PC: 20 points/Android: 10 Touch sensing technology points Fingers, styluses or non-transparent objects with a diameter Writing method greater than 5 mm (more than 8 mm) Writing height...
-
Page 11: Operating Instructions
5. Operating Instructions Interface description: The sidebar is divided into left and right sidebars. Click the icon floating on the left/right side of the screen to call up the sidebar. The expanded functional buttons are Back, Home, Task, Annotation, Signal source, and Notification. When the sidebar is expanded, it will be hidden automatically after 3 seconds without any operation. -
Page 12: The Software Description
6. Notification：Click the corresponding icon to bring up the notification panel, which includes time display, common shortcuts, custom applications, brightness, volume, and notification messages. 6. The Software Description 6.1 Whiteboard writing What is a whiteboard? Whiteboard is a multi-functional writing application that assists users in efficient communication and connection, brings a relaxed and fun experience, and improves team efficiency. - Page 13 Share content Scan code to share Scan the code and take it away: Click the "Share" button in the lower left toolbar, and the QR code sharing page will pop up. According to the text prompt, scan the QR code with your mobile phone to access the file link, and you can save the file.
- Page 14 File save Click the "File" button in the lower left toolbar to pop up the file operation page. According to the text prompt, you can save the content of the whiteboard. The save path can be local storage on the large board or imported into a USB peripheral device.
- Page 15 Writing settings: Click "writing settings" to turn on/off settings for pen tip writing, chart drawing, and two-color pen functions. Pen tip: On infrared touch models, the pen tip effect will appear when you turn it on. It is enabled by default, and the user selection is not changed after restart. Chart drawing: Turn on the switch to realize automatic recognition of writing graphics.
- Page 16 Scan code network: Click "Scan code network" to change the QR code sharing network conditions: Public network mode: Both mobile phones and conference tablets need to be connected to the Internet to obtain the sharing link. Local area network mode: The mobile phone and conference tablet need to be connected to the same local area network to obtain the sharing link.
-
Page 17: Annotation
6.2 Annotation What are comments? The annotation function allows users to write content in the current screen and make information annotations. How to start annotating Function entry Comments can be entered in the following scenarios: Scenario 1: When the PPT is played locally or through the screen, the comment toolbar will appear. At this time, click the comment button to enter the comment. - Page 18 evoked in the case of frozen screen annotation and whiteboard full screen Put away the small blackboard There are two ways to put away the small blackboard: Method 1: Click the "Collapse" button on the bottom toolbar to hide it. Method 2: Press and hold with multiple fingers and shake it down quickly.
-
Page 19: Wireless Screen Transmission
6.4 Wireless screen transmission What is wireless screen transmission Wireless screen transmission can project the screens of laptops, mobile phones and other devices to the conference board and show it to the audience, without the need to use wires to connect to the conference board. - Page 20 Note: For wireless screen transmitters that have been successfully paired, there is no need to pair them again, please skip this step 6. Connect the wireless screen transmitter to the notebook USB port (some computers with only Type-C interface need to use an adapter, or directly purchase a screen transmitter using Type-C port) 7.
- Page 21 12. Extended screen projection. Open the screen transfer application on the computer side (same as step 7), you can choose to open the extended screen in the options to transfer the screen, so that the conference tablet can be used as the extended screen of the computer to transfer the screen. 13.
- Page 22 4. Open the screen transfer assistant, enter the screen transfer code on the smart conference board, and click "connect device” Select single-screen mirroring, when the other party is uploading the screen, the screen on the smart conference board will be preempted to upload the screen; if you choose to join the mirroring, the split-screen display will be performed when the other party is uploading the screen.
-
Page 23: Presentation
4. If the connection is successful, you can select the following functions to transfer the screen. Screen sharing: the screen of the mobile phone can be shared to the smart conference tablet for display; Picture display: You can share the pictures on your mobile phone to the smart conference tablet for display;... - Page 24 3. For files in the conference machine's local, USB storage devices, and personal folders, you can filter and display the files of the corresponding type by clicking the file type filter button on the interface 4. Click the menu button on the file list interface to display the floating toolbar and perform operations such as opening, sharing, copying, and deleting files 5.
-
Page 25: Efficiency Tools
6.6 Efficiency tools What is a gadget Gadget is a quick tool App on the conference board. It provides convenient functions in various scenarios and assists in solving the requirements of file transfer, voting, screen recording, timing, screenshots, and photos in the conference. How to start the gadget Open gadget Click on the sidebar, the gadget is in the sidebar menu. - Page 26 Quick upload widget 1. Click the "Quick upload" icon in the sidebar to open the quick upload widget. 2. After the mobile phone scans the code, you can choose to upload pictures, texts, and files on the mobile phone Click the minimize button in the title bar of the quick upload interface on the big board to minimize the quick upload interface.
- Page 27 Screen recording widget 1. Click the "Screen Recording" icon on the side panel to open the screen recording widget. 2. Click the screen recording button to start recording - 23 -...
- Page 28 3. The screen recording adopts segmented recording, after the recording is merged, after clicking the end recording button, the system will merge the videos recorded in segments Screenshot widget Click the "Screenshot" icon on the side panel to open the screenshot widget Touch lock widget 1.
- Page 29 3. Click the touch lock again to switch to unlock, touch and touch to disable, click the X sign in the upper right corner to exit the touch lock widget 1. Eye protection gadget. Click the "eye protection" icon on the side panel to open the eye protection tool. 3.
- Page 30 Screen lock widget 1. Click the "screen lock" icon on the side panel to open the screen lock tool 2. Enter the setting password interface After setting the password, you need to enter the correct password every time you wake up the smart conference board Wireless screen transfer supports the use of wireless screen transfer device and mobile phone screen transfer...
- Page 31 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 32 Interactive Intelligent Flat Panel - 27 - Ver 0.1...
