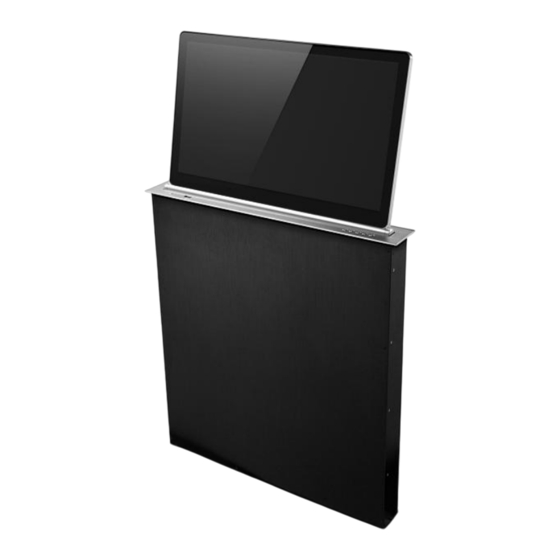

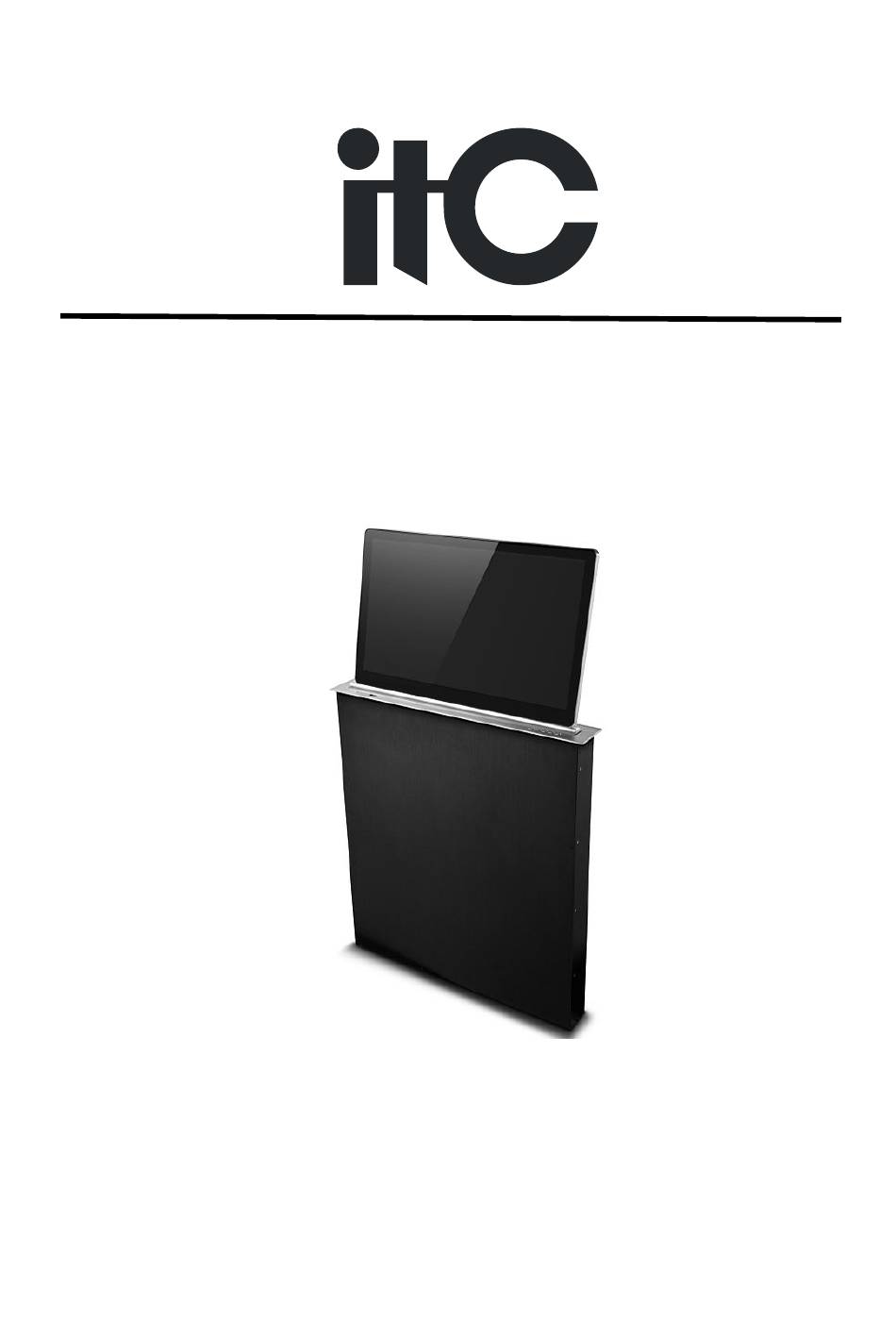

- Page 1 Ultra-thin HD LCD Lifter TS-8201A/TS-F173T Before using this system, please read this manual carefully...
- Page 2 Notification WARNING To ensure the reliability of the equipment and the safety of personnel, please observe the following when installing, using and maintaining: ● If any of the following conditions are found, please immediately turn off the power, plug out and quickly contact your nearest dealer.
- Page 3 ● This product uses a power plug or appliance input socket as a disconnecting device with the power supply, and must be disconnected if necessary for safety reasons. This equipment is only suitable for safe use at altitudes under 2000 meters. ●...
- Page 4 5. Agreement Please strictly follow the instructions in this manual. The software, hardware and appearance of this product will be upgraded and updated continually. The above changes will be made without notice. Non-professional maintenance personnel, do not remove the product, to avoid damage and electric shock.
-
Page 5: Table Of Contents
CONTENTS 1 INTRODUCTION...........................6 2 FUNCTION & FEATURES........................7 3 PRODUCT MODEL & SPECIFICATION....................8 4 PACKING LIST............................8 5 PRODUCT APPEARANCE & STRUCTURE INSTRUCTION..............9 ..................9 5.1 F ’ F & I RONT ANEL UNCTION NTRODUCTION ..................10 5.2 R ’... -
Page 6: Introduction
1 Introduction Multimedia Delegate Microphone for the conference table computer’ display, the new product is more practical for paperless conference equipment, which regards the LCD touch display terminal as the center and is integrated high-definition video and unified communications, intelligent multi-screen interactive sharing , Intelligent conference control, audio and video capture and sound reinforcement system, to form a "people-oriented"... -
Page 7: Function & Features
2 Function & Features 1. This equipment adopts aluminum structure and high-quality aluminum with CNC carved processing. The display as overall frame is for the overall aluminum CNC molding. Thickness is no more than 4 mm. the chassis are made of aluminum alloy equipment which looks dedicate, light, beautiful, &... -
Page 8: Product Model & Specification
3 Product Model & Specification Product Model TS-8201A TS-F173T Product Dimension 430×70×565mm 476×70×565mm Chassis Dimension 415×60×562mm 461×60×562mm Desktop Opening 417×62mm 463×62mm Panel Sink 431×71×3mm 477×71×3mm Lifting Time Elevation angle 0-30° 0-30° Video Port HDMI/VGA HDMI/VGA Screen Resolution 1920×1080 1920*1080 Working Voltage... -
Page 9: Product Appearance & Structure Instruction
5 Product Appearance & Structure Instruction 5.1 Front Panel’ Function & Introduction Name Description USB Interface Read data Up Button To control the rise of the screen Pause Button To control screen to pause Down Button To control the screen to drop Switch Button To switch screen video signal On/Off Button... -
Page 10: Rear Panel's Function Introduction
5.2 Rear Panel’s Function Introduction Name Description Display control 485 input Used for display lifting central control 485 network port input interface Display control 485 output Used for display lifting central control 485 network port output interface Main screen VGA signal Use for the main screen VGA video signal input interface interface... -
Page 11: Central Control Protocol Code Learning
6 Central Control Protocol Code learning 1. With 232 and 485 protocol control, the bottom of the device is configured with two RJ45 network sockets, which can allow multiple devices to use ordinary cable connecting hand in hand; The cable and the equipment protocol are connected as follows: First Pin RJ45 Plug 4 pin: 485 +, 232 received... -
Page 12: Machine Wiring Diagram
(drop), FF 10 11 01 CC (pause), the second set of control codes becomes: FF 10 11 02 DD (rise), FF 10 11 02 EE (drop), FF 10 11 02 CC (pause), •••••• and so on. 7 Machine wiring diagram Paperless lifter Microphone unit Conference terminal host... -
Page 13: Installation Size (Product Size Chart)
8 Installation size (product size chart) TS-8201A Panel side view: Note: Before installation, please remove the two 'transport fixing screws' on the cover, and the side display fixing clips and clean the foam filling inside the flip door. - Page 14 TS-F173T Panel side view: Note: Before installation, please remove the two 'transport fixing screws' on the cover, and the side display fixing clips and clean the foam filling inside the flip door.
-
Page 15: Installation Size (Conference Table Opening Size Chart)
9 Installation size (conference table opening size chart) Take TS-F173T as an example: Taking a 5m×1.8m×0.8m conference table as an example, the distance between the elevators is 0.4m, and it is appropriate to have a distance of 0.35m from the edge of the conference table.The user can adjust the size according to the actual needs. -
Page 16: Common Faults And Maintenance
10 Common faults and maintenance Troubleshooting situation Cause Analysis Solution Not connected to the power Check the power and make sure The operation button does supply. it is on. not respond, the screen and Check the power connector and the microphone does not Poor power input. - Page 17 Internal damage to the main Send professional repair center Not working unit. for maintenance.
- Page 18 Ultra-thin HD LCD Lifter VersionV0.1...
