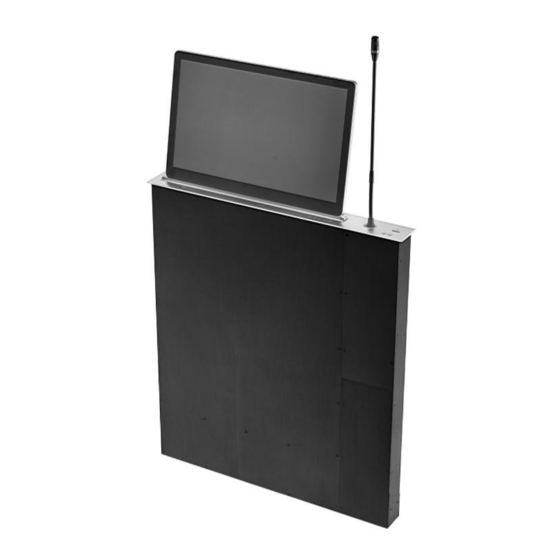

- Page 1 Ultra-thin LCD microphone lifting machine TS-F156MT/F173MT/F185MT Before using this system, please read this manual carefully...
- Page 2 Notification WARNING To ensure the reliability of the equipment and the safety of personnel, please observe the following when installing, using and maintaining: ● If any of the following conditions are found, please immediately turn off the power, plug out and quickly contact your nearest dealer.
- Page 3 ● This product uses a power plug or appliance input socket as a disconnecting device with the power supply, and must be disconnected if necessary for safety reasons. This equipment is only suitable for safe use at altitudes above 2000 meters. ●...
- Page 4 5. Agreement Please strictly follow the instructions in this manual. The software, hardware and appearance of this product will be upgraded and updated continually. The above changes will be made without notice. Non-professional maintenance personnel, do not remove the product, to avoid damage and electric shock.
-
Page 5: Table Of Contents
CONTENTS 1 INTRODUCTION...........................6 2 FUNCTION & FEATURES........................7 3 PRODUCT MODEL & SPECIFICATION....................8 4 PACKING LIST............................8 5 PRODUCT APPEARANCE & STRUCTURE INSTRUCTION..............9 ..................9 5.1 F ’ F & I RONT ANEL UNCTION NTRODUCTION 5.2 R )............10 ’... -
Page 6: Introduction
1 Introduction An integrated elevator for combining a computer monitor on a conference table with a conference microphone. This new product is more practical for paperless conference equipment, with LCD touch display terminals and conference microphones as the center, integrating HD video and unified communication. -
Page 7: Function & Features
2 Function & Features 1. The microphone lift has an automatic straightening function. When the straw is bent, the machine is closed to automatically support the straw and will not damage the straw. 2, the display and microphone lift have a separate lifting system, both can be used according to the needs of lifting. -
Page 8: Product Model & Specification
3 Product Model & Specification Product number TS-F156MT TS-F173MT TS-F185MT Product Size 555*70*650mm 601*70*650mm 629.5*70*650mm Chassis size 540*60*647mm 586*60*647mm 615*60*647mm Desktop 542*62mm 588*62mm 617*62mm opening Panel sinking 556*71*3mm 602*71*3mm 630.5*71*3mm Lifting time Elevation angle 0-30° 0-30° 0-30° Video interface HDMI/VGA... -
Page 9: Product Appearance & Structure Instruction
5 Product Appearance & Structure Instruction 5.1 Front Panel’ Function & Introduction Name Description USB interface Read data Display up button Display control screen up function (adjustable tilt angle 0-30°) Display pause You can pause the display screen up or down at any time. button Display down Display control screen down function (adjustable tilt angle... -
Page 10: Rear Panel's Function Introduction (From Left To Right)
5.2 Rear Panel’s Function Introduction (from left to right) Name Description Display control 485 input Used for display lifting central control 485 network port input interface Display control 485 output Used for display lifting central control 485 network port output interface Main screen VGA signal Use for the main screen VGA video signal input interface... -
Page 11: Central Control Protocol Code Learning
6 Central Control Protocol Code learning 1. With 232 and 485 protocol control, the bottom of the device is configured with two RJ45 network sockets, which can allow multiple devices to use ordinary cable connecting hand in hand; The cable and the equipment protocol are connected as follows: First Pin RJ45 Plug 4 pin: 485 +, 232 received... -
Page 12: Machine Wiring Diagram
button, send step written in the learning code which can be continuous for 2-3 times. ⑤ After completion, the first set of control codes becomes: FF 10 11 01 DD(rise), FF 10 11 01 EE (drop), FF 10 11 01 CC (pause), the second set of control codes becomes: FF 10 11 02 DD (rise), FF 10 11 02 EE (drop), FF 10 11 02 CC (pause), ••••••... -
Page 13: Installation Size (Product Size Chart)
8 Installation size (product size chart) TS-F156MT Panel side view: Note: Before installation, please remove the two 'transport fixing screws' on the cover, and the side display fixing clips and clean the foam filling inside the flip door. - Page 14 TS-F173MT Panel side view: Note: Before installation, please remove the two 'transport fixing screws' on the cover, and the side display fixing clips and clean the foam filling inside the flip door.
- Page 15 TS-F185MT Panel side view: Note: Before installation, please remove the two 'transport fixing screws' on the cover, and the side display fixing clips and clean the foam filling inside the flip door.
-
Page 16: Installation Size (Conference Table Opening Size Chart)
9 Installation size (conference table opening size chart) Take TS-156MT as an example: Taking a 5m×1.8m×0.8m conference table as an example, the distance between the elevators is 0.4m, and it is appropriate to have a distance of 0.35m from the edge of the conference table.The user can adjust the size according to the actual needs. -
Page 17: Common Faults And Maintenance
10 Common faults and maintenance Troubleshooting situation Cause Analysis Solution Not connected to the power Check the power and make sure The operation button does supply. it is on. not respond, the screen and Check the power connector and the microphone does not Poor power input. - Page 18 Internal damage to the main Send professional repair center Not working unit. for maintenance.
- Page 19 MULTIMEDIA DELEGATE MICROPHONE VersionV0.1...
