MaxOut tech RF-CMDWS-433-D-NN Installation Instructions

Wireless Door/Window Sensor 433 MHz
RF-CMDWS-433-D-NN
Description
The Door/Window Sensor is a supervised,
wireless sensor that detects the opening and
closing of doors or windows. The sensor and
magnet are mounted using screws (included) or
double-sided adhesive tape (included)
When activated, the sensor transmits an open
(trip) or close (restore) signal to the panel.
These are the signals the unit provides:
supervisory, tamper and low battery (as

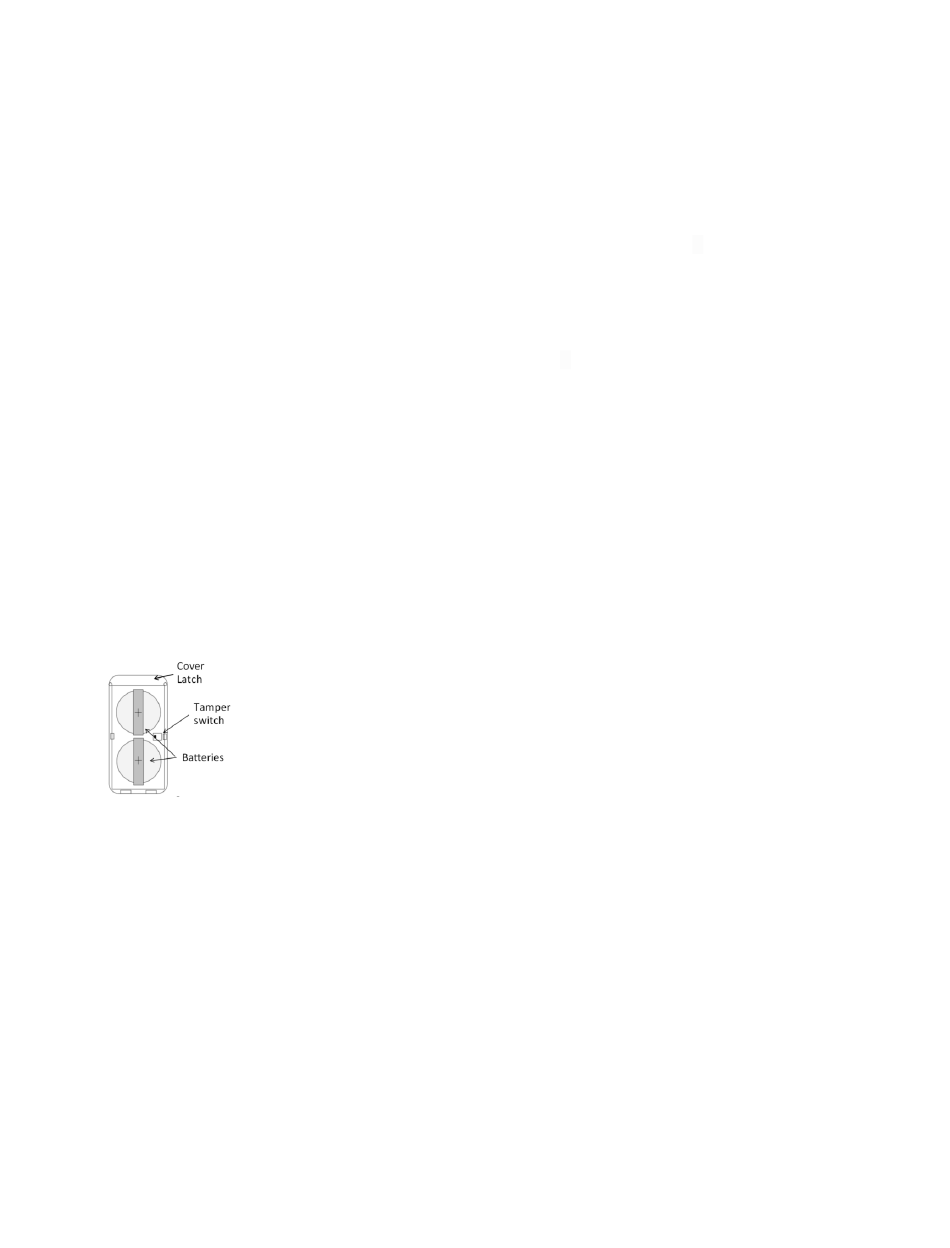

needed). The sensor is powered by (2)
replaceable 3-VDC, lithium coin-cell batteries.
Installation Guidelines
• Mounting the sensor on metal can affect the
transmitting range and magnet gap
performance. Therefore, test the sensor from
the desired location using the installer sensor
test, before permanently mounting it.
• Mount the sensor within the range of the
panel.
• Mount the sensor on the frame, and the
magnet on the door, window or drawer. If
mounting on double doors, mount the sensor
on the least used door and the magnet on
the other door.
• Mount sensors at least 5 inches above the
floor to avoid damaging them.
• The sensors can be mounted to either
wood or metallic surfaces.
• The magnet should be mounted within 5/8" of
the sensor. Based on the magnet mounting
spacing, direction of operation, and material of
the mounting surface, the gap for opening may
vary between depending on application.
• Desired operation should be checked before
permanent installation.
• After mounting the sensor, retest the
sensor using the procedure in the section
"Testing the Sensor".
I-RF-CMDWS-433-D-NN Rev. 2 Nov. 2023 For updated Installation Manual Revision go to maxouttech.com and select Documentation
page.
Installation Instructions
Programming
The following steps describe the general
guidelines for programming the sensor into
panel memory. Refer to the specific panel's
documentation for complete programming
details.
1.
Refer to Wireless Enrollment Mode [898}
procedures in the DSC
or
2.
Manually enter the ESN (RFID) number located
on the back of the sensor or on the end panel of
the sensor box Follow the Manual Wireless
ESN Entry [804 and 101-164] procedures in the
DSC Control Panel Manual.
†
3.
Exit program mode.
Testing the Sensor
1.
Set the panel to the sensor test mode.
2.
Take the sensor and magnet to the desired
mounting location, making sure to line up their
alignment marks with each other. Trip the sensor
by pulling the magnet away from the sensor.
3.
Monitor the system after tripping the
sensor. Refer to the specific panel
documentation for interpretation of the results
to ensure desired signal strength is achieved.
Note: If a low battery alarm occurs, replace the
battery within 7 days.
CAUTION: Battery may explode if mistreated.
Do not recharge, disassemble or dispose of in
fire.
Mounting the Sensor
Mount the sensor using the supplied mounting
screws for permanent mounting installations or
using the supplied double-sided tape is optional.
Note: The gap between the sensor and magnet
should not exceed a maximum of 3/8".
Mounting Screws
1. Remove the sensor base from the sensor.
2. Place the sensor base in desired location and
mount the base with the supplied screws. Attach
the sensor to the base.
3. Mount the magnet into the desired location
using the supplied screw, making sure the
alignment mark lines up with the sensor mark.
Control Panel Manual.
†
